Summary of Contents for AOC AGOR AG323QCX2

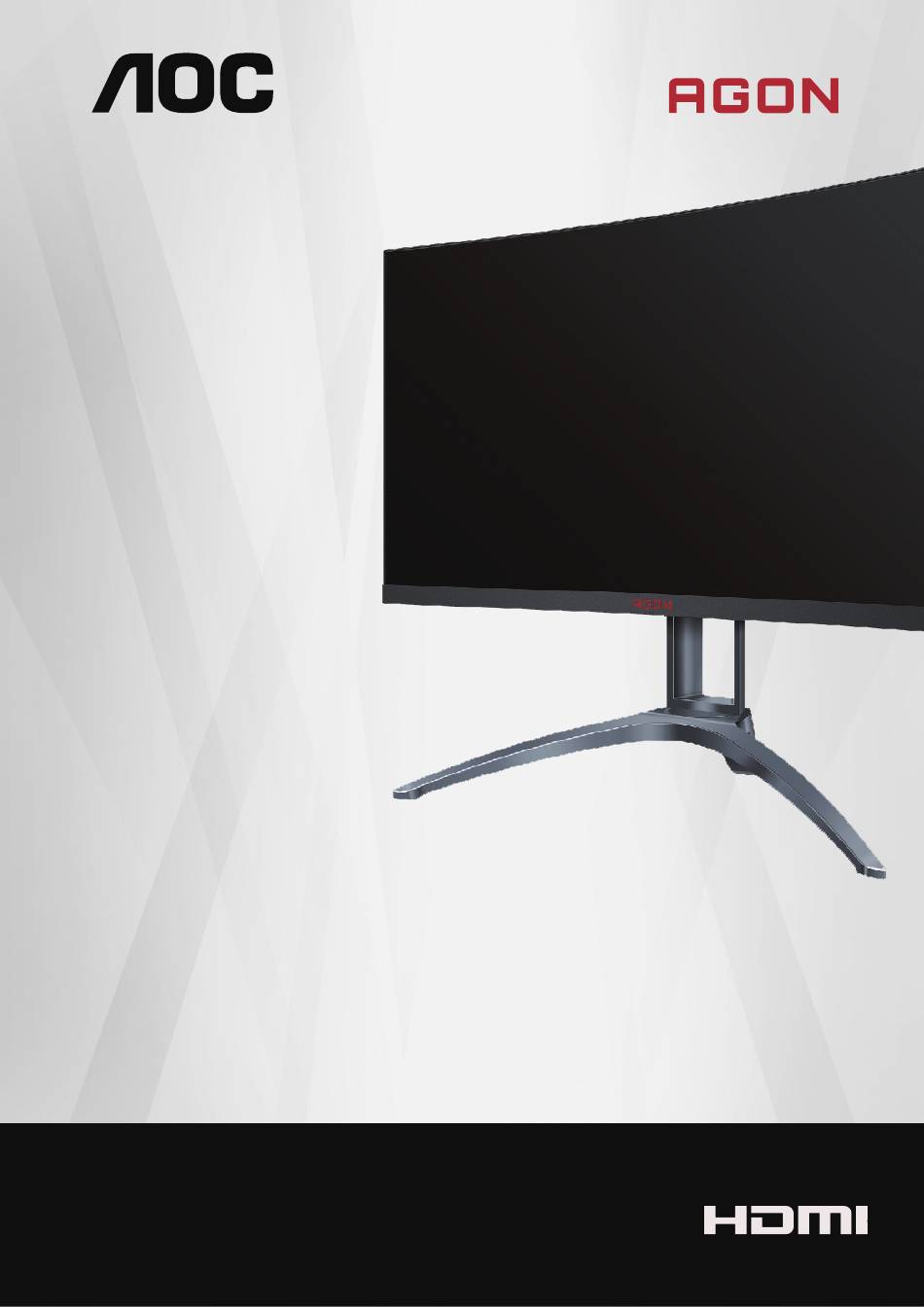

- Page 1 LCD Monitor User Manual AG323QCX2 www.aoc.com © 2021 AOC.All Rights Reserved...
-
Page 2: Table Of Contents
Safety ....................................1 National Conventions ..............................1 Power ..................................2 Installation ................................. 3 Cleaning ..................................4 Other ..................................5 Setup ....................................6 Contents in Box ................................. 6 Setup Stand & Base ..............................7 Adjusting the monitor ..............................8 Connecting the Monitor ............................. 9 Wall Mounting................................ -
Page 3: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 6: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 7: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 8: Setup
Stand Screws Base Screw Wire clip Power Cable DP Cable HDMI Cable USB Cable Micphone Cable Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 9: Setup Stand & Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:... -
Page 10: Adjusting The Monitor
Adjusting the monitor For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor as below: 110mm 30°... -
Page 11: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: 1. USB upstream 2. USB3.2 Gen1 downstream + fast charging x1 USB3.2 Gen1 downstreamx1 3. USB3.2 Gen1 downstream x2 4. Microphone in 5. Earphone (Combined with Microphone) 6. Power 7. -
Page 12: Wall Mounting
5. Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting arm for instructions on attaching it to the wall. Noted: VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC. * Display design may differ from those illustrated. WARNING: 1. -
Page 13: Amd Freesync Premium Function
AMD FreeSync Premium function 1. AMD FreeSync Premium function is working with DP/HDMI 2. Compatible Graphics Card: Recommend list is as the below, also could be checked by visiting www.AMD.com • Graphics Cards • Radeon RX Vega series • Radeon RX 500 series •... -
Page 14: Hdr
It is compatible with input signals in HDR10 format. The display may automatically activate the HDR function if the player and content are compatible. Please contact the device manufacturer and the content provider for information on the compatibility of your device and content. Please select “OFF”... -
Page 15: Hotkeys
Hotkeys Source/Up Dial Point/Down Game Mode/Left Light FX /Right Power/ Menu/Enter Power/Menu/Enter Press the Power button to turn on the monitor. When there is no OSD, Press to display the OSD or confirm the selection. Press about 2 seconds to turn off the monitor. Dial Point/Down When there is no OSD, press Dial Point button to show / hide Dial Point. -
Page 16: Osd Key Guide (Menu)
OSD Key Guide (Menu) Enter Move Exit Enter : Use Enter key to enter the next OSD level Move : Use Left / Up / Down key to move OSD selection Exit : Use Right key to exit OSD Enter Move Exit Enter : Use Enter key to enter the next OSD level... - Page 17 Enter Select Select : Use Up / Down key to adjust OSD setting Enter Select Enter : Use Enter key to exit OSD to previous OSD level Select : Use Left / Right key to adjust OSD setting...
-
Page 18: Osd Setting
OSD Setting Basic and simple instruction on the control keys. Image Setup Color Setup Audio Light FX Audio Light FX Extra OSD Setup Enter Move Exit Enter Move Exit 1). Press the MENU-button to activate the OSD window. 2). Follow Key Guide to move or select (adjust) OSD settings 3). -
Page 19: Game Setting
Game Setting Game Setting Game Mode Shadow Control Game Color AMD FreeSync Overdrive Low Input Lag QuickSwitch LED Frame Counter Exit Enter Select For playing FPS (first Person Shooters) games. Improves dark theme black level details. For playing RTS (Real Time Strategy). Improves the image quality. - Page 20 Weak Adjust the response time. Note: 1. If the user adjusts OverDrive to “High,” the Medium displayed image may be blurred. Users can adjust the OverDrive level or turn it off according to their preferences. Overdrive Strong 2. The “Boost” function is optional when AMD FreeSync Premium is turned off, the low input delay is turned on, and the refresh rate is ≥75Hz.
-
Page 21: Luminance
Luminance Luminance Contrast Brightness ECO Mode Standard Gamma Gamma1 Exit Enter Select Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment Standard Standard Mode Text Text Mode Internet Internet Mode Eco mode Game Game Mode Movie Movie Mode Sports Sports Mode Gamma1 Adjust to Gamma 1 Gamma... -
Page 22: Image Setup
Image Setup Image Setup Exit Enter Select Off DisplayHDR Set the HDR profile according to your usage requirements. Note: HDR Picture When HDR is detected, the HDR option is displayed for adjustment. HDR Movie HDR Game Off Optimized for the color and contrast of the picture, which will simulate showing the HDR effect. -
Page 23: Color Setup
Color Setup Color Setup LowBlue Mode Color Temp. Warm DCB Mode DCB Demo Green Blue Exit Enter Select Off / Multimedia Decrease blue light wave by controlling color LowBlue Mode / Internet / Office temperature. / Reading Warm Recall Warm Color Temperature from EEPROM. Recall Normal Color Temperature from Normal EEPROM. -
Page 24: Audio
Audio Audio Volume DTS Sound TruVolume HD 200Hz 500Hz 2.5KHz 7KHz 10KHz Exit Enter Select Volume 0-100 Adjust volume setting Game / Rock / Select DTS Sound mode. DTS Sound Classical / Live / Note: It may take up to 2 seconds to switch modes. Theater / Off TruVolume HD On / Off... -
Page 25: Light Fx
Light FX Light FX Light FX Light FX Mode Medium Pattern Static Foreground R Foreground G Foreground B Background R Background G Background B Exit Enter Select Off / Low / Medium / Light FX Select the intensity of Light FX. Strong Audio/Static/Simple Shift/ Gradient Shift/Simple... -
Page 26: Extra
Extra Extra Input Select Auto Off Timer Image Ratio Wide DDC/CI Reset Resolution:2560(H)x1440(V) SDR H.Frequency:89 KHz V.Frequency:60 Hz Exit Enter Select Input Select Select Input Signal Source Off timer 0-24hrs Select DC off time Wide / 4:3 / 1:1 / 17”(4:3) / 19”(4:3) / 19”(5:4) / 19”W(16:10) Image Ratio... -
Page 27: Osd Setup
OSD Setup OSD Setup Language English Timeout DP Capability 1.2/1.4 H.Position V.Position Transparence Break Reminder Exit Enter Select Language Select the OSD language. Timeout 5-120 Adjust the OSD Timeout. If the DP video content supports DP1.2/DP1.4, please select DP1.2/DP1.4 for DP Capability; otherwise, please select DP1.1. DP Capability 1.1/1.2/1.4 Please be noted that only DP1.2/DP1.4 support AMD FreeSync... -
Page 28: Led Indicator
LED Indicator Status LED Color Full Power Mode Active-off Mode Orange... -
Page 29: Troubleshoot
Press to auto-adjust. Please refer to Regulation & Service Information which is in the CD manual Regulation & Service or www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page. -
Page 30: Specification
Specification General Specification Model name AG323QCX2 Driving system TFT Color LCD Viewable Image Size 80.1 cm diagonal Panel Pixel pitch 0.2724mm(H) x 0.2724mm(V) Video HDMI lnterface & DP Interface Display Color 16.7M Colors Horizontal scan range 30k-230kHz Horizontal scan Size(Maximum) 697.344mm 48-144Hz(HDMI) Vertical scan range... -
Page 31: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION FREQUENCY(kHz) FREQUENCY(Hz) 640x480@60Hz 31.469 59.94 640x480@72Hz 37.861 72.809 640x480@75Hz 37.5 640x480@100Hz 50.313 99.826 640x480@120Hz 60.938 119.72 800x600@56Hz 35.156 56.25 800x600@60Hz 37.879 60.317 800x600@72Hz 48.077 72.188 SVGA 800x600@75Hz 46.875 800x600@100Hz 62.76 99.778 800x600@120Hz 76.302 119.972 1024x768@60Hz 48.363... -
Page 32: Pin Assignments
Pin Assignments 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock-... -
Page 33: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
