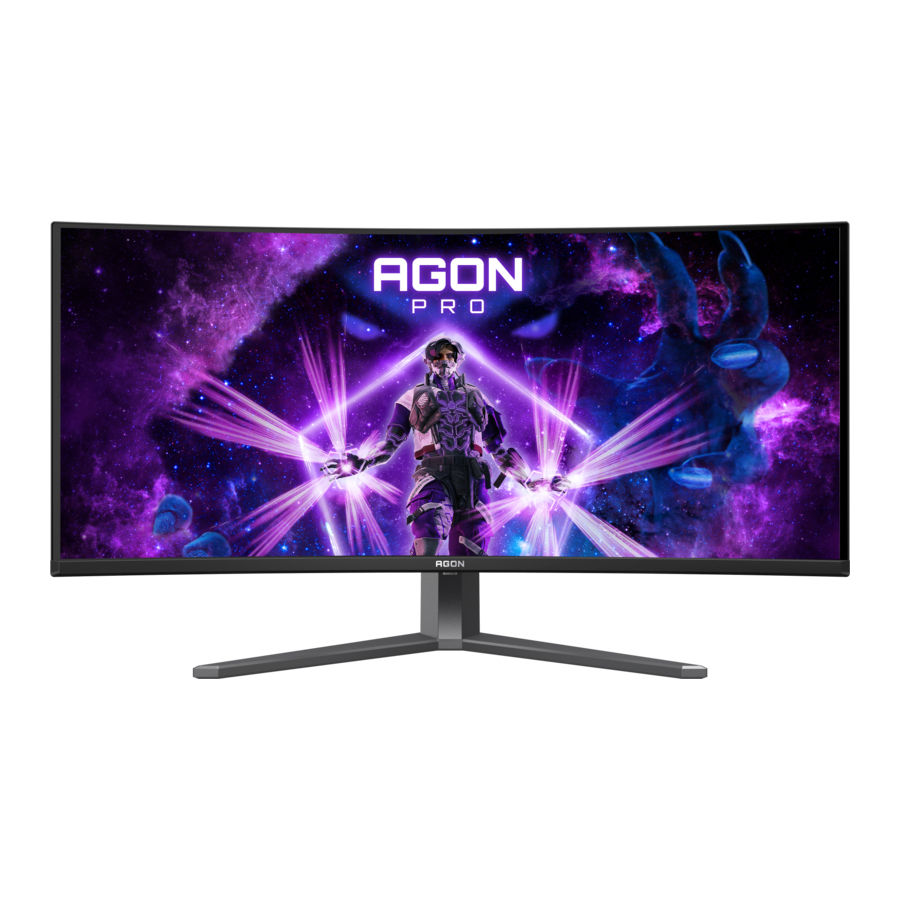

AOC AGON PRO AG346UCD Manual

Setup

Contents in Box

Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation.

Setup Stand & Base
Please setup or remove the base following the steps as below.

Setup:

Remove:

Specification for base screw: M6*21 mm (effective thread 5.5 mm)

Adjusting the monitor
For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference.
Hold the stand to steady the monitor, and grasp only the bezel to adjust the monitor's angle.
You are able to adjust the monitor as below:

NOTE:
Do not touch the OLED screen when you change the angle. Touching the OLED screen may cause damage.

1. To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than -5 degrees.
2. Do not press the screen while adjusting the angle of the monitor. Grasp only the bezel.

Connecting the Monitor
Cable Connections In Back of Monitor:

1. Power
2. HDMI1
3. HDMI2
4. Display Port
5. USB3.2 Gen1 up stream
6. USB3.2 Gen1 downstream + fast charging x1
7. Earphone
8. USB3.2 Gen1 down stream x2

Connect to PC

1. Connect the power cord to the back of the display firmly.
2. Turn off your computer and unplug its power cable.
3. Connect the display signal cable to the video connector on your computer.
4. Plug the power cord of your computer and your display into a nearby outlet.
5. Turn on your computer and display.
   If your monitor displays an image, installation was successful and is complete. If your monitor does not display an image, please refer to the "Troubleshooting" section.
   To protect equipment, always turn off the PC and OLED monitor before connecting.

Wall Mounting
Preparing to Install An Optional Wall Mounting Arm.

This monitor can be attached to a wall mounting arm you purchase separately. Disconnect power before this procedure. Follow these steps:

1. Remove the base.
2. Follow the manufacturer's instructions to assemble the wall mounting arm.
3. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of the monitor.
4. Insert the 4 screws into the holes and tighten.
5. Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for instructions on attaching it to the wall.

Wall hanger:

Specification of wall hanger screws: M4*12mm

1. To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than -5 degrees.
2. Do not press the screen while adjusting the angle of the monitor. Grasp only the bezel.

Adaptive-Sync function

1. Adaptive-Sync function is working with HDMI/DisplayPort
2. Compatible Graphics Card: Recommend list is as the below, also could be checked by visiting www.AMD.com

Graphics Cards

• Radeon™ RX Vega series
• Radeon™ RX 500 series
• Radeon™ RX 400 series
• Radeon™ R9/R7 300 series (R9 370/X, R7 370/X, R7 265 except)
• Radeon™ Pro Duo (2016)
• Radeon™ R9 Nano series
• Radeon™ R9 Fury series
• Radeon™ R9/R7 200 series (R9 270/X, R9 280/X except)

Processors

• AMD Ryzen™ 7 2700U
• AMD Ryzen™ 5 2500U
• AMD Ryzen™ 5 2400G
• AMD Ryzen™ 3 2300U
• AMD Ryzen™ 3 2200G
• AMD PRO A12-9800
• AMD PRO A12-9800E
• AMD PRO A10-9700
• AMD PRO A10-9700E
• AMD PRO A8-9600
• AMD PRO A6-9500
• AMD PRO A6-9500E
• AMD PRO A12-8870
• AMD PRO A12-8870E
• AMD PRO A10-8770
• AMD PRO A10-8770E
• AMD PRO A10-8750B
• AMD PRO A8-8650B
• AMD PRO A6-8570
• AMD PRO A6-8570E
• AMD PRO A4-8350B
• AMD A10-7890K
• AMD A10-7870K
• AMD A10-7850K
• AMD A10-7800
• AMD A10-7700K
• AMD A8-7670K
• AMD A8-7650K
• AMD A8-7600
• AMD A6-7400K

HDR
This monitor is compatible with HDR10 formatted input signals.
The display may automatically activate the HDR function if the player and content are compatible. Please contact the device manufacturer and the content provider for information on the compatibility of your device and content. If you have no need for the automatically activated HDR functions, please select "OFF" from the display settings menu.

Note:

1. 3840×2160@50Hz/60Hz is only available on devices such as UHD players or Xbox/PS.

2. Display Settings:

   1. The display resolution is set to 3440x1440, and HDR is preset to ON. Under these conditions, the screen may slightly dim, indicating HDR has been activated.

   2. After entering an application, the best HDR effect can be achieved when the resolution is changed to 3440x1440 (if available).


Adjusting

Hotkeys

1. Source/Up
2. Dial Point/Down
3. Game Mode/Left
4. Light FX /Right
5. Power/ Menu/Enter

Power/Menu/Enter
Press the Power button to turn on the monitor.
When there is no OSD, Press to display the OSD or confirm the selection. Press about 2 seconds to turn off the monitor.

Dial Point/Down
When there is no OSD, press Dial Point button to show / hide Dial Point.

Game Mode/Left
When there is no OSD, press "Left" key to open game mode function, then press "Left" or "Right" key to select game mode (FPS, RTS, Racing, Gamer 1, Gamer 2 or Gamer 3) basing on the different game types.

Light FX/Right
When there is no OSD, press "Right" key to active Light FX function.

Source/Up
When the OSD is closed, press Source/Auto/Up button will be Source hot key function.

OSD Key Guide (Menu)

Enter: Use Enter key to enter the next OSD level
Move: Use Left / Up / Down key to move OSD selection
Exit: Use Right key to exit OSD

Enter: Use Enter key to enter the next OSD level
Move: Use Right / Up / Down key to move OSD selection
Exit: Use Left key to exit OSD

Enter: Use Enter key to enter the next OSD level
Move: Use Up / Down key to move OSD selection
Exit: Use Left key to exit OSD

Move: Use Left / Right / Up / Down Key to move OSD selection

Exit: Use Left key to exit OSD to previous OSD level
Enter: Use Right key to enter next OSD level
Select: Use Up / Down key to move OSD selection

Enter: Use Enter key to apply the OSD setting and back to previous OSD level
Select: Use Down key to adjust OSD setting

Select: Use Up / Down key to adjust OSD setting

Enter: Use Enter key to exit OSD to previous OSD level
Select: Use Left / Right key to adjust OSD setting

OSD Setting
Basic and simple instruction on the control keys.

1. Press the MENU-button to activate the OSD window.
2. Follow Key Guide to move or select (adjust) OSD settings
3. OSD Lock/Unlock Function: To lock or unlock the OSD, press and hold the Down–button for 10s while OSD function is not active.

Notes:
If the product has only one signal input, the item of "Input Select" is disable to adjust.

Game Setting

	Game Mode	Off	No optimization by Game Mode.
		FPS	For playing FPS (First Person Shooters) games. Improves dark theme black level details.
		RTS	For playing RTS (Real Time Strategy). Improves the image quality.
		Racing	For playing Racing games, Provides fastest response time and high color saturation.
		Gamer 1	User's preference settings saved as Gamer 1.
		Gamer 2	User's preference settings saved as Gamer 2.
		Gamer 3	User's preference settings saved as Gamer 3.
	Shadow Control	0-20	Shadow Control Default is 0, then end-user can adjust from 0 to 20 increase for a clearer picture. If picture is too dark to be saw the detail clearly, adjusting from 0 to 20 for a clear picture.
	Game Color	0-20	Game Color will provide 0-20 level for adjusting saturation to get better picture.
	Sniper Scope	Off /1.0 /1.5 /2.0	Zoom in locally to make it easier to target when shooting.
	Adaptive-Sync	On / Off	Disable or Enable Adaptive-Sync. Adaptive-Sync Run Reminder: When the AdaptiveSync feature is enabled, there may be flashing in some game environments.
	Low Input lag	On / Off	Shutting down the frame buffer can reduce input delay. Note: Low input delay is disabled by default and unadjustable when the field frequency is less than 175 Hz; and it is enabled by default and unadjustable when the field frequency is equal to 175 Hz and in the Adaptive-Sync state.
	Frame Counter	Off / Right-Up / Right-Down / Left-Down / Left- Up	Display V frequency on the corner selected

Note:
When the "HDR Mode" under "Luminance" is set to "non-off", "Shadow Control" and "Game Color" is not adjustable.
When the "HDR " under "Luminance" is set to "non-off", "Game Mode" "Shadow Control" and "Game Color" is not adjustable.
When the "Color Gamut" under "Color Setup" is set to non "Standard", "Shadow Control" and "Game Color" items are not adjustable.

Luminance

	Contrast	0-100	Contrast from Digital-register.
	Brightness	0-100	Backlight Adjustment
	Dark Boost	Off	Enhance the screen details in the dark or bright area to adjust the brightness in the bright area and ensure that it is not oversaturated.
		Level 1
		Level 2
		Level 3
	Eco mode	Standard	Standard Mode
		Text	Text Mode
		Internet	Internet Mode
		Game	Game Mode
		Movie	Movie Mode
		Sports	Sports Mode
		Reading	Reading Mode
	Gamma	Gamma1	Adjust to Gamma 1
		Gamma2	Adjust to Gamma 2
		Gamma3	Adjust to Gamma 3
	HDR	Off	Set the HDR profile according to your usage requirements. Note: When HDR is detected, the HDR option is displayed for adjustment.
		DisplayHDR
		HDR Peak
		HDR Picture
		HDR Movie
		HDR Game
	HDR Mode	Off	Optimized for the color and contrast of the picture, which will simulate showing the HDR effect. Note: When HDR is not detected, the HDR Mode option is displayed for adjustment.
		HDR Picture
		HDR Movie
		HDR Game

Note:
When "HDR Mode" is set to non-off state, "Contrast", "Eco mode " and "Gamma" items cannot be adjusted.
When the "HDR " under "Luminance" is set to "non-off", other items under "Luminance" cannot be adjusted. When the "Color Gamut" under "Color Setup" is set to "sRGB" or "DCI-P3", the "Contrast", "Dark Boost" Eco mode, "Gamma", and HDR/HDR Mode items are not adjustable.

PIP Setting

	PIP	Off / PIP / PBP	Disable or Enable PIP or PBP.
	Main Source		Select main screen source.
	Sub Source		Select sub screen source.
	Size	Small / Middle / Large	Select screen size.
	Position	Right-up	Set the screen location.
		Right-down
		Left-up
		Left-down
	Audio	On: PIP Audio	Disable or Enable Audio Setup.
		Off: Main Audio
	Swap	On: Swap	Swap the screen source.
		Off: non action

Note:

1. When "HDR" under "Brightness" is set to non-off state, all items under "PiP Setting" cannot be adjusted.
2. When PIP/PBP is enabled, some color-related adjustments in the OSD menu are valid only for the main screen, while the sub-screen is not supported. Hence, the main screen and the sub-screen may have different colors.
3. Set the input signal resolution to 1720X1440@60Hz at PBP to achieve the desired display effect.
4. When PBP/PIP is enabled, the compatibility of the main screen/sub-screen input source is shown in the following table:

Color Setup

	LowBlue Mode	Off / Multimedia / Internet / Office / Reading	Decrease blue light wave by controlling color temperature.
	Color Temp.	Warm	Recall Warm Color Temperature from EEPROM.
		Normal	Recall Normal Color Temperature from EEPROM.
		Cool	Recall Cool Color Temperature from EEPROM.
		User	Restore user color temperature from EEPROM.
	Color Gamut	Panel Native	Standard color space panel.
		sRGB	sRGB color space.
		DCI-P3	DCI-P3 color space.
	Red	0-100	Red gain from Digital-register.
	Green	0-100	Green gain from Digital-register.
	Blue	0-100	Blue gain from Digital-register.

Note:
"Luminance" controls under "Color Setup" can only be adjusted when "HDR Mode" or "HDR" is set to "OFF." When Color Space is set to sRGB or DCI-P3, all other items under Color Settings cannot be adjusted.

Audio

Volume

0-100

Adjust volume setting

Light FX

	Light FX	Off / Low / Medium / Strong	Select the intensity of Light FX.
	Light FX Mode	Audio1 / Audio2 / Static / Dark Point Sweep / Gradient Shift / Spread Fill / Drip Fill / Spreading Drip Fill / Breathing / Light Point Sweep / Zoom / Rainbow / Wave / Flashing / Demo	Select Light FX Mode
	Pattern	Red / Green / Blue / Rainbow / User Define	Select Light FX Pattern
	Foreground R	0-100	User can adjust Light FX foreground color, when Pattern setting to user define
	Foreground G
	Foreground B
	Background R	0-100	User can adjust Light FX background color, when Pattern setting to user define
	Background G
	Background B

OLED Care/Extra

	Pixel Orbiting (Image shift)	Off / Weak / Medium / Strong	Orbit will slightly shift the displayed image at the pixel level, once a second to prevent image retention. This function is "On (Weak)" by default, "Weak" moves the least, "Strong" moves the most, "Off" disables the movement and increases the chance of image retention. This can me set in the OSD menu.
	Auto Warning	On/ Off	Enable/Disable the "Pixel Refresh" Auto Warning feature. The monitor will automatically display an "Auto Warning" every 4 hours of cumulative usage to remind the user to run the "Pixel Refresh" process. Select "Off" to stop the Auto Warning for "Pixel Refresh." However, if the recommended time for running the " Pixel Refresh " is not followed, it may increase the risk of image retention on the screen. Please proceed with caution.
	Pixel Refresh (Elimination of image retention)	On/ Off	This function will help eliminate image retention. After startup, select "Yes" from the menu prompt. The display will shutdown the screen and run the maintenance cycle. The power indicator will flash white (1 second on/1 second off) while the cycle runs, about 10 minutes. At the end of the cycle the power indicator will turn off and the display will be in standby state.
	Screen Saver	Off / Slow / Fast	When a static image is detected for a certain period of time, the screen saver function will dim the screen to protect the panel from sticking. When a moving image is detected, the monitor will recover luminance to previous working status. Default setting is Slow and may change as Fast to active Screen Saver sooner. Would highly recommend that you always turn on Screen Saver as Slow or Fast to protect the screen. It is also recommended that you also set your device to use a screen saver.
	Logos Protection	Off/1/2	When there are multiple static logos detected on the screen, it's suggested to turn on logos Protection; which will dim the screen to protect the panel from image sticking where logos are detected.
	Boundary Dimmer	Off/1/2/3	For special aspect ratios that have a black area in the frame of the screen or a splitscreen, the boundary dimmer feature can automatically detect and dim the brightness of specific areas with a large difference in brightness levels.
	Taskbar Dimmer	Off/1/2/3	The Taskbar Dimmer technology will dim the brightness of the taskbar area on the screen. No brightness changes will be noticeable in the areas other than in the taskbar.
	ThermalProtection	Off / On	When the temperature of the monitor is over 60 degrees Celsius, the Thermal Protection feature will automatically dim the brightness of the screen in order to ensure heat dissipation properly. It is recommended that you turn on the feature for the monitor.
	Input Select	Auto/ HDMI1/ HDMI2/ DP	Select Input Signal Source
	Off Timer	0-24hrs	Select DC off time
	Image Ratio	Wide /Aspect / 4:3 /1:1 /17"(4:3) / 19"(4:3) / 19"(5:4) / 19"W(16:10) / 21.5"W(16:9) /22"W(16:10) / 23"W(16:9) / 23.6"W(16:9) /24"W(16:9) /27"W (16:9) /30"W (21:9) /32"W (16:9)	Select image ratio for display.
	DDC/CI	Yes or No	Turn On/Off DDC/CI Support
	Reset	Yes or No	Reset the menu to default
	Time after Pixel Refresh		It refers to the time that the screen lights up after the last Pixel Refresh operation is executed, in units of hours. A prompt of executing Pixel Refresh will be automatically sent to the user every four hours.
	Pixel Refresh Counts		It is used to record the number of times of executing Pixel Refresh.

OSD Setup

	Language		Select the OSD language
	Timeout	5-120	Adjust the OSD Timeout
	H. Position	0-100	Adjust the horizontal position of OSD
	V. Position	0-100	Adjust the vertical position of OSD
	Transparence	0-100	Adjust the transparence of OSD
	Break Reminder	On /Off	Enable a reminder for the user to take a break every hour of continuous activity, to prevent repetitive stress injury.

LED Indicator

Troubleshooting

Specification

General Specification

Note:

1. The maximum number of display colors supported by this product is 1.07 billion, and the setting conditions are as follows (there may be differences due to the output limitation of some graphics cards):

2. In order to reach WQHD 165Hz/175Hz 1.07 billion colors (in RGB/YCbCr 4:4:4 format) for DP 1.4 (HBR3) signal input, a DSC-enabled graphics card must be used. Consult the graphics card manufacturer for DSC support.

Preset Display Modes

Note: According to the VESA standard, different operating systems and graphics cards may have certain errors (+/-1Hz) on resoution. Actual please refer to the actual product.

Pin Assignments

19-Pin Color Display Signal Cable

20-Pin Color Display Signal Cable

Plug and Play
Plug & Play DDC2B Feature
This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
The DDC2B is a bi-directional data channel based on the I2C protocol. The host can request EDID information over the DDC2B channel.

Safety

Notational Conventions
The following subsections describe notational conventions used in this document.

Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows:
NOTE: A NOTE indicates important information that helps you make better use of your computer system.

A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific presentation of the warning is mandated by regulatory authority.

Power
The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin.
This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.
Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the monitor from damage due to power surges.
Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate configured receptacles marked between 100-240V AC, Min. 5A.
The wall socket shall be installed near the equipment and shall be easily accessible.

Installation
Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. Follow the manufacturer's instructions when installing the product and use mounting accessories recommended by the manufacturer. A product and cart combination should be moved with care.
Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or electric shock. Never spill liquids on the monitor.
Do not place the front of the product on the floor.
If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.
Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence overheating may cause a fire or damage to the monitor.
To avoid potential damage, for example the panel peeling from the bezel, ensure that the monitor does not tilt downward by more than -5 degrees. If the -5 degree downward tilt angle maximum is exceeded, the monitor damage will not be covered under warranty.
See below the recommended ventilation areas around the monitor when the monitor is installed -on the stand:

Installed with stand

Cleaning
Clean the cabinet regularly with a water-dampened, soft cloth.
When cleaning use a soft cotton or microfiber cloth. The cloth should be damp and almost dry, do not allow liquid into the case.

Please disconnect the power cord before cleaning the product.

Other
If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center.
Make sure that the ventilating openings are not blocked by a table or curtain.
Do not engage the OLED monitor in severe vibration or high impact conditions during operation.
Do not knock or drop the monitor during operation or transportation.
It is not recommended to use this OLED product for more than four continuous hours. Possible image retention (burn-in) may occur beyond this usage duration. To reduce the probability of image retention this product uses a number of technologies A maintenance cycle takes about 10 minutes. For details, refer to the "Screen Maintenance" section.
