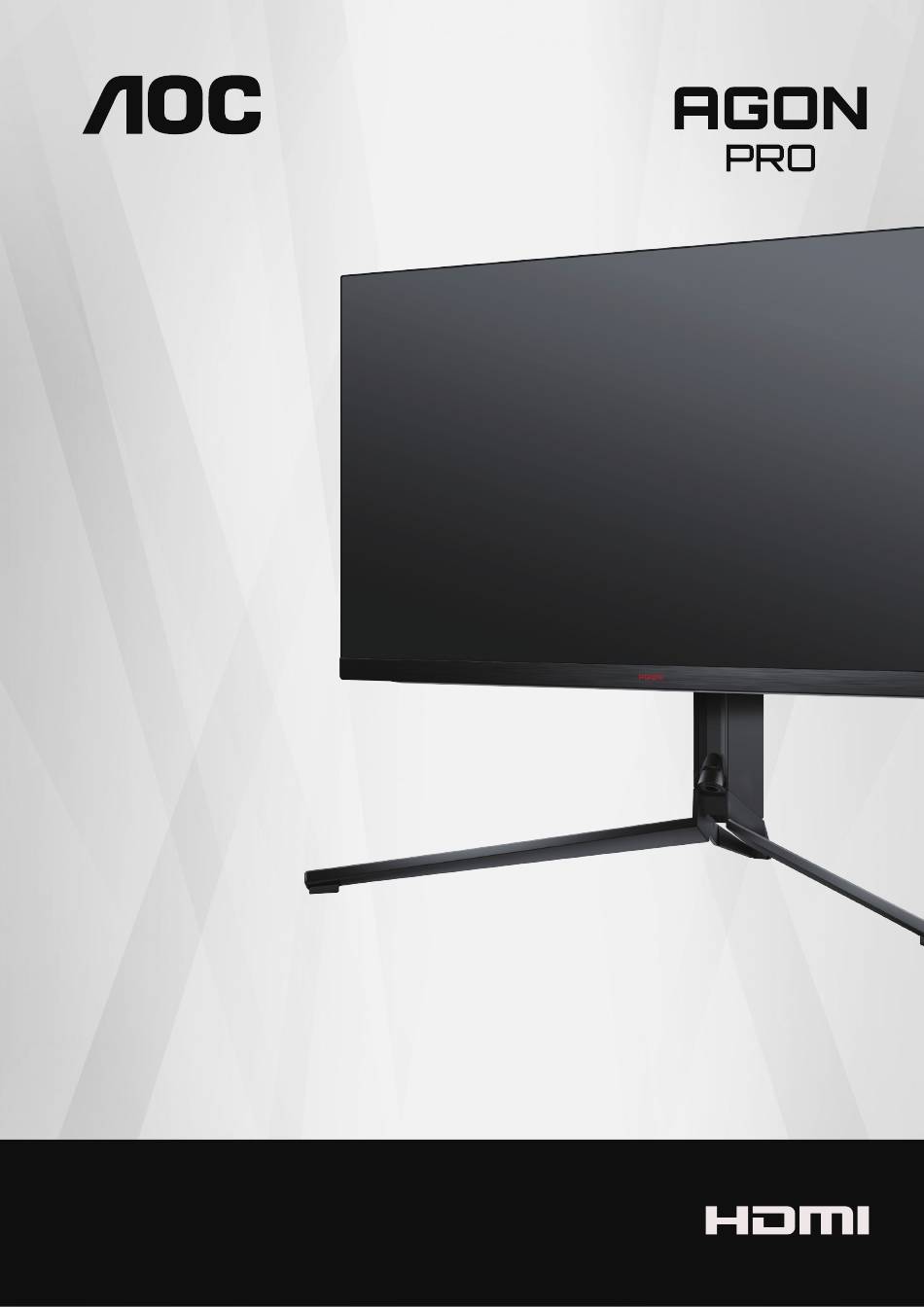

- Page 1 LCD Monitor User Manual AG324UX www.aoc.com 2021 AOC.All Rights Reserved ©...
-
Page 2: Table Of Contents
Safety ....................................1 National Conventions ..............................1 Power ..................................2 Installation ................................. 3 Cleaning ..................................4 Other ..................................5 Setup ....................................6 Contents in Box ................................. 6 Setup Stand & Base ..............................7 Adjusting the monitor ..............................8 Connecting the Monitor ............................. 9 Wall Mounting................................ -
Page 3: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 4: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 5: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 6: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 7: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 8: Setup
Power Cable Adaptor DP Cable HDMI Cable USB Cable USB C-C Cable Micphone Quick Switch Cable Keypad Not all signal cables will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 9: Setup Stand & Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:... -
Page 10: Adjusting The Monitor
Adjusting the monitor For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor’s angle. You are able to adjust the monitor as below: 130mm 90°... -
Page 11: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: 11 12 13 1. Power 2. DC Switch 3. HDMI1 4. HDMI2 5. DP 6. USB C 7. Microphone out (Connect to PC) 8. Quick Switch port 9. USB3.2 Gen1 upstream 10. -
Page 12: Wall Mounting
4. Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting arm for instructions on attaching it to the wall. Noted: VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC. 0° 90°... -
Page 13: Adaptive-Sync Function
Adaptive-Sync function 1. Adaptive-Sync function is working with DP/HDMI 2. Compatible Graphics Card: Recommend list is as the below, also could be checked by visiting www.AMD.com • Graphics Cards • Radeon RX Vega series • Radeon RX 500 series • Radeon RX 400 series •... -
Page 14: Hdr
It is compatible with input signals in HDR10 format. The display may automatically activate the HDR function if the player and content are compatible. Please contact the device manufacturer and the content provider for information on the compatibility of your device and content. Please select “OFF”... -
Page 15: Adjusting
Adjusting Hotkeys Source/Up Dial Point/Down Game Mode/Left Light FX /Right Power/ Menu/Enter Power/Menu/Enter Press the Power button to turn on the monitor. When there is no OSD, Press to display the OSD or confirm the selection. Press about 2 seconds to turn off the monitor. Dial Point/Down When there is no OSD, press Dial Point button to show / hide Dial Point. -
Page 16: Quick Switch
Quick Switch ◄: When there is no OSD, press the ◄ button to open game mode function, then press ◄ or ► key to select game mode (FPS, RTS, Racing, Gamer 1, Gamer 2 or Gamer 3) basing on the different game types. ►: When there is no OSD, press “Right”... -
Page 17: Osd Key Guide (Menu)
OSD Key Guide (Menu) Enter Move Exit Enter : Use Enter key to enter the next OSD level Move : Use Left / Up / Down key to move OSD selection Exit : Use Right key to exit OSD Enter Move Exit Enter : Use Enter key to enter the next OSD level... - Page 18 Enter Select Select : Use Up / Down key to adjust OSD setting Enter Select Enter : Use Enter key to exit OSD to previous OSD level Select : Use Left / Right key to adjust OSD setting...
-
Page 19: Osd Setting
OSD Setting Basic and simple instruction on the control keys. PIP Se�ng Color Setup PIP Se�ng Audio Light FX Audio Light FX Extras OSD Setup Enter Move Exit Enter Move Exit 1). Press the MENU-button to activate the OSD window. 2). -
Page 20: Game Setting
Game Setting Game Setting Game Setting Game Mode Frame Counter Shadow Control HDMI1 HDMI1 120Hz Game Color HDMI2 HDMI2 120Hz Adaptive-Sync Overdrive Low Input Lag QuickSwitch LED Exit Enter Select Exit Enter Select No optimization by Smart image game For playing FPS (first Person Shooters) games. Improves dark theme black level details. - Page 21 Off / Right-Up / Display V frequency on the corner selected Frame Counter Right-Down / Left- (Frame counter feature only works with AMD graphic card.) Down / Left-Up When using the PS2(3) ,XBOX or DVD player, please HDMI1 120Hz/144Hz change the OSD setting to “120Hz” When using the PS2(3) ,XBOX or DVD player, please HDMI2 120Hz/144Hz...
-
Page 22: Luminance
Luminance Luminance Contrast Brightness ECO Mode Standard Gamma Gamma1 HDR Mode Exit Enter Select Contrast 0-100 Contrast from Digital-register. Brightness 0-100 Backlight Adjustment Standard Standard Mode Text Text Mode Internet Internet Mode Game Game Mode Eco mode Movie Movie Mode Sports Sports Mode Reading... -
Page 23: Pip Setting
Note: 1. When “HDR Mode” under “Luminance” is set to non-off, “Contrast”, “Eco Mode” and “Gamma” can’t be adjusted. 2. When “HDR” under “Luminance” is set to non-off, all items under “Luminance” can’t be adjusted. PIP Setting PIP Setting Main Source HDMI2 Sub Source Size... -
Page 24: Color Setup
Color Setup Color Setup LowBlue Mode Color Temp. Warm DCB Mode DCB Demo Green Blue Exit Enter Select Off / Multimedia Decrease blue light wave by controlling color LowBlue Mode / Internet / Office temperature. / Reading Warm Recall Warm Color Temperature from EEPROM. Recall Normal Color Temperature from Normal EEPROM. -
Page 25: Audio
Audio Audio Volume DTS Sound Game TruVolume HD 200Hz 500Hz 2.5KHz 7KHz 10KHz Exit Enter Select Volume 0-100 Adjust volume setting Off / Game / Rock Select DTS Sound mode. DTS Sound / Classical / Live / Note: It may take up to 2 seconds to switch modes. Theater TruVolume HD Off / On... -
Page 26: Light Fx
Light FX Light FX Light FX Medium Light FX Mode Static Pattern Rainbow Foreground R Foreground G Foreground B Background R Background G Background B Exit Enter Select Off / Low / Medium / Light FX Select the intensity of Light FX. Strong Audio1 / Audio2 / Static / Dark Point Sweep /... -
Page 27: Extra
Extra Extra Extra Input Select Auto Green USB Selection Auto Blue Logo Projector Medium Off Timer Image Ratio Wide Resolution: 3840(H)x2160(V) SDR Resolution: 3840(H)x2160(V) SDR H.Frequency: 67 KHz H.Frequency: 67 KHz V.Frequency: 30 Hz V.Frequency: 30 Hz Exit Enter Select Exit Enter Select... -
Page 28: Osd Setup
OSD Setup OSD Setup Language English Timeout DP Capability 1.2/1.4 H.Position V.Position Transparence Break Reminder Exit Enter Select Language Select the OSD language Timeout 5-120 Adjust the OSD Timeout please be noted that only DP1.2/DP1.4 support Adaptive-Sync DP Capability 1.1/1.2/1.4 function H. -
Page 29: Led Indicator
LED Indicator Status LED Color Full Power Mode White Active-off Mode Orange... -
Page 30: Troubleshoot
Press to auto-adjust. Please refer to Regulation & Service Information which is in the CD manual Regulation & Service or www.aoc.com (to find the model you purchase in your country and to find Regulation & Service Information in Support page. -
Page 31: Specification
Specification General Specification Model name AG324UX Driving system TFT Color LCD Panel Viewable Image Size 80.0 cm diagonal Pixel pitch 0.181mm(H) x 0.181mm(V) Display Color 1.07B Colors Horizontal scan range 30k~255kHz Horizontal scan Size(Maximum) 697.3056 mm Vertical scan range 48~144Hz Vertical Scan Size(Maximum) 392.2344 mm Optimal preset resolution... -
Page 32: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STANDARD RESOLUTION FREQUENCY(kHz) FREQUENCY(Hz) 640x480@60Hz 31.469 59.94 640x480@67Hz 66.667 640x480@72Hz 37.861 72.809 640x480@75Hz 37.5 640x480@100Hz 51.08 99.769 640x480@120Hz 61.91 119.518 DOS MODE 720x400@70Hz 31.469 70.087 DOS MODE 720x480@60Hz 29.855 59.710 720x576@50Hz 31.25 SVGA 800x600@56Hz 35.156 56.25 SVGA 800x600@60Hz... -
Page 33: Pin Assignments
Pin Assignments 19-Pin Color Display Signal Cable Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock-... -
Page 34: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities.
