Setting up the Recorder
To set up the HD Cam Expansion port and configure the recorder for the CHW8:
1. Open the recorder's Configuration menu and select Record.
2. On the Recording Settings tab, select RTSP from the HD Cam Expansion 1 or HD Cam Expansion 2
dropdown list, depending on the expansion port connected to the camera.
3. Click Camera to open settings, select the RTSP tab, and enter the following information:
a. Ch/Title – select a logical channel (defines the display location in live and playback grid views)from
the Ch dropdown list. Optionally, enter a Title (name) for the stream pair.
b. IP – enter the IP address you assigned to the camera (see "Configuring the CHW8", step 7).
c. Port – leave this set to the default (554).
d. Main Stream Path – enter stream1
e. Sub Stream Path – enter stream2
f. User – enter Admin
g. Password – enter 11111111 (eight "1"s)
For more information on recorder configuration, see "Camera Settings" in the recorder's Installation and
Configuration Guide on the Safe Fleet Community.

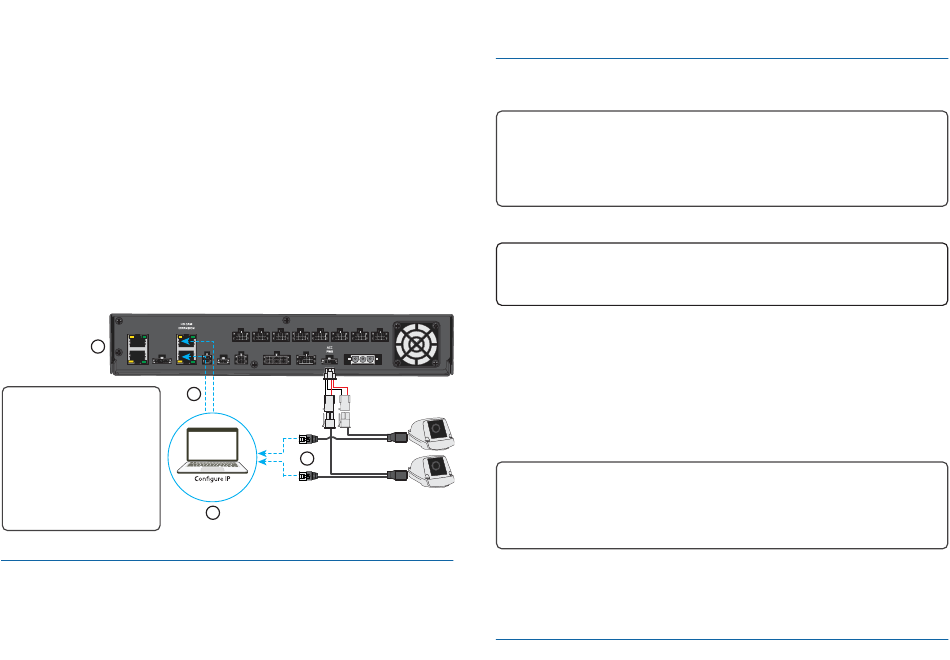

Connecting the Camera for Configuration
MODEM
4
G-SENSOR
POE WIFI
1. Connect the Ethernet cable from
the POE Injector Power Harness to
the laptop's LAN port.
2. Configure IP camera settings
(see pages 2 & 3).
3. Remove the Ethernet cable from
the laptop and connect it to the re-
corder's HD CAM EXPANSION port.
4. Configure the recorder as shown
above.
Technical Support
Email: PTsupport@safefleet.net
Phone: 1.844.899.7366
CAM 1 CAM 2 CAM 3 CAM 4 CAM 5 CAM 6 CAM 7
1
CTRL ALARM 2 GPS SIGNALS EXPANSION
POWER
2
3
1
Camera Settings
2
Documentation
Additional copies of this guide, along with other supporting
documentation can be found on the SafeFleet Community:
https://community.safefleet.net
Please contact Technical Support if you do not have credentials.
About
This guide covers procedures to set up a CHW8 camera for use with TH8 and NH16K recorders.
 CHW8 settings and unsupported IP cameras
Only change the CHW8 camera settings specified in this guide. If you need to work with camera con-
figuration options other than the network settings and image parameters referenced on page 3 of this
document, contact Technical Support for assistance.
If you are working with an unsupported IP camera, please contact Technical Support for setup informa-
tion and instructions.
Prerequisites
 Related installation documents
These procedures are part of a series of instructions covered by other guides. Do not proceed until you
have installed the recorder, and the camera is powered by the 12 V POE Injector Kit. Follow the instruc-
tions in the documentation referenced below.
Before performing the procedures in this document, you must have the following items ready:
CAM 8
• TH8 or NH16K recorder with firmware version 2.0.0.42 or higher (installed and functioning in a vehicle).
Do not proceed if you have not installed the recorder. Recorder installation documentation is available on
the Safe Fleet Community: https://community.safefleet.net
• CHW8 camera (powered through a Seon 12V POE Injector Power Harness):
• The 12 V POE Injector Kit is required (NVRPOEKIT12 includes the injector and Y harnesses). For
instructions, see the TH8 & NH16 12 V POE Injector Quick Installation Guide (part #700-1219).
• For camera installation instructions – see the CHW8 documentation on the Safe Fleet Community.
• Windows device running Internet Explorer 11 or later (required to log in and configure the camera), with
an RJ45 female LAN port or appropriate adaptor.
 Camera network plan
We recommend taking time up-front to create a record of each IP camera in the installation and its asso-
ciated network address. This can save a lot of time and effort, especially when troubleshooting.
Do not assign IP addresses in the range 172.31.1.#, where # is between 100 and 166 (inclusive). These
addresses are reserved for the Safe Fleet 16-port network switch (NS18POE16).
Kit Contents
Camera programming kit (part # IPCAM-PRGRM-KIT)
• CAT5E M-M UTP cable - 15 ft./4.6m (part # 085-0124) - Qty 1
• Female-to-female RJ45 straight coupler (part # 444-1044) - Qty 1
CHW8 Quick Setup Guide
for TH8 and NH16K Recorders
