Summary of Contents for Safe Fleet Rear view safety RVS-772718

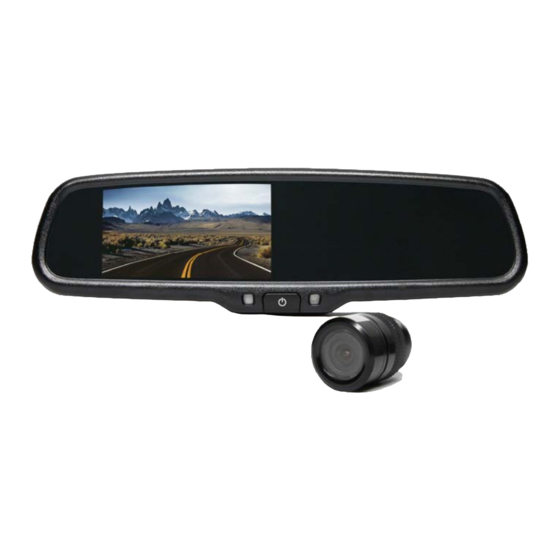

- Page 1 Instruction Manual Backup Camera System With Flush Mount Camera And Mirror Monitor RVS-772718 Rear View Safety, Inc. © 2016 Reverse With Confidence ™...
- Page 2 NOTE! Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Congratulations on purchasing a Rear View Backup Camera System! With this manual you will be able to properly install and operate the unit. Introduction.
-
Page 3: Installation
INSTALLATION: Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and/or • Electric shock or product or disconnected wire may cause a injury, including loss of life. Be sure to obey all applicable local malfunction may occur if this fire. - Page 4 If you have questions about this product, contact: Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility Rear View Safety of them being damaged while vehicle is in use. Keep all cables away 1797 Atlantic Avenue from hot or moving parts and electrical noisy components.
- Page 5 Wiring Replacement Monitor The mirror monitor replaces the existing car mirror. Carefully remove Connect the camera to the power harness, then plug into the AV2 in- put. Connect the RED 12V power wire to an ignition power source and the mirror off the “pin”. Slide the replacement mirror on to the pin and the BLACK 12V ground wire to a chassis ground.
- Page 6 Distance Grid Lines Generally, to help drivers estimate the distance from obstacles, there are three lines for reference- red, yellow, and green. Those three lines are dis- played on the monitor when car is reversing. The green line is 3M from the FIGURE 1.1 back of the car and the yellow line is 6.5 ft.
- Page 7 FIGURE 2.1 FIGURE 2.2 1. RED- Power (+) 2. YELLOW- Video 3. GREEN- Mirror / Normal Imaging 4. WHITE- Audio 5. BLACK- Ground (-) Rear View Safety Reverse With Confidence ™...
-
Page 8: Specifications
About Our Monitor 10.25” 3” SPECIFICATIONS: • 120° viewing angle - Ultra-wide angle • 8 infra-red lights - Perfect vision even in the darkest night Screen Size: 4.3” • Mount with bracket or flush on vehicle Display Screen: TFT-LCD • Compact design - Less than an inch in diameter Display Resolution: 400(H)x234(V) •... - Page 9 Camera Specifications No Image On Screen Sensor PC1089 • Do a hard reset, unplug all cables • Verify camera is on correct camera Lens F=2.8 and power cables, leave out for 1 input Resolution 480 TV Lines minute and then re-connect them Effective Pixels N: 728(H) x 488(V) | P: 762(H) x •...
- Page 10 ONE YEAR WARRANTY DISCLAIMER REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A REAR VIEW SAFETY AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR USER OF OUR SYSTEMS WILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION.
- Page 11 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 Better Cameras. Better Service. IT’S OUR GUARANTEE. Rear View Safety...
