Safe Fleet HD2D Quick Installation Manual

Safe Fleet HD2D Quick Installation Manual

Dual lens camera

Advertisement

Quick Links

Service & Support
If your HD2D Dual Lens camera is to be returned for service, please contact the Safe Fleet technical support
team, provide the part and/or serial # of your unit, and ask for a Return Merchandise Authorization (RMA)
number.
An RMA # allows the support team to better track your product when it comes in for service. Please show the
RMA # on the outside of the package.
ANY PRODUCT SENT WITHOUT AN RMA# MAY BE REFUSED!
Documentation and Warranty
Additional copies of this guide along with other documentation
and product warranty can be found on the Safe Fleet Community
website:
https://community.safefleet.net
2002/96/EC (WEEE directive): This product cannot be disposed of as unsorted municipal waste in the European
Union. For proper recycling, return the product to your local supplier upon the purchase of equivalent new equip-
ment, or dispose of it at designated collection points, for more information, see www.recyclethis.info.
2006/66/EC (battery directive): This product does not contain batteries.
Technical Support
Phone: 1.844.899.7366
Email:
PTsupport@safefleet.net
This guide covers the installation procedures for the HD2D Dual Lens camera.
About
The HD2D camera is meant to work with DH4C, TH6, TH8 and
NH16 video recorders as part of the Safe Fleet DS4 system.

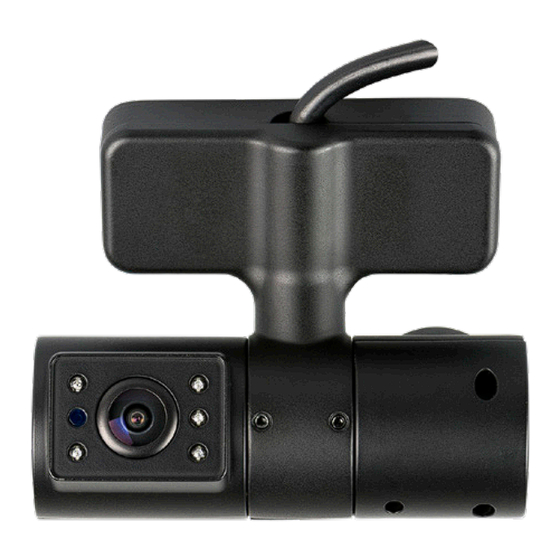

HD2D cameras have two lenses, a front lens facing the exterior
area ahead of the vehicle and a rear lens pointing inside the
vehicle.
The HD2D camera rear lens is provided with IR LED support and
a status indicator.
This camera is designed for interior use only.
Installation Kit Contents
Check the package and contents for visible damage. If any components are damaged or missing, contact the
Safe Fleet Service team and request an RMA (Return Material Authorization).
General purpose components
• HD2D Camera
• 1.6mm Hex Head 'L' Key
• Double-sided 3M self adhesive sticker
Cable Requirements
The HD2D Dual Lens camera needs an HEHD10 cable to be connected to
recorders.
Installation Environment
When installing the camera, consider the following:
• Ventilation: Ensure the location planned for the camera installation is well-ventilated.
• Temperature: Do not operate the camera beyond the specified temperature, humidity, or power source
ratings. The operating temperature of the camera is between
• Servicing: Do not attempt to repair this camera yourself. Any attempt to dismantle the product, except as
required for normal installation, will negate the warranty, and may also result in injury. Refer all servicing
to qualified service personnel.
• Cleaning: Do not touch the lens with your fingers. If cleaning is necessary, use a clean, soft cloth with
isopropyl alcohol and gently wipe the camera.
© Safe Fleet | All rights reserved
HD2D
Dual Lens Camera

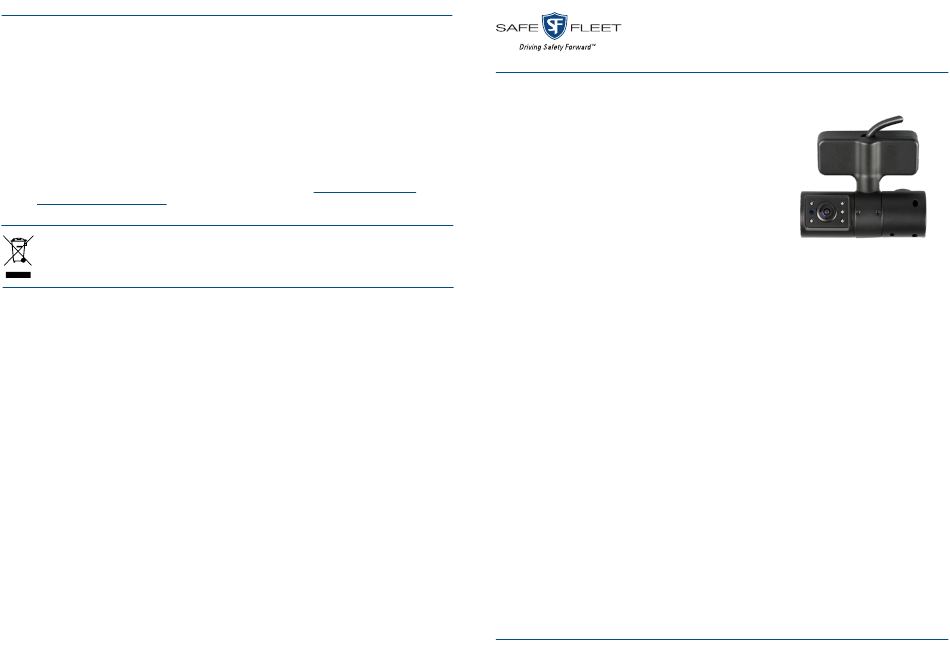

Quick Installation Guide
DH4C, TH6, TH8 and NH16
-10°C and +50°C (14°F to
+122°F).
April 2021 | Part #: 700-1256
video

Advertisement

loading
Need help?

Need help?

Do you have a question about the HD2D and is the answer not in the manual?

Questions and answers

Summary of Contents for Safe Fleet HD2D

  • Page 1 Quick Installation Guide If your HD2D Dual Lens camera is to be returned for service, please contact the Safe Fleet technical support team, provide the part and/or serial # of your unit, and ask for a Return Merchandise Authorization (RMA) number.
  • Page 2 Rear lens Mounting the Camera The HD2D camera should be mounted in or near the middle of the front windshield to ensure an even field of view while recording. HD2D Camera  WARNING: Do not block Forward Sensor Cameras •...
