Summary of Contents for Safe Fleet REAR VIEW SAFETY RVS-7700

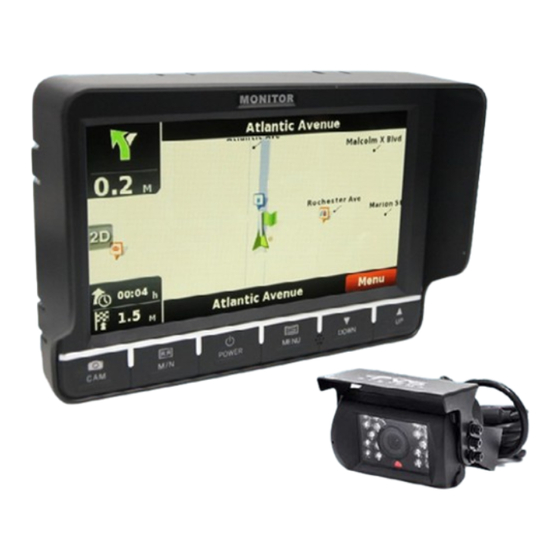

- Page 1 All manuals and user guides at all-guides.com Instruction Manual Backup Camera System with GPS Natigation (3 Channel) RVS-7700 Rear View Safety, Inc. © 2016 Reverse With Confidence ™...
- Page 2 All manuals and user guides at all-guides.com Introduction....... 03 Safety Information......04-06 Before Beginning Installation .
- Page 3 All manuals and user guides at all-guides.com NOTE! Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Congratulations on purchasing a Rear View Backup Camera System! With this manual you will be able to properly install and operate the unit.
- Page 4 All manuals and user guides at all-guides.com Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and/or injury, including loss of life. Be sure to obey all applicable local traffic and motor vehicle regulations as it pertains to this product.
-
Page 5: Installation
All manuals and user guides at all-guides.com INSTALLATION: • Electric shock or product or disconnected wire may cause a malfunction may occur if this fire. product is installed incorrectly. • While installing the Rear View System be careful with the wire •... - Page 6 All manuals and user guides at all-guides.com If you have questions about this product, contact: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
- Page 7 All manuals and user guides at all-guides.com Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot or moving parts and electrical noisy components.
- Page 8 All manuals and user guides at all-guides.com Precautions For Use Of Monitor I. The Monitor is made of glass and plastic. Do not subject it to a mechanical shock by dropping it from a high place, etc. II. Do not apply excessive force to the monitor surface or the adjoining areas since this may cause the color tone to vary.
- Page 9 All manuals and user guides at all-guides.com Reverse With Confidence ™...
- Page 10 All manuals and user guides at all-guides.com 1. CAM - Channel Switch 2. M/N - Normal/Mirror, Day/Night Mode (Long Press) 3. Power - Turn Monitor On/Off 4. Menu - Visit Menu 5. Down - Toggle Menu Function Down, Decrease Volume 6.
-
Page 11: Monitor Specifications
All manuals and user guides at all-guides.com Monitor Specifications Type: TFT LCD Screen Size: 7” Aspect Ratio: 16:9 Video Input: 3 Channel Trigger Capacity: 3 Triggers Video System: Auto PAL/NTSC Resolution: 800 X RGB X 480 Brightness: 450cd/m2 Power Supply: 9-36V DC Audio: Built-in Speaker Operating Temperature: -20°C ~ +70°C RH 95% Max Storage Temperature: -30°C ~ +80°C RH 95% Max... -
Page 12: Gps Navigation
All manuals and user guides at all-guides.com GPS Navigation Press the Navigation icon on the interface or ‘SRC’ , ‘GPS’ on the panel to switch to navigation mode. Rear View Safety... - Page 13 All manuals and user guides at all-guides.com 1. Setup - Press on the Setup icon to enter the setup interface. Select from Navigate setup/GPS monitor/Usual Setting/Touch Screen/Volume/Time/ System. Reverse With Confidence ™...
-
Page 14: Navigation Setup
All manuals and user guides at all-guides.com Navigation Setup Click on the Navigate setup icon to enter the interface shown below. GPS Monitor Click on the Navigate setup icon to enter the interface shown below. 1. Satellite dataflow 2. Satellite number & signal intensity 3. - Page 15 All manuals and user guides at all-guides.com Usual Setting Press the Usual Setting icon to enter the interface shown below. Press the arrow icons to change the settings. Touch Screen Press the Touch Screen icon to enter the calibration interface. Follow the screen prompt, pressing the center of the cursor until it moves to the top left, lower left, lower right and top right respectively.
- Page 16 All manuals and user guides at all-guides.com Volume Click on the Volume icon to enter the interface shown below. Press the arrows to change settings. Time Click on the Time icon to enter the interface shown below. Press the arrows to change settings. Rear View Safety...
-
Page 17: System Message
All manuals and user guides at all-guides.com System Message Press the System icon to enter the system interface. Choose from the settings as shown below. Entertainment Click on the Entertainment icon to enter the interface shown below. Choose from Music/Movie/E-Book/Picture. Reverse With Confidence ™... -
Page 18: Camera Dimensions
All manuals and user guides at all-guides.com Camera Dimensions • 18 Infra-red illuminators (enables you to see in total darkness) • 1/4 Sharp® color CCD, 250k pixels, 2.1 mm wide lens with 130° angle • Shock resistant with a 20G Vibration and 100G impact rating •... -
Page 19: Camera Specifications
All manuals and user guides at all-guides.com Camera Specifications SENSOR 1/4” SHARP® COLOR CCD PICTURE ELEMENTS 250,000 PIXELS GAMMA CORRECTION R=0.45 TO 1.0 IMAGE SENSOR 600 TV LINES, PAL: 500 (H) X 582 (V) NTSC: 510 (H) X 492 (V) LENS 2.1MM VIEW ANGLE... -
Page 20: One Year Warranty
All manuals and user guides at all-guides.com ONE YEAR WARRANTY REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY, INC. IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS. - Page 21 All manuals and user guides at all-guides.com DISCLAIMER REAR VIEW SAFETY AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE USER OF OUR SYSTEMS WILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE WITH AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL AND CAUTIOUS DRIVING OR FOR THE CONSISTENT ADHERENCE TO ALL APPLICABLE TRAFFIC LAWS AND MOTOR VEHICLE SAFETY REGULATIONS.
- Page 22 All manuals and user guides at all-guides.com If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 Better Cameras. Better Service. IT’S OUR GUARANTEE. Rear View Safety...
