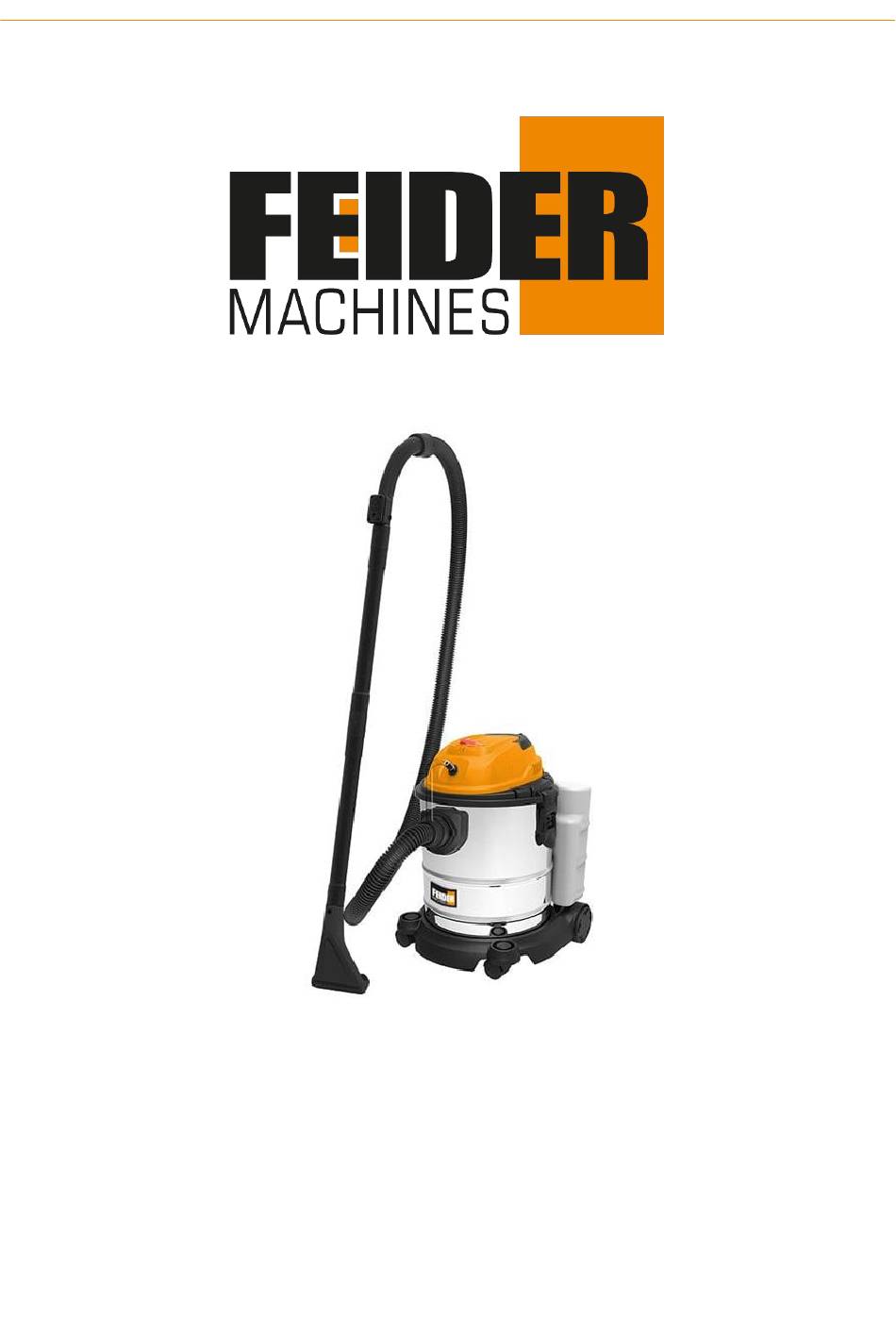

- Page 1 ORIGINAL INSTRUCTIONS >EN INJECTOR EXTRACTOR VACUUM CLEANER FIE1200W USER GUIDE CAUTION: Read the instructions before using this product!
- Page 2 CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. PRODUCT DESCRIPTION........................7 3. INTENDED USE.............................7 4. TECHNICAL DATA..........................8 5. BEFORE STARTING THE APPLIANCE................... 8 6. OPERATION............................12 7. CLEANING AND MAINTENANCE....................13 8. DISPOSAL AND RECYCLING......................14 9. WARRANTY............................15 10. PRODUCT FAILURE........................16 11. WARRANTY EXCLUSIONS......................17...
- Page 3 1. SAFETY INSTRUCTIONS MPORTANT When using the appliance, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions with due care. Keep this manual in a safe place, so that the information is available at all times.
- Page 4 shall not be made by children without supervision. I : Read the operating instructions before MPORTANT assembling and using the appliance for the first time. Check that the mains voltage is the same as the mains voltage specified on the rating plate. ...
- Page 5 This appliance is not suitable for vacuuming dust which can be harmful to health. Store the appliance in a dry indoor location. Never use the appliance if it is damaged. Only allow the appliance to be serviced by an authorized customer service center.
- Page 6 it has cooled off on the outside may still be hot on the inside. Hot extracted material could be set alight again in the air current. Before beginning extraction, please wait until the material is completely cooled off. Hot ashes should not be purged with water, as the sudden temperature difference can cause ruptures to the chimney.
- Page 7 the tank in order to prevent the accumulation of materials which could present a fire hazard in the vacuum cleaner. The plug must be removed from the socket-outlet before cleaning or maintaining the appliance. 2. PRODUCT DESCRIPTION Handle ON/OFF switch Appliance head (with motor) Water tank Air Intake...
- Page 8 4. TECHNICAL DATA Model FIE1200W Mains voltage: 220-240V~ 50/60Hz Power input: 1200W Suction: >16 Kpa INGRESS PROTECTION IPX4 Vacuum volume: 25 L Water tank capacity 4.5L Hose: 1.5m Pump power: 19-25W Power cable: Weight: 7.2kg 5. BEFORE STARTING THE APPLIANCE MPORTANT ...
- Page 9 5.3ASSEMBLING THE APPLIANCE 1) Assemble 2pcs outward wheels (8) and 2pcs rear wheels(7) 2) Disassembly/ Assembly of the filter MPORTANT Never use the ash vacuum without the filter! Always ensure that the filters are perfectly secure. slip the supplied foam filter over the filter cage •...
- Page 10 4) Fitting the metal tube/brush...
- Page 11 Wet and dry brush is for vacuuming solids and liquids over medium to large areas; Water spray clean brush is for vacuuming liquids over medium to large areas; Crevice nozzle is specially designed for cleaning crevices and edges. 5) Fitting the water pipe...
- Page 12 6. OPERATION MPORTANT DO not connect the appliance to the mains supply before all accessories assembly. 6.1 ON/OFF SWITCH 1) Press the ON/OFF switch (2) “I” position. the vacuum cleaner is powered up but not working. 2) Press the “ S ” button to start the wet or dry vacuum cleaner function; the second press, vacuum cleaner function stopped.
- Page 13 6.3 DRY VACUUM-CLEANING Unplug before change filter (Figure 1), then take out the bag and empty the dust or replace the bag. Slip the dust bag onto the socket(figure 2) for dry vacuum-cleaning. Insert the plug and turn on the switch, then press the remote control, and the device works (Figure 5 &...
- Page 14 7.5 SERVICING At regular intervals and before each use, check that the filters in the Injector Extractor Vacuum cleaner are securely fitted. 7.6. ORDERING SPARE PARTS Please provide the following information on all orders for spare parts: Model/type of the appliance ...
- Page 15 9 . WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor.
- Page 16 1 0 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine.
- Page 17 11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
- Page 18 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France Made in PRC 2023...
