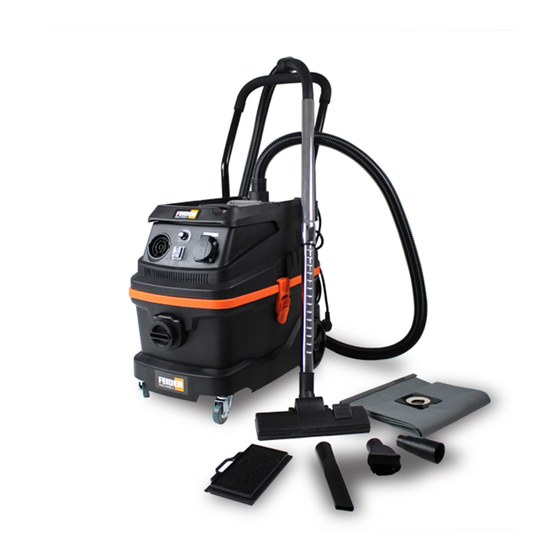

WATER AND DUST VACUUM CLEANER
Reference: FAP1630
Operating instructions
.
IMPORTANT ─Please carefully read this manual to understand the whole of the machine before use
To
reduce the risk of injury, user must read instruction manual.
BUILDER SAS
ZI – 32, rue Aristide Bergès, 31270 Cugnaux, France
MADE IN PRC
01
Advertisement
Table of Contents
Related Manuals for Feider Machines FAP1630
Summary of Contents for Feider Machines FAP1630
- Page 1 WATER AND DUST VACUUM CLEANER Reference: FAP1630 Operating instructions IMPORTANT ─Please carefully read this manual to understand the whole of the machine before use reduce the risk of injury, user must read instruction manual. BUILDER SAS ZI – 32, rue Aristide Bergès, 31270 Cugnaux, France...
-
Page 2: Table Of Contents
Table of Contents Considerations relating tosafe use….…….……….…….…….….….….………………………3 Warning.…….…….…….…….…….…….…….……….…….…….…..…….……….….….……4 Product instructions.…….…….…….…….…….…….…….…….…….…..…….……...….……5 Technical data…….…….…….…….…….…….…….….………….….….….……….…….……6 List of contents.…….…….…….…….…….…….…….……….…….….….…….………….……6 Electrical diagram…….…….…….……….…….…….….…….…….….….…….…….…………6 Main components.…….…….…….………….…….……..…...….…….….….…….……..……7 Operating instructions…….…….…….…….…….…….…..…….…….………..……..…….…8 Maintenance…….…….…….……….…….…….….….….…..……….…….……..……..……..11 Diagnosis of common faults.…….…….…….…….…….……….…….…….….….…….……..12 Exploded view of the product and spare parts list… ….…….…….….…………..….…..………13 CE Declaration of Conformity.…….…….……….…….…….….…….…….….…...….…….…16 WARRANTY…….…….……….…….…….….…….……..….…….….……….….….……..…17 PRODUCT FAILURE…….…….……….…….…….….….….……….…….….….….……..…18 WARRANTY EXCLUSIONS…….…….……….…….…….….…….…….….….…...…...….…19... -
Page 3: Considerations Relating Tosafe Use
General safety instructions for machine preparation, operation and maintenance are provided in this manual. The use should comply with the instructions. Otherwise, in case of an accident, the manufacturer shall not be held responsible. Considerations relating to safe use 1. Do not use in areas containing inflammable liquids or gases, or in areas protected against explosion, and protected against fire. -
Page 4: Warning
9. Before suctioning water, remove the dust bag, filters and use a sponge filter. 10. Clean the tank if it contains a lot of dust. Warning 1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe... -
Page 5: Product Instructions
air inlet is blocked, otherwise it can damage the vacuum cleaner. 8. Stop when an abnormal sound is emitted; check and clean. 9. Do not let children play with the vacuum cleaner accessories to avoid accidents. 10. If the electrical power is high, use a separate electrical panel to prevent fire. -
Page 6: Technical Data
• Technical data Rated voltage: 220-240V~ Rated frequency: 50/60Hz Rated power: 1600,3600 W with max load of socket-outlet Insulation class.:Class I Suction: ≥ 18 kPa Suction effectiveness: ≥ 20% • List of contents Name Amount Vacuum cleaner Flexible hose Telescopic tube Floor brush Round brush Small tip... -
Page 7: Main Components
• Main components (indicated in the illustration above) Name Name Floor brush Front suction Telescopic tube Handle Hose connector Cable Flexible hose Fasteners Top suction Tank Handle Small tip Switch Round tip... -
Page 8: Operating Instructions
Note: The vacuum cleaner is equipped with a double suction structure including front and top suction, they can be used for different functions. Top suction (Fig. A) If the hose is connected to the top suction, you may need to install a plug on the front suction. - Page 9 5. Installation of the two swivel wheels (Fig. 5) (1). Remove the head and tank from the body of the vacuum cleaner (where the wheels are located) (2). Tilt the vacuum cleaner, insert the swivel wheels on the front in the holes on both sides. 6.
- Page 10 14. Cleaning the filter (Fig. 14) (1). Remove the filter and wash it with clean water. (2). After cleaning, dry the filter for reuse. 15. Cleaning the connectors (Fig. 15) (1). Remove the connectors from the cover and clean them with water.
-
Page 11: Maintenance
• Accessories instructions Floor brush Used for cleaning carpet, parquet, marble, tiles, etc. Big Used to clean wall corners, windows, etc. Large round brush Used for sofa edges, picture frames, etc. • Cleaning of the dust (Fig. 22) -> (Fig. 23) (1). -
Page 12: Diagnosis Of Common Faults
• Diagnosis of common faults Default Possible reason Handling method Engine failure 1. Check if the plug is 1. Place the plug back into properly wired the outlet 2. Check if the power 2. Ensure that the power outlet is connected outlet is turned on 3. -
Page 13: Exploded View Of The Product And Spare Parts List
• Exploded view of the product and spare parts list... - Page 14 Name Amount Name Amount Protection against water 30 Pneumatic tool joint Screw ST4 x 16 31 Air valve seat Moulded blowing hose 32 Liquid level switch Connection column 33 Reverse blowing button Floating ball attachment 34 Blowing reversing spring Floating ball 35 Rear cover handle Screw ST4 x 70 36 Rear cover...
- Page 15 Name Amount Name Amount 58 Blocking steel pipe External tank 59 Rear wheel Base air inlet 60 Snap Ring Ø19 Air inlet cover 61 Screw ST5 x 40 Plastic fastener 62 Rear wheel axle Fastener plastic base 63 Front meta wheel Ø50 Plastic fastener joint 64 Lower base Correct Disposal of this product...
-
Page 16: Ce Declaration Of Conformity
States that the designated below machine : WATER AND DUST VACUUM CLEANER Model: FAP1630 S/N: 20210868876-20210869125 is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration. -
Page 17: Warranty
WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor. -
Page 18: Product Failure
PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 19: Warranty Exclusions
WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
