Summary of Contents for Feider Machines FHAEP20V20

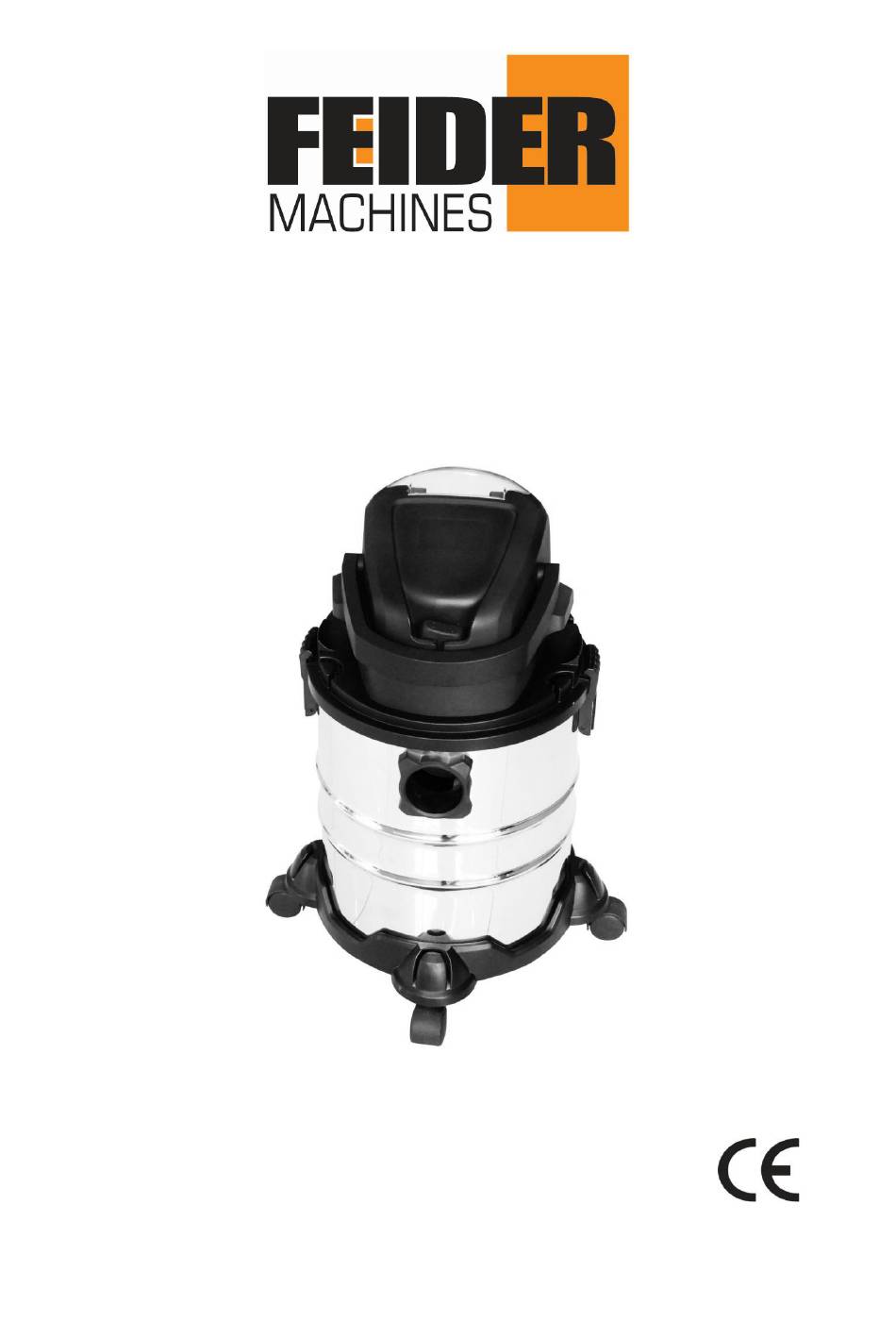

- Page 1 Original Instructions Cordless Wet & Dry Vacuum FHAEP20V20 FEIDER FRANCE 32 Rue Aristide Bergès, 31270 CUGNAUX - FRANCE...
-
Page 5: General Power Tool Safety
Caution! - Read the operating instructions to reduce the risk of inquiry. Danger! When using the equipment, a few safety precautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. - Page 6 Keep away from children. Never vacuum the following: burning matches, smoldering ash and cigarette butts, combustible, caustic, inflammable or explosive substances, vapor or liquids. This appliance is not suitable for vacuuming dust which can be harmful to health. ...
-
Page 7: Battery And Charger Safety
appropriate filter. The appliance is not suitable for the vacuuming of combustible, explosive or harmful substances. Do not aim the hose at other persons or animals. Never pick up asbestos or asbestos dust. Wood dust and shavings in a confined area can give rise to fire or an explosion. ... - Page 8 damaged in any way. Have it checked by an electrician or power tool repairer. Do not disassemble charger. Take it to an electrician or power tool repairer when service or repair is required. Incorrect reassembly may result in a risk of electric shock, electrocution or fire.
- Page 9 15 Foam filter 16 Crevice nozzle 17 Battery cover 18 Charger 19 Battery pack 20 Push lock button 21 Suction hose holder 2.2 Items supplied Please check that the article is complete as specified in the scope of delivery. If parts are missing, please contact the seller where you made your purchase at the latest within 5 work days after purchasing the article and upon presentation of a valid bill of purchase.
-
Page 10: Lithium Ion Battery
4. Technical data Voltage supply to motor: 20 V d.c. Tank volume: 20 L Weight (without battery): 3.85 kgs Lithium-ion battery FBA20U2 Voltage: 20 V d.c. Capacity: 2.0 Ah Charger: FFC20U Input voltage: 220 - 240 V ~ 50/60 Hz,0.6A max Output voltage: 20 V d.c. - Page 11 Vacuuming Connect the suction hose (10) to the suction hose connector (8) Blowing Connect the suction hose (10) to the blow connector (9). The 3-part suction tube (11) can be attached to the suction hose (10) to extend it. 5.4 Suction nozzles Dual-purpose nozzle (Fig.
- Page 12 begin to Green flash light. You will find a label with “Charger indicator” of the LED indicator on the charger. The battery pack can become a little warm during the charging. This is normal. If the battery pack fails to charge, check: ...
- Page 13 Battery pack is full of charge. Charging is finished and battery pack in the charger. The temperature of battery is too high or too low, the charger is under protection status. The charging function can be recovered after the temperature is normal. Unrecoverable battery malfunction.
-
Page 14: Troubleshooting
Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. We recommend that you clean the equipment immediately after you use it. 7.2 Cleaning the appliance head (Fig.1/3) Clean the appliance regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents;... -
Page 15: Warranty
pack fails to charging contacts. plug of the charger into the socket outlet, charge Insert the battery pack into the battery charger The battery pack is warm Allow the battery pack to cool to room or not, The battery temperature before commencing with the protection system will not charging. - Page 16 • Free replacement of damaged parts. • Including the free service of our specialized personnel (i.e. free assembly by our technicians) Provided that the damage is not due to improper use of the device. To help you with your product, we invite you to use this link or call us on +33 (0)9 70 75 30 30: https://services.swap-europe.com/contact You must create a "ticket"...
