Service Manual_2022-V1.0
Service Manual

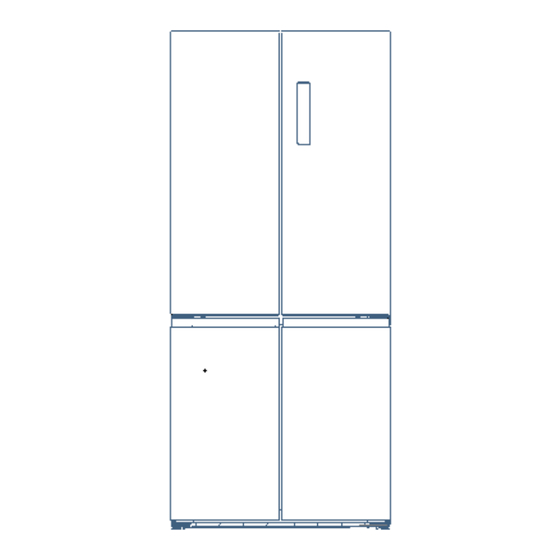

Cross-Door Series
Applicable Models
Product Models
Applicable Models
HQ-611RWEN
CE-BCD470WE-JT
22031040002221
The picture in this service manual is only for reference, and specific appearance
and configuration are subject to the real product.
This manual mainly teaches the method, the specific work skill needs engineer
to accumulate through the daily work.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Midea HQ-611RWEN
Summary of Contents for Midea HQ-611RWEN
- Page 1 Service Manual Cross-Door Series Applicable Models Product Models Applicable Models HQ-611RWEN CE-BCD470WE-JT 22031040002221 The picture in this service manual is only for reference, and specific appearance and configuration are subject to the real product. This manual mainly teaches the method, the specific work skill needs engineer...
- Page 2 Service Manual_2022-V1.0 WARNING Important Safety Notice There are special components used in this equipment which are important for safety. These parts are marked by in the Schematic Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire or other hazards.
- Page 3 Service Manual_2022-V1.0 Contents SIGNIFICANT UPDATE NOTES (NONE) ......................5 2. SAFETY WARNING ............................... 6 2.1 W ........................... 6 ARNING FOR OPERATION SAFETY 2.2 S ......................... 8 AFETY INSTRUCTION FOR REFRIGERANT 3. INSTALLATION AND COMMISSIONING ......................9 3.1 H ................................... 9 ANDLING 3.2 D ........................
- Page 4 Service Manual_2022-V1.0...
- Page 5 Service Manual_2022-V1.0 1. Significant update notes (None)
- Page 6 Service Manual_2022-V1.0 2. Safety Warning 2.1 Warning for operation safety Important Safety Instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your freezer. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your freezer.
- Page 7 Service Manual_2022-V1.0 CONNECTING ELECTRICITY Electrical Shock Hazard. Failure to follow these instructions can Plug into a grounded 3-prong outlet. result in death, fire, or electrical shock. Do not remove the ground prong. Do not use an adapter. WARNING Electric Shock Hazard Failure to follow these instructions can result in electric shock, fire, or death.
- Page 8 Service Manual_2022-V1.0 13) Do not store or use gasoline or any flammable liquids inside or in the vicinity of this freezer. 14) Do not use extension cords or ungrounded (two-prong) adapters with this freezer. If the power cord is too short, have a qualified electrician install an outlet near the freezer. Use of an extension cord can negatively affect the freezer’s performance.
- Page 9 Service Manual_2022-V1.0 3. Installation and commissioning 3.1 Handling Handling Protect the refrigerator in moving it,Same as shown as left photo, please move it by handcart with cushion Remove all packing materials and bottom cushion, the move into house for placement After moving it to appropriate location, wait for 2 hou rs before power on.
- Page 10 Service Manual_2022-V1.0 2) Disconnect the wiring connector③④, use screwdriver to remove the screw ⑤⑥, lift the right/left top hinges upwards. 3)Uplift the right/left refrigerator door from the middle hinge ⒀、⒁ according to the direction of arrow. Disassembly of Freezer door 1) Use cross screwdriver or socket spanner to remove the two screws holding the center hinge, remove the hinge,...
- Page 11 Service Manual_2022-V1.0 3.3 Installation location Installation location Please select a ventilated place to place the refrigerator, and reserve space according to the recommended size in the picture, which is conducive to heat dissipation, performance improvement and energy consumption reduction. 3.4 Leveling of the refrigerator Leveling of the refrigerator If the refrigerator cannot be placed steadily, adjust the footing to level it.
- Page 12 Service Manual_2022-V1.0 Stuff the adjusting gasket in the hinge under the door to be adjusted, so that the height of the left and right doors can be consistent. Adjustment of uneven gaps between two doors Use screwdriver to remove the 2 pcs screws, and then remove the upper hinge cover.
- Page 13 Service Manual_2022-V1.0 7. Dismantling of parts 7.1 Parts on the door Door seal Door seal is installed into door liner groove. 1)Open the refrigerator door; 2)Take the door seal out of door liner; Door tray While squeezing it inward, lift up the door tray and take it out from door liner.
- Page 14 Service Manual_2022-V1.0 3) pull out the whole rollover beam to seperature the lower part from the door; 4)Unplug the wire terminal, remove the rollover beam, reverse the operation to complete the installation. Door stopper After removing the refrigeration door, remove the fixing screws at the position shown in the figure, remove the door self-locking and block, and complete the self-locking replacement.
- Page 15 Service Manual_2022-V1.0 7.2 Parts inside the refrigerator Refrigerator fruits and vegetables box Remove the crisper cover of ref. compartement accordin g to below steps: 1）Take out the crisper firstly. 2)Lift up the Fruit box cover, and then pull out it. Shelves Lift up the division plate with a proper force and pull it out towards yourself;...
- Page 16 Service Manual_2022-V1.0 The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
