3. Remove the
solid state drive
4. Remove the
base
cover.
About this task
The following images indicate the location of the coin-cell battery and provide a visual representation of the removal procedure.

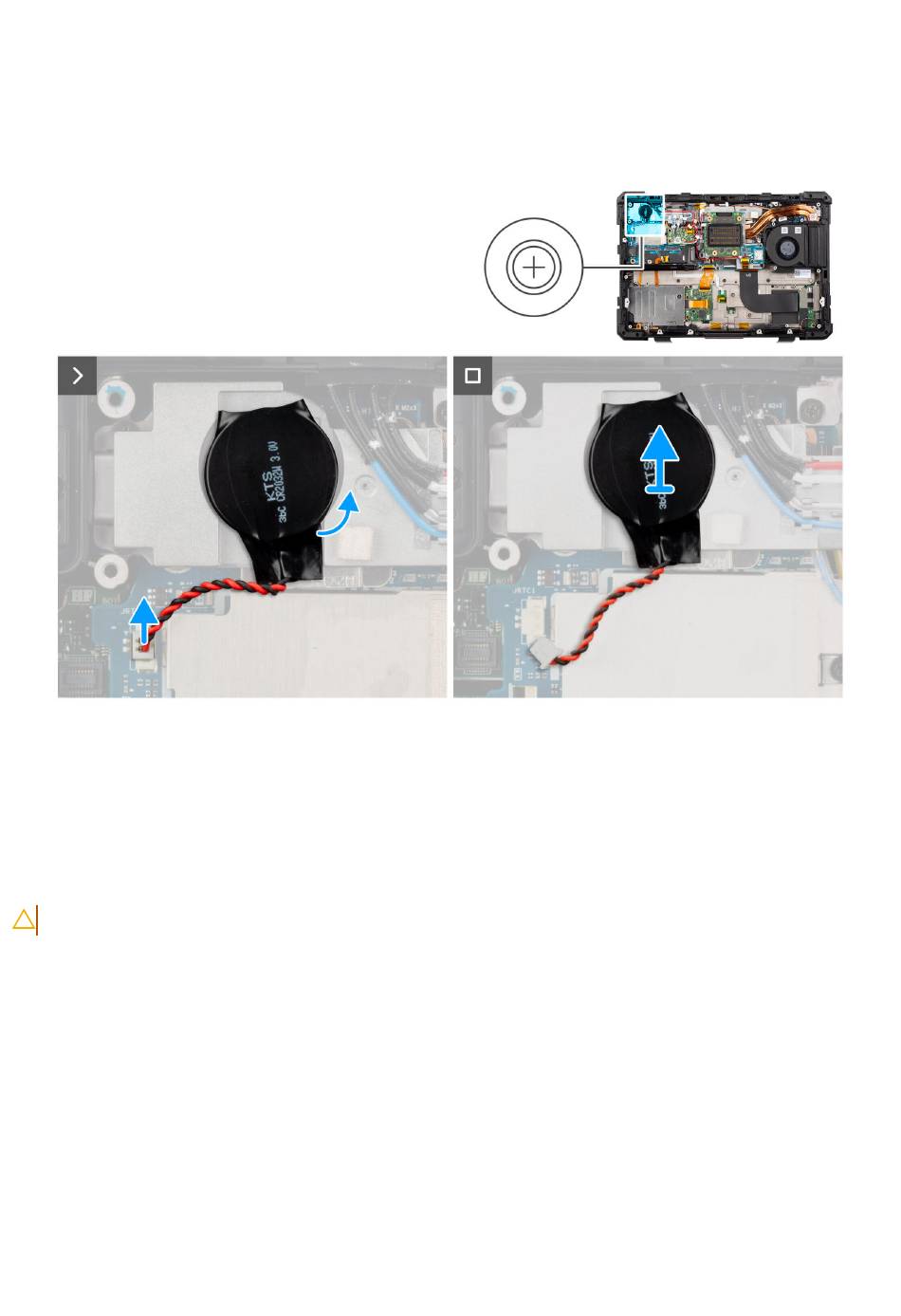

Figure 54. Removing the coin-cell battery
Steps
1. Disconnect the coin-cell battery cable from the system board.
2. Peel the coin-cell battery off the computer chassis.
Installing the coin-cell battery
CAUTION:
The information in this installation section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the coin-cell battery and provides a visual representation of the installation
procedure.
carrier.
Removing and installing Field Replaceable Units (FRUs)
87
