Coin-Cell Battery; Removing The Coin-Cell Battery; Installing The Coin-Cell Battery - Dell DM9KV Service Manual

Coin-cell battery

Removing the coin-cell battery

Prerequisites
1. Follow the procedure in
2. Remove the microSD
3. Remove the base cover.
4. Remove the battery.
5. Remove the speaker.
6. Remove the heatsink.
7. Remove the memory module.
8. Remove the system fan.
9. Remove the DC-in .
10. Remove the WLAN card.
11. Remove the WWAN card.
12. Remove the system board.
Steps

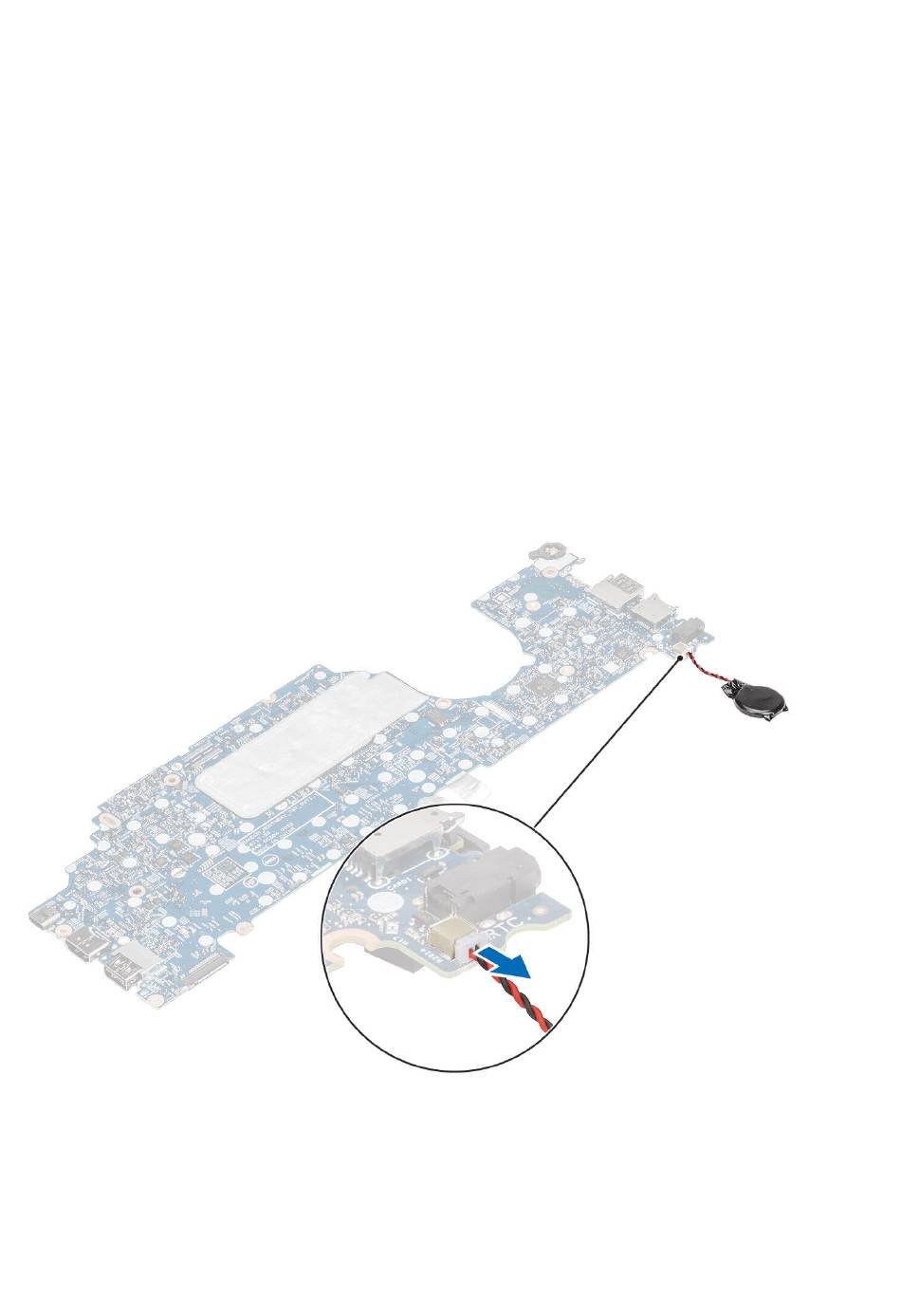

Turn the system board and disconnect the coin cell battery cable from the connector on the system board.

Installing the coin-cell battery

Steps
Turn the system board and connect the coin cell battery cable to the connector on the system board.
before working inside your
card.
computer.
Disassembly and reassembly 79
