Summary of Contents for dji OT-210
- Page 1 User Manual of Product 1: DJI Pocket 2 - Handheld 3-Axis Gimbal Stabilizer with 4K Camera, 1/1.7" CMOS, 64MP Photo, Face Tracking, YouTube, TikTok, Vlog, Portable Video Camera for Android and iPhone, Black...
- Page 2 User Manual v1.2 2021.03...
- Page 3 Scan the QR code to the right or search for "DJI Mimo" on the App Store. The Android version of DJI Mimo is compatible with Android v7.0 and later. The iOS version of DJI Mimo is compatible with iOS v11.0 and later.
- Page 4 DJI Mimo App Charging DJI Pocket 2 Updating Firmware Maintenance Storing DJI Pocket 2 Usage Notices Appendix Specifications Replacing the Detachable Base Using the DJI Pocket 2 Mini Control Stick Using Other Accessories After-Sales Information © 2021 DJI OSMO All Rights Reserved.

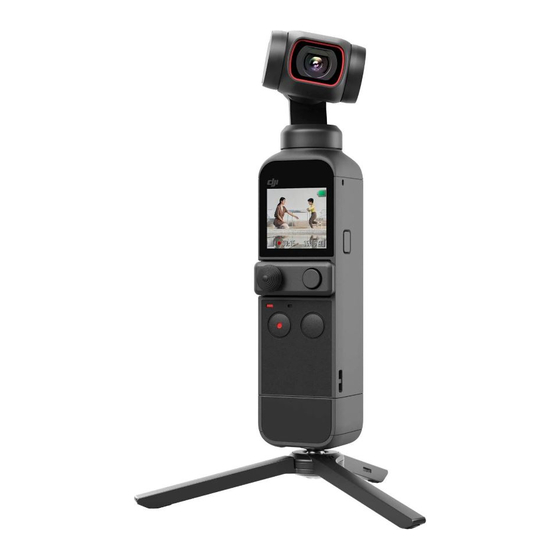

- Page 5 Introduction DJI Pocket 2 is a handheld gimbal camera that combines mobility and stability in one device. It shoots sharp 64 MP photos and stable video at up to 4K 60fps. The onboard touchscreen displays a live view from the camera and can control camera and gimbal movements.
- Page 6 DJI Pocket 2 User Manual Activating DJI Pocket 2 When using DJI Pocket 2 for the first time, activation is required through DJI Mimo. Follow the steps below to activate. 1. Press and hold the Power button to power on.
- Page 7 DO NOT touch the camera lens. Otherwise, the quality of the image may be affected by fingerprints or dirt. Operating the Touchscreen The touchscreen displays the camera view after DJI Pocket 2 is powered on, as well as the shooting mode, battery level, and microSD card information. 1080/4X...
- Page 8 Accessories: displays information of connected DJI Pocket 2 accessories. Calibration: tap to calibrate the gimbal. Calibration is used to reduce drift caused by human error or nearby magnetic interference. Place DJI Pocket 2 on a stable and flat surface and do not touch during calibration.
- Page 9 Storing Photos and Videos Footage shot on DJI Pocket 2 can be stored on a microSD card (not provided). A UHS-I Speed Grade 3 rating microSD card is required due to the fast read and write speeds necessary for high-resolution video data. Insert the microSD card into the microSD card slot as shown.
- Page 10 7. Edit: tap to edit footage from DJI Pocket 2 or import and edit footage from a mobile device. 8. Profile: register or log in to a DJI account. View works and settings and connect to the DJI Store. ©...
- Page 11 The camera view display may differ depending on the shooting mode. This display is for reference only. Tap on the touchscreen for focusing and metering. For ActiveTrack, drag a box on the screen and DJI Pocket 2 will track the subject. For FaceTrack, DJI Pocket 2 automatically detects faces and will track the subject.
- Page 12 Charging DJI Pocket 2 To charge DJI Pocket 2, connect a USB adapter (not provided) to the USB-C port using the provided power cable. The battery is fully charged when the status LED turns off. The battery level is displayed on the touchscreen after powering on DJI Pocket 2.
- Page 13 2. Make sure there is nothing obstructing the gimbal when DJI Pocket 2 is powered on. 3. DJI Pocket 2 is not water resistant. DO NOT use any liquid cleansers. Only use a soft, dry cloth to clean DJI Pocket 2.
- Page 14 FHD: 1920×1080 24/25/30/48/50/60p Video Recording Modes Video/HDR Video/Timelapse/Slow Motion (video resolution: 1080 120/240p) Max Video Bitrate 100 Mbps Supported File Formats FAT32 (≤32 GB)/exFAT (>32 GB) Photo Formats JPEG/DNG Video Formats MP4 (MPEG-4 AVC/H.264) © 2021 DJI OSMO All Rights Reserved.
- Page 15 1 hour 13 minutes (when using a 5V/2A USB adapter) DJI Mimo Replacing the Detachable Base The detachable base can be removed by pulling down as shown and can be replaced with the provided DJI Pocket 2 Tripod Mount (1/4”). ©...
- Page 16 Using the DJI Pocket 2 Mini Control Stick The provided DJI Pocket 2 Mini Control Stick can be used for gimbal movements and zoom control. Scan the QR code or read the user guide on the official DJI website (www.dji.com/pocket-2).
- Page 17 Storing DJI Pocket 2 and other accessories Scan the QR code or read the corresponding user guide on the official DJI website (www.dji.com/pocket-2). After-Sales Information Visit https://www.dji.com/support to learn more about after-sales service policies, repair services, and support. © 2021 DJI OSMO All Rights Reserved.
- Page 18 This content is subject to change. Download the latest version from www.dji.com/pocket-2 OSMO is a trademark of DJI OSMO. Copyright © 2021 DJI OSMO All Rights Reserved.
