- Page 1 ZENMUSE Z30 User Manual 2016.12 V1.0...
-
Page 2: Using This Manual
Before Use Read the following documents before using the ZENMUSE Z30: 1. Zenmuse Z30 Quick Start Guide 2. Zenmuse Z30 User Manual Check that all of the items are included in the package. Refer to the User Manual for more detailed information. -
Page 3: Table Of Contents
Before Use Product Profile Overview In the Box Components Installation Getting Started Installing the Zenmuse Z30 Remote Controller Controls DJI GO App Controls Downloading DJI GO Connecting to DJI GO Operating the Camera Managing your Photos and Videos Upgrading the Firmware... -
Page 4: Product Profile

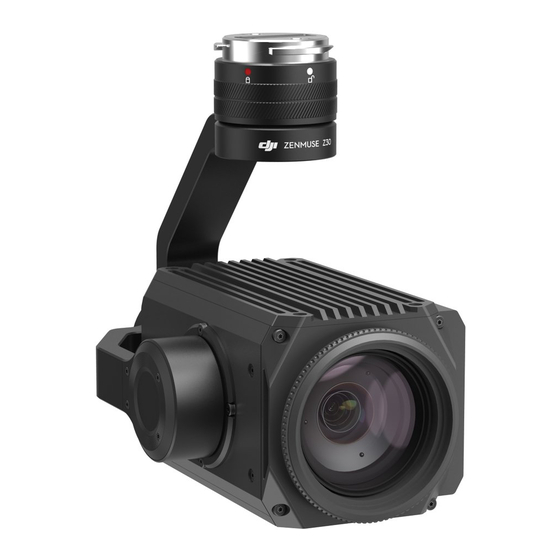

30× optical zoom and 6× digital zoom. The Type 1/2.8 CMOS sensor supports approx. 2.13 million effective pixels. As with other DJI modular cameras, the Zenmuse Z30 can be mounted onto a DJI aircraft and stream live HD video to the DJI GO app. -
Page 5: Installation
DJI Online Store. Supported Micro SD Cards The Zenmuse Z30 comes with a 16GB Micro SD card, but also supports Micro SD cards with a capacity of up to 64GB. We recommend using a UHS-1 Micro SD card to minimize the delay when reading and writing high resolution video data. -
Page 6: Remote Controller Controls
Button to capture photos or the Record Button to record video. Adjust the camera’s tilt using the Left Dial. 1. Left Dial 2. Record Button 3. Shutter Button 4. Playback Button 5. C2 Button [1] Left Dial Turn to adjust the camera’s tilt or pan. © 2016 DJI All Rights Reserved. -
Page 7: Dji Go App Controls
To adjust zoom, press the C2 button and rotate the Left Dial. DJI GO App Controls Downloading DJI GO Search for ‘DJI GO’ on the App Store or Google Play and download the app to your mobile device. DJI GO supports iOS 8.0 (or later) or Android 4.1.2 (or later). -
Page 8: Operating The Camera
Choose from one of the shooting modes by tapping " " -> -> Photo. 1. Burst Mode Take 3 or 5 shots in a row. 2. Interval Take photos in 2, 3, 4, 7 ,10, 15, 20 or 30 second intervals. © 2016 DJI All Rights Reserved. - Page 9 Choose one of these modes if natural-looking colors cannot be achieved by setting Photo Style. 3. Custom (2000K - 10000K) Set a value between 2000K and 10000K to compensate for a specific light source. © 2016 DJI All Rights Reserved.
- Page 10 Point), Square (w. Center Point), Bracket (No Center Point), Center Point Bracket (w. Center Point) Center Point Color: White, Yellow, Red, Blue, Green Anti-Flicker Auto, 60Hz, and 50Hz Format SD Card Supported Reset Settings Supported © 2016 DJI All Rights Reserved.
-
Page 11: Managing Your Photos And Videos
Managing your Photos and Videos Playback in the DJI GO app to review photos and videos that you have captured. Press the same button again to return to capturing images. Downloading your Files Download your photo and video files to your PC using a Micro SD card reader. - Page 12 .txt file if the upgrade is successful. Otherwise, try upgrading the firmware again if you see the text “result: failed” in the text file or the gimbal sounds a long beeping sound. © 2016 DJI All Rights Reserved.
-
Page 13: Specifications
Focus Movement Time (∞ – near): 1.1 sec 63.7° – 2.3° Digital Zoom 6× Min. Focus Distance 10 mm – 1200 mm Photo Formats JPEG Video Formats MOV, MP4 Working Modes Capture, Record, Playback © 2016 DJI All Rights Reserved. - Page 14 Class 10 or UHS-1 FAT32 (≤ 32 GB) Supported File Systems exFAT (> 32 GB) Environmental Operating Temperature 14° to 113° F (-10° to 45° C) Storage Temperature -4° to 140° F (-20° to 60° C) © 2016 DJI All Rights Reserved.
- Page 15 DJI Support www.dji.com/support This content is subject to change. Download the latest version from http://www.dji.com/zenmuse-z30 ZENMUSE is a trademark of DJI. Copyright © 2016 DJI All Rights Reserved.
