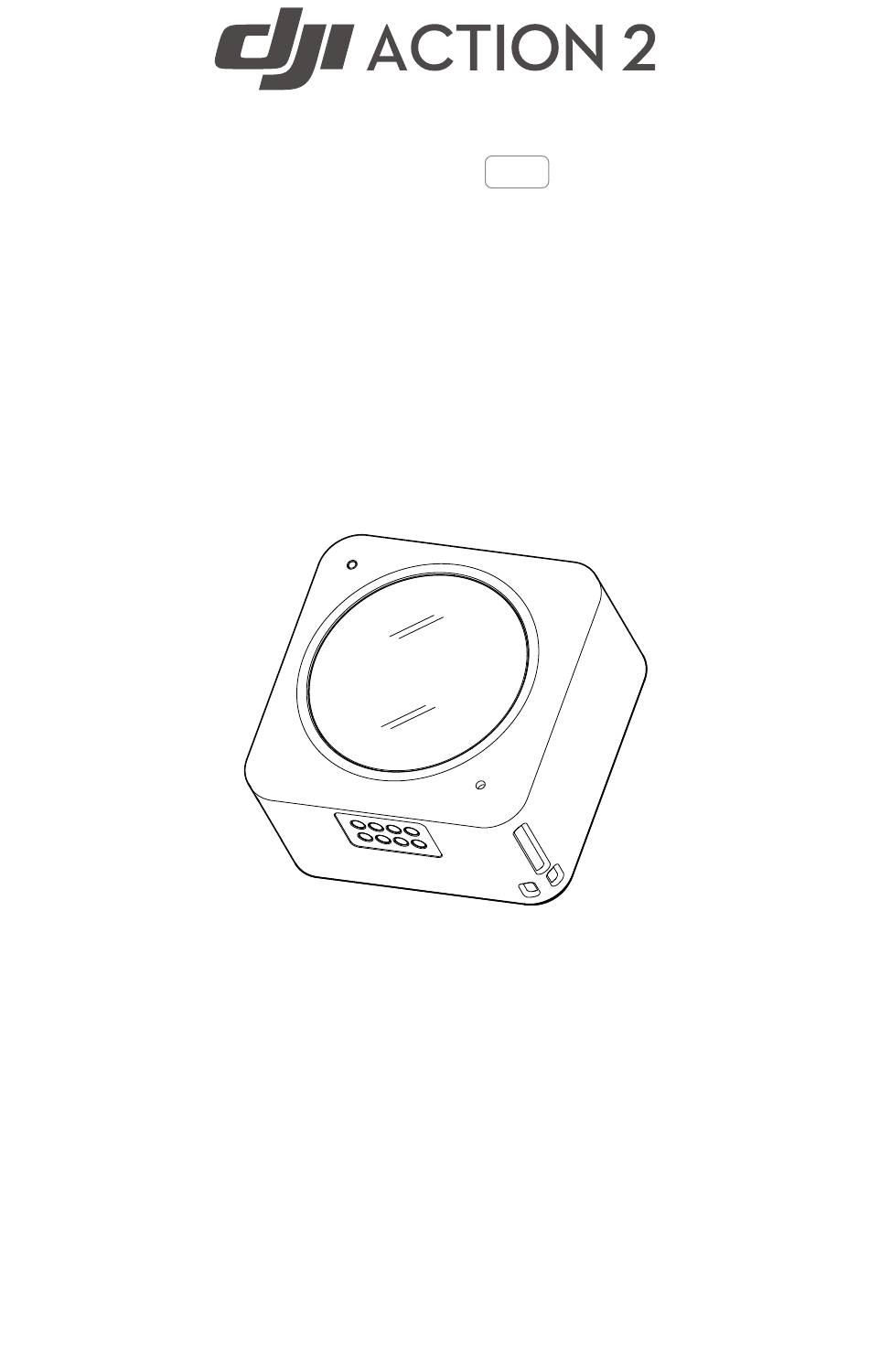

User Manual
2021.10
v1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACTION 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dji ACTION 2

Summary of Contents for dji ACTION 2

  • Page 1 User Manual 2021.10 v1.0...
  • Page 2 Navigating to a Topic View a complete list of topics in the table of contents. Click on a topic to navigate to that section. Printing this Document This document supports high resolution printing. © 2021 DJI OSMO All Rights Reserved.

  • Page 3: Using This Manual

    It is recommended to watch all tutorial videos on the official DJI website (www.dji.com/action-2) or in the DJI Mimo app and read the safety guidelines before using for the first time. Make sure to review the quick start guide before using for the first time and refer to this user manual for more information.

  • Page 4: Table Of Contents

    Contents Using this Manual Legend Read Before First Use Downloading the DJI Mimo App Watching the Tutorial Videos Product Profile Introduction DJI Action 2 Camera Unit Accessories Preparing Activation Charging DJI Action 2 Usage Power/Record Button Touchscreen Storing Photos and Videos...

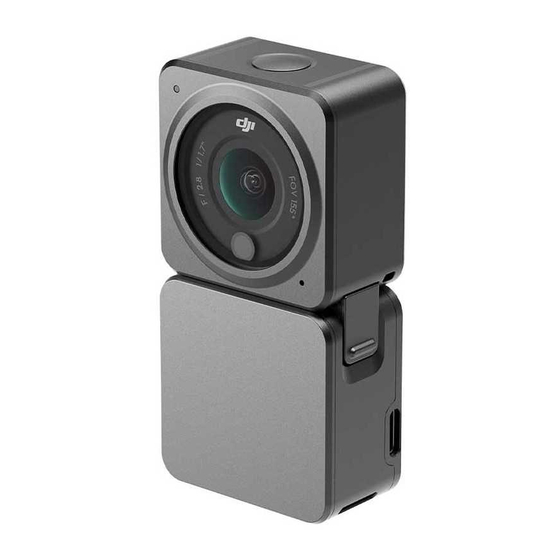

  • Page 5: Product Profile

    RockSteady 2.0 ensures stabler footage than ever before. Get the most out of DJI Action 2 by wirelessly connecting it to DJI Mimo using a mobile device and display high-quality video in real time. The camera unit is also waterproof at depths of up to 10 m and can be connected to the waterproof case to reach as deep as 60 m.

  • Page 6: Accessories

    DJI Action 2 User Manual Accessories DJI Action 2 Front Touchscreen Module 1. Lock Clip 8. Expansion Port 2. Microphone 9. Front Screen 3. Status LED 10. USB-C Charging Port 4. microSD Card Slot 5. Lock Hole 6. Power/Record Button 7.
  • Page 7 7. Lock Clip 4. Power/Record Button The DJI Action 2 Power Module can be magnetically attached to the camera unit to supply power and extend the operating time. Users can also insert a microSD card to increase the external storage of the camera.
  • Page 8 Only attach the camera unit to the magnetic lanyard. DO NOT connect any other accessories. DJI Action 2 Magnetic Ball-Joint Adapter Mount The DJI Action 2 Magnetic Ball-Joint Adapter Mount can be magnetically attached to the camera unit, the front touchscreen module, or the power module. Make sure the magnetic lock clips are properly attached to the magnetic lock holes on the camera unit or module on both sides and press both clips before removing.

  • Page 9: Preparing Activation

    10 days or more. 6. When attaching DJI Action 2 to the roof or window of a car, the DJI Action 2 may fall off if the car travels too fast, the surface is not clean, or there is bad weather such as high winds or a thunderstorm.

  • Page 10: Charging Dji Action 2

    * Measured using a 5V/2A USB adapter in a laboratory environment. Use as a reference only. Charge DJI Action 2 when the battery level is low. Storing the DJI Action 2 for more than four months with low battery will reduce the battery life.

  • Page 11: Touchscreen

    : tap or swipe to the left from the right edge of the screen to adjust image and audio parameters. 6. Battery Level : displays current battery level of DJI Action 2. Tap the icon to view more detailed information ©...
  • Page 12 DJI Action 2 User Manual about the battery level. Swipe Down Swipe down on the touchscreen to enter settings. 1. Screen Settings Tap the icon to switch between full-screen and letterbox display. 2. Storage Tap to switch the storage media, format the microSD card, format the built-in storage, or export the photos and videos from the built-in storage to the microSD card*.
  • Page 13 DJI Action 2 User Manual Auto Power Off: tap to set the time that the camera will automatically power off. LED: tap to enable or disable the LED of the camera unit and the front touchscreen module or the power module when connected.

  • Page 14: Storing Photos And Videos

    The camera unit has a built-in storage capacity of 32 GB*, which can be used to directly store photos and videos. Footage shot on DJI Action 2 can be stored on a microSD card (not included) when connected to the front touchscreen module or power module. A UHS-I Speed Grade 3 rating microSD card is required due to the fast read and write speeds necessary for high-resolution video data.

  • Page 15: Dji Mimo App

    Album: tap to view photos and videos. Edit: tap to edit footage from DJI Action 2 or import and edit footage from a mobile device. Profile: register or log in to a DJI account. View works and settings, check likes and followers, send messages to other users, and connect with the DJI Store.
  • Page 16 : tap to return to the home screen. 2. Wi-Fi : displays Wi-Fi connection. 3. Battery Level : displays current battery level of DJI Action 2. 4. EIS : displays the current electronic image stabilization. 5. microSD Card Information : displays either the remaining number of photos that can be taken or the duration of video 11:38 that can be recorded according to the current shooting mode.

  • Page 17: Maintenance

    IEC 60529:2013. The camera unit can be used underwater at depths of up to 10 m. The maximum depth underwater is 60 m when using the waterproof case. 2. DO NOT use DJI Action 2 in hot springs. DO NOT allow DJI Action 2 to come into contact with corrosive or unknown liquids.

  • Page 18: Cleaning Notes

    1. Keep the lens glass clean. Sand and dust may damage the lens glass. Clean DJI Action 2 with a clean, dry cloth. 2. Keep DJI Action 2 away from sand and dust. Wash the camera unit if the holes on DJI Action 2 are blocked by sand, dust, or any other substance.
  • Page 19 DJI Action 2 Waterproof Case DJI Action 2 Macro Lens DJI Action 2 Magnetic Clip Scan the QR code or read the corresponding product information or user guide on the official DJI website (www.dji.com/action-2). © 2021 DJI OSMO All Rights Reserved.

  • Page 20: Specifications

    DJI Action 2 User Manual Specifications DJI Action 2 Camera Unit General Settings Model MC211 Dimensions 39×39×22.3 mm Waterproof 10 m (60 m when using waterproof case) Weight 56 g Camera 1.76 inches 350 ppi Screen 500±50 cd/m² 446×424 Sensor 1/1.7”...
  • Page 21 5.8 GHz: <14 dBm (FCC/CE/SRRC) Protocol 802.11a/b/g/n/ac Bluetooth Operating Frequency 2.400-2.4835 GHz Transmitter Power (EIRP) <4 dBm Protocol BLE 5.0 DJI Action 2 Front Touchscreen Module Dimensions 39×41.6×24.6 mm Weight 64 g 1.76 inch 350 ppi Screen 500±50 cd/m² 446×424 Built-In Battery...

  • Page 22: After-Sales Information

    ③ Measured using a 5V/2A USB adapter in a laboratory environment. Use as a reference only. ④ Measured using 1080p (Power Reserve), 30fps, and electronic image stabilization disabled. Use as a reference only. After-Sales Information Visit https://www.dji.com/support to learn more about after-sales service policies, repair services, and support. © 2021 DJI OSMO All Rights Reserved.
  • Page 23 This content is subject to change. Download the latest version from www.dji.com/action-2 OSMO is a trademark of DJI OSMO. Copyright © 2021 DJI OSMO All Rights Reserved.
