Summary of Contents for dji POCKET 2

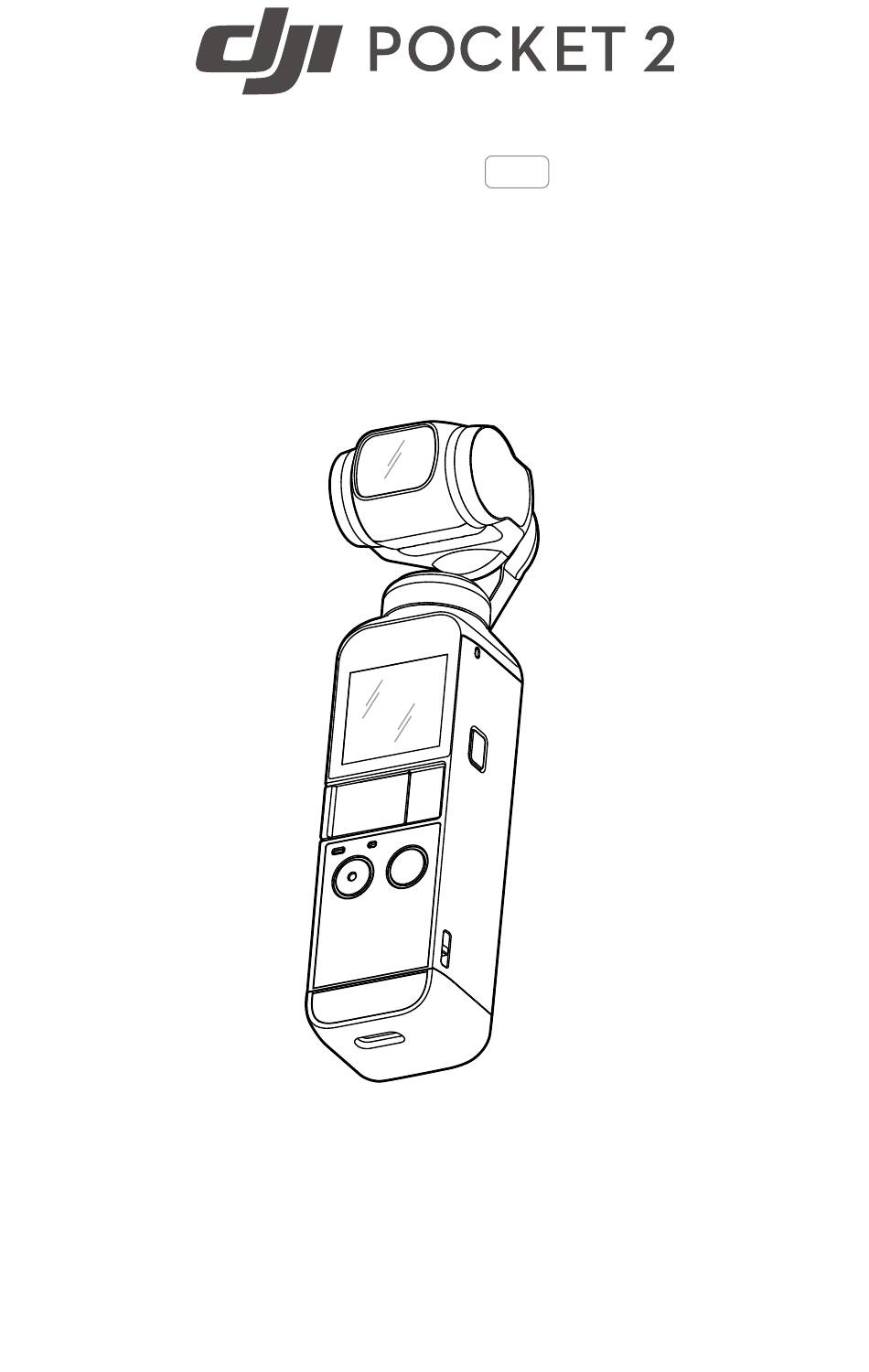

  • Page 1 User Manual v1.0 2020.10...
  • Page 2: Using This Manual

    Downloading the DJI Mimo App Scan the QR code to the right or search for "DJI Mimo" on the App Store or Google Play.
  • Page 3: Table Of Contents

    DJI Mimo App Charging DJI Pocket 2 Updating Firmware Maintenance Storing DJI Pocket 2 Usage Notices Appendix Specifications Replacing the Detachable Base Using the DJI Pocket 2 Mini Control Stick Using Other Accessories After-Sales Information © 2020 DJI OSMO All Rights Reserved.
  • Page 4: Introduction

    Introduction DJI Pocket 2 is a handheld gimbal camera that combines mobility and stability in one device. It shoots sharp 64 MP photos and stable video at up to 4K 60fps. The onboard touchscreen displays a live view from the camera and can control camera and gimbal movements.
  • Page 5: Operation

    DJI Pocket 2 User Manual Activating DJI Pocket 2 When using DJI Pocket 2 for the first time, activation is required through DJI Mimo. Follow the steps below to activate. 1. Press and hold the Power button to power on.
  • Page 6: Adjusting The Gimbal Manually

    DO NOT touch the camera lens. Otherwise, the quality of the image may be affected by fingerprints or dirt. Operating the Touchscreen The touchscreen displays the camera view after DJI Pocket 2 is powered on, as well as the shooting mode, battery level, and microSD card information. 1080/4X...
  • Page 7 Accessories: displays information of connected DJI Pocket 2 accessories. Calibration: tap to calibrate the gimbal. Calibration is used to reduce drift caused by human error or nearby magnetic interference. Place DJI Pocket 2 on a stable and flat surface and do not touch during calibration.
  • Page 8: Storing Photos And Videos

    Storing Photos and Videos Footage shot on DJI Pocket 2 can be stored on a microSD card (not provided). A UHS-I Speed Grade 3 rating microSD card is required due to the fast read and write speeds necessary for high-resolution video data. Insert the microSD card into the microSD card slot as shown.
  • Page 9: Status Led Descriptions

    6. Home: tap to return to the home screen. 7. Edit: tap to edit footage from DJI Pocket 2 or import and edit footage from a mobile device. 8. Profile: register or log in to a DJI account. View works and settings and connect to the DJI Store.
  • Page 10 The camera view display may differ depending on the shooting mode. This display is for reference only. Tap on the touchscreen for focusing and metering. For ActiveTrack, drag a box on the screen and DJI Pocket 2 will track the subject. For FaceTrack, DJI Pocket 2 automatically detects faces and will track the subject.
  • Page 11 Charging DJI Pocket 2 To charge DJI Pocket 2, connect a USB adapter (not provided) to the USB-C port using the provided power cable. The battery is fully charged when the status LED turns off. The battery level is displayed on the touchscreen after powering on DJI Pocket 2.
  • Page 12: Updating Firmware

    2. Make sure there is nothing obstructing the gimbal when DJI Pocket 2 is powered on. 3. DJI Pocket 2 is not water resistant. DO NOT use any liquid cleansers. Only use a soft, dry cloth to clean DJI Pocket 2.
  • Page 13: Appendix

    DJI Pocket 2 User Manual Appendix Specifications General Name DJI POCKET 2 Model OT-211 Dimensions 124.7×38.1×30 mm Weight 117 g Input Voltage/Current 5V/2A or 5V/1A Gimbal Angular Vibration Range ±0.005° Controllable Range Pan: -230° to +70°, Roll: ±45°, Tilt: -100° to +50°...
  • Page 14: Replacing The Detachable Base

    1 hour 13 minutes (when using a 5V/2A USB adapter) DJI Mimo Replacing the Detachable Base The detachable base can be removed by pulling down as shown and can be replaced with the provided DJI Pocket 2 Tripod Mount (1/4”). ©...
  • Page 15: Using The Dji Pocket 2 Mini Control Stick

    Using the DJI Pocket 2 Mini Control Stick The provided DJI Pocket 2 Mini Control Stick can be used for gimbal movements and zoom control. Scan the QR code or read the user guide on the official DJI website (www.dji.com/pocket-2).
  • Page 16: After-Sales Information

    Storing DJI Pocket 2 and other accessories Scan the QR code or read the corresponding user guide on the official DJI website (www.dji.com/pocket-2). After-Sales Information Visit https://www.dji.com/support to learn more about after-sales service policies, repair services, and support. © 2020 DJI OSMO All Rights Reserved.
  • Page 17 This content is subject to change. Download the latest version from www.dji.com/pocket-2 OSMO is a trademark of DJI OSMO. Copyright © 2020 DJI OSMO All Rights Reserved.
