3. Installation

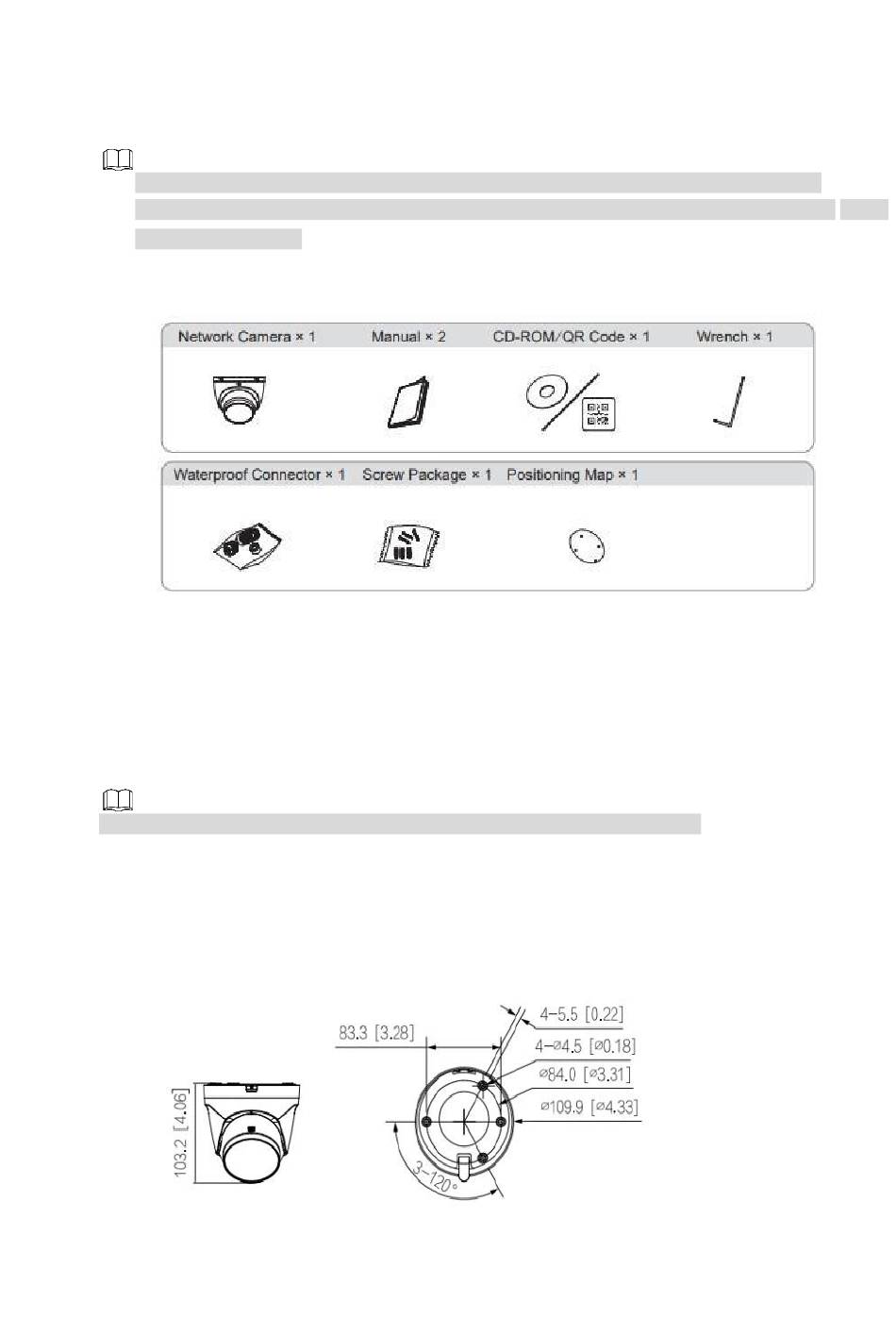

3.1. Packing List
The tool required for the installation such as electric drill is not provided in the packing.
The operation manual and related tool are contained in the disk or the QR code, and the actual
packing shall prevail.
3.2. Dimension
Following figures are for reference only, and the actual product shall prevail.
Figure 3-1 Packing List
(Unit: mm [inch])
Figure 3-2 Dimensions
