1
Introduction
1.1 Cable
Cable type might vary with different devices, and the actual product shall prevail.
Please waterproof all the cable joints with insulating tape and waterproof tape to avoid short
circuit and water damage. For the detailed operation, see the FAQ Manual.
For more information about cable ports, see Table 1-1.
No. Name
1 Audio input
2 Audio output
3 Ethernet port
4 Alarm I/O

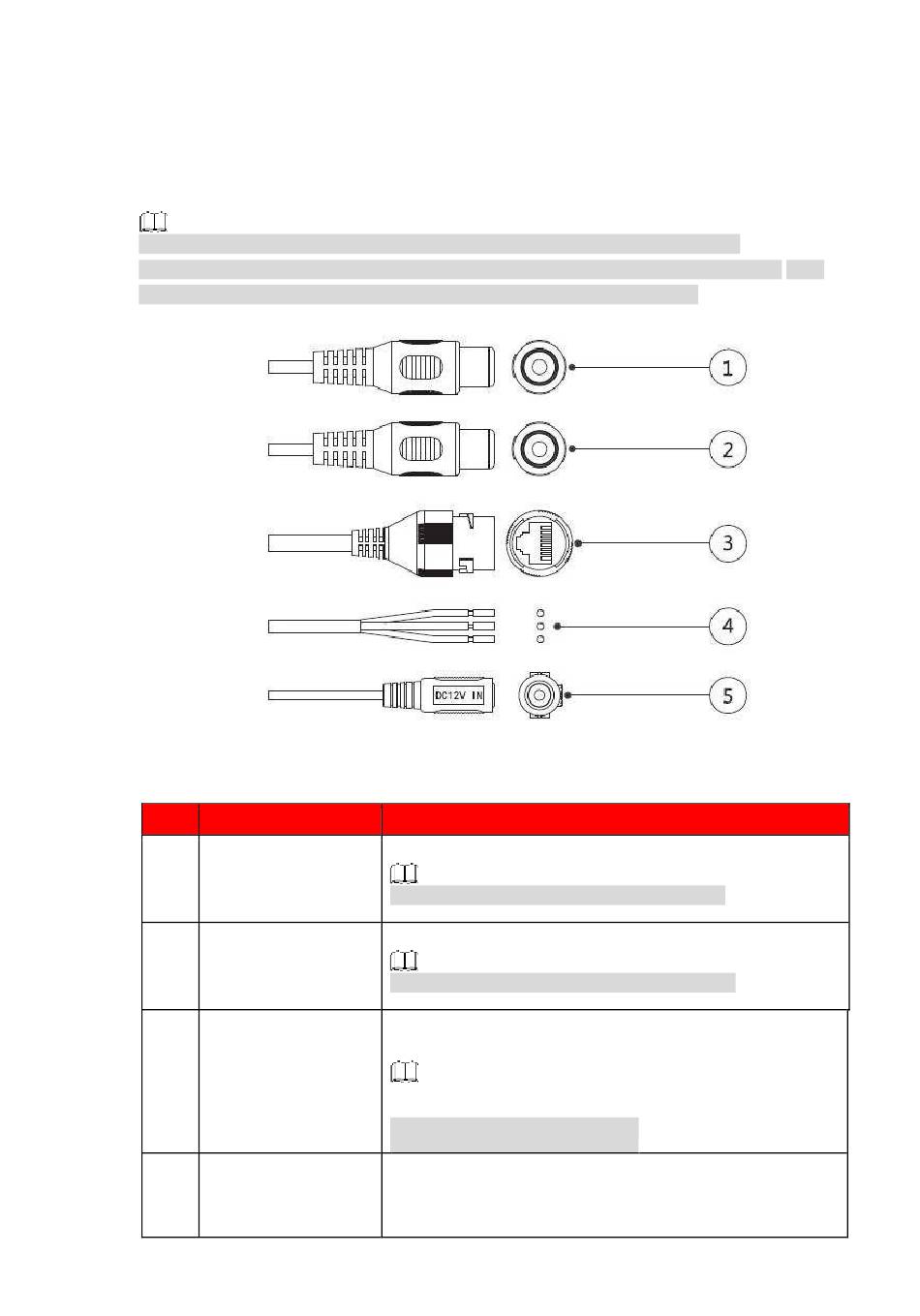

Figure 1-1 Cable list
Table 1-1 Cable information
Description
Connects to sound-pick-up device to receive audio signal.
Audio input port is available on select model.
Connects to speaker to output audio signal.
Audio output port is available on select model.
Connects to network with network cable.
Provides power to the device with PoE.
PoE is available on select model.
Includes alarm signal input and output ports, the number of I/O
ports might vary on different devices. For detailed information,
see "Table 1-2 Alarm information."
