User Manual

Model ID: MAVERICKSTORM2BEAMWASH

Need help?

Do you have a question about the MAVERICKSTO2BW and is the answer not in the manual?

Questions and answers

Summary of Contents for Chauvet Professional MAVERICKSTO2BW

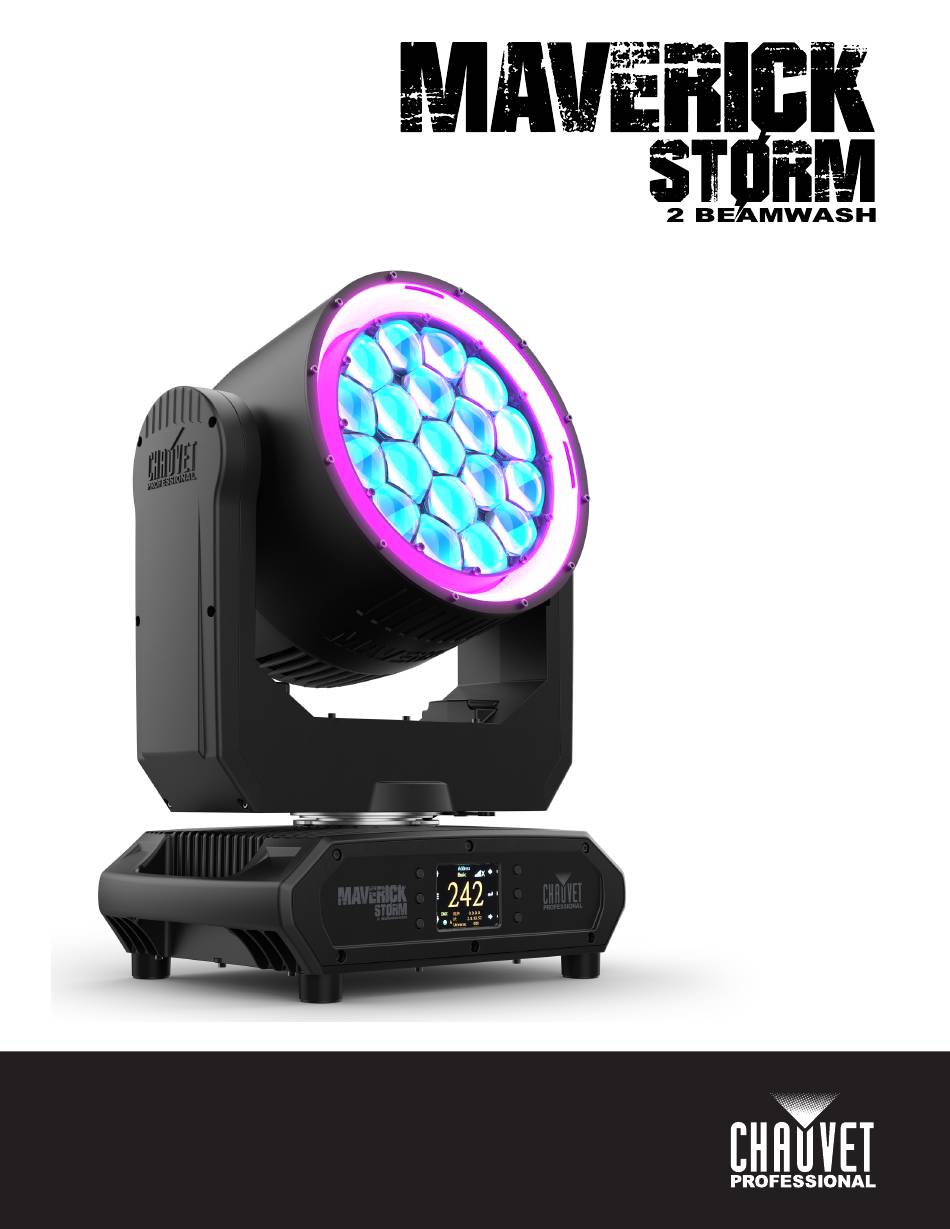

Page 1 User Manual Model ID: MAVERICKSTORM2BEAMWASH...
Page 2 Trademarks Chauvet, Chauvet Professional, the Chauvet logo, Maverick, and Maverick Storm are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.
Page 3 Table of Contents TABLE OF CONTENTS 1. Before You Begin ............... What Is Included ................... Claims ......................Text Conventions ..................Symbols ......................Safety Notes....................FCC Statement of Compliance ..............RF Exposure Warning for North America, and Australia....... Expected LED Lifespan................. 2.
Page 4 Table of Contents Subnet Mask......................19 Control Channel Assignments and Value ............. Pixel Chart......................Single Control Mode................... Dual Control Mode (Movement) ................. Dual Control Mode (Pixels) ................Color Chart......................Strobe Chart....................... Control Chart...................... Test Configuration..................Automatic Test ....................Manual Test ....................... Settings Configuration...................
Page 5 Before You Begin 1. Before You Begin What Is Included • Maverick Storm 2 BeamWash • 2 Omega Brackets with Mounting Hardware • Seetronic Powerkon IP65 Power Cable • Quick Reference Guide Claims Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition.
Page 6 Before You Begin Safety Notes Read all the following safety notes before working with this product. These notes contain important information about the installation, usage, and maintenance of this product. This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained, certified technicians.
Page 7 Before You Begin FCC Statement of Compliance This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.
Page 8 Introduction 2. Introduction Description The Maverick Storm 2 BeamWash is a powerful and compact IP65 moving head with a zoom range capable of wide 53.1° washes and intense tight 3.6° beams. An incredibly bright output of nearly 10,000 lumens makes the Maverick Storm 2 BeamWash well-suited for any application or venue size. Pixel- mapping effects, including a 12-zone RGB LED outer ring, add to the unit’s versatility;...
Page 9 Introduction Product Overview 6 7 8 Name LCD display Menu buttons Carry handle (x2) Ethernet ports DMX in/out USB port WDMX antenna Power in Fuse holder Maverick Storm 2 BeamWash User Manual Rev. 7...
Page 10 Introduction Product Dimensions 15.28 in 388 mm 9.98 in 253.5 mm 12.28 in 312 mm 19.72 in 501 mm 4.88 in 124 mm 15.28 in 388 mm 11.42 in 290 mm 10.26 in 260.7 mm Maverick Storm 2 BeamWash User Manual Rev. 7...
Page 11 Setup 3. Setup AC Power The Maverick Storm 2 BeamWash has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart.
Page 12 Setup DMX Linking The Maverick Storm 2 BeamWash can be linked to a DMX controller using a 5-pin DMX connection or a WDMX connection. For more information about DMX, read the DMX primer at: https://www.chauvetprofessional.com/wp-content/uploads/2016/06/DMX_Primer.pdf. Art-Net™ Connection Art-Net™ is an Ethernet protocol that uses TCP/IP which transfers a large amount of DMX512 data using a Neutrik RJ45 connection over a large network.
Page 13 Setup USB Software Update The Maverick Storm 2 BeamWash allows for software updates with a USB device using the built-in USB port. To update the software using a USB flash drive, do the following: 1. Power on the product, and plug the flash drive into the USB port. 2.
Page 14 The Maverick Storm 2 BeamWash comes with 2 Omega bracket to which the user can attach a mounting clamp directly. Mounting clamps are sold separately. Make sure the clamps are capable of supporting the weight of this product. Use at least two mounting points per product. For the Chauvet Professional line of mounting clamps, go to http://www.trusst.com/products.
Page 15 Operation 4. Operation Control Panel Description Button Name Function Navigates upwards through the menu list or increases the numeric value when in a <UP> function <MENU> Exits from the current menu or function Navigates downwards through the menu list or decreases the numeric value when in <DOWN>...
Page 16 Operation Menu Map Refer to the Maverick Storm 2 BeamWash product page on www.chauvetprofessional.com for the latest menu map. Programming Levels Description Control Settings Control Settings Main Level Basic Standard Advanced Sets the DMX personality Personality Tour (see Control Personalities) Basic2 Busk Basic3...
Page 17 Operation Programming Levels Description Basic Sets the sACN personality Personality Standard (see Control Personalities) sACN Advanced Start Address 1–512 Sets the sACN starting address Universe 1–256 Sets the sACN universe Basic Sets the DMX personality Personality Standard (see Control Personalities) Advanced Start Address 1–512...
Page 18 Operation Main Level Programming Levels Description LED Macro2 LED Ma. Speed2 LED Ma. Fade2 Background2 Manually control and test all Test Mode Manual Test Background2 Dim 000–255 settings through the control (cont.) (cont.) panel Dimmer2 Shutter2 Function Zoom Manual Manually set IP address IP Mode DHCP Network sets IP address...
Page 19 Operation Main Level Programming Levels Description Fan speed according to Auto product temperature Fans Full Fan speed set on high Quiet mode RGBW RGBW mode (additive) C Mixing Mode CMY mode (subtractive) Linear Square Dimmer Set the dimmer curve Curve I Squa SCurve Smooth...
Page 20 Operation Main Level Programming Levels Description Setup Factory Reset to factory default settings (cont.) Settings V_._ _ _ _ _ _ Shows firmware version Running Mode _ _ _ Shows current running mode Address _ _ _ Shows current starting address Shows current product Temperature _ _ _...
Page 21 Operation Main Level Programming Levels Description Shutter2 Zoom Function Red Fine Green Green Fine Blue Blue Fine White White Fine Dimmer 1–12 Dimmer 1–12 Fine Red 1–12 Channel Sys Info Shows all current values from Information Red 1–12 Fine _ _ _ (cont.) input signals, 000–255 (cont.)
Page 22 Operation Control Personalities To set the control personality: 1. Select the control mode and protocol as described under Control Mode. 2. Select the Personality option. 3. Select the desired personality from: Single Control Dual Control Movement Dual Control Pixels Basic (31-channel) Basic (11-channel) Basic (93-channel) Standard (143-channel)
Page 23 Operation Network Setup The Network Setup settings control the IP address and subnet mask of the product. IP Mode To choose how the IP address is set: 1. Go to the Setup main level. 2. Select the Network Setting option. 3.
Page 24 Operation Single Control Mode B = Basic (31 channels), S = Standard (143), A = Advanced (263), T = Tour (325), B2 = Basic2 (37), Bk = Busk (19), B3 = Basic3 (37) B2 Bk B3 Function Value Percent/Setting 1 Pan 000 ...
Page 25 Operation B2 Bk B3 Function Value Percent/Setting 21 21 22 22 21 – – Main bg. dimmer 000  255 0–100% – – 23 23 – – – Main bg. fine dimmer 000  255 0–100% 22 22 24 24 22 –...
Page 26 Operation B2 Bk B3 Function Value Percent/Setting – 34 44 46 – – Blue 1 000  255 0–100% – – 45 47 – – Fine blue 1 000  255 0–100% – – – – – Dimmer 2 000  255 0–100% –...
Page 27 Operation B2 Bk B3 Function Value Percent/Setting – – 79 93 – – – Fine green 7 000  255 0–100% – 52 80 94 – – – Blue 7 000  255 0–100% – – 81 95 – – –...
Page 28 Operation B2 Bk B3 Function Value Percent/Setting – 69 114 140 – – – Green 13 000  255 0–100% – – 115 141 – – – Fine green 13 000  255 0–100% – 70 116 142 – – –...
Page 29 Operation B2 Bk B3 Function Value Percent/Setting – – – 187 – – – Fine dimmer 18 000  255 0–100% – 88 152 188 – – – Red 18 000  255 0–100% – – 153 189 – – –...
Page 30 Operation B2 Bk B3 Function Value Percent/Setting – 107 190 234 – – – White 22 000  255 0–100% – – 191 235 – – – Fine white 22 000  255 0–100% – – – 236 – – –...
Page 31 Operation B2 Bk B3 Function Value Percent/Setting – – 227 281 – – – Fine green 27 000  255 0–100% – 126 228 282 – – – Blue 27 000  255 0–100% – – 229 283 – – –...
Page 32 Operation Dual Control Mode (Movement) B = Basic (11 channels), S = Standard (34 channels), A = Advanced (45 channels) A Function Value Percent/Setting 1 Pan 000  255 0–100% 2 Fine pan 000  255 0–100% 3 Tilt 000  255 0–100% 4 Fine tilt 000 ...
Page 33 Operation A Function Value Percent/Setting – – 33 Ring fg. fine red 000  255 0–100% – 29 34 Main fg. red 000  255 0–100% – – 35 Main fg. fine red 000  255 0–100% – 30 36 Ring fg. green 000 ...
Page 34 Operation Dual Control Mode (Pixels) B = Basic (93 channels), S = Standard (112 channels), A = Advanced (224 channels) A Function Value Percent/Setting 1 Red 1 000  255 0–100% – – 2 Fine red 1 000  255 0–100% 3 Green 1 000 ...
Page 35 Operation A Function Value Percent/Setting – – 46 Fine green 8 000  255 0–100% 24 24 47 Blue 8 000  255 0–100% – – 48 Fine blue 8 000  255 0–100% 25 25 49 Red 9 000  255 0–100% –...
Page 36 Operation A Function Value Percent/Setting 45 47 93 Blue 15 000  255 0–100% – – 94 Fine blue 15 000  255 0–100% – 48 95 White 15 000  255 0–100% – – 96 Fine white 15 000  255 0–100% 46 49 97 Red 16 000 ...
Page 37 Operation A Function Value Percent/Setting – – 140 Fine green 21 000  255 0–100% 63 71 141 Blue 21 000  255 0–100% – – 142 Fine blue 21 000  255 0–100% – 72 143 White 21 000  255 0–100% –...
Page 38 Operation A Function Value Percent/Setting 80 94 187 Green 27 000  255 0–100% – – 188 Fine green 27 000  255 0–100% 81 95 189 Blue 27 000  255 0–100% – – 190 Fine blue 27 000  255 0–100% –...
Page 39 Operation Color Chart DMX Value Function Red Value Green Value Blue Value White Value No function 001  002 2700K 003  004 3200K 005  006 4200K 007  008 5600K 009  010 8000K Blue 012  048 Blue to cyan Cyan 050 ...
Page 40 Operation Control Chart DMX Value Function DMX Value Function 000  009 No function 130  134 Fan mode auto 010  014 Blackout on pan/tilt 135  139 Dimmer mode fast 015  019 Reserved for future use 140  144 Dimmer mode smooth 020 ...
Page 41 Operation Settings Configuration Pan Reverse To set the orientation of the pan: 1. Go to the Setup main level. 2. Select the Pan Reverse option. 3. Select from NO (normal pan motion), or YES (reversed pan motion). Tilt Reverse To set the orientation of the tilt: 1.
Page 42 Operation Loss of Data To set how the product reacts to a loss in control signal data: 1. Go to the Setup main level. 2. Select the Loss of Data option. 3. Select from Hold (holds the last values received before signal loss), or Close (blacks out the product).
Page 43 Operation Preset Selection To select a preset configuration of menu options: 1. Go to the Setup main level. 2. Select the Preset Select option. 3. Select from PRESET A (default), PRESET B, or PRESET C. • Changes to settings automatically save to the currently selected Preset. •...
Page 44 Operation Zero Adjust Mode The Zero Adjust Mode provides fine adjustments for the home position of every moving part in the optical path as well as the pan and tilt movements. To adjust these options and prevent borders showing or reduction of the light output: 1.
Page 45 Operation Gobo Replacement The gobos in both gobo wheels are removable from their gobo holder. This operation is quite simple, although it requires the technician to carefully follow the recommended procedure. • Make sure to disconnect the product’s power cord before replacing a gobo. •...
Page 46 Maintenance 5. Maintenance Product Maintenance Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and/or mechanical wear. To maintain optimum performance and minimize wear, clean this product at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency.
Page 47 Maintenance Transporting on Truss or Racks When transporting fixtures in pre-rigged truss and transportation racks, mount fixtures in the vertical position with the lenses facing down and the pan and tilt locks engaged. This is to prevent undue stress on the tilt locks and limit the amount of off-axis bounce on internal components.
Page 48 Technical Specifications 6. Technical Specifications Dimensions and Weight Length Width Height Weight 15.28 in (388 mm) 11.42 in (290 mm) 19.72 in (501 mm) 52.4 lb (23.8 kg) Note: Dimensions in inches are rounded. Power Power Supply Type Range Voltage Selection Switching (internal) 100 to 240 VAC, 50/60 Hz Auto-ranging...
Page 49 Contact Us Contact Us General Information Technical Support World Headquarters Address: 3360 Davie Rd., Suite 509 Voice: (844) 393-7575 Davie, FL 33314 Fax: (954) 756-8015 Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com Fax: (954) 929-5560 Toll Free: (800) 762-1084 Website: www.chauvetprofessional.com U.K. Address: Pod 1 EVO Park Email: UKtech@chauvetlighting.eu...
