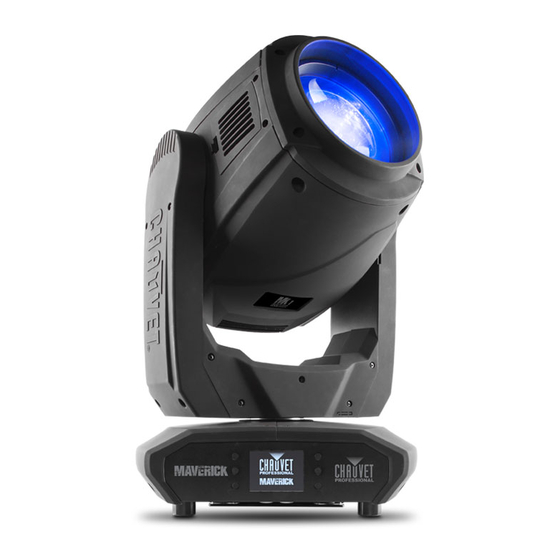

Summary of Contents for Chauvet Professional MAVERICK MK1 HYBRID

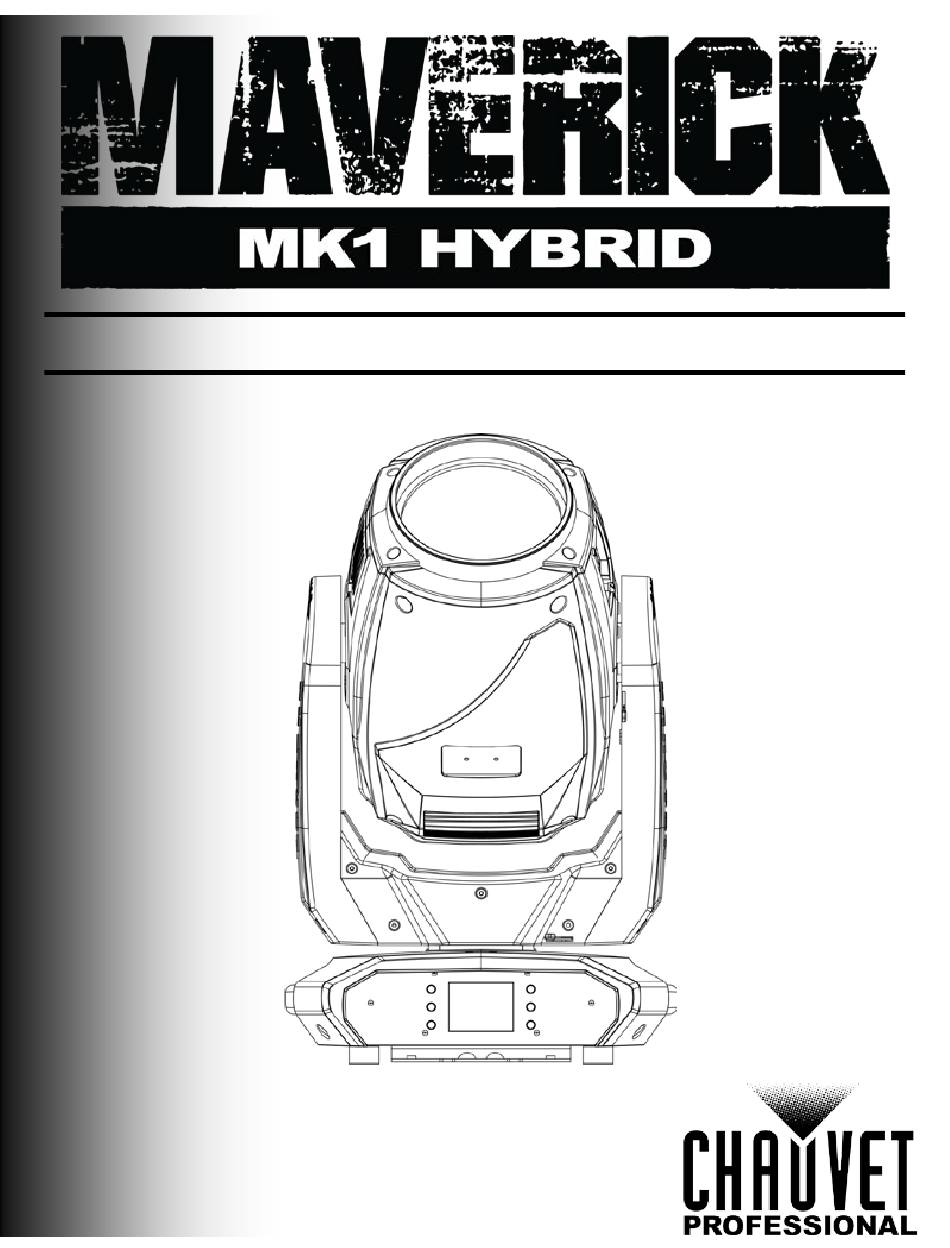

  • Page 1 User Manual...
  • Page 2 Chauvet has no obligation to make, and does not commit to make, any such revisions. Document The Maverick MK1 Hybrid User Manual Rev. 6 is the current edition of this manual. Go to www.chauvetprofessional.com for the latest version. Revision...

  • Page 3: Table Of Contents

    Personality ..................................13 Settings ..................................14 Test Mode..................................18 System Information ............................... 18 Offset Mode ..............................19 DMX Values ..............................21 Gobo Designs – Rotating and Static Wheels ....................27 Color Wheels .............................. 28 Maverick MK1 Hybrid User Manual Rev. 6...
  • Page 4 6. Technical Information ......................... 32 Product Maintenance ..........................32 7. Technical Specifications ......................33 Photometrics Chart ............................. 35 Photometrics Chart ............................. 36 Photometrics Chart ............................. 37 Returns ............................... 38 Contact Us ............................39 -ii- Maverick MK1 Hybrid User Manual Rev. 6...

  • Page 5: Before You Begin

    Important installation or configuration information. Failure to comply with this information may keep the product from working. Useful information. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Maverick MK1 Hybrid User Manual Rev. 6...

  • Page 6: Safety Notes

    The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at a higher temperature. · In case of a serious operating problem, stop using this product immediately! If your Chauvet product requires service, contact Chauvet Technical Support. Maverick MK1 Hybrid User Manual Rev. 6...

  • Page 7: Introduction

    NTRODUCTION Description Maverick MK1 Hybrid puts a world of options at your fingertips with advanced optics, overlapping 8 and 4-facet prisms, a versatile gobo package, a 3º – 18º zoom range in spot mode and 19º – 41º in wash mode, and a robust CMY color system.

  • Page 8: Dimensions

    Dimensions 14.69 in 11.26 in 373 mm 286 mm 16.48 in 418.5 mm 14.61 in 371 mm 24.76 in 629 mm 4.61 in 117 mm 12.1 in 15.51 in 307 mm 394 mm Maverick MK1 Hybrid User Manual Rev. 6...

  • Page 9: Setup

    Setup 3. S ETUP Each Maverick MK1 Hybrid has an auto-ranging power supply that works with an input voltage AC Power range of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for each Maverick MK1 Hybrid, refer to the label affixed to the product. You can also refer to the Technical Specifications chart in this manual.

  • Page 10: Mounting

    · Place the Maverick MK1 Hybrid so that it can move freely without hitting anything or anybody. Leave enough slack on the cabled to prevent tension and pulling on the plugs. DO NOT side mount this fixture.

  • Page 11: Signal Connections

    Setup Signal Connections The Maverick MK1 Hybrid can receive DMX, WDMX, Art-Net™, or sACN signal. The Maverick MK1 Hybrid has 2 Neutrik® etherCON® through ports, and 3- and 5-pin DMX in and out ports. For more information about DMX, read the DMX primer at: http://www.chauvetlighting.com/downloads/DMX_Primer_Rev9_ML_WO.pdf...

  • Page 12: Operation

    Operation 4. O PERATION The Maverick MK1 Hybrid has a touchscreen display as well as 6 control buttons. Navigate the Touchscreen menu structure by pressing the buttons, touching the images of the buttons on the sides of the Control Panel display, or touching the desired menu option on the display directly.
  • Page 13 Lamp status shown when lamp is on Power On Lamp Setting Off via DMX Control the lamp with DMX On if DMX Lamp On when DMX is on Off if DMX Lamp off when DMX is off Maverick MK1 Hybrid User Manual Rev. 6...
  • Page 14 Manual Test 0 ~ 255 Individually test each function/channel Animation Animation Rotate Gobo Gobo Rotate Gobo Rotate Fine Prism Prism1 Rotate Prism2 Rotate Frost Zoom Focus Fine Focus Beam Mode Special Function -10- Maverick MK1 Hybrid User Manual Rev. 6...
  • Page 15 Channel Information Status of individual channel Animation 0 ~ 255 Animation Rotate Gobo Gobo Rotate Gobo Rotate Fine Prism Prism1 Rotate Prism2 Rotate Frost Zoom Focus Fine Focus Beam Mode Special Function Maverick MK1 Hybrid User Manual Rev. 6 -11-...

  • Page 16: Operating Settings Configuration

    The universe of the TCP/IP protocol will be the universe of the DMX function. IP Mode The IP address of the Maverick MK1 Hybrid can be set manually, by the network, or to a pre-set static address specific to each product. To set the IP Mode, follow the instructions below: Press <MENU>...

  • Page 17: Personality

    If using the buttons instead of the touchscreen, press <ENTER>. Use <UP>, <DOWN>, <LEFT>, or <RIGHT> to select NO (cancel) or YES (confirm) or touch the display where it says the desired option. Press <ENTER>. Maverick MK1 Hybrid User Manual Rev. 6 -13-...

  • Page 18: Settings

    If using the buttons instead of the touchscreen, press <ENTER>. Control Mode The Maverick MK1 Hybrid can be set to respond to DMX, WDMX, Art-Net™ or sACN. The protocol configuration must be set for the product to respond correctly to the controller(s). See the Menu Map for more information.
  • Page 19 Use <UP>, <DOWN>, <LEFT>, or <RIGHT> to select NO (normal pan and tilt) or YES (pan controls tilt, tilt controls pan), or touch the display where it says the desired option. Press <ENTER>. Maverick MK1 Hybrid User Manual Rev. 6 -15-...
  • Page 20 Loss of Data In case of an input signal being lost in any way, the Maverick MK1 Hybrid will respond in one of two ways. The product will either hold the last signal received, or black out all LED output.
  • Page 21 Preset Sync To sync all menu presets to other Maverick MK1 Hybrids, follow the instructions below: Connect all Maverick MK1 Hybrid via DMX cable. Navigate to the Settings menu. Use <UP> or <DOWN> to select Preset Sync, or touch the display where it says Preset Sync If using the buttons instead of the touchscreen, press <...

  • Page 22: Test Mode

    Test Mode Auto Test To perform an auto test of the Maverick MK1 Hybrid functions, follow the instructions below: Press <MENU> repeatedly until the Home Screen shows on the display. Press <ENTER>. Use <UP>, <DOWN>, <LEFT>, or <RIGHT> to select Test, or touch the display where it says Test.

  • Page 23: Offset Mode

    FOCUS GOBO 2 1. Use <UP> or <DOWN> to select FOCUS GOBO 2. 2. Press <ENTER>. 3. Use <UP> or <DOWN> to increase or decrease the starting value, from 000–255. 4. Press <ENTER>. Maverick MK1 Hybrid User Manual Rev. 6 -19-...
  • Page 24 4. Press <ENTER>. MAC6 1. Use <UP> or <DOWN> to select MAC6. 2. Press <ENTER>. 3. Use <UP> or <DOWN> to increase or decrease the starting value, from 000–255. 4. Press <ENTER>. -20- Maverick MK1 Hybrid User Manual Rev. 6...

  • Page 25: Dmx Values

    White + Beam Softener Beam Softener Beam Softener + Dark Orange Dark Orange Color Wheel 3 Dark Orange + Light Orange Light Orange Light Orange + Light Green Light Green Light Green + Pink Pink Maverick MK1 Hybrid User Manual Rev. 6 -21-...
  • Page 26 Gobo Wheel 2 (Rotating) 112ó129 Gobo 6 (Turning Forks) [Gobo Designs] 130ó150 Gobo 1 Shaking 151ó171 Gobo 2 Shaking 172ó192 Gobo 3 Shaking 193ó213 Gobo 4 Shaking 214ó234 Gobo 5 Shaking 235ó255 Gobo 6 Shaking -22- Maverick MK1 Hybrid User Manual Rev. 6...
  • Page 27 Auto soft filter off 180ó189 No function 190ó199 No function 200ó209 All reset 210ó219 All blackout enable 220ó229 All blackout disable 230ó239 Lamp Off 240ó245 No function 246ó250 No function 251ó255 No function Maverick MK1 Hybrid User Manual Rev. 6 -23-...
  • Page 28 White + Beam Softener Beam Softener Beam Softener + Dark Orange Dark Orange Color Wheel 3 Dark Orange + Light Orange Light Orange Light Orange + Light Green Light Green Light Green + Pink Pink -24- Maverick MK1 Hybrid User Manual Rev. 6...
  • Page 29 Gobo Wheel 2 (Rotating) 112ó129 Gobo 6 (Turning Forks) [Gobo Designs] 130ó150 Gobo 1 Shaking 151ó171 Gobo 2 Shaking 172ó192 Gobo 3 Shaking 193ó213 Gobo 4 Shaking 214ó234 Gobo 5 Shaking 235ó255 Gobo 6 Shaking Maverick MK1 Hybrid User Manual Rev. 6 -25-...
  • Page 30 Auto soft filter off 180ó189 No function 190ó199 No function 200ó209 All reset 210ó219 All blackout enable 220ó229 All blackout disable 230ó239 Lamp Off 240ó245 No function 246ó250 No function 251ó255 No function -26- Maverick MK1 Hybrid User Manual Rev. 6...

  • Page 31: Gobo Designs - Rotating And Static Wheels

    7. Curvy Triangle 8. Random Dots 9. Symmetric Dots 10. Line 11. Laser Circle 12. Square Lines 13. Brick Out 14. Triangle Square 15. Shades 16. Crunch Bar 17. 5 Wave 18. Burst Maverick MK1 Hybrid User Manual Rev. 6 -27-...

  • Page 32: Color Wheels

    Operation Color Wheels Open Open Open -28- Maverick MK1 Hybrid User Manual Rev. 6...

  • Page 33: Firmware Update

    IRMWARE PDATE The following steps apply to the Windows® 7 operating system: Step 1 Connect the Maverick MK1 Hybrid to a computer with an ethernet cable. Verify the network with the Maverick MK1 Hybrid is connected to the computer. Step 2 Set the control protocol on the Maverick MK1 Hybrid to ArtNet in Single Control mode.
  • Page 34 Type 2.255.0.0 into the IP address bar. Press <Tab> on your keyboard. The Subnet mask bar should automatically populate as 255.0.0.0. If not, then enter it manually. Ignore the Default gateway bar. -30- Maverick MK1 Hybrid User Manual Rev. 6...
  • Page 35 Information) and checking that the version number matches the name of the file on the computer. Step 15 Disconnect the Maverick MK1 Hybrid from the computer. The firmware update is complete. The examples shown are for illustrative purposes. Maverick MK1 Hybrid User Manual Rev. 6...

  • Page 36: Technical Information

    Gently polish the lens surfaces until they are free of haze and lint. Always dry the external surfaces thoroughly and carefully after cleaning them. Do not spin the cooling fans by blowing compressed air into them. -32- Maverick MK1 Hybrid User Manual Rev. 6...

  • Page 37: Technical Specifications

    Beam Angle 1° to 6° Field Angle 3° to 18° Zoom Angle 3° to 18° Parameter: Wash Value Beam Angle 9° to 22° Field Angle 19° to 41° Zoom Angle 19° to 41° Maverick MK1 Hybrid User Manual Rev. 6 -33-...
  • Page 38 Amphenol XLRnet 27 or 30 Thermal Max. External Temperature Cooling System 113 °F (45 °C) Fan-Assisted Convection Ordering Product Name Item Name Item Code UPC Number Maverick MK1 Hybrid MAVERICKMK1HYBRID 08011202 781462215507 -34- Maverick MK1 Hybrid User Manual Rev. 6...

  • Page 39: Photometrics Chart

    Technical Specifications Photometrics Chart Maverick MK1 Hybrid User Manual Rev. 6 -35-...

  • Page 40: Photometrics Chart

    Technical Specifications Photometrics Chart -36- Maverick MK1 Hybrid User Manual Rev. 6...

  • Page 41: Photometrics Chart

    Technical Specifications Photometrics Chart Maverick MK1 Hybrid User Manual Rev. 6 -37-...

  • Page 42: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). -38- Maverick MK1 Hybrid User Manual Rev. 6...

  • Page 43: Contact Us

    +52 (728) 690-2010 Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. Maverick MK1 Hybrid User Manual Rev. 6...
