  • Page 1 User Manual...
  • Page 2 OTES The Maverick MK3 Spot User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the Maverick MK3 Spot as of the release of this edition. Trademarks CHAUVET, the Chauvet logo and Maverick MK3 Spot are registered trademarks or trademarks of Chauvet &...

  • Page 3: Table Of Contents

    DMX Values ....................22 Dmx Mode 39 CH......................Dmx Mode 31 CH......................Gobo Designs ....................29 Gobo Wheels ......................... Gobo Dimension Chart....................Gobo Replacement ......................Color Wheel ........................Offset Mode....................31 Maverick MK3 Spot User Manual Rev. 1 TOC 1 of 2...
  • Page 4 5. Technical Information ..............Product Maintenance ..................35 6. Technical Specifications ............Photometric Charts ..................37 Photometric Charts - With CRI Filter............. 38 7. Returns..................8. Contact Us .................. TOC 2 of 2 Maverick MK3 Spot User Manual Rev. 1...

  • Page 5: Before You Begin

    Any reference to data or power connections in this manual assumes the use of Seetronic IP rated cables. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. Maverick MK3 Spot User Manual Rev. 1 Page 1 of 40...

  • Page 6: Safety Notes

    40,000 to 50,000 hours. If extending this lifespan is vital, lower the operating temperature by improving the ventilation around the product, thus reducing the ambient temperature. In addition, limiting the overall projection intensity may extend the LEDs’ lifespan. Page 2 of 40 Maverick MK3 Spot User Manual Rev. 1...

  • Page 7: Introduction

    LED optics feature CMY + CTO color mixing and a 9:1 zoom ratio that maintains a flat field of focus even when fully wide. The unit also has an adjustable CRI from 73 to 93 CRI. Maverick MK3 Spot provides static, rotating, and animation effects from its 3 gobo wheels (2 rotating, 1 static), animation wheel, 2 independent and overlapping prisms and 2 frost options: superlight and medium.

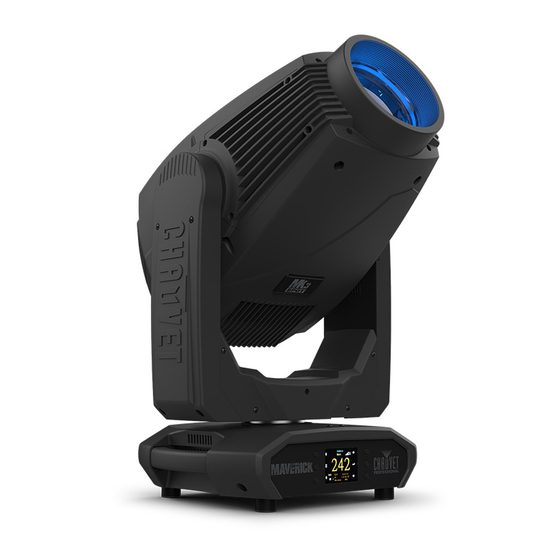

  • Page 8: Product Overview

    NTRODUCTION Product Overview Front View Front Lens Menu Display Buttons Rear View Fuse DMX Data Out Power Switch Power In DMX Data In EtherCON through ports Page 4 of 40 Maverick MK3 Spot User Manual Rev. 1...

  • Page 9: Product Dimensions

    11.46 in 415 mm 291 mm 12.13 in 308 mm 21.26 in 540 mm 12.13 in 308 mm 4.61 in 117 mm 15.55 in 12.01 in 395 mm 305 mm Maverick MK3 Spot User Manual Rev. 1 Page 5 of 40...

  • Page 10: Setup

    Each Maverick MK3 Spot has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the power requirements for each Maverick MK3 Spot, refer to the label affixed to the product. You can also refer to the Technical Specifications chart in this manual.

  • Page 11: Mounting

    Procedure The Maverick MK3 Spot comes with a double-bracketed yoke to which you can either attach mounting clamps for hanging or simply use as a floor stand. You must supply the mounting clamps. Make sure the clamps are capable of supporting the weight of this product. Use at least one mounting point per product.

  • Page 12: Dmx Linking

    ETUP DMX Linking You can link the Maverick MK3 Spot to a DMX controller using a 3- or 5-pin DMX connection. If using other DMX-compatible products with this product, you can control each individually with a single DMX controller. DMX Personalities The Maverick MK3 Spot uses a 3- or 5-pin DMX data connection for the 31- and 39-channel DMX personalities.

  • Page 13: Operation

    4. O PERATION The Maverick MK3 Spot has a touchscreen display as well as 6 control buttons. Navigate the menu structure by pressing the buttons, touching the images of the buttons on the sides of the display, or touching the desired menu option on the display directly. The touchscreen can be locked and calibrated...

  • Page 14: Menu Map

    Swap the pan and tilt WDMX Reset Reset the wireless DMX Set the backlight to turn off Backlight Timer automatically after a chosen time Hold Loss of Data Loss of data setting Close Page 10 of 40 Maverick MK3 Spot User Manual Rev. 1...
  • Page 15 Maverick MK3 Spots in the DMX daisy chain Pan/Tilt Iris/ Prism Color/ Reset individual functions to Reset Function YES/NO Gobo/ factory Gobo Rotate Frost/ Animation Factory Settings Reset all functions to factory Maverick MK3 Spot User Manual Rev. 1 Page 11 of 40...
  • Page 16 Function Current Version Running Mode Current Mode DMX Address Temperature Current Temperature Fixture Information Information Fixture Hours Current active hours Current IP address SubMask Current subnet mask MAC address Page 12 of 40 Maverick MK3 Spot User Manual Rev. 1...
  • Page 17 Animation Animation Rotate Focus Focus Fine Focus Auto Zoom Zoom Fine Prism Prism Rotate Prism2 Prism2 Rotate Iris Frost Frost2 CRI Filter CMY Macro CMY Macro Speed Special Function Maverick MK3 Spot User Manual Rev. 1 Page 13 of 40...

  • Page 18: Operating Settings Configuration

    The universe of the TCP/IP protocol will be the universe of the DMX function. IP Mode The IP address of the Maverick MK3 Spot can be set manually, by the network, or to a pre-set static address specific to each product. To set the IP Mode, follow the instructions below: 1.
  • Page 19 Use <LEFT> or <RIGHT> to select the byte (set of three numbers) to be changed). b. Use <UP> or <DOWN> to increase or decrease the value. c. Repeat until the IP address is set as desired 7. Press <ENTER>. Maverick MK3 Spot User Manual Rev. 1 Page 15 of 40...

  • Page 20: Personality

    5. If using the buttons instead of the touchscreen, press <ENTER>. 6. Use <UP>, <DOWN>, <LEFT>, or <RIGHT> to select NO (cancel) or YES (confirm) or touch the display where it says the desired option. 7. Press <ENTER>. Page 16 of 40 Maverick MK3 Spot User Manual Rev. 1...

  • Page 21: Settings

    3. If using the buttons instead of the touchscreen, press <ENTER>. Control Mode The Maverick MK3 Spot can be set to respond to DMX, WDMX, Art-Net™ or sACN. The protocol configuration must be set for the product to respond correctly to the controller(s). See the Menu Map for more information.
  • Page 22 4. Use <UP>, <DOWN>, <LEFT>, or <RIGHT> to select NO (display will respond to touch) or YES (display will not respond to touch), or touch the display where it says the desired option. 5. Press <ENTER>. Page 18 of 40 Maverick MK3 Spot User Manual Rev. 1...
  • Page 23 Loss of Data In case of an input signal being lost in any way, the Maverick MK3 Spot will respond in one of two ways. The product will either hold the last signal received, or black out all LED output.

  • Page 24: Dimmer Curve

    . When you make that selection, the product will reset automatically. Go back and make the changes you need to make in the menu. This will automatically save to the preset you are in. Page 20 of 40 Maverick MK3 Spot User Manual Rev. 1...

  • Page 25: Test Mode

    Test Mode Auto Test To perform an auto test of the Maverick MK3 Spot functions, follow the instructions below: 1. Press <MENU> repeatedly until the Home Screen shows on the display. Press <ENTER>. 2. Use <UP>, <DOWN>, <LEFT>, or <RIGHT> to select Test, or touch the display where it says Test.

  • Page 26: System Information

    9. Press <ENTER>. System Information All information about the current status of the Maverick MK3 Spot is available through the product’s  Sys Info menu. To view this information, follow the instructions below: 1. Press <MENU> repeatedly until the Home Screen shows on the display. Press <ENTER>.
  • Page 27  Gobo 3 Shaking  Gobo 2 Shaking  Gobo 1 Shaking  Open  Clockwise gobo scroll, slow to fast  Counter-clockwise gobo scroll, slow to fast  Maverick MK3 Spot User Manual Rev. 1 Page 23 of 40...
  • Page 28  No function  Prism 2 Prism Effect  Rotating position  Prism Clockwise rotating, fast to slow  Rotating 2 Stop  Counter-clockwise rotating, slow to fast  Page 24 of 40 Maverick MK3 Spot User Manual Rev. 1...

  • Page 29: Dmx Mode 31 Ch

    Speed Dimmer 0–100%  Closed  Open  Slow to fast  Strobe Pulse effect from slow to fast  Random effect from slow to fast  Closed  Maverick MK3 Spot User Manual Rev. 1 Page 25 of 40...
  • Page 30 Counter-clockwise gobo scroll, slow to fast  Rotating gobo index  Clockwise rotating, fast to slow  Gobo 1 Stop  Rotating Counter-clockwise rotating, slow to fast  Bounce effect  Page 26 of 40 Maverick MK3 Spot User Manual Rev. 1...
  • Page 31 Prism Effect  Rotating position  Prism Clockwise rotating, fast to slow  Rotating Stop  Counter-clockwise rotating, slow to fast  No function  Prism 2 Prism Effect  Maverick MK3 Spot User Manual Rev. 1 Page 27 of 40...
  • Page 32 No function  Iris fast mode  Iris smooth mode  Pan/tilt swap on  Pan/tilt swap off  No function  Pan/tilt smooth mode  Pan/tilt fast mode  Page 28 of 40 Maverick MK3 Spot User Manual Rev. 1...

  • Page 33: Gobo Designs

    Mower Blade Bolts Shower Glass Ballistic Clouds 4 Eyes Beam Bars Circles Breakup Dots Circuits Triangles Forest Rainbows Spiral Abstracts Brick Wall Chess Granny Sue Color Weave Indigo Square Breakup Maverick MK3 Spot User Manual Rev. 1 Page 29 of 40...

  • Page 34: Gobo Dimension Chart

    8. Push the gobo holder inwards. DO NOT force the gobo holder into the gobo wheel slot. If correctly installed, the gobo holder should easily slide into the gobo wheel slot. Diagram Locate Pull Back Remove Page 30 of 40 Maverick MK3 Spot User Manual Rev. 1...

  • Page 35: Color Wheel

    This brings you into the Zero Adjust menu screen. 1. Use <UP> or <DOWN> to select PAN. 2. Press <ENTER>. 3. Use <UP> or <DOWN> to increase or decrease the starting value, from 000–255. 4. Press <ENTER>. Maverick MK3 Spot User Manual Rev. 1 Page 31 of 40...
  • Page 36 1. Use <UP> or <DOWN> to select FOCUS GOBO. 2. Press <ENTER>. 3. Use <UP> or <DOWN> to increase or decrease the starting value, from 000–255. 4. Press <ENTER>. Page 32 of 40 Maverick MK3 Spot User Manual Rev. 1...
  • Page 37 MAC4 1. Use <UP> or <DOWN> to select MAC4. 2. Press <ENTER>. 3. Use <UP> or <DOWN> to increase or decrease the starting value, from 000–255. 4. Press <ENTER>. Maverick MK3 Spot User Manual Rev. 1 Page 33 of 40...

  • Page 38: Web Server

    4. Press <ENTER>. Web Server The Maverick MK3 Spot Web Server can be accessed by any computer on the same network as the product. It allows network access to system information, settings such as control setup, manual testing of all functions, firmware updates, and the ability to change the Web Server password.

  • Page 39: Product Maintenance

    Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Maverick MK3 Spot User Manual Rev. 1 Page 35 of 40...
  • Page 40 I/O Connector Channel Range 3- and 5-pin XLR 31 or 39 Ordering Product Name Item Code UPC Number Maverick MK3 Spot 08011591 781462219079 UL 1573 CSA C22.2 No. 166 E113093 Page 36 of 40 Maverick MK3 Spot User Manual Rev. 1...

  • Page 41: Technical Specifications

    16.57 m 20.82 m 25 m 2.62 m 2.62 m 2,278 20.71 m 26.03 m 30 m 3.14 m 3.14 m 1,582 24.85 m 31.23 m Field Beam Field Maverick MK3 Spot User Manual Rev. 1 Page 37 of 40...

  • Page 42: Photometric Charts - With Cri Filter

    16.57 m 20.82 m 25 m 2.62 m 2.62 m 1,560 20.71 m 26.03 m 30 m 3.14 m 3.14 m 1,084 24.85 m 31.23 m Field Beam Field Page 38 of 40 Maverick MK3 Spot User Manual Rev. 1...

  • Page 43: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). Maverick MK3 Spot User Manual Rev. 1 Page 39 of 40...

  • Page 44: Contact Us

    Visit the applicable website above to verify our contact information and instructions to request support. Outside the US, United Kingdom, Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record. Page 40 of 40 Maverick MK3 Spot User Manual Rev. 1...
