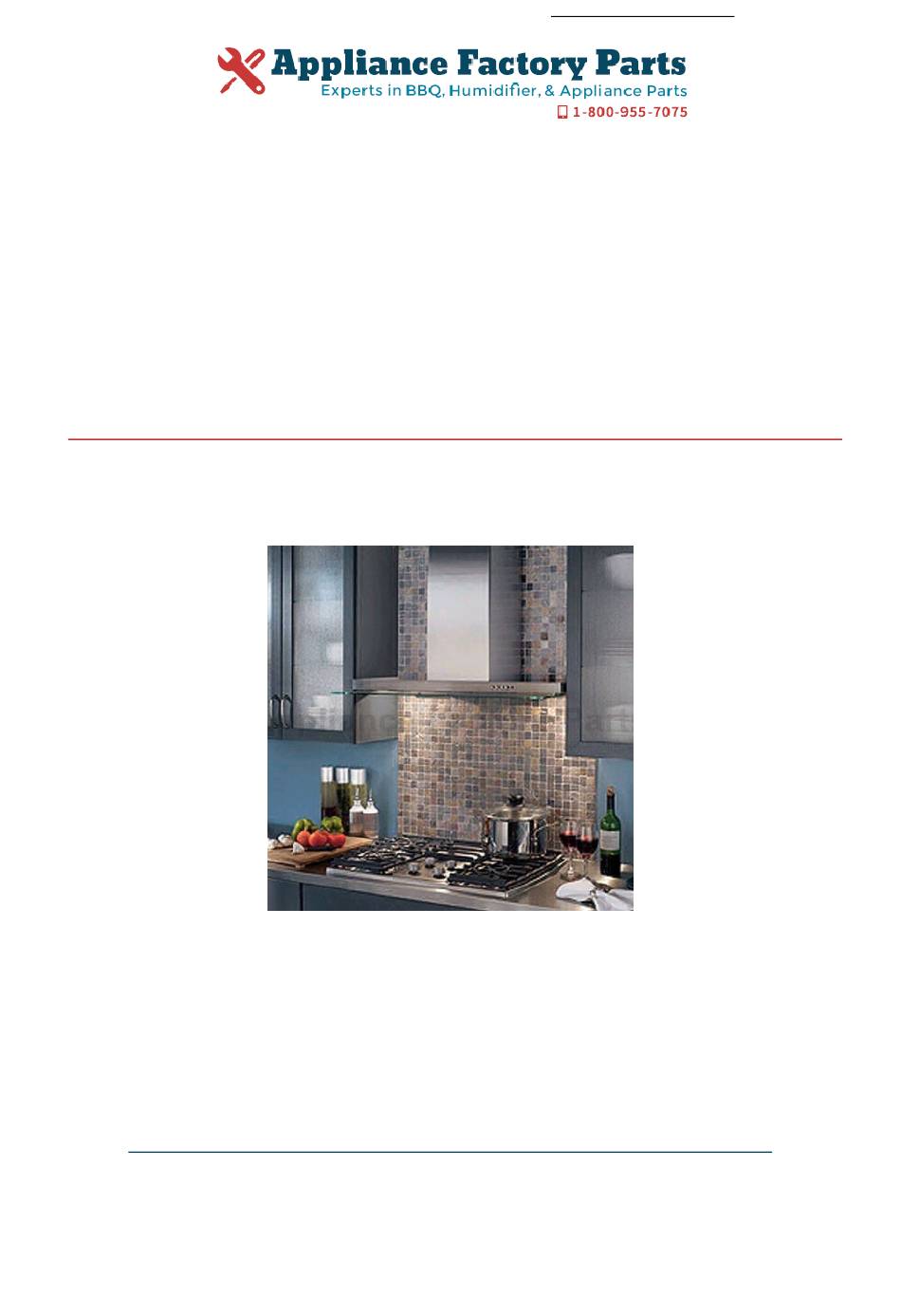

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. BROAN E5590SS Owner's Manual Shop genuine replacement parts for BROAN E5590SS Find Your BROAN HVAC Parts - Select From 1309 Models -------- Manual continues below --------...
- Page 2 Model E55000 ENGLISH........2 FRANÇAIS.......15 ESPAÑOL.........28 Broan-NuTone LLC. 926 West State Street, Hartford, WI 53027 NuTone Inc., 4820 Red Bank Road, Cincinnati, OH 45227 Broan-NuTone Canada Inc.1140 Tristar Drive, Mississauga, Ontario L5T 1H9 REGISTER YOUR PRODUCT ONLINE AT www.broan.com/register 99043937D...
- Page 3 READ AND SAVE THESE INSTRUCTIONS INTENDED FOR DOMESTIC COOKING ONLY WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: 1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
- Page 4 CAUTION 1. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages. 2. Take care when using cleaning agents or detergents. 3.
- Page 5 OPERATION BLOWER LIGHT MEDIUM SWITCH SPEED Controls BLOWER BLOWER The hood is operated using the (4) push-but- HIGH ON-LOW / tons located at eye-level, on the front edge of SPEED the hood. PILOT SWITCH LAMP The light switch turns the halogen lights on and off.
- Page 6 FUSE REPLACEMENT DECORATIVE FLUE LIGHTS FAIL OPERATE, DISCONNECT THE POWER AT THE SERVICE ENTRANCE. CHECK THE FUSE FUSE BOX AND REPLACE IF NECESSARY. Remove the decorative flue. Remove the cover from the fuse box. Locate the fuse holder. Unscrew its cap and remove the fuse.
- Page 7 MAINTENANCE Proper maintenance of the Range Hood will assure proper performance of the unit. Grease Filter The grease filter should be cleaned frequently. Use a warm detergent solution. Grease filter is dishwasher safe. See “INSTALL FILTERS” section for removal and installation instructions. Non-ducted Recirculation Filter The non-ducted recirculation filter should be changed every 6 months.
- Page 8 PREPARE THE HOOD Unpack hood and check contents. You should receive: 1 - Hood 1 - Decorative Flue Assembly 1 - Parts Bag (B080810501) containing: 1 - Mounting Bracket 1 - Discharge Collar 1 - Flue Mounting Bracket 8 - Mounting Screws (4.8 x 38mm Pan Head) 6 - Mounting Screws (3.9 x 9.5mm Pan Head) 2 - Bracket Screws (3.9 x 6mm Flat Head) 8 - Drywall Anchors...
- Page 9 INSTALL THE DUCTWORK FIG. 5 DUCTED HOODS ONLY ROOF CAP NOTE: To reduce the risk of fire, use only metal ductwork. ROUND DUCT 1. Decide where the ductwork will run between the hood and the outside. 2. A straight, short duct run will allow the hood to perform most efficiently.
- Page 10 INSTALL MOUNTING FRAMING BEHIND WOOD CROSS BRACKET SUPPORT DUCTED and NON-DUCTED HOODS 1. Construct wood wall framing that is flush with interior surface of wall studs. Fig. 7. Make sure: a) the framing is centered over installation location. b) the height of the framing will allow the mounting bracket to be secured to the framing within the dimensions shown.
- Page 11 INSTALL FLUE MOUNTING FLUE MOUNTING BRACKET BRACKET 3.9 x 6 mm FLAT HEAD BRACKET SCREWS DUCTED AND NON-DUCTED HOODS 1. Assemble the flue mounting bracket, adjusting outside width as shown. Fig.8 2. Carefully center the mounting bracket directly over the range hood location. 10-5/8”...
- Page 12 PREPARE THE HOOD NON - DUCTED HOODS ONLY Note: The following materials must be purchased separately for non-ducted recirculation installations. • Non - Ducted Recirculation Kit, Model RK55. • 5” diameter duct. 1. Remove the tape on the electrical system plate; place the electrical system plate on the hood (use a protection).
- Page 13 INSTALL THE WALL FRAMING MOUNTING HOOD SCREWS (3.9x9.5mm) DUCTED NON- MOUNTING DUCTED HOODS BRACKET Note: at least two people will be required to mount the RECTANGULAR hood. CUTOUT 1. Raise the hood into its mounting position. 2. Align the rectangular opening on the back of the hood with the wall- mounting bracket.
- Page 14 INSTALL THE HOOD, cont’d 9. Carefully place the decorative flue on the hood. Fig. 16. - On ducted installation in rooms with 8-foot ceilings, the air vents are concealed. Install the flue with the air vents down. - On non-ducted installations in rooms with 8-foot ceilings, the air vents are exposed.
- Page 15 RANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OR MERCHANT ABILITY OR FITNESS FOR A PARTICULAR PURPOSE. During this one-year period, Broan-NuTone LLC will, at its option, repair or replace, without charge, any product or part which is found to be defective under normal use and service.
- Page 16 SERVICE PARTS MODEL E55000 KEY NO. PART NO. DESCRIPTION BE3346761 Filter Support B08087092 Grease Filter B02300233 Motor Capacitor BE3346354 Electrical Box Support B03295005 Transformer Protection B02300891 Halogen Lamp Bulb B02300804 Heat Sentry BW0000019 Blower B02310203 Motor B03295076 Blower Wheel B03204177 Rubber Washer B02300249 Feeder Cable...
- Page 17 SERVICE PARTS - LISTE PIECES DE RECHANGE - LISTA DE PIEZAS DE RECAMBIO MODEL E55000 04307635/3S...
