Broan Elite E6430SS Specification Sheet

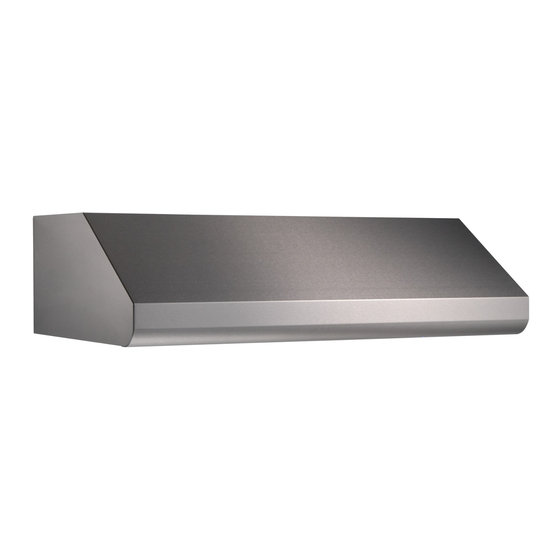

E64 SERIES
RANGE HOOD
Styling is fresh and modern, yet designed to easily
complement popular pro-style, high performance cooking
products.
A complete installation requires several optional components.
Refer to page 2 when planning your installation.
FEATURES
HOOD:
Widths available - 30" to 48" in 6" increments
•
Stainless steel, 22 gauge, type 430, no. 4 brush
•
Stainless steel baffle filters with handles - easily accessible,
•
dishwasher safe
2-level cooktop lighting (30" & 36" wide hoods = 2 lamps,
•
42" & 48" wide hoods = 3 lamps. Uses shielded 50W, GU10
halogen lamps. Bulbs not included.)
Variable speed blower control with speed memory
•
Exclusive, Heat Sentry™ turns blower ON to HIGH speed
•
when excess heat is detected
3¼" x 10" ducting - single blower (600 cfm)
•
4½" x 18½" ducting - dual blower (1200 cfm)
•
NON-DUCTED RECIRCULATING KIT:
ANKE60 Series (Optional)
Stainless steel, 22 gauge, type 430, no. 4 brush
•
Available for hood widths up to 48"
•
Charcoal filters included
•
Replacement charcoal filters:
- Service Part no. SV08343 - round filter retail pack
BACKSPLASH:
RMP Series (Optional)
Widths - 30" to 48" in 6" increments
•
Stainless steel, 22 gauge, type 430, no. 4 brush - protects
•
back wall and wipes clean easily
Two, removable, dual position condiment storage shelves
•
SPECIFICATION:
Single Blower
120 VAC, 60 Hz, 5.5 Amps
•
600 cfm, sound level no greater than 13.5 sones
•
(high speed, vert. & horiz. discharge)
150 cfm, 1.5 sones (working speed, vert. & horiz. discharge)
•
Dual Blower
120 VAC, 60 Hz, 9.0 Amps
•
1200 cfm, sound level no greater than 14.5 sones
•
(high speed, vert. & horiz. discharge)
350 cfm, 2.0 sones (working speed, vert. & horiz. discharge)
•
Broan-NuTone Canada
REFERENCE QTY.
HB0079
HK0090
Model
E6448TSS
HK0091
Mississauga, Ontario www.broan.ca
REMARKS
SPECIFICATION SHEET
For domestic
cooking only.
HVI-2100 CERTIFIED RATINGS comply with new testing
technologies and procedures prescribed by the Home
Ventilating Institute, for off-the-shelf products, as they are
available to consumers. Product performance is rated at 0.1 in.
static pressure, based on tests conducted in a state-of-the-art
test laboratory. Sones are a measure of humanly-perceived
loudness, based on laboratory measurements.
877-896-1119
Project:
Location:
Architect:
Engineer:
Contractor:
Submitted By:
Models
E6430SS
E6436SS
E6442SS
E6448SS
Date:
E64d080923
