Summary of Contents for Ranger design N5-RA12-4

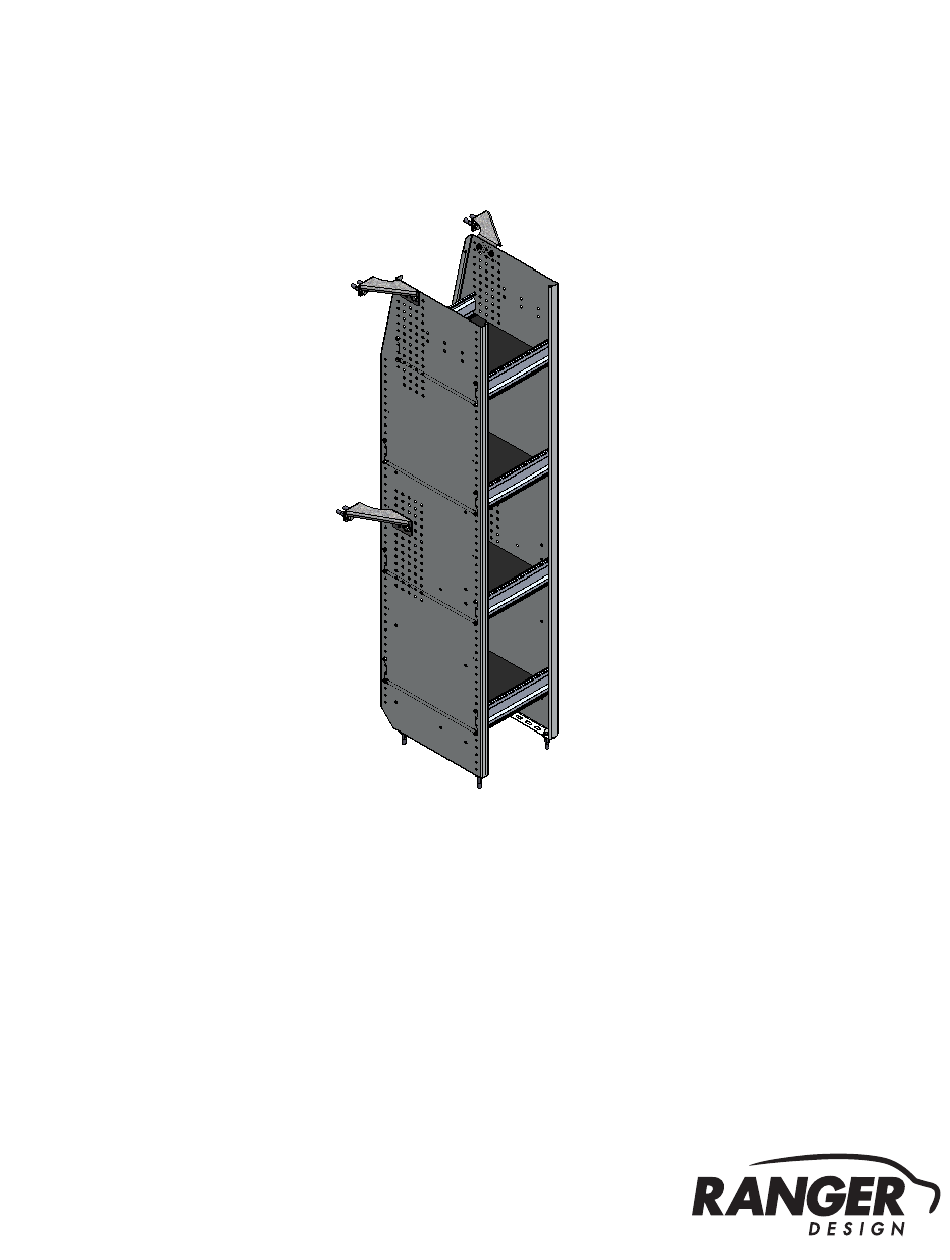

- Page 1 INSTALLATION GUIDE N5-RA12-4 Shelving ( ALUMINUM ) Transit High Roof & Medium Roof Promaster Standard Roof & High Roof Nissan NV High Roof Sprinter RWB, LWB, XWB Box Truck / Trailer...
- Page 2 QUICK START GUIDE Phase 1 - Assembly q 1.1 Setup............................... 3 - 4 q 1.2 Shelf Assembly..........................Phase 2 - Installation q 2.1 Attach Wall Brackets To The End Panels..................q 2.2 Mark Holes For Plus Nuts....................... q 2.3 Attach Plus Nut..........................8 - 9 q 2.4 Attach Shelf Unit To the Floor......................
- Page 3 60 - 13.875 × 12 Shelf Tray, Black Plywood, Usable 14" × 12" 94 - 4025 Assembly Fastener Kit 96 - 4025 Install Fastener Kit N5-RA12-4 Installation Guide | REV. B1 | Page 3 For technical support, contact us at 1-800-565-5321...
- Page 4 ( QTY = G ap beTween floor and end panel #94-132 5/16" Plusnut Spacer 4× 4× # 98-157 0.375" ID, × 1.0" OD × 0.25" LONG NYLON N5-RA12-4 Installation Guide | REV. B1 | Page 4 For technical support, contact us at 1-800-565-5321...
- Page 5 14" × 12" 15" ADJUSTABLE 5 - 11/16" ADJUSTABLE TOOLS q Cordless Impact q 3/8" Driver Bit HARDWARE USED 32× #92-102 Screw #14 × 1" N5-RA12-4 Installation Guide | REV. B1 | Page 5 For technical support, contact us at 1-800-565-5321...
- Page 6 1/2" Socket HARDWARE USED 8× hANd tIghteN the boLts #90-204 Hex Bolt 5/16" × 3/4" #98-116 Flat Washer #94-116 Serrated Nut HORIZONTAL RIM N5-RA12-4 Installation Guide | REV. B1 | Page 6 For technical support, contact us at 1-800-565-5321...
- Page 7 Mark 2 holes of each end panel on the vehicle floor. NOTE: If you are using Ranger floor, please go to pAge TOOLS q Marker MARK N5-RA12-4 Installation Guide | REV. B1 | Page 7 For technical support, contact us at 1-800-565-5321...
- Page 8 1/2" Drill Bit w/ Drill Collar ( Set at 1/2" ) q Plus Nut Tool ( 5/16" ) HARDWARE USED 12× #94-132 Plus Nut DRILL COLLAR 1/2" ) seT aT N5-RA12-4 Installation Guide | REV. B1 | Page 8 For technical support, contact us at 1-800-565-5321...
- Page 9 1/2" socket until the plusnut locks, then remove the bolt by turning the impact in reverse. FORWARD REVERSE N5-RA12-4 Installation Guide | REV. B1 | Page 9 For technical support, contact us at 1-800-565-5321...
- Page 10 ( QTY = G ap beTween floor and end panel #94-132 5/16" Plusnut Most vehIcLe Use spAcer wheN Not over rIbs W/ Spacer W/O Spacer N5-RA12-4 Installation Guide | REV. B1 | Page 10 For technical support, contact us at 1-800-565-5321...
- Page 11 #92-102 Screw 1" HARDWARE USED 2× fLoor fAsteNer kIt #90-490 Carriage Bolt 5/16" × 1" #98-116 Lock Washer #98-122 Flat Washer #94-104 Hex Nut N5-RA12-4 Installation Guide | REV. B1 | Page 11 For technical support, contact us at 1-800-565-5321...
- Page 12 Cordless Impact q 1/2" Socket HARDWARE USED 8× #90-212 Hex Bolt 5/16" × 1-1/4" #98-122 Lock Washer #98-116 Flat Washer #94-132 5/16" Plusnut N5-RA12-4 Installation Guide | REV. B1 | Page 12 For technical support, contact us at 1-800-565-5321...
- Page 13 1/2" Socket FASTENERS USED 8× wALL kIts fAsteNer kIt #90-208 Hex Bolt 5/16" × 1" #98-122 Lock Washer #98-116 Flat Washer #94-150 Channel Nut N5-RA12-4 Installation Guide | REV. B1 | Page 13 For technical support, contact us at 1-800-565-5321...
- Page 14 “You have successfully installed your N5-RA12-4 Thank you for doing business with us.” cs@rangerdesign.com For any feedback or suggestions you may have, please contact: N5-RA12-4 Installation Guide | REV. B1 | Page 14 For technical support, contact us at 1-800-565-5321...
