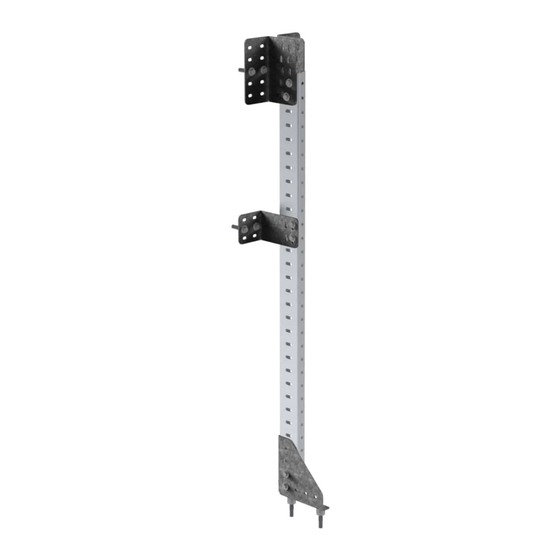

- Page 1 INSTALLATION GUIDE 84-U0048 Fold-Away post with foot 84-U0048 Installation Guide | REV. B1 | Page 1 For technical support, contact us at 1-800-565-5321...
-
Page 2: Required Items
1/2" Drill Bit w/ Drill Collar ( Set at 1/2" ) q 3/8" Driver Bit q Knife q Plusnut Tool / Plusnut Gun ( 5/16" ) PERSONS 84-U0048 Installation Guide | REV. B1 | For technical support, contact us at 1-800-565-5321... - Page 3 Item No. Description Qty. 84-010 Feet 84-011 Top Bracket 84-012 Middle Bracket 84-009 Post ( 48" ) 94-3057 Assembly Fastener Kit 96-3039 Install Fastener Kit 84-U0048 Installation Guide | REV. B1 | Page 3 For technical support, contact us at 1-800-565-5321...
- Page 4 ( QTY = G ap beTween floor and end panel Spacer 6× 6× 0.375" ID, × 1.0" OD × 0.25" L # 98-157 #94-132 5/16" Plusnut NYLON 84-U0048 Installation Guide | REV. B1 | For technical support, contact us at 1-800-565-5321...
-
Page 5: Post Assembly
EXTENDTED TOOLS q Cordless Impact q 1/2" Socket HARDWARE USED 8× #90-204 Hex Bolt 5/16" × 3/4" REGULAR #98-116 Flat Washer #94-116 Serrated Nut 84-U0048 Installation Guide | REV. B1 | Page 5 For technical support, contact us at 1-800-565-5321... - Page 6 TOOLS q Cordless Impact q 1/2" Socket HARDWARE USED 4× #90-204 Hex Bolt 5/16" × 3/4" #98-122 Lock Washer #98-116 Flat Washer 6-1/2" pace 84-U0048 Installation Guide | REV. B1 | For technical support, contact us at 1-800-565-5321...
- Page 7 TOOLS q Cordless Impact q 1/2" Socket HARDWARE USED 4× #90-204 Hex Bolt 5/16" × 3/4" #98-122 Lock Washer #98-116 Flat Washer 3-1/2" pace 84-U0048 Installation Guide | REV. B1 | Page 7 For technical support, contact us at 1-800-565-5321...
- Page 8 84-U1830. TOOLS q Cordless Impact q 1/2" Socket HARDWARE USED 16× #90-204 Hex Bolt 5/16" × 3/4" #98-122 Lock Washer #98-116 Flat Washer 84-U0048 Installation Guide | REV. B1 | For technical support, contact us at 1-800-565-5321...
- Page 9 TOOLS q Cordless Impact q 1/2" Socket HARDWARE USED 16× #90-204 Hex Bolt 5/16" × 3/4" #98-122 Lock Washer #98-116 Flat Washer 84-U0048 Installation Guide | REV. B1 | Page 9 For technical support, contact us at 1-800-565-5321...
-
Page 10: Phase 2 - Installation
#98-116 Flat Washer #98-170 Spacer #94-116 Serrated Nut HARDWARE USED 4× or middle bracket 84-012 #90-204 Hex Bolt 5/16" × 3/4" #98-116 Flat Washer #94-116 Serrated Nut 84-U0048 Installation Guide | REV. B1 | For technical support, contact us at 1-800-565-5321... - Page 11 2” to fit under the beam. 84-U0048 Installation Guide | REV. B1 | Page 11 For technical support, contact us at 1-800-565-5321...
- Page 12 For NV200, ProMaster City, Transit Connect TOOLS q Marker mark Mark the 2 holes of the feet on the vehicle floor. TOOLS q Marker mark 84-U0048 Installation Guide | REV. B1 | For technical support, contact us at 1-800-565-5321...
- Page 13 1/2" Drill Bit w/ Drill Collar ( Set at 1/2" ) q Plusnut Tool ( 5/16" ) HARDWARE USED 14× #94-132 Plusnut DRILL COLLAR 1/2" ) SeT aT 84-U0048 Installation Guide | REV. B1 | Page 13 For technical support, contact us at 1-800-565-5321...
- Page 14 1/2" socket until the plusnut locks, then remove the bolt by turning the impact in reverse. FORWARD REVERSE 84-U0048 Installation Guide | REV. B1 | For technical support, contact us at 1-800-565-5321...
- Page 15 #90-011 Hex Bolt 5/16" × 1-3/4" #98-122 Lock Washer #98-116 Flat Washer #98-157 Spacers ( QTY = G ap beTween floor and feeT #94-132 5/16" Plusnut 84-U0048 Installation Guide | REV. B1 | Page 15 For technical support, contact us at 1-800-565-5321...
- Page 16 #90-011 Hex Bolt 5/16" × 1-3/4" #98-122 Lock Washer #98-116 Flat Washer #98-157 Spacers ( QTY = G ap beTween floor and feeT #94-132 5/16" Plusnut 84-U0048 Installation Guide | REV. B1 | For technical support, contact us at 1-800-565-5321...
- Page 17 “You have successfully installed your Fold-Away Thank you for doing business with us.” cs@rangerdesign.com For any feedback or suggestions you may have, please contact: 84-U0048 Installation Guide | REV. B1 | Page 17 For technical support, contact us at 1-800-565-5321...
