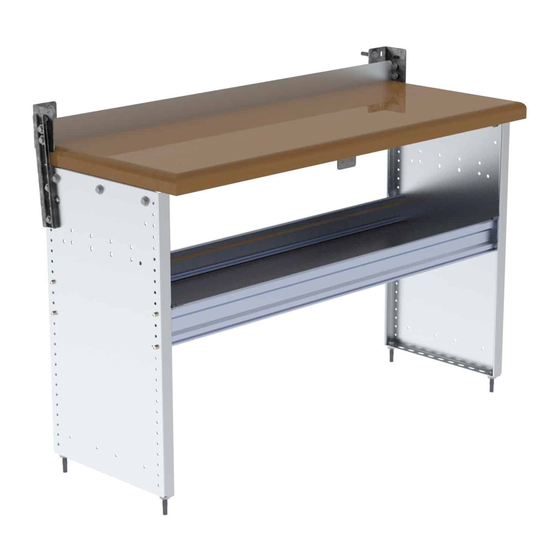

- Page 1 INSTALLATION GUIDE S2-WA48-1 W orkbench w/ Hardwood Top & One Shelf ( Aluminum )
-
Page 2: Required Items
QUICK START GUIDE Phase 1 - Assembly q 1.1 Setup............................... 3 - 5 q 1.2 Workbench Assembly........................5 - 8 Phase 2 - Installation q 2.1 Attach Wall Brackets To The End Panels..................q 2.2 Mark Holes For Plus Nuts....................... q 2.3 Attach Plus Nut.......................... - Page 3 Shelf Tray Plywood 70-810 Hardwood Top 70-816 Side Panel Bracket 70-817 Steel Striker Plate 70-818 Straight Backsplash 96-4801 Install Fastener Kit 94-4801 Assembly Fastener Kit S2-WA48-1 Installation Guide | REV. B1 | Page 3 For technical support, contact us at 1-800-565-5321...
- Page 4 8× 8× 5/16" # 98-122 ZINC #94-132 5/16" Plusnut Spacer 4× 4× 0.375" ID, × 1.0" OD × 0.25" LONG # 98-157 NYLON S2-WA48-1 Installation Guide | REV. B1 | Page 4 For technical support, contact us at 1-800-565-5321...
- Page 5 60 - 13.875 × 48 TOOLS q Cordless Impact q 3/8" Driver Bit 40 - 736 HARDWARE USED 13 - 3/4" 8× #92-102 Screw #14 × 1" S2-WA48-1 Installation Guide | REV. B1 | Page 5 For technical support, contact us at 1-800-565-5321...
- Page 6 70 - 816 TOOLS q Cordless Impact q 1/2" Socket HARDWARE USED 6× #90-204 Hex Bolt 5/16" × 3/4" #98-116 Flat Washer #94-116 Serrated Nut S2-WA48-1 Installation Guide | REV. B1 | Page 6 For technical support, contact us at 1-800-565-5321...
- Page 7 FLUSHED TOOLS q Cordless Impact q Cordless Drill q 3/8" Driver Bit q 3/16" Drill Bit HARDWARE USED 8× #92-102 Screw #14 × 1" S2-WA48-1 Installation Guide | REV. B1 | Page 7 For technical support, contact us at 1-800-565-5321...
- Page 8 70-818 TOOLS q Cordless Impact q Cordless Drill q 3/8" Driver Bit q 3/16" Drill Bit HARDWARE USED 5× #92-102 Screw #14 × 1" S2-WA48-1 Installation Guide | REV. B1 | Page 8 For technical support, contact us at 1-800-565-5321...
-
Page 9: Phase 2 - Installation
1/2" Socket HARDWARE USED HORIZONTAL RIM 4× hand tighten the bolts BRACKET HEAD #90-110 Hex Bolt 1/4" × 3/4" #98-112 Flat Washer #94-112 Serrated Nut S2-WA48-1 Installation Guide | REV. B1 | Page 9 For technical support, contact us at 1-800-565-5321... - Page 10 Mark 2 holes of each end panel on the vehicle floor. NOTE: If you are using Ranger floor, please go to page TOOLS q Marker MARK S2-WA48-1 Installation Guide | REV. B1 | Page 10 For technical support, contact us at 1-800-565-5321...
- Page 11 1/2" Drill Bit w/ Drill Collar ( Set at 1/2" ) q Plus Nut Tool ( 5/16" ) HARDWARE USED 8× #94-132 Plus Nut DRILL COLLAR 1/2" ) seT aT S2-WA48-1 Installation Guide | REV. B1 | Page 11 For technical support, contact us at 1-800-565-5321...
- Page 12 1/2" socket until the plusnut locks, then remove the bolt by turning the impact in reverse. FORWARD REVERSE S2-WA48-1 Installation Guide | REV. B1 | Page 12 For technical support, contact us at 1-800-565-5321...
- Page 13 #94-132 5/16" Plusnut ips When to use spacer most vehicle use spacer When not over ribs W/ Spacer W/O Spacer S2-WA48-1 Installation Guide | REV. B1 | Page 13 For technical support, contact us at 1-800-565-5321...
- Page 14 #92-102 Screw 1" HARDWARE USED 2× floor fastener kit #90-490 Carriage Bolt 5/16" × 1" #98-116 Lock Washer #98-122 Flat Washer #94-104 Hex Nut S2-WA48-1 Installation Guide | REV. B1 | Page 14 For technical support, contact us at 1-800-565-5321...
-
Page 15: Attach Wall Brackets
Cordless Impact q 1/2" Socket HARDWARE USED 4× #90-212 Hex Bolt 5/16" × 1-1/4" #98-122 Lock Washer #98-116 Flat Washer #94-132 5/16" Plusnut S2-WA48-1 Installation Guide | REV. B1 | Page 15 For technical support, contact us at 1-800-565-5321... - Page 16 1/2" Socket FASTENERS USED 4× Wall kits fastener kit #90-212 Hex Bolt 5/16" × 1-1/4" #98-122 Lock Washer #98-116 Flat Washer #94-150 Channel Nut S2-WA48-1 Installation Guide | REV. B1 | Page 16 For technical support, contact us at 1-800-565-5321...
- Page 17 “You have successfully installed your Workbench Thank you for doing business with us.” cs@rangerdesign.com For any feedback or suggestions you may have, please contact: S2-WA48-1 Installation Guide | REV. B1 | Page 17 For technical support, contact us at 1-800-565-5321...
