Ranger design X51-F Installation Manual

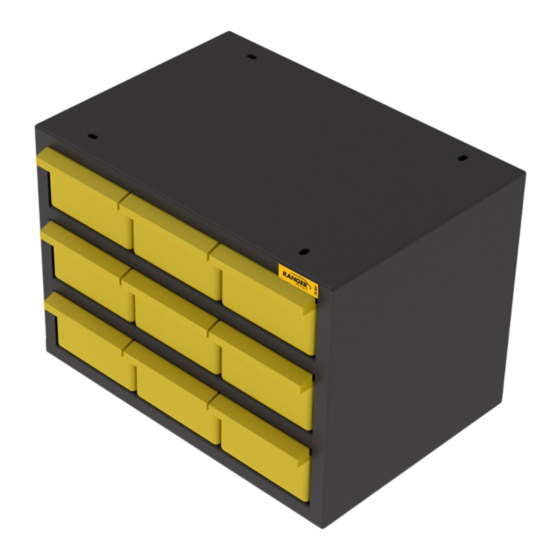

Fleetline drawer cabinet

INSTALLATION GUIDE

X51-F

Fleetline Drawer Cabinet

Table of Contents

Need help?

Do you have a question about the X51-F and is the answer not in the manual?

Page 1 INSTALLATION GUIDE X51-F Fleetline Drawer Cabinet...
Page 2 Always use safety gloves, glasses, and shoes. CAUTION • Follow all vehicle manufacturer instructions before attempting any installation. PREPARATION Tools Needed Wrench 7/16” Tape Measure Drill Marker Socket 7/16 Drill Bit 1/4” Ratchet For technical support, contact us at 1-800-565-5321 X51-F Installation Guide | REV.1...
Page 3 X51-F 1 x 12” x 3 Spacer 1 ¼ x12”x3 Spacer Bill of Materials Description Item No. Qty. X51-F CABINET WITH 9 YELLOW BIN 1”x12”x3” SPACER 1 ¼ x12”x3 SPACER Hardware Kit Item No. Description Qty. M6-1.00 X 85 MM HEX HEAD BOLT M6-1.00 X 20MM HEX BOLT...
Page 4 STEP 1 STEP 2 Tools: • Ratchet ” socket • Socket 7/16 • Wrench 7/16 1.00X20MM HEX BOLT M8 Spring Washer M6 Hex Nut ” wrench Nylon Insert For technical support, contact us at 1-800-565-5321 X51-F Installation Guide | REV.1...
Page 5 Wrench 7/16 1 x 12” x 3 Spacer 1 ¼ x 12” x 3 Spacer 1.00X85MM HEX BOLT M8 Spring Washer M6 Hex Nut Nylon Insert ” wrench For technical support, contact us at 1-800-565-5321 X51-F Installation Guide | REV.1...
Page 6 STEP 5 “You have successfully installed your X51-F, thank you for doing business with us.” For any feedback or suggestions, you may have, please contact: cs@rangerdesign.com For technical support, contact us at 1-800-565-5321 X51-F Installation Guide | REV.1...
