Sealey TSTPL01 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT
IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE
WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
Keep the gauge out of reach from children.
9
DO NOT look directly into the beam of light, as this will result in dazzling.
8
DO NOT use the lamp near a naked flame
8
DO NOT disassemble, repair or alter the gauge.
8
DO NOT operate the gauge with wet hands.
8
2. INTRODUCTION
Digital tyre pressure gauge displayed in bar, psi, kPa and kg/cm². Bright LCD backlit display, ideal for reading the screen in low light
conditions. Main side light COB LED 2W 180 lumens (worklight)/90 lumens (low light). Top Light SMD LED, 1W 80 lumens. 3.7V
Rechargeable 500mAh Lithium-ion battery with a USB Type-C charging cable. Base and side magnets for easy hands-free use. It can be
easily stored in a glove box.
3. SPECIFICATION
Model No:
Pressure Units:
Range:
Resolution:
Battery Type
Input (USB Type-C)
Charge Time
Work light Source
Work light Brightness
Work light Runtime
Torch Source
Torch Brightness
Product Dimensions (L x D x W)
USB Type C Cable Length
4. OPERATION
4.1. CHARGING THE GAUGE
4.1.1. Connect the USB cable to the USB INPUT on the side of the light.
4.1.2. Plug the USB cable into a suitable 5V
NOTE: ensure the light is turned OFF whilst charging.
4.2. OPERATING THE LIGHT
4.2.1. Press the TORCH button to cycle between the torch and the main light.
4.3. MEASURING TYRE PRESSURE
4.3.1. Press the PRESSURE button to turn on the unit.
4.3.2. Press the PRESSURE button to cycle between the following units: PSI, BAR, KPA, Kg/cm
4.4. Align the tyre pressure gauge with the valve of the tyre and press it tightly for 3 seconds. The correct pressure will display.
4.4.1. Hold the PRESSURE button to turn the unit off, or wait 30 seconds for the unit to turn off automatically.
5. MAINTENANCE
DO NOT leave the battery without charge for an extended period - deep discharge risks damaging the battery
8
The light source is not replaceable; when the light source reaches its end of life the whole product shall be replaced.
8
© Jack Sealey Limited
2-IN-1 PEN LIGHT & TYRE PRESSURE GAUGE
TSTPL01
MODEL NO:
TSTPL01
Bar, psi, kPa, kg/cm²
0.21-10.3bar(3-150psi, 0.21-10.5kg/cm², 21-1034kPa)
0.5psi
3.7V 500mAh
5V (dc) 1A
1hr
2W COB LED
Work light 180 lumens/low light 90 lumens
2hrs main work light
1W SMD
80 lumens
170mm x 22mm x 30mm
400mm
1A outlet or mains adapter (not included).
Original Language Version
PRESSURE
GAUGE
PRESSURE
BUTTON
TORCH
BUTTON
USB
INPUT

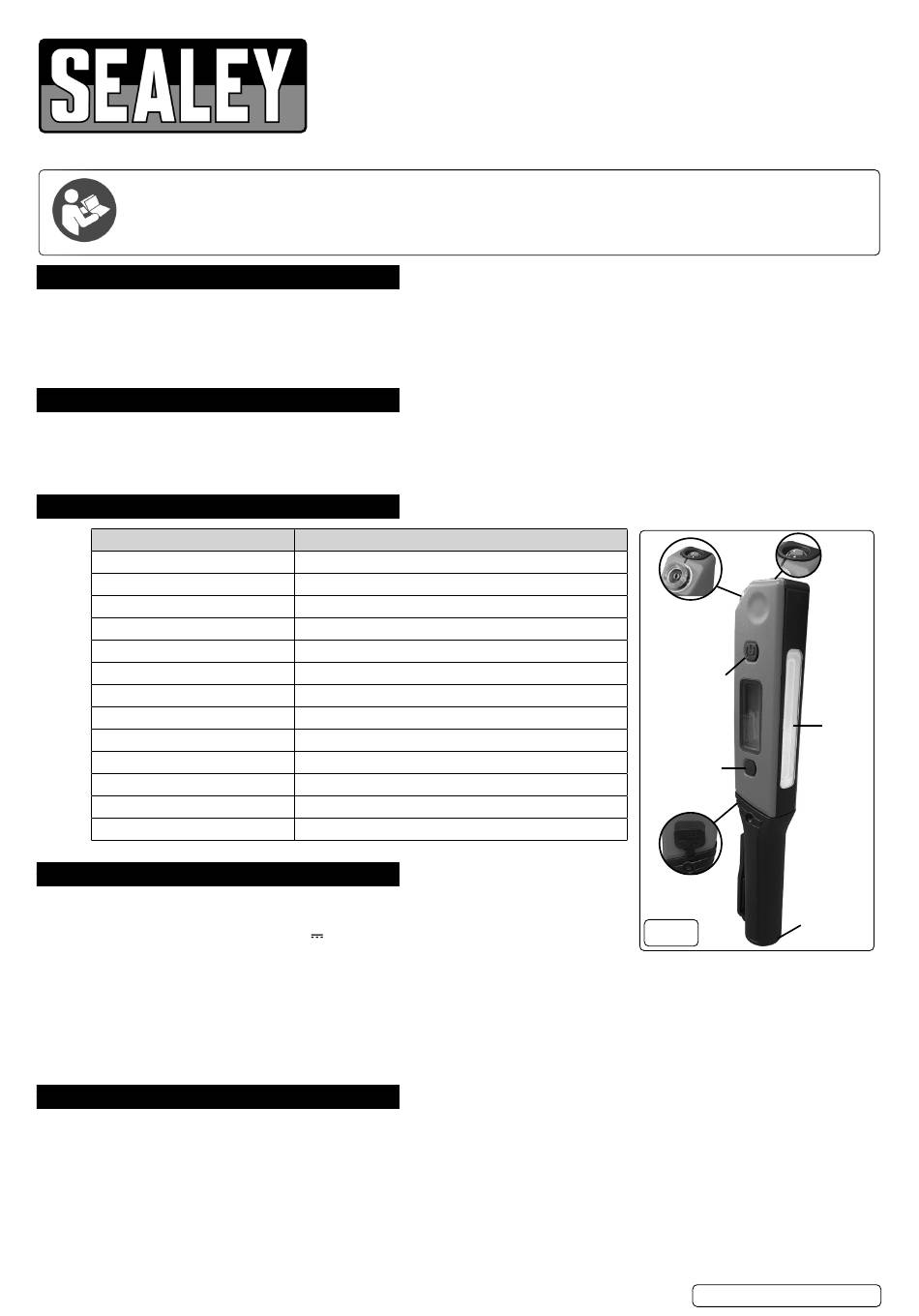

FIG.1
.
2
TSTPL01 Issue 1
TOP
LIGHT
MAIN
LIGHT
MAGNETIC
BASE
26/02/24
