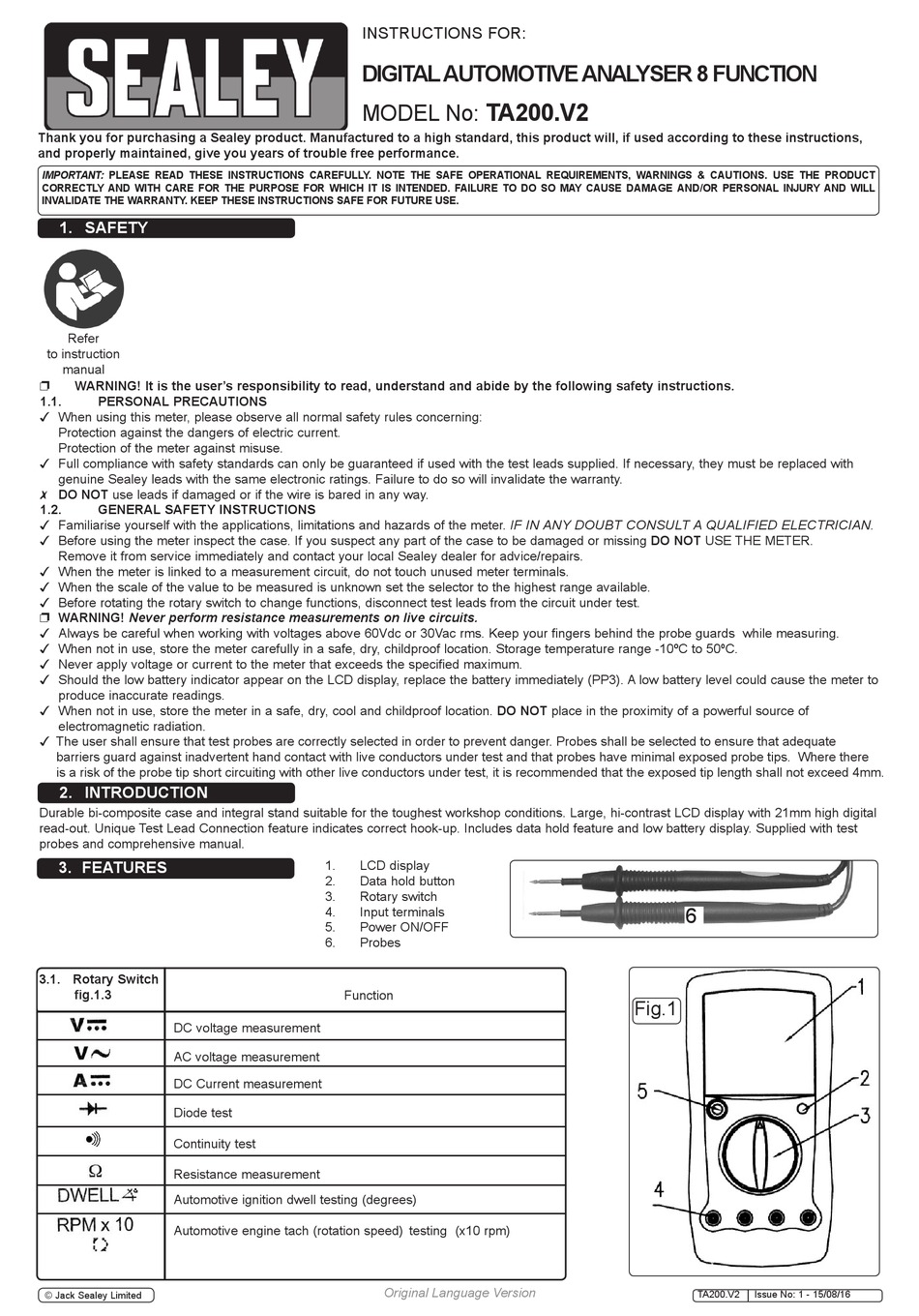

Sealey TA200.V2 Instructions Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
Refer
to instruction
manual
WARNING! It is the user's responsibility to read, understand and abide by the following safety instructions.

1.1. PERSONAL PRECAUTIONS
 When using this meter, please observe all normal safety rules concerning:
Protection against the dangers of electric current.
Protection of the meter against misuse.
 Full compliance with safety standards can only be guaranteed if used with the test leads supplied. If necessary, they must be replaced with
genuine Sealey leads with the same electronic ratings. Failure to do so will invalidate the warranty.
 DO NOT use leads if damaged or if the wire is bared in any way.
1.2. GENERAL SAFETY INSTRUCTIONS
 Familiarise yourself with the applications, limitations and hazards of the meter. IF IN ANY DOUBT CONSULT A QUALIFIED ELECTRICIAN.
 Before using the meter inspect the case. If you suspect any part of the case to be damaged or missing DO NOT USE THE METER.
Remove it from service immediately and contact your local Sealey dealer for advice/repairs.
 When the meter is linked to a measurement circuit, do not touch unused meter terminals.
 When the scale of the value to be measured is unknown set the selector to the highest range available.
 Before rotating the rotary switch to change functions, disconnect test leads from the circuit under test.
 WARNING! Never perform resistance measurements on live circuits.
 Always be careful when working with voltages above 60Vdc or 30Vac rms. Keep your fingers behind the probe guards while measuring.
 When not in use, store the meter carefully in a safe, dry, childproof location. Storage temperature range -10ºC to 50ºC.
 Never apply voltage or current to the meter that exceeds the specified maximum.
 Should the low battery indicator appear on the LCD display, replace the battery immediately (PP3). A low battery level could cause the meter to
produce inaccurate readings.
 When not in use, store the meter in a safe, dry, cool and childproof location. DO NOT place in the proximity of a powerful source of
electromagnetic radiation.
 The user shall ensure that test probes are correctly selected in order to prevent danger. Probes shall be selected to ensure that adequate
barriers guard against inadvertent hand contact with live conductors under test and that probes have minimal exposed probe tips. Where there
is a risk of the probe tip short circuiting with other live conductors under test, it is recommended that the exposed tip length shall not exceed 4mm.
2. INTRODUCTION
Durable bi-composite case and integral stand suitable for the toughest workshop conditions. Large, hi-contrast LCD display with 21mm high digital
read-out. Unique Test Lead Connection feature indicates correct hook-up. Includes data hold feature and low battery display. Supplied with test
probes and comprehensive manual.
3. FEATURES
3.1. Rotary Switch
fig.1.3
DC voltage measurement
AC voltage measurement
DC Current measurement
Diode test
Continuity test
Resistance measurement
Automotive ignition dwell testing (degrees)
Automotive engine tach (rotation speed) testing (x10 rpm)
© Jack Sealey Limited
INSTRUCTIONS FOR:
DIGITAL AUTOMOTIVE ANALYSER 8 FUNCTION
TA200.V2
MODEL No:
1. LCD display
2. Data hold button
3. Rotary switch
4. Input terminals
5. Power ON/OFF
6. Probes
Function
Original Language Version
6
Fig.1
TA200.V2 Issue No: 1 - 15/08/16
