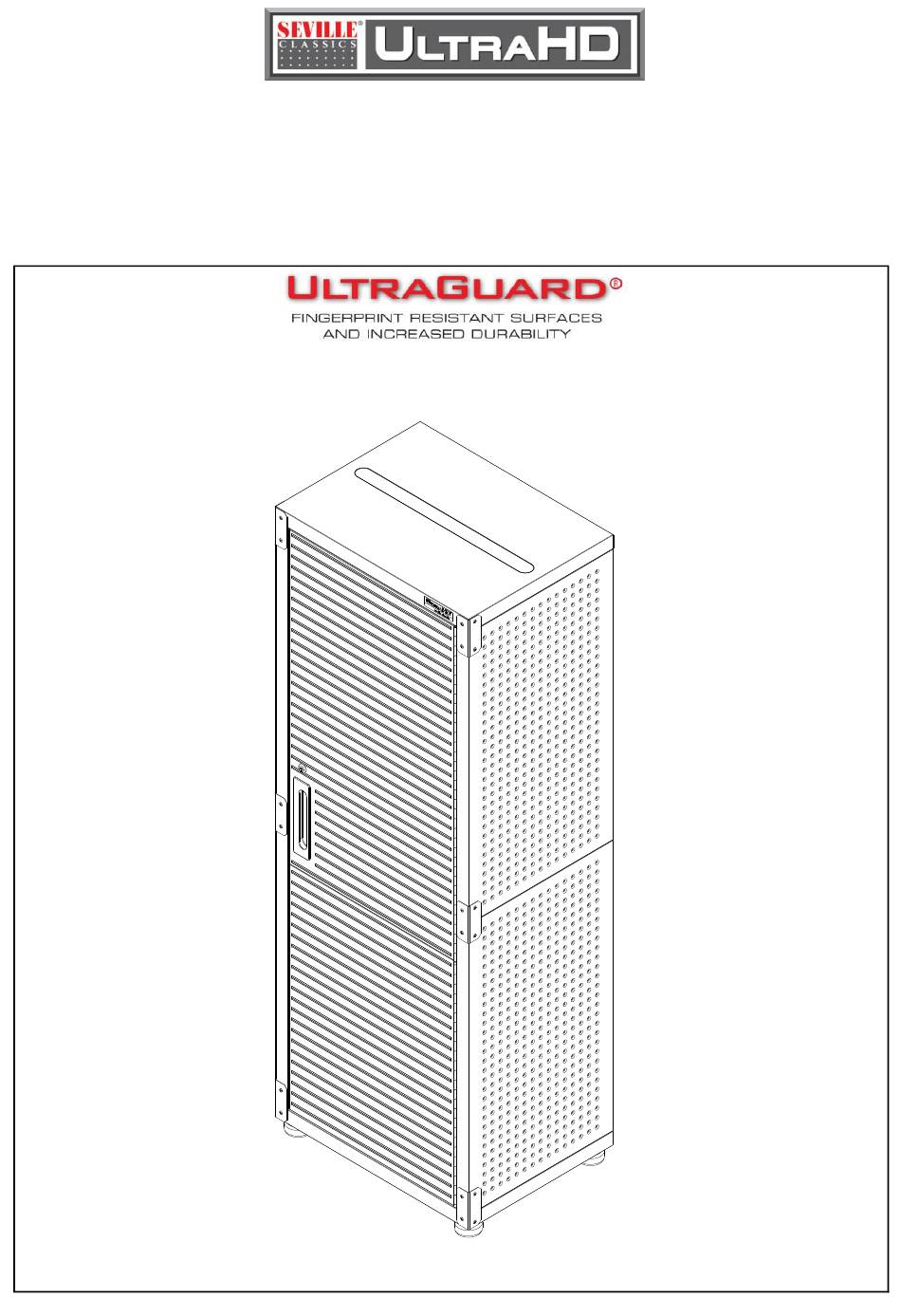

ASSEMBLY INSTRUCTIONS
UltraHD® Storage Cabinet
(Model No. 20234, WEB519, 20164)
Granite
Graphite
24in. W X 18in. D X 66in. H
(60.96 cm x 45.72 cm x 1.68 m)
Reference page 13 for special care
and maintenance of stainless steel
Includes Engineered
Nylon Anchors for quick
assembly
SC231207
Advertisement
Related Manuals for Seville Classics UltraHD UltraGuard 20234
Summary of Contents for Seville Classics UltraHD UltraGuard 20234
- Page 1 ASSEMBLY INSTRUCTIONS UltraHD® Storage Cabinet (Model No. 20234, WEB519, 20164) Granite Graphite 24in. W X 18in. D X 66in. H (60.96 cm x 45.72 cm x 1.68 m) Reference page 13 for special care and maintenance of stainless steel Includes Engineered Nylon Anchors for quick assembly SC231207...
- Page 2 Includes Engineered Nylon Anchors for Includes Engineered quick assembly Nylon Anchors for quick assembly #55-A #27-B #61 #27 #2-A #23-B #6-A #1-A...
- Page 3 “Quick assembly” Includes Engineered Nylon Anchors for quick assembly...
- Page 4 (#1-A) Left Panel (#2-A) Right Panel (#6-A) Door...
-
Page 5: Parts List
PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please call our service department. (Please refer to page 14). (#3) Top Panel x 1PC (#4) Bottom Panel x 1PC (#1-A1) Left Side - Upper Panel x 1PC (#2-A1) Right Side - Upper Panel x 1PC (#1-A2) Left Side - Bottom Panel x 1PC (#2-A2) Right Side - Bottom Panel x 1PC... - Page 6 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please call our service department. (Please refer to page 14). (#8) Upper Back Panel x 1PC (#9) Middle Back Panel X 2PCS (#10) Bottom Back Panel x 1PC (#6-A1) Door - Upper Panel x 1PC (#6-A2) Door - Bottom Panel x 1PC...
- Page 7 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please call our service department. (Please refer to page 14). (#25) Wrench x 1 PC (#34) Hook x 8 PCS (#17) Middle Corner Protection x 6 PCS (#21) Screw Driver x 1 PC (#22) Key x 2 PCS (#23) Magnet x 2 PCS...
- Page 8 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please call our service department. (Please refer to page 14). (#53) Screw L (M4 x 6L) x 1 PC (#41) Screw F (M4 x 8L) x 48 PCS (#42) Screw G (M4 x 30L) x 12 PCS (#52) Screw K (M5 x 10L) x 4 PCS M8X20 pcs...
- Page 9 PARTS LIST Please check the parts carefully according to the parts list. If you are missing any parts, please call our service department. (Please refer to page 14). (#55-A) Wall Anchor x 2 PCS (#61) Screw O (M4 x 12L) x 2 PCS (#60) Mounting Strap x 2 PCS...
- Page 10 UltraHD® Storage Cabinet (Model No. 20234, WEB519, 20164) *NOTE: We recommend using TWO people to assemble the cabinet. TIP: A magnetic screwdriver is included for your convenience. If using a power screwdriver, keep toruqe setting on LOW during assembly. WARNING: Some parts may have sharp edges.
- Page 11 UltraHD® Storage Cabinet (Model No. 20234, WEB519, 20164) *NOTE: We recommend using TWO people to assemble the cabinet. Step 4: Install Key Rod (#6-A4) Insert Key Rod (#6-A4) into the bottom tab hole of the Door - Bottom Panel (#6-A2), twist out the Pre- assembled Screw L (#53) on the key rod linkage plate, attach Key Rod (#6-A4) by lining up the screw hole and tightening back in the Screw L (#53)
- Page 12 UltraHD® Storage Cabinet (Model No. 20234, WEB519, 20164) *NOTE: We recommend using TWO people to assemble the cabinet. Install Back Panels (#8, #9 and #10) Step 8: 1). Attach Bottom Back Panel (#10) onto both bottom of Left and Right Side Panels (#1-A2 and #2-A2) and Bottom Panel (#4), line up screw holes, use 4 pcs Screw F (#41) in each corner hole to tighten.
- Page 13 UltraHD® Storage Cabinet (Model No. 20234, WEB519, 20164) *NOTE: We recommend using TWO people to assemble the cabinet. Step 11: Install Magnet (#23) and Magnet-B (#23-B) Place Magnet (#23) onto Top Panel (#3) and Bottom Panel (#4) facing the front, use 4pcs Screw F (#41) to tighten.
- Page 14 UltraHD® Storage Cabinet (Model No. 20234, WEB519, 20164) *NOTE: We recommend using TWO people to assemble the cabinet. Install Mounting Strap (#60) #60 #55 Step 14: A. Remove 1 pc Screw F (#41) from the back corner protection. #27-B B. Attach the Mounting Strap (#60) to the back Corner #55-A Protection brackets as the left photo shows using Screw O (#61) and Washer (#27).
-
Page 15: Contact Information
If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our bilingual (English and Spanish) customer service department at: Seville Classics, Inc. 19401 Harborgate Way Torrance, CA 90501 USA Telephone: (800) 323-5565 within USA... - Page 16 UltraHD® Line UltraHD® Rolling Cabinet UltraHD® 6-Foot Height Adjustable Workbench Model No. 20225 (Granite) Model No. 20292 (Granite) Model No. 20081 (Graphite) Model No. 20293 (Graphite) Model No. 20082 (Red) Model No. 20083 (White) UltraHD® Wall Cabinet with Open Shelf UltraHD®...
