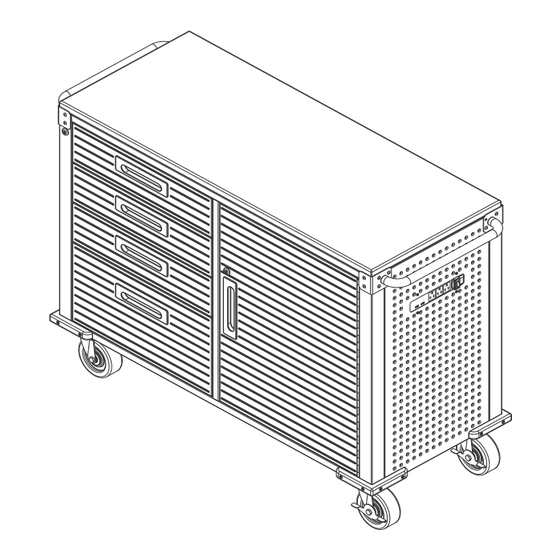

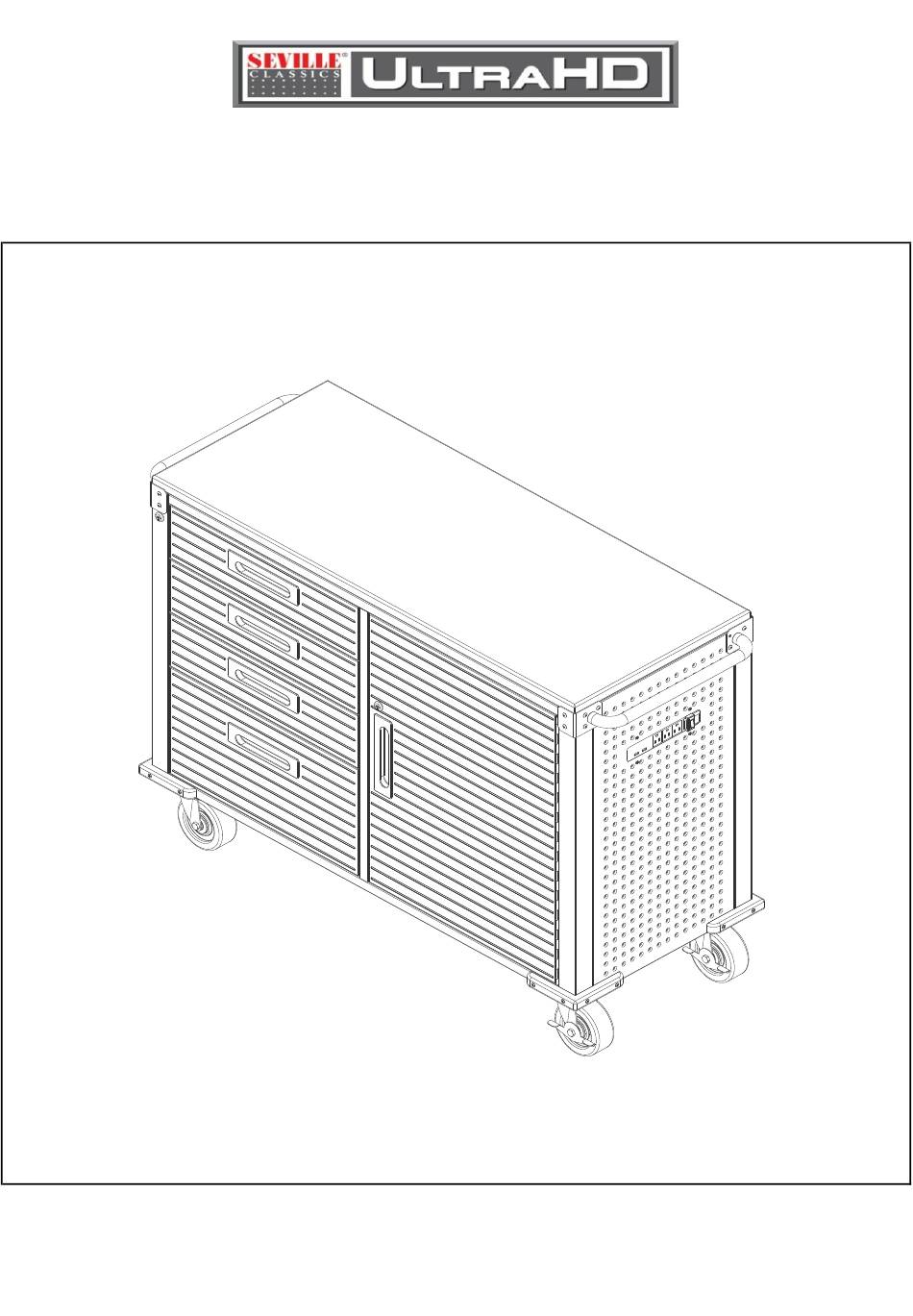

- Page 1 ASSEMBLY INSTRUCTIONS UltraHD Rolling Workbench Cabinet (Model No. 20108) (48" W X 20" D X 37.5" H)
- Page 2 (pg 1 of 14)
- Page 3 (pg 2 of 14) (#12)Small Drawer Assembly (#13)Large Drawer Assembly...
-
Page 4: Parts List
PARTS LIST (pg 3 of 14) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department . (#1) LEFT PANEL x 1 PC (#2) RIGHT PANEL x 1 PC (#3) FRONT FRAME x 1 PC (#4) BACK FRAME x 1 PC (#5) BASE PANEL x 1 PC... - Page 5 PARTS LIST (pg 4 of 14) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department . (#9) PUSH BAR x 2 PCS (#10) BUMPER x 4 PCS (#11) RIGHT DRAWER SLIDE SUPPORT x 1 PC (#12-1) MEDIUM-SIZE DRAWER FRONT x 3 PCS (#12-2) MEDIUM-SIZE DRAWER BOTTOM PANEL x 3 PCS...
- Page 6 PARTS LIST (pg 5 of 14) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department . (#13-4) LARGE DRAWER BACK PANEL x 1 PC (#28) SOCKET FIXED SEAT x 2PCS (#29) CASTER SEAT SUSHION x 4PCS (#30) SIDE PANEL LOGO TRIM x 1PC (#45) USB MULTIPLE SOCKET-OUTLET x 1PC...
- Page 7 PARTS LIST (pg 6 of 14) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department . (#41) SCREW F (M4 x 8L) x 65 PCS (#42) SCREW G (M4 x 30L) x 16 PCS (#20) SWIVEL WHEEL WITH BRAKE x 2 PCS (#65) SCREW P (M8 x 30L) x 16 PCS (#21) FIXED WHEEL W/O BRAKE x 2 PCS...
- Page 8 PARTS LIST (pg 7 of 14) Please check the parts carefully according to the parts list. If you are missing any parts, please contact our customer service department . (#24) DRAWER MAT x 4PCS (#25) WRENCH x 1 PC...
- Page 9 UltraHD Rolling Workbench Cabinet (Model No. 20108) (pg 8 of 14) Install (#30)side panel logo trim and (#45)USB multiple socket-outlet 1.Attach (#45) USB multiple socket-outlet on side panel, which can be assembled on (#1) left side panel or (#2) right side panel according to user demand . 2.Attach multiple socket-outlet on side panel, use 2pcs (#28) socket fixed seat and 4pcs (#41) screws F to Install, put multiple socket-outlet cable into the wire slot of side panel, as show picture B.
- Page 10 UltraHD Rolling Workbench Cabinet (Model No. 20108) (pg 9 of 14) Step 1. Install Back Frame(#4) Open the package, remove (#8) solide hardwood board and (#4) back frame ; put (#4) back frame onto (#8) solide hardwood board as show on left picture, take out 2pcs (#27-B) washer and 2pcs (#40) screws E ,then use wrench (#25) to tighten on solide hardwood board.
- Page 11 UltraHD Rolling Workbench Cabinet (Model No. 20108) (pg 10 of 14) Install Left Side Panel (#1) Step 4. Repeat step 2, attach Left Side Panel (#1) on solide hardwood board, use 3pcs (#41) screw F to tighten on back frame. Step 5.
- Page 12 UltraHD Rolling Workbench Cabinet (Model No. 20108) (pg 11 of 14) Step 7. Install (#29) caster seat sushion and Wheels (#20 & #21) Attach 4pcs (#29) caster seat sushion and 4pcs wheels (#20)&(#21) on the frame as shown in left picture, use the 16pcs (#65) screws P to tighten them.
- Page 13 UltraHD Rolling Workbench Cabinet (Model No. 20108) (pg 12 of 14) Step 11. Install (#12-2) Medium-Size Drawer Base and (#12-5) Small Drawer Back Panel. 1. Fold left and right sides of (#12-2) Medium-Size drawer base firstly as show on left; 2.
- Page 14 UltraHD Rolling Workbench Cabinet (Model No. 20108) (pg 13 of 14) Step 14. Place the Drawers 1). Pull out the sliders completely, then put the drawer to the sliders, make sure the square holes on the drawer side panels are line up, and the drawer is hook on the sliders completely as show left.
- Page 15 UltraHD Rolling Workbench Cabinet (Model No. 20108) (pg 14 of 14) Step 15. Install Door panel (#7) Attach the door panel (#7) on front frame , use 5pcs (#41) screws F tighten. Note: The OB holes on the door hinge have tolerance, enabling the door to be adjusted and centered in the door frame.
