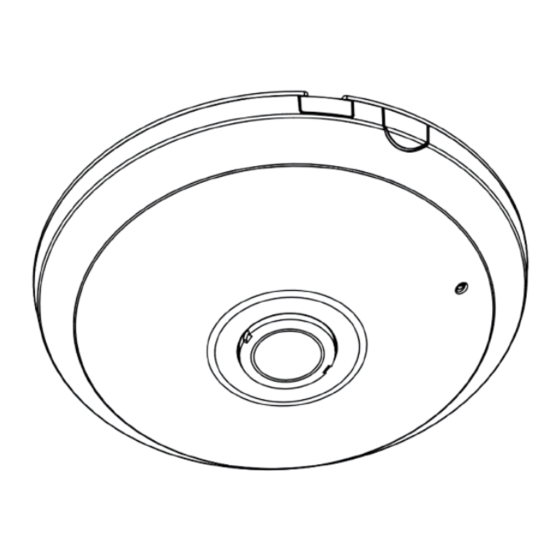

Page 1 SF8172/8172V Fixed Dome Network Camera User’s Manual 5MP • 360º Surround View • IP66 • Vandal Proof Rev. 1.0...
Page 2 Accessing the Network Camera 27 Using Web Browsers ..........................27 Using RTSP Players ..........................30 Using 3GPP-compatible Mobile Devices ....................31 Using VIVOTEK Recording Software ....................32 Main Page 33 Client Settings 43 H.264 / MPEG-4 Media Options ......................43 H.264 / MPEG-4 Protocol Options .......................43 MP4 Saving Options ..........................44...
Page 3 VIVOTEK Network > General settings ..........................73 Network > Streaming protocols .......................... 81 Network > QoS (Quality of Service) ........................86 Network > DDNS ..............................88 Manual setup ............................... 89 ................ 91 Network > SNMP (Simple Network Management Protocol) Security > User Account ............................92 Security >...
Page 4 PTZ is a groundbreaking new technology developed by VIVOTEK for monitoring open areas with extreme detail. This feature is realized through the synergy of a VIVOTEK megapixel fish- eye camera with speed dome camera, and allows users to simultaneously monitor an area overview from a fisheye model while providing the capability for a detailed regional view from a speed dome.
Page 5 VIVOTEK Read Before Use The use of surveillance devices may be prohibited by law in your country. The Network Camera is not only a high-performance web-ready camera but can also be part of a flexible surveillance system. It is the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use.
Page 6 VIVOTEK Physical Description - SF8172V Inner View Contacts for Internal Microphone (B) Lens Spring Contacts (A) Header (J6) Ethernet 10/100 RJ45 Socket Header (J7) Status LEDs Reset Button MicroSD/SDHC/SDXC Card Slot 6 - User's Manual...
Page 7 VIVOTEK Outer View Dome Cover Built-in Microphone IMPORTANT: Record the MAC address under the camera 083236 base before installing the camera. User's Manual - 7...
Page 8 VIVOTEK Physical Description - SF8172 Inner View Lens Contacts for Internal Microphone (B) Spring Contacts (A) Header (J6) Ethernet 10/100 RJ45 Socket Header (J7) Cabling Cutout Status LEDs Reset Button MicroSD/SDHC/SDXC Card Slot 8 - User's Manual...
Page 9 VIVOTEK DI/DO Diagram 3.3V Please refer to the following illustration for the connection method. Camera Power Power+3.3V Switch Input Max. Digital output Output BJT transistor Relay +3.3V Camera Power Switch Input Digital input Output Ground BJT transistor Relay Hardware Reset Reset Button The reset button is used to reset the system or restore the factory default settings.
Page 10 VIVOTEK Hardware Installation - SF8172V Opening Dome Cover First, use the supplied screwdriver to loosen the four screws and detach the dome cover from the camera base. Then, follow the steps below to install the camera to either a ceiling or a wall.
Page 11 VIVOTEK 3. You will need an RJ45 crimping tool to attach the Ethernet wires to a connec- tor. When done, connect the cable to the camera’s Ethernet RJ45 socket. o: white/orange stripe O: orange solid g: white/green stripe B: blue solid...
Page 12 VIVOTEK Base Plate Mouting Positions Refer to the diagram on the right for the mounting hole positions and the dimensions of the base plate. Camera Base Plate Mounting Positions Camera Mounting Plate Mounting Positions - SF8172V 12 - User's Manual...
Page 13 VIVOTEK Hardware Installation - SF8172 First, open the dome cover by pressing the release button. You may squeeze the opposite edge of the dome cover if the dome cover does not come off easily. Then, follow the steps below to in- stall the camera to either a ceiling or a wall.
Page 14 VIVOTEK Connecting Cables If you need to route cables through the side opening, proceed with the following: 1. Connect the Ethernet and the Power & IO cables. The Ethernet cable is user-supplied. 2. Use an included cable tie to secure the Ethernet and IO cable to the base plate. Insert the cable tie through the vertical mounting tab located on the edge of the cabling cutout.
Page 15 VIVOTEK IMPORTANT for both SF8172V and SF8172: Refer to the "Panoramic PTZ Installation Guide" in your product CD for design considerations before you proceed with physical installation. The camera is intended to be installed with an SD series speed dome camera in a "Panoramic PTZ"...
Page 16 VIVOTEK Installation Concerns Note the following when installing the fisheye and speed dome cameras: 1. Mount the cameras closely together, no greater than meter apart. 2. The cameras should be mounted at the height of meters from the ground, and their lens at approximately the same height.
Page 17 VIVOTEK Attach Camera to Mounting Adaptor - SF8172V To attach the camera to AM-51A mounting adaptor, Hole marked as D+ 1. Remove the camera's top cover. 2. Fasten 2 included screws to the D holes (not the D+ hole). 3. Route cables through the adaptor.
Page 18 VIVOTEK 3. Align the camera's screw slots with the C holes. 4. Use the included M2.6 screws to secure camera to bracket. 4 ” 4 ” NOTE: The following procedure applies to both SF8172V and SF8172 except that the SF8172 has a plastic dome cover.
Page 19 VIVOTEK Install to the Ceiling 1. Drill pilot holes into the ceiling. Then hammer four anchors into the holes. 2. Secure the pendant head to the ceiling using four screws. 3. Connect the two white header connectors to the J6 and J7 connectors.
Page 20 VIVOTEK Wall Mount Bracket Installation Below is a sample procedure using a wall mount bracket and a pendant pipe: 1. Determine a hard surface ceiling location. Use the four mounting holes on the wall mount bracket to mark the positions where holes will be drilled to secure the bracket and routing cables.
Page 21 VIVOTEK 7. Install the speed dome camera next to the fisheye, with their lens positioned at approximately the same height. For details about speed dome installation, please refer to its documentation. 8. Connect all cabling, including the IO cables to J6 and J7, and the Ethernet cable to RJ-45 connector.
Page 22 VIVOTEK Network Deployment Setting up the Network Camera over the Internet There are several ways to set up the Network Camera over the Internet. The first way is to set up the Network Camera behind a router. The second way is to utilize a static...
Page 23 VIVOTEK Internet connection with static IP Choose this connection type if you are required to use a static IP for the Network Camera. Please refer to LAN configuration on page 69 for details. Internet connection via PPPoE (Point-to-Point over Ethernet) Choose this connection type if you are connected to the Internet via a DSL Line.
Page 24 VIVOTEK General Connection (without PoE) 1. If you have external DI devices, make the connection from general I/O terminal block. 2. Ethernet, power and IO cables are user-supplied. 3. Connect DC power cord to a DC Adapter, and then to a power outlet.
Page 25 After your network environment is analyzed, please click Next to continue the program. 3. The program will search for all VIVOTEK network devices on the same LAN. 4. After a brief search, the main installer window will pop up. Double-click on the MAC address that matches the one printed on the camera label or the S/N number on the package box label to open a browser management session with the Network Camera.
Page 26 VIVOTEK Ready to Use 1. A browser session with the Network Camera should prompt as shown below. 2. Refer to the “Panoramic PTZ Installation Guide” in your product CD for the rest of the configuration details. 26 - User's Manual...
Page 27 3. The live video will be displayed in your web browser. 4. If it is the first time installing the VIVOTEK network camera, an information bar will prompt as shown below. Follow the instructions to install the required plug-in on your computer.
Page 28 VIVOTEK NOTE: For Mozilla Firefox or Netscape users, your browser will use Quick Time to stream live video. If you do not have Quick Time on your computer, please download Quick Time from Apple Inc's website, and then launch your web browser.
Page 29 VIVOTEK NOTE: 1. By default, your Network Camera is not password-protected. To prevent unauthorized access, it is highly recommended to configure a password for your camera later. For more information about how to enable password protection, please refer to Security on page 88 .
Page 30 VIVOTEK Using RTSP Players To view the H.264/MPEG-4 streaming media using RTSP players, you can use one of the following players that support RTSP streaming. Quick Time Player Real Player 1. Launch the RTSP player. 2. Choose File > Open URL. A URL dialog box will prompt.
Page 31 VIVOTEK Using 3GPP-compatible Mobile Devices To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet. For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page To utilize this feature, please check the following settings on your Network Camera: 1.
Page 32 Please install the recording software; then launch the program to add the Network Camera to the Channel list. For detailed information about how to use the recording software, please refer to the user’s manual of the software or download it from http://www.vivotek.com. 32 - User's Manual...
Page 33 VIVOTEK Main Page This chapter explains the screen elements on the main page. It is composed of the following sections: VIVOTEK INC. Logo, Host Name, Camera Control Area, Configuration Area, and Live Video Window. VIVOTEK logo Resize Buttons Configuration Area...
Page 34 VIVOTEK NOTE: The following fisheye modes will not be available if you select the "1080P Full HD" mode in the Media > Video configuration window. The 1080P Full HD mode is like using the fisheye as an ordinary HD camera.
Page 35 VIVOTEK (Single Regional) Display mode: The 1R mode provides access to one image section within the hemisphere. You can zoom in or out (using the mouse wheel or PTZ panel) or travel through to other areas within the hemisphere using simple mouse clicks and drags.
Page 36 VIVOTEK 1O3R (One Original & Three Regional) Display mode: The 1O3R mode provides access to multiple live view sections within the hemisphere and the reference to their relative positions on an Original circular view. The FOV indicators (#1 ~ #3) interact with your current operation as you may zoom in/out or move the live view sections elsewhere.
Page 37 VIVOTEK (Four Regional) Display mode: The view control and look and feel are identical to that as described in the 1O3R mode except the absence of the Original circular view. 4R PRO (Four Regional Proactive) Display mode: The 4R PRO mode is similar to the 4R mode except that the quad view windows consecutively rotate in correspondence to the change of view area in one window.
Page 38 VIVOTEK Video Stream: This Network Cmera supports multiple streams (stream #1 ~ #3) simultaneously. You can select any one of them for live viewing. For more information about multiple streams, please refer to page 63 for detailed information. Manual Trigger: Click to enable/disable an event trigger manually. Please configure an event setting before enabling this function.
Page 39 VIVOTEK Configuration Area Client Settings: Click this button to access the client setting page. For more information, please refer to Client Settings on page 39. Configuration: Click this button to access more of the configuration options provided with the Network Camera.
Page 40 VIVOTEK Snapshot: Click this button to capture and save still images. The captured images will be displayed in a pop-up window. Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP (*.bmp) format. Pause: Pause the transmission of the streaming media. The button becomes the Resume button after clicking the Pause button.
Page 41 VIVOTEK Title and Time: Video title and time can be stamped on the streaming video. For more information, please refer to Media > Image on page 53. Video Control Buttons: Depending on the camera model and your current configuration, some buttons may not be available.
Page 42 VIVOTEK NOTE: 180° Hemisphere Field of View 1. Edges of a fisheye circular view will be slightly cropped because the fisheye lens FOV is larger than the sensor can take. 2. The camera lens’ angle of view is larger than 180°. Therefore, the camera’s circular view is actually larger than a 180°...
Page 43 VIVOTEK Client Settings This chapter explains how to select the stream transmission mode and saving options on the local computer. When completed with the settings on this page, click Save on the page bottom to enable the settings. H.264 / MPEG-4 Media Options H.264/MPEG-4 Media Options...
Page 44 VIVOTEK MP4 Saving Options Users can record live video as they are watching it by clicking the “Start MP4 Recording” button on the main page. Here, you can specify the storage destination and file name. Folder: Specify a storage destination for the recorded video files.
Page 45 Click Configuration on the main page to enter the camera setting pages. Note that only Administrators can access the configuration page. VIVOTEK provides an easy-to-use user interface that helps you set up your network camera with minimal effort. To simplify the setting procedure, two types of user interfaces are available: Advanced Mode for professional users and Basic Mode for entry-level users.
Page 46 VIVOTEK Advanced Mode Navigation Area Configuration List Click to switch to Basic Mode Firmware Version Each function on the configuration list will be explained in the following sections. Those functions that are displayed only in Advanced Mode are marked with Advanced Mode . If you want to set up advanced...
Page 47 VIVOTEK System time Keep current date and time: Select this option to preserve the current date and time of the Network Camera. The Network Camera’s internal real-time clock maintains the date and time even when the power of the system is turned off.
Page 48 Theme Options (the second tab on this page). The settings will be displayed automatically in this Preview field. The following shows the homepage using the default settings: ■ Hide Powered by VIVOTEK: If you check this item, it will be removed from the homepage. Logo graph Here you can change the logo at the top of your homepage.
Page 49 VIVOTEK Theme Options Here you can change the color of your homepage layout. There are three types of preset patterns for you to choose from. The new layout will simultaneously appear in the Preview filed. Click Save to enable the settings.
Page 50 VIVOTEK ■ Follow the steps below to set up a custom homepage: 1. Click Custom on the left column. 2. Click to select a color on on the right column. Color Selector Custom Pattern 3. The palette window will pop up as shown below.
Page 51 VIVOTEK System > Logs Advanced Mode This section explains how to configure the Network Camera to backup system log to a remote server. Log server settings Follow the steps below to set up the remote log: 1. Select Enable remote log.
Page 52 The View Parameters page lists the entire system’s parameters in an alphabetical order. If you need technical assistance, use a text-editor program to copy and save the parameters listed on this page. Send the parameter text file to VIVOTEK’s technical support. 52 - User's Manual...
Page 53 Note: Do not power off the Network Camera during the upgrade! Follow the steps below to upgrade the firmware: 1. Download the latest firmware file from the VIVOTEK website. The file is in .pkg file format. 2. Click Browse… and specify the firmware file.
Page 54 VIVOTEK General settings > Reboot This feature allows you to reboot the Network Camera, which takes about one minute to complete. When completed, the live video page will be displayed in your browser. The following message will be displayed during the reboot process.
Page 55 VIVOTEK Advanced Mode Import/Export files This feature allows you to Export / Update daylight saving time rules, custom language file, and configuration file. Export daylight saving time configuration file: Click to set the start and end time of DST. Follow the steps below to export: 1.
Page 56 Network Camera. The following message is displayed when attempting to upload an incorrect file format. Export language file: Click to export language strings. VIVOTEK provides nine languages: English, Deutsch, Español, Français, Italiano, 日本語, Português, 簡体中文, and 繁體中文 .
Page 57 VIVOTEK Media > Image Advanced Mode This section explains how to configure the image settings of the Network Camera. It is composed of the following tabbed windows: General settings, Image settings, Exposure, and Privacy mask, and Pixel calculator. General settings Video title: Enter a name that will be displayed on the title bar of the live video as well as the view cell on the ST7501 and VAST recording software.
Page 58 VIVOTEK except that the images are not vertically flipped. Color: Select to display color or black/white video streams. Power line frequency: Set the power line frequency consistent with local utility settings to eliminate image flickering associated with fluorescent lights. Video orientation: Flip - vertically reflect the display of the live video; Mirror - horizontally reflect the display of the live video.
Page 59 VIVOTEK Image settings On this page, you can tune the White balance, Image adjustment and WDR enhanced parameters. You can configure two sets of preferred settings: one for normal situations, the other for special situations, such as day/night/schedule mode. Pixel calculator...
Page 60 VIVOTEK ■ Sharpness: Adjust the image sharpness level, which ranges from 0% to 100%. ■ Gamma curve: Gamma curve: Adjust the image sharpness level, which ranges from 0% to 100%. You may let firmware Optimize your display or select the Manual mode, and pull the slide bar pointer to change the preferred level of Gamma correction towards higher contrast or towards the higher luminance for detailed expression for both dark and lighted areas of an image.
Page 61 VIVOTEK If you want to configure another sensor setting for day/night/schedule mode, please click Profile to open the Profile Settings page as shown below. 2011/03/13 17:08:56 Please follow the steps below to setup a profile: 1. Select the Enable and apply this profile checkbox.
Page 62 VIVOTEK Exposure Advanced Mode On this page, you can set the Exposure measurement window, Exposure level, Exposure mode, Exposure time, Gain control, and Day/Night mode settings. You can configure two sets of Exposure settings: one for normal situations, the other for special situations, such as day/night/schedule mode.
Page 63 VIVOTEK The inclusive window refers to the “weighted window“; the exclusive window refers to “ignored window“. It adopts the weighted averages method to calculate the value. The inclusive windows have a higher priority. You can overlap these windows, and, if you place a exclusive window within a larger inclusive window, the exclusive part of the overlapped windows will be deducted from the inclusive window.
Page 64 VIVOTEK Day/Night Switch to B/W in night mode Select this checkbox to enable the Network Camera to automatically switch to Black & White display during the night mode. Turn on external IR illuminator in night mode If your camera is installed with an IR illuminator and the digital output signals are connected to it, you can let system firmware turn on the supplementary illuminator during low-light conditions.
Page 65 VIVOTEK Privacy mask Advanced Mode Click Privacy Mask to open the settings page. On this page, you can block out certain sensitive zones to address privacy concerns. 2011/03/15 17:08:56 ■ To set the privacy mask windows, follow the steps below: 1.
Page 66 VIVOTEK Pixel calculator Advanced Mode Click the Add button at the lower screen to create a pixel calculation window. Place your cursor on the window to move it to an area of your interest, and change the size of window to fit the area of interest.
Page 67 VIVOTEK Media > Video Advanced Mode The Field of View window allows you to select either the Fisheye mode or a 1080P Full HD mode. The 1080P Full HD mode provides a dewarpped section (1920x1080 pixels) out of the 180 degrees hemispheric view.
Page 68 VIVOTEK Stream settings Advanced Mode This Network Camera supports multiple streams with frame size ranging from 192 x 192 to 1920 x 1920. Please follow the steps below to set up those settings for an individual stream: 1. Select a stream to configure its viewing region.
Page 69 VIVOTEK Click the stream item to display the detailed information. This Network Camera offers real-time SVC, H.264, MPEG-4 and MJPEG compression standards (Triple Codec) for real-time viewing. H.264 MPEG-4 mode is selected, the video is streamed via RTSP protocol. There are four parameters for you to adjust the video performance: ■...
Page 70 60fps NVR Storage VIVOTEK's VAST server (rev. 1.6.1 and later) automatically negotiates with a camera and determines whether a network camera comes with the SVC feature. The SVC checkbox appears if the network camera supports the feature. The same checkbox also appears in the Batch Insert Cameras window.
Page 71 VIVOTEK A sample screen of an SVC configuration option on a VAST LiveClient session is shown below: JPEG mode is selected, the Network Camera continuously sends JPEG images to the client, producing a moving effect similar to a filmstrip. Every single JPEG image transmitted guarantees the same image quality, which in turn comes at the expense of variable bandwidth usage.
Page 72 VIVOTEK Media > Audio Audio Settings Mute: Select this option to disable audio transmission from the Network Camera to all clients. Note that if mute mode is turned on, no audio data will be transmitted even if audio transmission is enabled on the Client Settings page.
Page 73 Use fixed IP address: Select this option to manually assign a static IP address to the Network Camera. 1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network Camera on LAN. Please refer to Software Installation on page 21 for details.
Page 74 VIVOTEK Primary DNS: The primary domain name server that translates hostnames into IP addresses. Secondary DNS: Secondary domain name server that backups the Primary DNS. Primary WINS server: The primary WINS server that maintains the database of computer name and IP address.
Page 75 VIVOTEK NOTE: ► If the default ports are already used by other devices connected to the same router, the Network Camera will select other ports for the Network Camera. ► If UPnP is not supported by your router, you will see the following message: Error: Router does not support UPnP port forwarding.
Page 76 VIVOTEK 4. In the Networking Services dialog box, select Universal Plug and Play and click OK. 5. Click Next in the following window. 6. Click Finish. UPnP is enabled. ► How does UPnP work? UPnP networking technology provides automatic IP configuration and dynamic discovery of devices added to a network.
Page 77 VIVOTEK Enable IPv6 Select this option and click Save to enable IPv6 settings. Please note that this only works if your network environment and hardware equipment support IPv6. The ® browser should be Microsoft Internet Explorer 6.5, Mozilla Firefox 3.0 or above.
Page 78 VIVOTEK Please follow the steps below to link to an IPv6 address: 1. Open your web browser. 2. Enter the link-global or link-local IPv6 address in the address bar of your web browser. 3. The format should be: http://[2001:0c08:2500:0002:0202:d1ff:fe04:65f4]/ IPv6 address 4.
Page 79 VIVOTEK Port HTTPS port: By default, the HTTPS port is set to 443. It can also be assigned to another port number between 1025 and 65535. Two way audio port: By default, the two way audio port is set to 5060. Also, it can also be assigned to another port number between 1025 and 65535.
Page 80 To stop talking, click again. FTP port: The FTP server allows the user to save recorded video clips. You can utilize VIVOTEK's Installation Wizard 2 to upgrade the firmware via FTP server. By default, the FTP port is set to 21, or assigned to another port number between 1025 and 65535.
Page 81 VIVOTEK Network > Streaming protocols Advanced Mode HTTP streaming To utilize HTTP authentication, make sure that your have set a password for the Network Camera first; please refer to Security > User account on page 88 for details. Authentication: Depending on your network security requirements, the Network Camera provides two types of security settings for an HTTP transaction: basic and digest.
Page 82 VIVOTEK URL command -- http://<ip address>:<http port>/<access name for stream 1 ~ 3> For example, when the Access name for stream 2 is set to video2.mjpg: 1. Launch Mozilla Firefox or Netscape. 2. Type the above URL command in the address bar. Press Enter.
Page 83 NOTE: An original, circular view will be displayed using all RTSP players. For access to the Regional Views, you can install VIVOTEK's ST7501 or VAST software. You can right-click on a live view window to see the Display mode options.
Page 84 VIVOTEK RTSP port /RTP port for video, audio/ RTCP port for video, audio ■ RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default, the port number is set to 554. ■ The RTP (Real-time Transport Protocol) is used to deliver video and audio data to the clients. By default, the RTP port for video is set to 5556 and the RTP port for audio is set to 5558.
Page 85 VIVOTEK Multicast settings for stream 1 ~ 3: Click the items to display the detailed configuration information. Select the Always multicast option to enable multicast for streams 1 ~ 3. Unicast video transmission delivers a stream through point-to-point transmission; multicast, on the other hand, sends a stream to the multicast group address and allows multiple clients to acquire the stream at the same time by requesting a copy from the multicast group address.
Page 86 VIVOTEK Network > QoS (Quality of Service) Advanced Mode Quality of Service refers to a resource reservation control mechanism, which guarantees a certain quality to different services on the network. Quality of service guarantees are important if the network capacity is insufficient, especially for real-time streaming multimedia applications.
Page 87 VIVOTEK QoS/DSCP (the DiffServ model) DSCP-ECN defines QoS at Layer 3 (Network Layer). The Differentiated Services (DiffServ) model is based on packet marking and router queuing disciplines. The marking is done by adding a field to the IP header, called the DSCP (Differentiated Services Codepoint). This is a 6-bit field that provides 64 different class IDs.
Page 88 IP address, to have a fixed host and domain name. Express link Express Link is a free service provided by VIVOTEK server, which allows users to register a domain name for a network device. One URL can only be mapped to one MAC address. This service will check out if the host name is valid and automatically open a port on your router.
Page 89 DDNS: Dynamic domain name service Enable DDNS: Select this option to enable the DDNS setting. Provider: Select a DDNS provider from the provider drop-down list. VIVOTEK offers Safe100.net, a free dynamic domain name service, to VIVOTEK customers. It is recommended that you register Safe100.net to access VIVOTEK’s Network Cameras from the Internet.
Page 90 4. Select Enable DDNS and click Save to enable the setting. ■ CustomSafe100 VIVOTEK offers documents to establish a CustomSafe100 DDNS server for distributors and system integrators. You can use CustomSafe100 to register a dynamic domain name if your distributor or system integrators offer such services.
Page 91 VIVOTEK Network > SNMP (Simple Network Management Protocol) Advanced Mode This section explains how to use the SNMP on the network camera. The Simple Network Management Protocol is an application layer protocol that facilitates the exchange of management information between network devices. It helps network administrators to remotely manage network devices and find, solve network problems with ease.
Page 92 VIVOTEK Security > User Account This section explains how to enable password protection and create multiple accounts. Root Password The administrator account name is “root”, which is permanent and can not be deleted. If you want to add more accounts in the Manage User column, please apply the password for the “root” account first.
Page 93 VIVOTEK Security > HTTPS (Hypertext Transfer Protocol over SSL) Advanced Mode This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer). It helps protect streaming data transmission over the Internet on higher security level. Create and Install Certificate Method Before using HTTPS for communication with the Network Camera, a Certificate must be created first.
Page 94 VIVOTEK 5. Click Save to preserve your configuration, and your current session with the camera will change to the encrypted connection. 6. If your web session does not automatically change to an encrypted HTTPS session, click Home to re- turn to the main page. Change the URL address from “http://” to “https://“ in the address bar and press Enter on your keyboard.
Page 95 VIVOTEK Create certificate request and install 1. Select the option from the Method pull-down menu. 2. Click Create certificate to proceed. 3. The following information will show up in a pop-up window after clicking Create. Then click Save to generate the certificate request.
Page 96 VIVOTEK 5. Look for a trusted certificate authority, such as Symantec’s VeriSign Authentication Services, that issues digital certificates. Sign in and purchase the SSL certification service. Copy the certificate request from your request prompt and paste it in the CA’s signing request window. Proceed with the rest of the process as CA’s instructions on their webpage.
Page 97 VIVOTEK 7. Open a new edit, paste the certificate contents, and press ENTER at the end of the contents to add an empty line. 8. Convert file format from DOS to UNIX. Open File menu > Conversions > DOS to Unix.
Page 98 VIVOTEK 9. Save the edit using the “.crt” extension, using a file name like “CAcert.crt.” 10. Return to the original firmware session, use the Browse button to locate the crt certificate file, and click Upload to enable the certification. 98 - User's Manual...
Page 99 VIVOTEK Note that a 11. When the certifice file is successfully loaded, its status will be stated as Active. certificate must have been created and installed before you can click on the “Save" button for the configuration to take effect.
Page 100 VIVOTEK Security > Access List Advanced Mode This section explains how to control access permission by verifying the client PC’s IP address. General Settings Maximum number of concurrent streaming connection(s) limited to: Simultaneous live viewing for 1~10 clients (including stream 1 and stream 2). The default value is 10. If you modify the value and click Save, all current connections will be disconnected and automatically attempt to re-link (IE Explore or Quick Time Player).
Page 101 VIVOTEK ■ Disconnect: If you want to break off the current connections, please select them and click this button. Please note that those checked connections will only be disconnected temporarily and will automatically try to re-link again (IE Explorer or Quick Time Player).
Page 102 VIVOTEK Network: This rule allows the user to assign a network address and corresponding subnet mask to the Allow/Deny List. The routing prefix is written in CIDR notation. For example: accesses from IP address 192.168.2.x will be bolcked. If IPv6 filter is preferred, you will be prompted by the following window. Enter the IPv6 address and the two-digit prefix length to specify the range of IP addresses in your configuration.
Page 103 Authentication server (usually a RADIUS server): Checks the client certificate and decides whether to accept the end user’s access request. ■ VIVOTEK Network Cameras support two types of EAP methods to perform authentication: EAP-PEAP and EAP-TLS. Please follow the steps below to enable 802.1x settings: 1.
Page 104 VIVOTEK 3. When all settings are complete, move the Network Camera to the protected LAN by connecting it to an 802.1x enabled switch. The devices will then start the authentication automatically. NOTE: ► The authentication process for 802.1x: 1. The Certificate Authority (CA) provides the required signed certificates to the Network Camera (the supplicant) and the RADIUS Server (the authentication server).
Page 105 VIVOTEK PTZ > PTZ settings Advanced Mode This section explains how to control the Network Camera’s Pan/Tilt/Zoom operation. The PTZ function allows users to quickly move the focus to a target area for close-up viewing without physically zooming the camera.
Page 106 VIVOTEK 2. Adjust the shooting area to the desired position using the PTZ keypad, the FOV indicators, or mouse clicks on the live screen. To begin the mouse control, click on the two interactive windows. If you click on the Original view window, an FOV indicator will appear. You can click and hold down the left mouse button to drag the FOV indicator to a desired position.
Page 107 VIVOTEK Home page in Regional Display Mode Shown below is the display order of preset positions when you click on the Rotate button on the main page. Preset positions ■ The preset positions will also be displayed on the home page. Select one from the Go to drop-down list, and the preset position will display on one of the Regional view windows.
Page 108 VIVOTEK Event > Event settings Advanced Mode This section explains how to configure the Network Camera to respond to particular situations (event). A typical application is that when a motion is detected, the Network Camera sends buffered images to an FTP server or e-mail address as notifications. Click on Help, there is an illustration shown in the pop-up window explaining that an event can be triggered by many sources, such as motion detection or external digital input devices.
Page 109 VIVOTEK ■ Event name: Enter a name for the event setting. ■ Enable this event: Select this checkbox to enable the event setting. ■ Priority: Select the relative importance of this event (High, Normal, or Low). Events with a higher priority setting will be executed first.
Page 110 VIVOTEK ■ Camera tampering detection This option allows the Network Camera to trigger when the camera detects that is is being tampered with. To enable this function, you need to configure the Tampering Detection option first. Please refer to page 120 for detailed information.
Page 111 VIVOTEK Add server Click Add server to unfold the server setting window. You can specify where the notification messages are sent when a trigger is activated. A total of 5 server settings can be configured. There are four choices of server types available: Email, FTP, HTTP, and Network storage. Select the item to display the detailed configuration options.
Page 112 VIVOTEK To verify if the email settings are correctly configured, click Test. The result will be shown in a pop-up window. If successful, you will also receive an email indicating the result. Click Save server to enable the settings, then click Close to exit the Add server page.
Page 113 VIVOTEK ■ Passive mode Most firewalls do not accept new connections initiated from external requests. If the FTP server supports passive mode, select this option to enable passive mode FTP and allow data transmission to pass through the firewall. To verify if the FTP settings are correctly configured, click Test. The result will be shown in a pop-up window as shown below.
Page 114 VIVOTEK Network storage: Select to send the media files to a network storage location when a trigger is activated. Please refer to NAS server on page 129 for details. Click Save server to enable the settings, then click Close to exit the Add server page.
Page 115 VIVOTEK Add media Add media Click to open the media setting window. You can specify the type of media that will be sent when a trigger is activated. A total of 5 media settings can be configured. There are three choices of media types available: Snapshot, Video Clip, and System log.
Page 116 VIVOTEK ■ Add date and time suffix to the file name. Select this option to add a date/time suffix to the file name. For example: Snapshot_20110320_100341 File name preﬁx Date and time sufﬁx The format is: YYYYMMDD_HHMMSS Click Save media to enable the settings, then click Close to exit the Add media page.
Page 117 VIVOTEK ■ Maximum duration Specify the maximum recording duration in seconds. Up to 10 seconds of video can be recorded. For example, if pre-event recording is set to 5 seconds and the maximum duration is set to 10 seconds, the Network Camera continues to record for another 4 seconds after a trigger is activated.
Page 118 VIVOTEK ■ View: Click this button to open a file list window. This function is only for SD card and Network Storage. If you click View button of SD card, a Local storage page will pop up for you to manage recorded files on SD card.
Page 119 VIVOTEK Here is an example of the Event setting: When completed the settings with steps 1~3 to arrange Schedule, Trigger, and Action of an event, click Save event to enable the settings and click Close to exit the page. The following is an example of the Event setting page:...
Page 120 Please note that there is a limited number of customized scripts you can upload; if the current amount of customized scripts has reached the limit, an alert message will prompt. If you need more information, please contact VIVOTEK’s technical support. Click to upload a file...
Page 121 VIVOTEK Applications > Motion detection This section explains how to configure the Network Camera to enable motion detection. A total of five motion detection windows can be configured. Motion Detection Setting 1: For normal situations Motion Detection Setting 2: For special situations Follow the steps below to enable motion detection: 1.
Page 122 VIVOTEK on page 104. A green bar indicates that even though motions have been detected, the event has not been triggered because the image variations still fall under the defined threshold. Percentage = 30% If you want to configure specific motion detection settings individually for day/night/schedule operations, please click Profile to open the Motion Detection Profile Settings page as shown below.
Page 123 VIVOTEK NOTE: ► How does motion detection work? There are two motion detection parameters: Sensitivity and Percentage. In the illustration above, frame A and frame B are two sequential images. Pixel differences between the two frames are detected and highlighted in gray (frame C) and will be compared with the sensitivity setting. Sensitivity is a value that expresses the sensitivity to moving objects.
Page 124 VIVOTEK Applications > DI and DO Advanced Mode Digital input: Select High or Low as the Normal status for the digital input. Connect the digital input pin of the Network Camera to an external device to detect the current connection status.
Page 125 Auto Tracking Configuration Steps 1. Open a web console with the "Controller" fisheye camera. When in the same subnet, use VIVOTEK's IW2 utility to locate the camera. 2. Access the Panoramic PTZ configuration page through Configuration > Applications > Panoramic PTZ.
Page 126 VIVOTEK 3. On the General settings pane, select both the "Enable Panoramic PTZ" and "Enable Auto tracking" checkboxes. 4. The Auxiliary camera information and the Controller camera account provide configuration options to the partner cameras in case that their IP addresses may be changed after the initial configuration.
Page 127 VIVOTEK 4-5. Enter an Event name, select the "Enable this event" checkbox, select the priority of the event, and if you prefer, configure the period of time during which this event setting will take effect . 4-6. Click Trigger to open the Trigger page.
Page 128 VIVOTEK 4-8. Click Action to open the Action page. 4-9. Configure the action to take by configuring recording to an SD card or a network attached storage. For more information about Event settings, please refer to the speed dome camera's User Manual.
Page 129 VIVOTEK 6. On the Auto tracking pane, you can create a region of interest and configure the triggering conditions for Auto tracking. • By default, the region of interest is the full view. Any objects entering the fisheye's field of view will trigger the tracking.
Page 130 VIVOTEK NOTE: 1. Auto tracking is configured on the fisheye camera, and the fisheye camera commands the speed dome camera to track an intruding object. 2. The speed dome can track one object at a time. 3. If multiple objects are present, the camera tracks the object that is farthest from the camera.
Page 131 VIVOTEK Recording > Recording settings Advanced Mode This section explains how to configure the recording settings for the Network Camera. Recording Settings Insert your SD card and click here to test NOTE: Please remember to format your SD card when used for the first time. Please refer to page 132 for detailed information.
Page 132 VIVOTEK If you enable adaptive recording on Camera A, only when an event is triggered on Camera A will the server record the streaming data in full frame rate; otherwise, it will only request the I frame data during normal monitoring, thus effectively save lots of bandwidths and storage.
Page 133 VIVOTEK 2. Destination You can select the SD card or network storage (NAS) for the recorded video files. NAS server Click Add NAS server to open the server setting window and follow the steps below to set up: 1. Fill in the information for the access to the shared networked storage.
Page 134 VIVOTEK If successful, you will receive a test.txt file on the networked storage server. 3. Enter a server name. 4. Click Save to complete the settings and click Close to exit the page. ■ Capacity: You can either choose the entire available space or impose a reserved space. The Reserved space should be of the size of at least 15MBytes.
Page 135 VIVOTEK range from 100 to 900 Megabytes. ■ File name prefix: Enter a name for each recorded video. If you want to enable recording notification, please click Event to set up. Please refer to Event > Event settings on page 104 for more details.
Page 136 VIVOTEK Local storage > SD card management This section explains how to manage the local storage on the Network Camera. Here you can view SD card status, and implement SD card control. SD card staus This column shows the status and reserved space of your SD card. Please remember to format the SD card when using for the first time.
Page 137 VIVOTEK Local storage > Content management This section explains how to manage the content of recorded videos on the Network Camera. Here you can search and view the records and view the searched results. Searching and Viewing the Records This column allows the user to set up search criteria for recorded data. If you do not select any criteria and click Search button, all recorded data will be listed in the Search Results cloumn.
Page 138 VIVOTEK Search Results The following is an example of search results. There are four columns: Trigger time, Media type, Trigger type, and Locked. Click to sort the search results in either direction. Enter a key word to filter the Numbers of entries displayed...
Page 139 VIVOTEK ■ JPEGs to AVI: This function only applies to “JPEG“ format files such as snapshots. You can select several snapshots from the list, then click this button. Those snapshots will be converted into an AVI file. ■ Lock/Unlock: Select the desired search results, then click this button. The selected items will become Locked, which will not be deleted during cyclic recoroding.
Page 140 VIVOTEK Appendix URL Commands for the Network Camera 1. Overview For some customers who already have their own web site or web control application, the Network Camera/Video Server can be easily integrated through URL syntax. This section specifies the external HTTP-based application programming interface.
Page 141 VIVOTEK 3. General CGI URL Syntax and Parameters CGI parameters are written in lower-case and as one word without any underscores or other separators. When the CGI request includes internal camera parameters, these parameters must be written exactly as they are named in the camera or video server.
Page 142 VIVOTEK [&<parameter>…] http://<servername>/cgi-bin/operator/getparam.cgi?[<parameter>] [&<parameter>…] http://<servername>/cgi-bin/admin/getparam.cgi?[<parameter>] [&<parameter>…] Where the <parameter> should be <group>[_<name>] or <group>[.<name>]. If you do not specify any parameters, all the parameters on the server will be returned. If you specify only <group>, the parameters of the related group will be returned.
Page 143 (Note: The return page can be a general HTML file (.htm, .html) or a VIVOTEK server script executable (.vspx) file. It cannot be a CGI command or have any extra parameters. This parameter must be placed at the end of the parameter list Return: HTTP/1.0 200 OK\r\n...
Page 144 VIVOTEK <parameter>=<value>\r\n [<parameter pair>] Only the parameters that you set and are readable will be returned. Example: Set the IP address of server to 192.168.0.123: Request: http://myserver/cgi-bin/admin/setparam.cgi?network_ipaddress=192.168.0.123 Response: HTTP/1.0 200 OK\r\n Content-Type: text/html\r\n Context-Length: 33\r\n \r\n network.ipaddress=192.168.0.123\r\n 7. Available parameters on the server...
Page 145 VIVOTEK integer primary key SQLite data type. A 32-bit signed integer. The value is assigned a unique integer by the server. text SQLite data type. The value is a text string, stored using the database encoding (UTF-8, UTF-16BE or UTF-16-LE).
Page 146 VIVOTEK name>, *Do not use “skip to invoke default <ip server” for default value. address>, <blank> timezoneindex -489 ~ 529 Indicate timezone and area. -480: GMT-12:00 Eniwetok, Kwajalein -440: GMT-11:00 Midway Island, Samoa -400: GMT-10:00 Hawaii -360: GMT-09:00 Alaska -320: GMT-08:00 Las Vegas,...
Page 147 VIVOTEK 41: GMT 01:00 Warsaw, Budapest, Bern 80: GMT 02:00 Athens, Helsinki, Istanbul, Riga 81: GMT 02:00 Cairo 82: GMT 02:00 Lebanon, Minsk 83: GMT 02:00 Israel 120: GMT 03:00 Baghdad, Kuwait, Riyadh, Moscow, St. Petersburg, Nairobi 121: GMT 03:00 Iraq...
Page 148 VIVOTEK Marshall Is. 520: GMT 13:00 Nuku'Alofa daylight_enable <boolean> Enable automatic daylight saving time in time zone. daylight_dstactualmode <boolean> Check if current time is under daylight saving time. (Used internally) daylight_auto_begintime string[19] NONE Display the current daylight saving start time.
Page 149 VIVOTEK be restored to the default value except for a union of the combined results. restoreexceptdst <Any Restore the system parameters to value> default values except all daylight saving time settings. This command can cooperate with other “restoreexceptXYZ” commands. When cooperating with...
Page 150 VIVOTEK > version number in the format: <MODEL-BRAND-VERSION> language_count <integer> Number of webpage languages available on the server. language_i<0~(count-1)> string[16] <product Available language lists. dependent > customlanguage_maxcoun <integer> Maximum number of custom languages supported on the server. customlanguage_count <integer> Number of custom languages which have been uploaded to the server.
Page 151 VIVOTEK dependent> from mii-tool. vi_i<0~(nvi-1)> <boolean> Virtual input <product dependent> 0 => Inactive 1 => Active (capability.nvi > 0) 7.3 digital input behavior define Group: di_i<0~(ndi-1)> (capability.ndi > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) normalstate high, high Indicates open circuit or...
Page 152 VIVOTEK user_i<1~20>_pass password[64] <blank> User password user_i0_privilege viewer, admin Root privilege operator, admin user_i<1~20>_ privilege viewer, <blank> User privilege operator, admin 7.6 network Group: network NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) preproces <positive <blank> An 32-bit integer, each bit can be set separately as integer>...
Page 153 VIVOTEK from DHCP server at next reboot. 0 => Use preset ipaddress, subnet, rounter, dns1, and dns2. ipaddress <ip <product IP address of server. address> dependent> subnet <ip <blank> Subnet mask. address> router <ip <blank> Default gateway. address> dns1 <ip <blank>...
Page 154 VIVOTEK privatekey_exist <boolean> Private key installed flag (for TLS) privatekey_time <integer> Private key installed time. Represented in EPOCH privatekey_size <integer> Private key file size (in bytes) 7.6.2 QOS Subgroup of network: qos_cos (capability.protocol.qos.cos > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION...
Page 155 VIVOTEK 7.6.3 IPV6 Subgroup of network: ipv6 (capability.protocol.ipv6 > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable IPv6. addonipaddress <ip address> <blank> IPv6 IP address. addonprefixlen 0~128 IPv6 prefix length. addonrouter <ip address> <blank> IPv6 router address. addondns <ip address>...
Page 156 VIVOTEK =1 and capability.nmediastream > s2_accessname string[32] video3.mjpg Http server push access name for <product stream 3 dependent> (capability.protocol.spush_mjpeg =1 and capability.nmediastream > anonymousviewing <boolean> Enable anoymous streaming viewing. 7.6.6 HTTPS port Subgroup of network: https_port (capability.protocol.https > 0) NAME...
Page 157 VIVOTEK s2_accessname <boolean> live3.sdp RTSP access name for stream3 (capability.protocol.rtsp=1 and capability.nmediastream > 2) 7.6.7.1 RTSP multicast Subgroup of network_rtsp_s<0~(n-1)>: multicast, n is stream count (capability.protocol.rtp.multicast > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) alwaysmulticast <boolean> Enable always multicast. ipaddress <ip address>...
Page 158 VIVOTEK (capability.protocol.rtp_unicast=1) audioport 1025 ~ 65535 5558 Audio channel port for RTP. (capability.protocol.rtp_unicast=1) 7.6.10 PPPoE Subgroup of network: pppoe (capability.protocol.pppoe > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) user string[128] <blank> PPPoE account user name. pass password[64] <blank> PPPoE account password.
Page 159 VIVOTEK 7.8 Video input Group: videoin NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) cmosfreq 50, 60 CMOS frequency. (capability.videoin.type=2) whitebalance auto, manual auto “auto” indicates auto white balance. “manual” indicates keep current value. exposurelevel 0~12 Exposure level enableblc <boolean> Enable backlight compensation.
Page 160 VIVOTEK maxexposure 1, 15, 30, Maximum exposure time. 60, 120, 240, <product dependent> options framerate framerate Video input option: (1) video frame rate first mode enablepreview <boolean> Usage for UI of exposure settings. Preview settings of video profile. 7.8.1 Video input setting per channel Group: videoin_c<0~(n-1)>...
Page 161 VIVOTEK be set separately as follows: Bit 0 => Support camera control function; 0(not support), 1(support) Bit 1 => Built-in or external camera; 0 (external), 1(built-in) Bit 2 => Support pan operation; 0(not support), 1(support) Bit 3 => Support tilt operation;...
Page 162 VIVOTEK s<0~(m-1)>_mpeg4_intrap 250, 500, 1000 Intra frame period in eriod 1000, 2000, milliseconds. 3000, 4000 s<0~(m-1)>_mpeg4_bitrate average, average “average” indicates the restriction upperbound average bit rate will be equal to its target bit rate. “upperbound” indicates the bit rate will always not exceed its target bit rate.
Page 163 VIVOTEK fps (for MPEG-4). s<0~(m-1)>_svc_intraperio 250, 500, 1000 Intra frame period in 1000, 2000, milliseconds. 3000, 4000 s<0~(m-1)>_svc_svclayer SVC temporal layer. s<0~(m-1)>_svc_svcsyntax Enable SVC syntax or not. s<0~(m-1)>_svc_bitraterest average, average “average” indicates the riction upperbound average bit rate will be equal to its target bit rate.
Page 164 VIVOTEK “ratecontrolmode”. s<0~(m-1)>_svc_maxframe 1~25, Set maximum frame rate in 26~30 (only fps (for svc). for NTSC or 60Hz CMOS) s<0~(m-1)>_svc_profile Indicate SVC profiles 0: baseline 1: main profile 2: high profile s<0~(m-1)>_h264_intraperi 250, 500, 1000 Intra frame period in 1000, 2000, milliseconds.
Page 165 VIVOTEK s<0~(m-1)>_h264_qpercen 1~100 Manual video quality level input. (s<0~(m-1)>_h264_quant = 100) s<0~(m-1)>_h264_bitrate 1000~160000 3000000 Set bit rate in bps when choosing cbr in “ratecontrolmode”. s<0~(m-1)>_h264_maxfra 1~15 Set maximum frame rate in fps (for h264). s<0~(m-1)>_h264_profile Indicate H264 profiles <product dependent>...
Page 166 VIVOTEK input. (s<0~(m-1)>_mjpeg_quan t = 100) s<0~(m-1)>_mjpeg_maxfra 1~15 Set maximum frame rate in fps (for JPEG). s<0~(m-1)>_mjpeg_bitrate 1000~160000 30000000 Set bit rate in bps when choosing cbr in “ratecontrolmode”. s<0~(m-1)>_forcei Force I frame. wdrc_mode WDR enhanced. 0: off 1: Sensitivity low...
Page 167 VIVOTEK maxexposure 1~32000 Maximum exposure time. enableblc <boolean> Enable backlight compensation. exposurelevel 0~12 Exposure level agcmode auto,fixed auto Set auto gain control mode. maxgain 0~100 Manual set maximum gain value. mingain 0~100 Manual set minimum gain value. whitebalance auto, manual auto “auto”...
Page 168 VIVOTEK 0: low 1: medium 2: high agcmode auto,fixed auto Set auto gain control mode. maxgain 0~100 Manual set maximum gain value. mingain 0~100 Manual set minimum gain value. 7.10 IR cut control Group: ircutcontrol (capability.nvideoinprofile > 0) NAME VALUE...
Page 169 VIVOTEK 7.11 Image setting per channel Group: image_c<0~(n-1)> for n channel products NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) brightness -5~5 Adjust brightness of image according to mode settings. saturation -5~5,100 Adjust saturation of image according to mode settings. 100 for saturation percentage mode.
Page 170 VIVOTEK according to mode settings. profile_i0_sharpnesspercent 0~100 Adjust sharpness value of percentage when sharpness=100 profile_i0_gammacurve 0~100 Gamma curve profile_i0_lowlightmode <boolean> Enable/disable low light mode. profile_i0_wdrcstrength WDR enhanced 0: low 1: medium 2: high profile_i0_wdrcmode WDR enhanced 0: off 1: Sensitivity low 2: Sensitivity high 7.12 Image setting for preview...
Page 171 VIVOTEK NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) videoin_whitebalance auto, auto Preview of adjusting white balance of manual image according to mode settings videoin_restoreatwb 0, 1~ Restore of adjusting white balance of image according to mode settings videoin_rgain 0~100 Manual set rgain value of gain control setting.
Page 172 VIVOTEK exclusive window. blc: Use BLC. i<0~(m-1)>_win_i<0~9>_enable <boolean> Enable or disable the window. i<0~(m-1)>_win_i<0~9>_policy 0: Indicate exclusive. 1: Indicate inclusive. i<0~(m-1)>_win_i<0~9>_home <coordinate> (150,110) Left-top corner coordinate of the window. i<0~(m-1)>_win_i<0~9>_size <window size> (100x75) Width and height of the window. 7.14 Audio input per channel Group: audioin_c<0~(n-1)>...
Page 173 VIVOTEK s<0~(m-1)>_gamr_bitrate 4750, 12200 Set AMR bitrate in bps. <product dependent> 5150, 5900, 6700, 7400, 7950, 10200, 12200 s<0~(m-1)>_g711_mode pcmu, pcmu Set G.711 mode. <product dependent> pcma 7.15 Time Shift settings Group: timeshift, c for n channel products, m is stream number...
Page 174 VIVOTEK Group: motion_c<0~(n-1)>_profile for m profile and n channel product (capability.nmotionprofile > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) i<0~(m-1)>_enable <boolean> Enable profile 1 ~ (m-1). i<0~(m-1)>_policy day, night The mode which the night, profile is applied to. schedule i<0~(m-1)>_begintime...
Page 175 VIVOTEK 7.18 DDNS Group: ddns NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable the dynamic DNS. provider Safe100, DyndnsDyn Safe100 => safe100.net DyndnsDynamic, amic DyndnsDynamic => dyndns.org DyndnsCustom, (dynamic) DynInterfree, DyndnsCustom => dyndns.org CustomSafe100, (custom) DynInterfree =>dyn-interfree.it CustomSafe100 =>...
Page 176 VIVOTEK 7.20 UPnP presentation Group: upnppresentation NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable the UPnP presentation service. 7.21 UPnP port forwarding Group: upnpportforwarding NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable or disable the UPnP port forwarding service.
Page 177 VIVOTEK 7: LOG_DEBUG setparamlevel Show log of parameter setting. 0: disable 1: Show log of parameter setting set from external. 2. Show log of parameter setting set from external and internal. 7.23 SNMP Group: snmp (capability.snmp > 0) NAME VALUE...
Page 178 Hyperlink of the logo w.vivotek.c logo_powerbyvvtk_hidden <boolean> 0 => display the power by vivotek logo 1 => hide the power by vivotek logo custombutton_manualtrigger_s <boolean> Show or hide manual trigger (VI) button in homepage <product dependent> 0 -> Hidden 1 ->...
Page 179 VIVOTEK 7.25 Privacy mask Group: privacymask_c<0~(n-1)> for n channel product NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> Enable privacy mask. win_i<0~4>_enable <boolean> Enable privacy mask window. win_i<0~4>_name string[14] <blank> Name of the privacy mask window. win_i<0~4>_ 0 ~ 320,0 ~ 240,...
Page 180 VIVOTEK naudioin Number of audio inputs. <positive integer> naudioout Number of audio outputs. <positive integer> nvideoin <positive Number of video inputs. integer> nmediastream <positive Number of media stream per channels. integer> nvideosetting <positive Number of video settings per channel. integer>...
Page 181 VIVOTEK 1(external) Bit 8 => Invalidate bit 1 ~ 7; 0(bit 1 ~ 7 are valid), 1(bit 1 ~ 7 are invalid) Bit 9 => Reserved bit; Invalidate lens_pan, Lens_tilt, lens_zoon, lens_focus, len_iris. 0(fields are valid), 1(fields are invalid) evctrlchannel <boolean>...
Page 182 VIVOTEK videoin_type 0, 1, 2 0 => Interlaced CCD 1 => Progressive CCD 2 => CMOS videoin_resolution <a list of '192x192, Available resolutions list. available 256x256, resolution 384x384, separated by 512x512, commas> 768x768, <product 1056x1056 dependent> 1280x1280 1536x1536 1920x1920 videoin_resolution16x9 <a list of...
Page 183 VIVOTEK maximum 15,15 frame rate separated by commas> <product dependent> videoin_mjpeg_maxframerate <a list of 15,15,15,1 Available maximum frame list. (only for 5M available 5,15,15,15, series) maximum 15,15 frame rate separated by commas> <product dependent> videoin_h264_maxframerate <a list of 15,15,15,1 Available maximum frame list. (only for 5M...
Page 184 VIVOTEK commas> <product dependent> videoin_maxframerate <a list of Available maximum frame list. available maximum frame rate separated by commas> <product dependent> videoin_codec mpeg4. mpeg4, Available codec list. mjpeg, h264, mjpeg, h264, <product dependent> videoout_codec <a list of the <blank> Available codec list.
Page 185 VIVOTEK dependent> audioout_codec g711 <blank> Available codec list for SIP. <product dependent> camctrl_httptunnel <boolean> Indicate whether to support httptunnel. camctrl_httptunnelclient <boolean> Indicate whether to support httptunnel client. camctrl_privilege <boolean> Indicate whether to support “Manage Privilege” of PTZ control in the Security page.
Page 186 VIVOTEK derivative_brand <boolean> Indicate whether to support the upgrade function for the derivative brand. For example, if the value is true, the VVTK product can be upgraded to VVXX. (TCVV<->TCXX is excepted) npreset 0, <positive Number of preset locations integer>...
Page 187 VIVOTEK localstorage_slconnum The maximum seamless <positive connection number. integer> adaptiverecording <boolean> Indicate whether to support adaptive recording. adaptivestreaming <boolean> Indicate whether to support adaptive streaming. supportsd <boolean> Indicate whether to support local storage. remotecamctrl_master 0, <positive Indicate whether to support integer>...
Page 188 VIVOTEK delay 1~999 Delay in seconds before detecting the next event. trigger boot, boot Indicate the trigger condition: “boot” = System boot motion, “di”= Digital input seq, “motion” = Video motion detection recnotify, “seq” = Periodic condition tampering, “visignal” = Video input signal loss.
Page 189 VIVOTEK weekday 0~127 Indicate which weekday is scheduled. One bit represents one weekday. bit0 (LSB) = Saturday bit1 = Friday bit2 = Thursday bit3 = Wednesday bit4 = Tuesday bit5 = Monday bit6 = Sunday For example, to detect events on...
Page 190 VIVOTEK action_server_i<0~4>_ NULL, 0~4 <blank> Index of the attached media. media action_server_i<0~4>_ <boolean> Enable this to create folders by date, datefolder time, and hour automatically. action_patrol_enable <Boolean> Enable/disable ptz patrol when event (only for VS series) triggered. <product dependent> action_ patrol _server...
Page 191 VIVOTEK ftp_passwd string[64] NULL Password of the user. ftp_port 0~65535 Port to connect to the server. ftp_location string[128] NULL Location to upload or store the media. ftp_passive 0, 1 Enable or disable passive mode. 0 = disable passive mode 1 = enable passive mode...
Page 192 VIVOTEK snapshot_prefix string[16] Snapshot1_ Indicate the prefix of the filename. media_i0=> Snapshot1_ media_i1=> Snapshot2_ media_i2=> Snapshot3_ media_i3=> Snapshot4_ media_i4=> Snapshot5_ snapshot_datesuffix 0, 1 Add date and time suffix to filename: 1 = Add date and time suffix. 0 = Do not add.
Page 193 VIVOTEK priority 0, 1, 2 Indicate the priority of this recording: “0” indicates low priority. “1” indicates normal priority. “2” indicates high priority. source Indicate the source of media stream. 0 means the first stream. 1 means the second stream and so...
Page 194 VIVOTEK endtime hh:mm 24:00 End time of the weekly schedule. (00:00~24:00 indicates schedule always on) prefix string[16] <blank> Indicate the prefix of the filename. cyclesize 200~ The maximum size for cycle recording in Kbytes when choosing to limit recording size.
Page 195 VIVOTEK 7.32 HTTPS Group: https (capability.protocol.https > 0) NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) enable <boolean> To enable or disable secure HTTP. policy <Boolean> If the value is 1, it will force HTTP connection redirect to HTTPS connection method auto, auto auto =>...
Page 196 VIVOTEK 7.33 Storage management setting Currently it’s for local storage (SD, CF card) Group: disk_i<0~(n-1)> n is the total number of storage devices. (capability.storage.dbenabled > 0) PARAMETER VALUE Default SECURITY DESCRIPTION (get/set) cyclic_enabled <boolean> Enable cyclic storage method. autocleanup_enabled <boolean>...
Page 197 VIVOTEK 7.35 Fisheye info Group: fisheyeinfo NAME VALUE DEFAULT SECURITY DESCRIPTION (get/set) revisedcenteraxis <coordinate> <product 6/99 The actual center axis dependent> coordinate radius <integer> <product 6/99 The actual center radius dependent> 7.36 Seamless recording setting Group: seamlessrecording (capability.localstorage.seamless > 0)
Page 198 VIVOTEK 7.37 Panoramic PTZ settings Group:ivas_c0 (capability_remotecamctrl_master > 0) PARAMETER VALUE Default SECURITY DESCRIPTION (get/set) enable <boolean> Enable intelligence video analysis Group:ivas_c0_objtrack (capability_remotecamctrl_master > 0) PARAMETER VALUE Default SECURITY DESCRIPTION (get/set) enable <boolean> Enable object tracking analytics objsize 0~10000,0~1 312,312 Minimal detected object size.
Page 199 VIVOTEK <ip address> <blank> Ip address of Auxiliary camera. port 80,1025~6553 <blank> Connection port of Auxiliary camera. account string[64] <blank> User name of Auxiliary camera account. passwd string[128] <blank> Password of Auxiliary camera account. eventalarm Indicate the source id of auxiliary camera's manual trigger.
Page 200 VIVOTEK 8. Useful Functions 8.1 Drive the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/setdo.cgi?do1=<state>[&do2=<state>] [&do3=<state>][&do4=<state>] Where state is 0 or 1; “0” means inactive or normal state, while “1” means active or triggered state.
Page 201 VIVOTEK Example: Query the status of digital input 1 . Request: http://myserver/cgi-bin/dido/getdi.cgi?di1 Response: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: 7\r\n \r\n di1=1\r\n 8.3 Query Status of the Digital Output (capability.ndo > 0) Note: This request requires Viewer privileges Method: GET/POST Syntax: http://<servername>/cgi-bin/dido/getdo.cgi?[do0][&do1][&do2][&do3]...
Page 202 VIVOTEK \r\n do1=1\r\n 8.4 Capture Single Snapshot Note: This request requires Normal User privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/viewer/video.jpg?[channel=<value>][&resolution=<value>] [&quality=<value>][&streamid=<value>] If the user requests a size larger than all stream settings on the server, this request will fail. PARAMETER VALUE DEFAULT...
Page 203 VIVOTEK 8.5 Account Management Note: This request requires Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/editaccount.cgi? method=<value>&username=<name>[&userpass=<value>][&privilege=<value>] [&privilege=<value>][…][&return=<return page>] PARAMETER VALUE DESCRIPTION method Add an account to the server. When using this method, the “username” field is necessary. It will use the default value of other fields if not specified.
Page 204 VIVOTEK 8.6 System Logs Note: This request require Administrator privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/admin/syslog.cgi Server will return the most up-to-date system log. Return: HTTP/1.0 200 OK\r\n Content-Type: text/plain\r\n Content-Length: <syslog length>\r\n \r\n <system log information>\r\n 8.7 Upgrade Firmware Note: This request requires Administrator privileges.
Page 205 VIVOTEK 8.8 ePTZ Camera Control (capability.eptz > 0, not used in FE8171) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/eCamCtrl.cgi?channel=<value>&stream=<value> [&move=<value>] – Move home, up, down, left, right [&auto=<value>] – Auto pan, patrol [&zoom=<value>] – Zoom in, out [&zooming=<value>&zs=<value>] –...
Page 206 VIVOTEK zoom wide Zoom larger view with current speed. tele Zoom further with current speed. zooming wide or tele Zoom without stopping for larger view or further view with zs speed, used for joystick control. 0 ~ 6 Set the speed of zooming, “0” means stop.
Page 207 VIVOTEK 8.10 ePTZ Recall (capability.eptz > 0, not used in FE8171) Note: This request requires camctrl privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/eRecall.cgi?channel=<value>&stream=<value>& recall=<value>[&return=<return page>] PARAMETER VALUE DESCRIPTION channel <0~(n-1)> Channel of the video source. stream <0~(m-1)> Stream. recall Text string less than 40 One of the present positions to recall.
Page 208 VIVOTEK return <return page> Redirect to the page <return page> after the parameter is assigned. The <return page> can be a full URL path or relative path according to the current path. 8.12 IP Filtering Note: This request requires Administrator access privileges.
Page 209 VIVOTEK 8.13 Event/Control HTTP Tunnel Channel (capability. evctrlchannel > 0) Note: This request requires Administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/ctrlevent.cgi ------------------------------------------------------------------------- GET /cgi-bin/admin/ctrlevent.cgi x-sessioncookie: string[22] accept: application/x-vvtk-tunnelled pragma: no-cache cache-control: no-cache ------------------------------------------------------------------------- POST /cgi-bin/admin/ ctrlevent.cgi x-sessioncookie: string[22] content-type: application/x-vvtk-tunnelled...
Page 210 VIVOTEK 8.14 Get SDP of Streams Note: This request requires Viewer access privileges. Method: GET/POST Syntax: http://<servername>/<network_rtsp_s<0~m-1>_accessname> “m” is the stream number. “network_accessname_<0~(m-1)>” is the accessname for stream “1” to stream “m”. Please refer to the “subgroup of network: rtsp” for setting the accessname of SDP.
Page 211 VIVOTEK 8.16 Storage managements (capability.storage.dbenabled > 0) Note: This request requires administrator privileges. Method: GET and POST Syntax: http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=<cmd_type>[&<parameter>=<value>…] The commands usage and their input arguments are as follows. PARAMETER VALUE DESCRIPTION cmd_type <string> Required. Command to be executed, including search, insert, delete, update, and queryStatus.
Page 212 VIVOTEK Indicate if the file is locked or not. 0: file is not locked. 1: file is locked. A locked file would not be removed from UI or cyclic storage. triggerTime <text> Optional. Indicate the event trigger time. (not the file created time) Format is “YYYY-MM-DD HH:MM:SS”...
Page 213 VIVOTEK label <integer primary key> Required. Identify the designated record. Ex. label=1 isLocked <boolean> Required. Indicate if the file is locked or not. Ex. Update records whose key numbers are 1 and 5 to be locked status. http://<servername>/cgi-bin/admin/lsctrl.cgi?cmd=update&isLocked=1&label=1&label=5 Ex. Update records whose key numbers are 2 and 3 to be unlocked status.
Page 214 VIVOTEK state after duration. it cannot accept new requests. return <return page> Redirect to the page <return page> after the request is completely assigned. The <return page> can be a full URL path or relative path according the current path. If you omit this parameter, it will redirect to an empty page.
Page 215 VIVOTEK “m” is the timeshift stream index. For details on timeshift stream, please refer to the “TimeshiftCaching” documents. PARAMETER VALUE DEFAULT DESCRIPTION maxsft <positive Request cached stream at most how many seconds ago. interger> tsmode normal, normal Streaming mode: adaptive normal =>...
Page 216 VIVOTEK 8.19 Export Files Note: This request requires Administrator privileges. Method: GET Syntax: For daylight saving time configuration file: http://<servername>/cgi-bin/admin/exportDst.cgi For language file: http://<servername>/cgi-bin/admin/export_language.cgi?currentlanguage=<value> PARAMETER VALUE DESCRIPTION currentlanguage 0~20 Available language lists. Please refer to: system_info_language_i0 ~ system_info_language_i19 For setting backup file: http://<servername>/cgi-bin/admin/export_backup.cgi?backup...
Page 217 VIVOTEK \r\n <multipart encoded form data> For setting backup file: http://<servername>/cgi-bin/admin/upload_backup.cgi Post data: filename =<file name>\r\n \r\n <multipart encoded form data> Server will accept the file named <file name> to upload this one to camera. 8.21 Media on demand Media on demand allows users to select and receive/watch/listen to metadata/video/audio contents on demand.
Page 218 VIVOTEK Play recordings for length seconds which ends at etime rtsp://10.10.1.2/mod.sdp?etime=20110312_040400.000 &length=120 Play file file rtsp://10.10.1.2/mod.sdp?filename=/mnt/link0/ 8.22 Remote Camera Control (capability.remotecamctrl.master>0) Note: This request requires Viewer access privileges. Method: GET/POST Syntax: http://<servername>/cgi-bin/camctrl/rCamCtrl.cgi?[channel=<value>] [&x=<value>&y=<value>&r=<value>&videosize=<value>&resolution=<value>&stretch=<value>] – Click on image [&camid=<value>] [&return=<return page>] Example: http://myserver/cgi-bin/camctrl/rCamCtrl.cgi?c hannel=0&x=300&y=200&r=100&resolution=1920x1920&...
Page 219 VIVOTEK return <return page> Redirect to the page <return page> after the parameter is assigned. The <return page> can be a full URL path or relative path according to the current path. If you omit this parameter, it will redirect to an empty page.
Page 220 VIVOTEK 8.23 Upload map file (capability.remotecamctrl.master>0) Note: This request requires Admin privileges. Method: POST Syntax: http://<servername>/cgi-bin/admin/upload_map.cgi?camid=<value> – Upload map file Return code - Upload fail: upload_result=1 upload_msg=<value> - Upload success: upload_result=0 upload_msg=<value> [ip=<value>] , not exist in map file: default ip = ""...
Page 221 Wall mount bracket PoE injector, 802.3af compliant (20 cm) All speci cations are subject to change without notice. Copyright © 2013 VIVOTEK INC. All rights reserved. Distributed by: VIVOTEK INC. 6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.
Page 222 VIVOTEK Technology License Notice MPEG-4 AAC Technology THIS PRODUCT IS LICENSED UNDER THE MPEG-4 AAC AUDIO PATENT LICENSE. THIS PRODUCT MAY NOT BE DECOMPILED, REVERSE-ENGINEERED OR COPIED, EXCEPT WITH REGARD TO PC SOFTWARE, OF WHICH YOU MAY MAKE SINGLE COPIES FOR ARCHIVAL PURPOSES. FOR MORE INFORMATION, PLEASE REFER TO HTTP://WWW.VIALICENSING.COM.
Page 223 取扱説明書に従って正しい取り扱いをして下さい Liability VIVOTEK Inc. cannot be held responsible for any technical or typographical errors and reserves the right to make changes to the product and manuals without prior notice. VIVOTEK Inc. makes no warranty of any kind with regard to the material contained within this document, including, but not limited to, the implied warranties of merchantability and fitness for any particular purpose.
