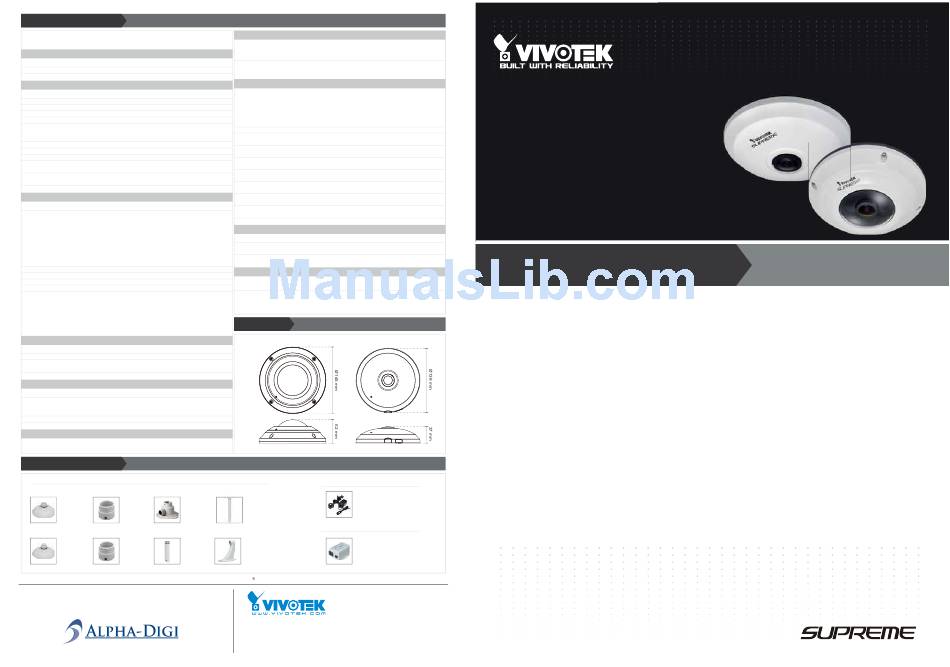

Vivotek SF8174 User Manual
Vivotek SF8174 User Manual

Vivotek SF8174 User Manual

Fisheye network camera
Hide thumbs Also See for SF8174:

Advertisement

Quick Links

Technical Specifications
Models
SF8174
SF8174V (Vandal-proof)
System Information
CPU
Multimedia SoC (System-on-Chip)
Flash
128 MB
RAM
128 MB
Camera Features
Image Sensor
1/2.5" Progressive CMOS in 2560x1920 resolution
Maximum Resolution
1920x1920
Lens Type
Fixed-focal
Focal Length
f = 1.05 mm
Aperture
F2.8
Field of View
180° (horizontal)
180° (vertical)
180° (diagonal)
Shutter Time
1/5 sec. to 1/32,000 sec.
WDR Technology
WDR Enhanced
Day/Night
Removable IR-cut filter for day & night function
Minimum Illumination
0.03 Lux @ F2.8, 50 IRE (Color)
0.001 Lux @ F2.8, 50 IRE (B/W)
Pan/tilt/zoom
ePTZ:
Functionalities
12x digital zoom (12x on IE plug-in)
On-board Storage
MicroSD/SDHC/SDXC card slot
Video
Compression
H.264, MJPEG & MPEG-4
Maximum Frame Rate
H.264:
15 fps at 1920x1920
30 fps at 1920x1080
MPEG-4:
15 fps at 1920x1920
30 fps at 1920x1080
MJPEG:
15 fps at 1920x1920
30 fps at 1920x1080
Maximum Streams
3 simultaneous streams
S/N Ratio
Above 62 dB
Dynamic Range
57 dB
Video Streaming
Adjustable resolution, quality and bitrate
Image Settings
Adjustable image size, quality and bit rate
Pixel counter
Time stamp, text overlay, flip & mirror
Configurable brightness, contrast, saturation,
sharpness, white balance, exposure control, gain,
backlight compensation, privacy masks
Scheduled profile settings
Audio
Audio Capability
Audio input/output (full duplex)
Compression
GSM-AMR, AAC, G.711
Interface
Built-in microphone
External microphone input
Effective Range
5 meters
Network
Users
Live viewing for up to 10 clients
Protocols
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP,
RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP,
DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
Interface
10Base-T/100 BaseTX Ethernet (RJ-45)
ONVIF
Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection
Five-window video motion detection
Compatible Accessories
Mounting Kits
Ceiling Mount:
AM-51A
AM-517
AM-114
Dome adapter
NPT adapter
Pendant head
Wall Mount:
AM-51A
AM-517
AM-116
Dome adapter
NPT adapter
Pendant pipe
(20 cm)
Distributed by:
Alarm and Event
Alarm Triggers
Video motion detection, manual trigger, digital input,
periodical trigger, system boot, recording notification,
camera tampering detection
Alarm Events
Event notification using digital output, HTTP, SMTP,
FTP and NAS server
File upload via HTTP, SMTP, FTP and NAS server
General
Connectors
RJ-45 cable connector for Network/PoE connection
Audio input
Audio output
12V DC power input
Digital input*1
Digital output*1
LED Indicator
System power and status indicator
Power Input
12V DC
IEEE 802.3af PoE Class 2
Power Consumption
Max. 5.1 W (12V DC)
Max 5.3 W (PoE)
Dimensions
Ø: 145 mm x 52 mm (SF8174V)
Ø: 139 mm x 37 mm (SF8174)
Weight
Net: 545g (SF8174V)
Net: 358g (SF8174)
Casing
Vandal-proof IK10-rated metal housing (SF8174V)
Weather-proof IP66-rated housing (SF8174V)
Safety Certifications
CE, LVD, FCC Class A, VCCI, C-Tick, UL
EN50155 (SF8174V)
Operating Temperature
Starting Temperature: -25°C ~ 50°C (-13°F ~ 122°F)
Working Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
Warranty
36 months
System Requirements
Operating System
Microsoft Windows 7/Vista/XP/2000
Web Browser
Mozilla Firefox 7~10 (Streaming only)
Internet Explorer 7.x or 8.x
Other Players
VLC: 1.1.11 or above
QuickTime: 7 or above
Included Accessories
CD
User's manual, quick installation guide, Installation
Wizard 2, VAST CMS (90-day free trial version)
Others
Quick installation guide, warranty card, alignment
sticker, desiccant bag, screw driver, screws pack, I/O
cable, mounting bracket
Dimensions
• SF8174V
• SF8174
Power Adapter
AA-221
AM-117
12V DC Power Adapter
Pendant pipe
(40 cm)
PoE Kits
AM-212
POE-IJ-1748NDN
Wall mount bracket
PoE injector, 802.3af compliant
All speci cations are subject to change without notice. Copyright © 2013 VIVOTEK INC. All rights reserved.
VIVOTEK INC.
6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.
|T: +886-2-82455282| F: +886-2-82455532| E: sales@vivotek.com
VIVOTEK USA, INC.
2050 Ringwood Avenue, San Jose, CA 95131
|T: 408-773-8686| F: 408-773-8298| E: salesusa@vivotek.com
Fisheye
Network Camera
SF8174/74V
5MP • 360° Surround View •
Pixel Calculator • Panoramic PTZ
VIVOTEK SF8174/74V are the latest fisheye fixed dome network cameras from VIVOTEK, featuring a
detailed 5-Megapixel resolution sensor with superb image quality. Equipped with a fisheye lens for 360°
surround view (ceiling/floor/table mount) without blind spots, the camera is able to provide coverage of wide,
open areas, such as airports, shopping malls, parking lots, retail stores, offices and more.
As with all VIVOTEK true day/night cameras, the SF8174/74V feature removable IR-cut filters, maintaining
clear images 24 hours a day. SF8174V's IP66-rated housing is designed to help the camera body withstand
rain and dust and ensures operation under a multitude of harsh weather conditions; additionally, the
vandal-proof IK10-rated housing effectively provides robust protection from physical damage. Together with
802.3af compliant PoE, MicroSD/SDHC/SDXC card slot for on-board storage, EN50155 (SF8174V only) and
iPad applications, the SF8174/74V are indisputably the top choice for constructing a robust surveillance
system with the greatest coverage possible.
Moreover, SF8174/74V are compatible with the VIVOTEK Panoramic PTZ solution. Panoramic PTZ is a
groundbreaking new technology developed by VIVOTEK for monitoring open areas with extreme detail. This
feature is realized through the synergy of a VIVOTEK megapixel fisheye camera with speed dome camera,
and allows users to simultaneously monitor an area overview from a fisheye model while providing the
capability for a detailed regional view from a speed dome. Suitable applications for Panoramic PTZ include
department stores, station lobbies, airports, parking lots, and any wide open areas where comprehensive
video surveillance systems and the capability for extreme video detail are essential.
Ver 1.0
