APW5460
User Manual
All rights reserved. Product description and product specifications are subject to change without notice.
For lastest product information, please visit Acnodes' website at www.acnodes.com

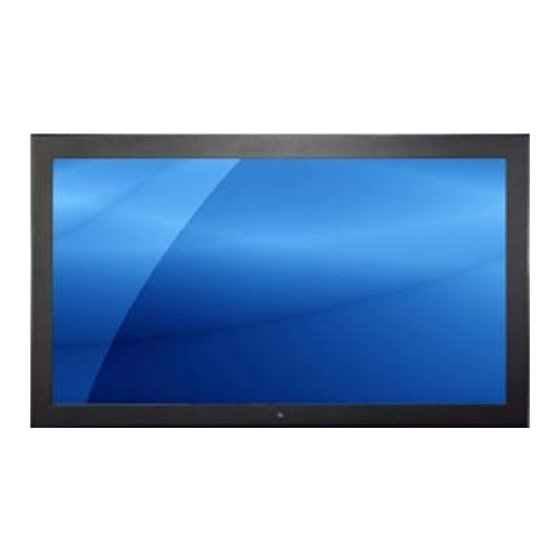

47" 1920 x 1080 Widescreen LCD
A l u m i n u m F r o n t B e z e l
W a l l M o u n t R e a d y
14628 Central Ave. Chino, CA91710
© Copyright 2015 Acnodes Corp.
Tel: 909.597.7588
Fax: 909.597.1939
Advertisement
Table of Contents
Related Manuals for Acnodes APW5460
Summary of Contents for Acnodes APW5460
- Page 1 W a l l M o u n t R e a d y User Manual All rights reserved. Product description and product specifications are subject to change without notice. For lastest product information, please visit Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA91710 Tel: 909.597.7588 Fax: 909.597.1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > APW5460 Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation < Part. 2 > Specifications / OSD / Remote Controller Product Specifications P.5 - 6 On-screen Display Operation ( OSD ) P.7 - 8... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Package Content
< Part 1 > < 1.1 > Package Content APW5460 47" FHD LCD display X 1 6ft VGA cable X 1 Power cord X 1 Remote controller X 1 Wall-mount bracket set X 1 Standard I/O Power Audio Audio R C A... -
Page 6: Structure Diagram & Dimension
Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 1154 x 70.8 x 689 mm To be confirmed 35.1 kg 41 kg APW5460 45.1 x 2.8 x 27.1 inch 77.2 lbs 90.2 lbs... - Page 7 < 1.2 > Dimension...
- Page 8 < 1.3 > Wall-mount Installation Step Front wall-mount bracket ■ Install left & right front wall-mount brackets at the rear side of the LCD shown above. ■ M5 screw x 8 pcs included ( Left & right side ). Rear side Step Rear wall-mount bracket Wall...
-
Page 9: Product Specifications
< Part 3 > < 3.1 > Product Specifications Mechanical APW5460 Design Front Panel Black, RAL 9005 Rear Casing Dark grey, RAL 7037 Other Mounting Wall mount Protection 3mm protective glass Manufacturer Panel Panel Size ( diagonal ) 47-inch Widescreen TFT color LCD... - Page 10 < 3.1 > Product Specifications Regulatory Safety Approval FCC & CE Environmental Operating Temperature 0 to 50°C degree Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 1145 x 70.8 x 689 mm...
-
Page 11: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... - Page 12 < 2.2 > On-screen Display Operation ( OSD ) Audio Audio mode : Movie / Voice / Normal / Music mode to choose Volume : Adjust the volume of sound Bass : Set the value of bass sound Treble : Set the value of treble sound Balance : Set the balance value of treble and bass sound...
-
Page 13: Remote Controller ( Rc-2 )
< 2.3 > How to Use the Remote Controller INPUT MUTE -/-- AUTO FREEZE MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP POSITION SOURCE AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds. -
Page 14: Part 3 > Options
< Part 3 > Options < 3.1 > Option Table Options SDI *** MCS multi-screen control *** MIL-type / lockable connector The user can only select either SDI or MCS inputs. - Page 15 < 3.2 > Options : 3G / HD / SD-SDI input Acnodes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, Acnodes provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty.
- Page 16 More control is always good. Especially when it is necessary and ( Multi-display Control ) easy. Acnodes provides MCS solution to control the OSD of various LCD display up to 64 units. The RS-232C is used for the communication between the PC and...
- Page 17 < 3.4 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL - DTL - 26482 MIL - type MS3470W8-33P DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with most design flexibility possible.
-
Page 18: Tv ( Analog )
< 3.5 > Options : TV ( Analog ) HDMI DVI-D Audio S-Video R C A Audio Power For RC-2 remote controller specifications, please refer to P.13...
