DVP-753
USER M ANUAL
DVD/CD/MP3/CD-RW PLAYER ATV/DVB-T tuner
Please read this User Manual carefully to ensure proper use of this
product and keep this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVP-753 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LENCO DVP-753

Summary of Contents for LENCO DVP-753

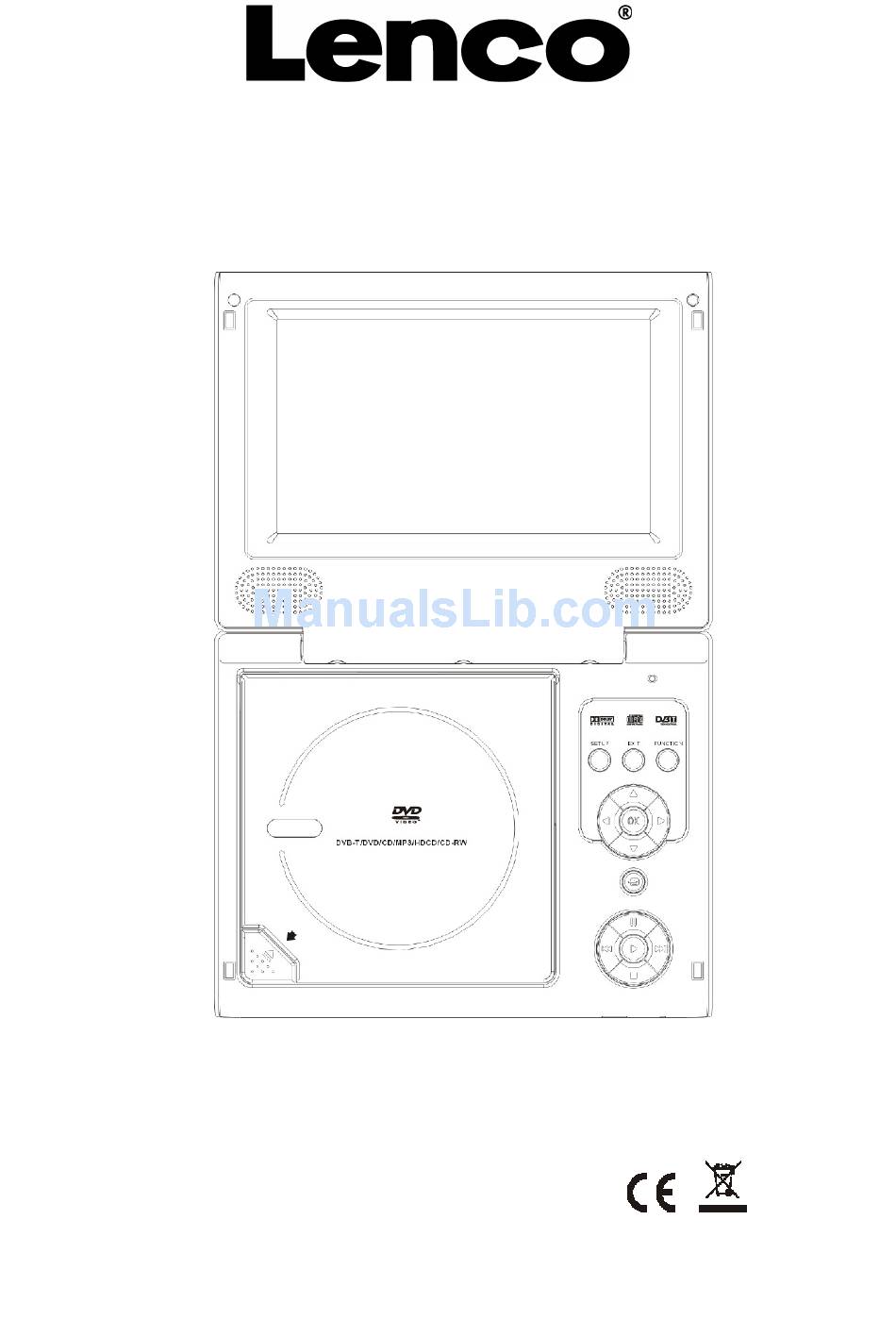

  • Page 1 DVP-753 USER M ANUAL DVD/CD/MP3/CD-RW PLAYER ATV/DVB-T tuner Please read this User Manual carefully to ensure proper use of this product and keep this manual for future reference.

  • Page 2: Table Of Contents

    User Manual Content INTRODUCTION Safety Precautions Important Safety Instructions Precautions Accessories Panel Illustration CONNECTIONS Connecting to a TV set Connecting to an AV Amplifier with Digital Audio Input Connecting to the USB BASIC PLAYBACK Basic Operation REMOTE CONTROL OPERATION Remote Control Remote Control Operation DVD PART The Setup Menu System...

  • Page 3: Introduction

    Safety Precautions Introduction CAUTION: THE LIGHTNING FLASH WITH ARRO- WHEAD SYMBOL WITHIN AN EQUIL- THE DVD VIDEO PLAYER IS A CLASS 1 LASER ATERAL TRIANGLE IS INTENDED TO PRODUCT. USE OF CONTROLS OR ADJUST- MENTS OR PERFORMANCE OF PROCEDURES ALERT THE USER TO THE PRESEN- CE OTHER THAN THOSE SPECIFIED HEREIN MAY OF UNINSULATED "DANGEROUS RESULT IN HAZARDOUS RADIATION...

  • Page 4: Important Safety Instructions

    Important Safety Instructions Introduction 10. Ventilation 1. Read Instructions Slots and openings in the cabinet are provided for All the safety and operating instructions should be read ventilation and to ensure reliable operation of the before the product is operated. product and to protect it from overheating, and these 2.

  • Page 5: Important Safety Instructions

    Important Safety Instructions Introduction 14. Outdoor Antenna Grounding 19. Servicing If an outside antenna or cable system is connected to Do not attempt to service this product yourself as the product, be sure the antenna or cable system is opening or removing covers may expose you to grounded so as to provide some protection against dangerous voltage or other hazards.

  • Page 6: Precautions

    Precautions Introduction Storage and Keeping Keep this device Never use this away from too hot or machine near too cold places. The bathtub, storage temperature washbasin,and of this machine is- kitchen, etc places with water or at 60C,the application damp basement, temperature ofthis swimming pool or machine is 5~35C.
  • Page 7 Precautions Introduction Operation Precautions 1. Only the attached AC adapter and the automobile adapter(12V) are suitable. 2. For the sake of safety, when you do not intend to use the display, Please unplug the AC adapter or automobile adapter. Earphone Operation Precautions 1.

  • Page 8: Accessories

    Accessories AC/DC adapter Remote control AV line LI type batteries Car adapter Digital DTV antenna USB line BAG & STRAPS!

  • Page 9: Panel Illustration

    Panel Illustration ILLUSTRATION DIFFERENT FROM SAMPLE! LCD DISPLAY SPEAKER RIGHT SPEAKER LEFT DISC TOP OPEN DISC TOP SETUP EXIT FUNCTION MOVE( SOURCE PAUSE PREV NEXT PLAY STOP VOLUME LIGHT SENSOR BATTERY INSERT/REMOVE BUTTON POWER ( ON/OF) DC 12V INPUT JACK (CHARGE SOCKET) DC 12V INPUT ANT IN JACK...

  • Page 10: Connecting To A Tv Set

    Connecting to a TV Set Connections...

  • Page 11: Connecting To An Av Amplifier With Digital Audio Input

    Connecting to an AV Amplifier with Digital Audio Input Notes: 1. Select the coaxial digital audio output. 2. Set the player's audio out to Raw or PCM mode . 3. Set the Digital Amplifier to the AV input connected to the DVD player.

  • Page 12: Connecting To The Usb

    CONNECT TO THE USB Press the SOURCE key on the remote control until the device switches into USB work mode USB interface This unit a USB jack, when you want to play the USB DISC, you can insert a USB DISC or MP3 Player with USB Interface to play MP3 music or JPEG files or other files.

  • Page 13: Basic Operation

    Basic Operation Preparation before playing: STEP 1 - Press ON to start the player. The DVD logo appears on the TFT screen. STEP 3- Press the PLAY button STEP 2 - Push OPEN on the front on the front panel or remote panel .

  • Page 14: Remote Control

    Remote Control Remote Control TFT on/off MUTE 4:3/16:9 SPEAKER VOL + NUMBER KEY SELECT VOL - GOTO SCAN TV/RADIO FAVORITE FUNCTION SETUP SOURCE MOVE ( EPG/PROG (Enter) TITLE/TTX EXIT ZOOM INFO SUBTITLE AUDIO MENU PLAY/PAUSE STOP NEXT PREV SLOW REPEAT ANGLE Note: 1.
  • Page 15 Remote Control Operation Advanced Features 1. MUTE Pressing the <MUTE> button will mute the audio, and display on the screen. Pressing the < MUTE> button again will cancel mute audio. 2. 4:3/16:9 Switch the display mode of TFT 4:3 or 16:9 format.
  • Page 16 Remote Control Operation Advanced Features 11. INFO In DVD mode, pressing <INFO> will bring up information menu, the direction and number buttons can be used to select Track, Title, Chapter, and Time. As below: In the DVB mode, Press <INFO> button to display the Program information options, Press <RETURN>...
  • Page 17 Remote Control Operation Advanced Features In DVD mode,press<FWD>to enter fast forward playback. Press this key again to increase speed from X2 to X4 to X8 to X16 to X32. NOTE: The <FWD> button has no effect in DVB mode. 17. REPEAT In DVD mode, press <REPEAT>...
  • Page 18 Remote Control Operation Advanced Features 23. TV/RADIO In DVB mode, press <TV/RADIO> to switch between television and radio mode. NOTE: This button has no effect in DVD mode. 24. FUNCTION In DVD/DVB mode, press < FUNCTION> button to display the picture setup menu, you can setup the LCD BRIGHT, CONTRAST, COLOR, HUE, ZOOM, S-COLOR, LANG, DEFAULT options.
  • Page 19 Remote Control Operation Advanced Features 27. TITLE/TTX In DVD mode, this button let’s you return to the disc's title. In DVB mode, this displays teletext information. 28.ZOOM Press <ZOOM> multiple times to enlarge (X1, X2, 4X) the display, in that order.
  • Page 20 The setup menu system---DVD PART Advanced Features NOTE: In the DVD setup and System setting options. If you press <SETUP> into the DVD setup and System setting option when playing disc, the some options have no effect. 1. General Steps of setup menu In the DVD mode, Press the <STOP>...

  • Page 21: The Setup Menu System

    setup menu system---DVD PART Advanced Features 2). AUDIO Highlight the AUDIO option, and press the Arrow buttons to choose the audio language you prefer. Press <ENTER> to confirm. If the disc you are playing has that language available, it will playback that language.
  • Page 22 The setup menu system---DVD PART Advanced Features B. DVD Setup-Audio Setup Press <DOWN> arrow button to highlight the Audio Setup option on the screen In the DVD setup-Audio Setup ,you can setup Digital Out, Analog Out, Downmix, Center, Rear. Press <UP>, <DOWN> and <LEFT>, <RIGHT> arrow buttons to highlight the icon of the desired page, then press the <DOWN>...
  • Page 23 The setup menu system---DVD PART Advanced Features 3). DOWNMIX There are two modes, one is LO/RO (not dolby coded), the other is LT/RT (dolby coded). C. DVD Setup-Custom Setup Press the <Down> arrow button to highlight the Custom Setup option on the screen In the DVD setup-Custom Setup ,you can setup Parental Ctrl, Angle Mark.
  • Page 24 The setup menu system---DVD PART Advanced Features 1). PARENTAL CTRL Parental Ctrl: 1:Kid Safe / 2:G / 3:PG / 4:PG13 / 5:PGR / 6:R / 7:NC-17 / 8:ADULT. The first level discs are open to people of every age and eight level only suitable for the adult. If you want to change the parental ctrl setting, enter the user’s age control item and then enter the four digit password.
  • Page 25 setup menu system---DVD PART Advanced Features D. DVD Setup-Exit Press the <DOWN> arrow button to highlight the <EXIT> option on the screen In the DVD Setup-Exit ,Choose the Exit option to return the DVD main Setup. 2. DVD Mode of System Setting Pressing the <SETUP>...
  • Page 26 setup menu system---DVD PART Advanced Features 1. OSD LANGUAGE Highlight the OSD LANGUAGE option, and press the Arrow buttons to choose the OSD language you prefer. Press <ENTER> to confirm, and it will display OSD in that language. B. System setting Menu-Display Setup Press the <DOWN>...
  • Page 27 setup menu system---DVD PART Advanced Features 2).Display TYPE According to the Display type, you can choose 4:3PS, 4:3LB or 16:9 . C. System setting Menu-Preference Press the Down arrow button to highlight the Preference option on the screen In the System Setting Menu-Preference Setup, you can setup the UI Style, Change PIN, Default Type, and Default options.
  • Page 28 setup menu system---DVD PART Advanced Features 1). UI Style Here you can choose the UI Style, you can select Style1,Style2,Style3,Style4. 2). Change PIN The default password is 6666. -26-...
  • Page 29 The setup menu system---DVD PART Advanced Features 3). Default Type In the Default Type options, you can choose DVD MODE, DVB MODE, USB MODE, ATV MODE user Select MODE and Last operation Type MODE. NOTE: In the Default Type, If you choose the DVB MODE. The next time you power up the PLAYER it will directly enter DVB MODE.
  • Page 30 The setup menu system---DVD PART Advanced Features 3. Game options Press the <SETUP> button, the DVD main setup menu will appear on the screen, then press the <DOWN> button to highlight the Game option. Press the <ENTER> button to confirm, the Main Menu-Game option will appear on the screen.

  • Page 31: Mpeg4/Mp3 Playback

    MP3 Playback When Mp3 disc is loaded, the screen will display as follows: Current Current MP3/JPEG directory file name. If a JPEG name file is playing, the name should have a JPEG extension. Press to select the file when the cursor appears in the file window.

  • Page 32: Kodak Picture Cd Playback

    Kodak picture CD Playback General function: You can set the slideshow transition modes for pictures. Press PAUSE to stop playing. Press to see the previous or next picture. Press PLAY to continue slideshow transitions. Press STOP to return to root menu. IMAGE ROTATION Press the DIRECTION button ( )to rotate the image.

  • Page 33: The Setup Menu System

    setup menu system---DVB PART Advanced Features 1. First Time Installation After all the connections have been made properly, switch on your TV. Make sure the receiver is connected to the mains and press <POWER> to switch the receiver on. If you are using the receiver for the first time, a First Time Installation menu will be displayed to guide you through the initial setup.
  • Page 34 setup menu system---DVB PART Advanced Features D. Wait to complete the scanning. In case you want to stop the scanning, press the <EXIT> button. The channels already found will still be stored. E. When finished, all active channels found will be stored automatically. The last found channel will be played.
  • Page 35 The setup menu system---DVB PART Advanced Features 1).TV Program Press the <RIGHT> button to highlight the TV Program, Then press the <ENTER> button to enter, the TV program options will appear on the screen. All active channels are listed in the Program List, allowing you to create your own favorite channel group...
  • Page 36 setup menu system---DVB PART Advanced Features Deleting a Channel a. Select the channel you want to delete and go to the Del column. Press <ENTER> button and an X symbol will be displayed. Repeat this step for all the channels you want to delete. c.
  • Page 37 The setup menu system---DVB PART Advanced Features B. Press the Up and Down button to highlight the DVB Menu-Program Search option, the following screen will appear. In the DVB Menu-Program Search, you can select Automatic Search and Manual Search options 1).Automatic Search.
  • Page 38 The setup menu system---DVB PART Advanced Features C. Parental Control This feature allows you to prevent children or unauthorized people from watching channels. 1). Enter Main Menu > Parental Control. First, you will need to enter PIN as prompted to use the parental control menu. (The default PIN is 6666.) After you entered the correct PIN, the following options are provided: Channel Lock: Allows you to activate or de-activate the overall parental control.
  • Page 39 The setup menu system---DVB PART Advanced Features 2).Country In the Country options, you can choose a kinds of the Countries. As: England Germany, Italy, France, Spain etc. 3).Language Press the <DOWN> button to highlight the Language options, then Press the <ENTER>...
  • Page 40 The setup menu system---DVB PART Advanced Features 4).GMT usage: Allows you to enable/disable Greenwich Mean Time (GMT) usage. If you know the GMT time zone of your location, set GMT usage to ON and select an appropriate time zone. If you prefer to set the time manually, select OFF in GMT usage item and then manually select the date and time.
  • Page 41 The setup menu system---DVB PART Advanced Features This feature allows the receiver to automatically switch on and tune to pre-specified channel for a pre-set length of time. Up to 10 tasks can be scheduled. a. In the Schedule window, use the <UP / DOWN> key to select a task and use <RIGHT / LEFT >...

  • Page 42: Atv Part

    ATV PART Advanced Features 1.Press the source (DVB/ATV/AV) button to select ATV MODE. 2.Press MENU to display the following options. A. Press DOWN button to select AUTO SEARCH, Press Right button to start auto search. Press UP and DOWN to select MANUAL SEARCH, Press the Right or Left button to start manual search.
  • Page 43 ATV PART Advanced Features Press UP and DOWN to select POSITION, the current channel number and channel frequency will be displayed at the bottom of the menu. Press the Left or Right button to view the previous or next channel. E.

  • Page 44: Screen Set Part

    SCREEN SET PART Advanced Features G. Press UP and DOWN button to select SKIP, use this option to skip the channel. Press the FUNCTION button to display PICTURE, the screen will display as bellow: A. Bright Press DOWN to highlight it. Press LEFT and RIGHT to adjust...
  • Page 45 SCREEN SET PART Advanced Features C. Color Press UP and DOWN to highlight it. Press LEFT and RIGHT to adjust the screen color. D. Hue Press UP and DOWN to highlight it. Press LEFT and RIGHT to adjust the screen hue. E.
  • Page 46 SCREEN SET PART Advanced Features F. S-Color Press UP and DOWN to highlight it. Press LEFT and RIGHT to adjust the system, AUTO/PAL/NTSC/SECAM . G. Language Press UP and DOWN to highlight it. Press the ENTER button to change the language. H.

  • Page 47: Others

    Troubleshooting Other If you have any questions, please consult the troubleshooting guide below. NO PICTURE OR SOUND "BAD DISC" DISPLAYED Ensure the power button is on. Ensure the disc is not warped, damaged or deformed. Ensure the power outlet is operational. Ensure the disc is not badly stained or damaged.
  • Page 48 Troubleshooting Other Before you request for repair The Issues below do not necessarily mean there is a failure with the TV set. Please check following before you request for repair. Issue Possible causes Improper connection with AC adapter or No picture, no sound Car adapter.

  • Page 49: Specifications

    Specifications Other Type DP8508 Model NTSC/PAL Play mode Disc mode DVD,VCD, CD, MP3, CD-R, CD-RW, JPEG, DVD+ -R/W, MPEG4, Video characteristic 65dB. Video S/N ratio 500 lines. Resolution Audio characteristic fs 96KHz: 20Hz-20KHz:+/-1dBI Frequency response 90dB Audio S/N ratio Dynamic range 90dB Distortion <...
  • Page 50 If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)
