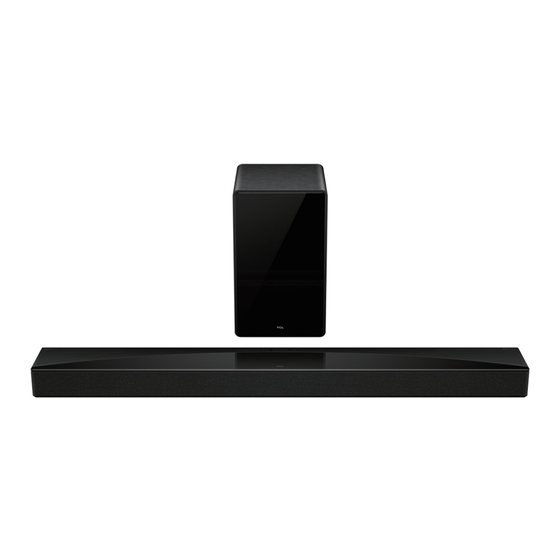

TCL Q75HK Series User Manual

5.1.2 channel dolby atmos soundbar with wireless subwoofer

Hide thumbs

page of 46

/ 46
Bookmarks

Quick Links

Download this manual

5.1.2 Channel Dolby Atmos Soundbar with Wireless

Subwoofer

Q75H

User Manual

Need help?

Do you have a question about the Q75HK Series and is the answer not in the manual?

Questions and answers

Summary of Contents for TCL Q75HK Series

Page 1 5.1.2 Channel Dolby Atmos Soundbar with Wireless Subwoofer Q75H User Manual...
Page 2 Overview of the Remote Control ........16 3 Connect your Soundbar system ......19 Connect with the HDMI cable ........19 TCL Tutti Choral ............. 21 Connect with the optical cable ........22 Direction for setting up your Soundbar using an optical cable ................
Page 3 ..................29 Listen to music from your Bluetooth device ....31 Use the USB cable or device for music playback ..32 5 Software update ..........33 Online update ..............33 USB update ..............34 6 Specifications ............36 7 Notice ..............38 Declaration of conformity ..........
Page 4 1 Before you begin • Carefully read and observe all safety instructions in the safety leaflet. • This Soundbar is intended for indoor use only. In case it accidentally gets in contact with small amounts of water, unplug immediately and use a dry cloth to remove the water.
Page 5 TCL Overseas Marketing Limited bears no responsibility for accidents or damages caused by unauthorized changes, modiﬁcations or improper use of the product. User Manual can be found at www.tcl.com on the speciﬁc product page in the “Download” section. CAUTION CAUTION...
Page 6 • Unplug this apparatus during lightning storms or when unused for long periods of time. • Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Page 7 2 Welcome Congratulations on the purchase of your new TCL Soundbar! After it is set up and connected, you can experience a superb sound quality and state-of-the-art design to best fit your home entertainment system. You are recommended to read through this user manual which helps you set up, connect and operate the product easily and properly.
Page 8 Wall Mount Kit AC Power cord x 2 (for Soundbar) Wall mount template Warranty card...
Page 9 Overview of the Soundbar AC~IN OPTICAL HDMI IN HDMI (eARC) AC~IN OPTICAL HDMI IN HDMI (eARC) Short Press: Power on Long Press: Power off Short Press: Switch input sources (HDMI eARC/Optical/ USB/Bluetooth/HDMI IN) Long Press: Enter subwoofer pairing (If Subwoofer disconnected) Short Press: Select Bluetooth mode Long Press: Bluetooth pairing...
Page 10 Press to increase or decrease the volume level 5 LED Display Indicates the current status and IR signal from the remote control. Receive signal from the remote control. 6 AC input power connector 7 USB Type A connector 8 Optical input connector 9 HDMl IN connector 10 HDMl eARC connector Note:...
Page 11 Overview of the wireless Subwoofer ON/OFF AC~IN AC~IN ON/OFF Wireless Subwoofer THE SUBWOOFER WILL PAIR AUTOMATICALLY WITH SOUNDBAR UPON THE FIRST USE. In case of a problem, take the following steps to manually pair: 1. Press and hold the button on the Subwoofer for 3 seconds until an amber light begins flashing on the button.
Page 12 • Make sure you use screws provided or specified by the authorized manufacturer. • TCL bears no responsibility for accidents or damage caused by improper wall mounting and screws installation or insufficient wall strength, etc. • Additional tools (not supplied) are required for installation.
Page 13 < 3m 2m - 3.5m Mount your Soundbar on the wall 1 Place the supplied wall mount template on the wall. Make sure the wall mount template is at least 5cm below the center of the TV. 2 Use a level to make sure the wall mount template is positioned accurately.
Page 14 4 Locate the mounting holes on the template and mark the wall. 5 Remove the wall mount template. 6 Drill a screw hole at each marking on the wall. > 50mm 634mm 7 Insert the wall anchors in the holes on the wall. 8 Insert the supplied screws with the wall brackets into the hole of the wall anchors.
Page 15 Notes • Do not place your Soundbar in a location exposed to direct sunlight, heat, fire, or moisture. Only suitable for mounting at heights: < 200cm.
Page 16 Install/replace the Remote Control batteries Warnings • Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent type. Caution • The battery contains perchlorate material, handle it with care. For information, refer to www.dtsc.ca.gov/ hazardouswaste/perchlorate 1 Open the battery compartment, remove the old batteries if necessary.
Page 17 Overview of the Remote Control Short Press: Mute/Unmute the sound Short Press: Power on Long Press: Power off Short Press: Select Bluetooth mode Long Press: Bluetooth Pairing Short Press: Change different brightness levels of the LED display Long Press: Switch between LED light on or turn off Short Press: Switch input sources HDMI eARC/Optical/USB/Bluetooth/HDMI IN...
Page 18 Increase volume Decrease volume Play previous music Play next music Play/Pause music Press to switch Night Mode ON or OFF Press to switch Voice Enhance Mode ON or OFF Press to switch Surround Enhance Mode ON or OFF Short press to enter AI Sonic-Adaptation Menu Short press to switch different AI Sonic-Adaptation: Position 1/Position 2/Position 3/OFF...
Page 19 This Soundbar can be fully controlled via the TCL Home App, including power, volume, input switching, effects, AI Sonic-Adaptation and more. Use the TCL Home App to explore additional smart features. Please download the latest version from the app stores.
Page 20 For TCL TV: Connect HDMI cable from the HDMI (eARC) interface on the Soundbar to the HDMI (eARC/ARC) interface on the Enable the CEC function in the settings of the TCL TV. (See TV User Manual for instructions)
Page 21 External Inputs HDMI Control External devices control (CEC) (eARC/ARC) Auto Power On HDMI 1 Auto Standby HDMI 2 HDMI 3 HDMI 4 (eARC/ARC) TCL Q75H AC~IN OPTICAL HDMI IN HDMI (eARC) (eARC) AC~IN OPTICAL HDMI IN HDMI (eARC) For other TV brands:...
Page 22 TCL official website for specific models). The operation methods for different televisions may vary. • Please find the latest version TCL Tutti Choral compatibility list of the TV models on TCL support web. This function is available in some TCL TVs and some TCL models.
Page 23 Connect with the optical cable 1 Remove the protective caps from the optical cable when necessary. 2 Connect one end of the optical cable to the optical input connector on your Soundbar and another end to the optical output connector of your TV or device. AC~IN AC~IN OPTICAL...
Page 24 To get the best possible audio experience using the optical cable: 1 Press the Home button on your TCL TV Remote. 2 Navigate to Audio option under Settings. 3 Change the TV settings so that the sound of the TV can be output from the speaker system.
Page 25 Connect your Soundbar to power supply 1 M a k e s u re t h a t y o u h a v e c o m p l e t e d a l l o t h e r connections before connecting the Soundbar to power supply.
Page 26 Select TCL Q75H. You will see LED display shows “CONNECTED”. Pairing is successful. Repeat Step 3 to pair other devices. If you cannot find the model name TCL Q75H on your • Bluetooth device, press and hold on the Remote Control.
Page 27 TCL Q75H...
Page 28 “Vol-” & “Vol+” at the same time on the top panel of the Soundbar. Go to the Wi-Fi menu under Settings on your iOS device. Select “TCL Q75H" under "SET UP NEW AIRPLAY SPEAKER…”. Follow the instructions on the screen to complete the setup process.
Page 29 TCL Q75H WLAN Not Connected Settings Settings Wi-Fi WLAN Wi-Fi Home Airplane Mode NETWORKS WLAN Not Connected Other... Bluetooth SET UP NEW AIRPLAY SPEAKER TCL Q75H Ask to Join Networks Notify WIFI CONNECTED...
Page 30 4 Use your Soundbar system Use your Soundbar with the top panel or Remote Control Make sure the Soundbar is properly connected to the power supply and sources. Press at the top panel of your Soundbar or Remote Control to switch to the correct source. The Soundbar LED display indicates various Soundbar functions.
Page 32 Note: After powering on your Soundbar, if there is no operation performed on either the Soundbar or Remote Control within 10 seconds, all LED indicators on the Soundbar will turn off and light up again when the operation is resumed. Tip: You can use more advanced functions on the Remote Control (see ‘Overview of the Remote...
Page 33 Use the USB cable or device for music playback • Press play/pause button on the Remote Control to listen to/pause/resume the music. • Press left/right button on the Remote Control to skip to the previous or next track. • Press up/down button to increase or decrease the volume level.
Page 34 TCL may offer updates for the Soundbar’s system firmware in the future. When an update is available, you can upgrade the Soundbar by connecting the USB drive or using TCL HOME app to update the firmware online. Online update Follow the instructions in the image below to update the firmware on TCL HOME app.
Page 35 Note: Please remove all the files and folders from the USB storage device (after that it should be empty). Update Procedure: A. Find and download the latest update file for your TCL Soundbar on TCL support web (www.TCL.com -> Support). It is VERY important to use the correct file for your specific model.
Page 36 USB storage device. C. Upgrade the TCL Soundbar using the following steps: Step 1: Unplug and reconnect the power cord, then restart the Soundbar. Step 2: Switch the Soundbar to USB mode and plug in the USB storage device.
Page 37 3 seconds): < 0.5W • Power consumption at standby mode (when the Soundbar has no signal input or audio output for 19 mins) with TCL Home APP on: < 2W Impedance: 8 Ω • •...
Page 38 • Frequency range: 2406MHz-2474MHz • Max transmitting power: 10dBm • Dimensions (WxHxD): 220x368.66x275mm • Weight: 6.38 kg Bluetooth • Bluetooth version: 5.1, Bluetooth profile - Bluetooth stereo supported (Advanced Audio Distribution Profile - A2DP; Audio Video Remote Control Profile - AVRCP) •...
Page 39 Soundbar is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.tcl.com go to Support and enter the model name. Disposal of your old product and...
Page 40 This symbol means that the product contains a battery covered by European Directive 2013/56/EU which cannot be disposed of with normal household waste. Inform yourself about the local separate collection system for electrical and electronic products and batteries. Follow local rules and never dispose of the product and batteries with normal household waste.
Page 41 Provision 5.3-13 The full text of the UK declaration of conformity is available at the following internet address: www.tcl.com. Choose the medel name and go to DOWNLOADS.
Page 42 Trademarks Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2024 Dolby Laboratories. All rights reserved. The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.
Page 43 Apple, AirPlay, Apple Home, and Apple TV are trademarks of Apple Inc., registered in the U.S. and other countries and regions. The Wi-Fi CERTIFIED Logo is a certification mark of Wi-Fi ™ Alliance ®...
Page 44 8 FAQ No power • Make sure the AC power cord and AC input connector are connected properly. • Make sure there is power supply. • Make sure the Soundbar has turned on. No sound • Make sure the audio cable is connected to the Soundbar and your device.
Page 45 • Make sure the Bluetooth function is activated and the LED display will show "PAIRING". If the LED display shows nothing, long press Bluetooth button on the Remote Control and make sure the LED display shows "PAIRING". • Make sure the Soundbar has paired with your Bluetooth device.
Page 46 TCL support: Please visit www . tcl . com WE ARE READY TO HELP contact us first with any questions TAKE CARE WHEN REMOVING THE SOUNDBAR Copyright © 2024 TCL. All rights reserved. English-Q75H-EU_EN_UM_V1.2...
