TCL Alto 6+ User Manual

2.1 channel sound bar with dolby audio & wireless subwoofer
Hide thumbs Also See for Alto 6+:
Table of Contents

Advertisement

Quick Links

2.1 Channel Sound Bar with Dolby Audio & Wireless Subwoofer
User Manual

Advertisement

Table of Contents
loading

Related Manuals for TCL Alto 6+

Summary of Contents for TCL Alto 6+

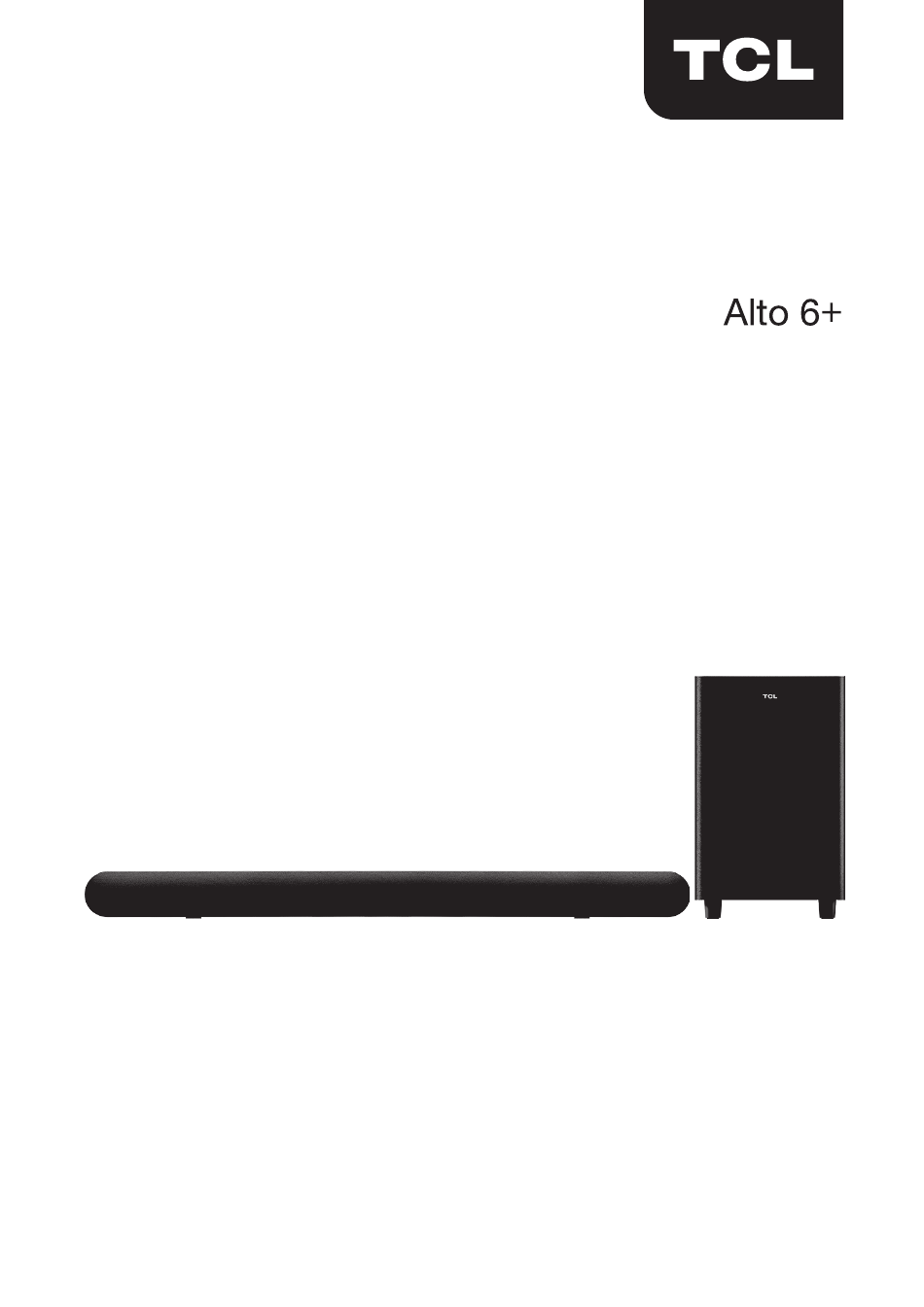

  • Page 1 2.1 Channel Sound Bar with Dolby Audio & Wireless Subwoofer User Manual...

  • Page 2: Table Of Contents

    Contents 1 Before you begin 2 Welcome What’s in the box Overview of the Sound Bar main unit Overview of the wireless subwoofer Overview of the remote control Set up your Sound Bar system Mount your Sound Bar main unit on the wall Position your subwoofer Install/replace the remote control batteries 3 Connect your Sound Bar system...
  • Page 3 Listen to music from your Bluetooth device Use the USB cable or device for music playback Specifications Notice Declaration of conformity Disposal of your old product and battery Trademarks 7 FAQ...

  • Page 4: Before You Begin

    • • • • • • • •...

  • Page 5: Welcome

    2 Welcome Congratulations on the purchase of your new TCL Sound Bar! After it is set up and connected, you can experience a superb sound quality and state-of-the-art design to best fit your home entertainment system. You are recommended to read through this user manual which helps you set up, connect and operate the product easily and properly.
  • Page 6 AC power cord x 2 Optical cable HDMI cable Wall mount bracket x 2 Wall anchor x 2 Wall mounting screw x 2 Warranty Safety card instructions Warranty card Safety leaflet Quick Start Guide Wall mount template...

  • Page 7: Overview Of The Sound Bar Main Unit

    Overview of the Sound Bar main unit AC IN ~AC IN Press to turn the Sound Bar main unit on or to standby mode. Press to switch the audio source among HDMI/Optical/AUX/USB/Bluetooth modes. Press to select the Bluetooth function. Press and hold to enter the pairing mode.
  • Page 8 Press to increase or decrease the volume level. LED indicator Red: in standby mode. Purple: in HDMI ARC mode. Green: in AUX mode. Blue: in Bluetooth mode. Yellow: in Optical mode. Cyan: in USB mode. Sound Mode LED indicator Flashing mode of LED indicators for MUSIC / MOVIE / TV. AC input power connector AUX input connector Optical input connector...

  • Page 9: Overview Of The Wireless Subwoofer

    Overview of the wireless subwoofer AC input power connector Amber LED indicator • mode. flashes quickly when pairing is in progress. • remains on solidly when pairing is successful. • PAIR Press and hold button on the Sound Bar main unit or the remote control, 4 LEDs flash.

  • Page 10: Overview Of The Remote Control

    Overview of the remote control Press to turn the Sound Bar on or to standby mode. Press to mute or unmute the sound. Press to increase or decrease the volume level.
  • Page 11 Play/pause/resume playback in Bluetooth/USB mode In Bluetooth mode, press and hold for 3 seconds to disconnect the Bluetooth device and enter pairing status. Press to skip to previous or next track in Bluetooth/USB mode. Press to switch the audio source among HDMI/Optical/AUX/USB/Bluetooth modes.

  • Page 12: Set Up Your Sound Bar System

    Sound Bar main unit on the wall. Make sure you use screws provided or specified by the authorized manufacturer. TCL Overseas Marketing Limited bears no responsibility for accidents or damage caused by improper wall mounting and screws installation or insufficient wall strength, etc.
  • Page 13 Place the supplied wall mount template on the wall. Make sure the wall mount template is at least 2 inches (5cm) below the center of the TV. Use a level to make sure the wall mount template is positioned accurately. the wall.
  • Page 14 Screw off the rubber cushions from the soundbar. (Reserve the rubber cushions for future use) Screw on the wall brackets to the soundbar. Insert the supplied screws into the wall anchors. Fix and tighten the screws on the wall, and please leave 0.16 inches (4mm) between the screw heads and the wall.
  • Page 15 Hang the Sound Bar main unit on the screws. Notes Check the installation location before you mount the Sound Bar on the wall (see ‘Mount your Sound Bar main unit on the wall’ on page 11). mounting the Sound Bar on the wall.

  • Page 16: Position Your Subwoofer

    Position your subwoofer The distance between the subwoofer and the Sound Bar main unit should be within 9.8 feet (3 meters). < 9.8’ Install/replace the remote control batteries Warnings Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
  • Page 17 Caution The battery contains perchlorate material, handle it with care. For information, refer to www.dtsc.ca.gov/hazardouswaste/perchlorate Open the battery compartment, remove the old batteries if necessary. Place two new AAA batteries into the battery compartment with the correct polarity (+/-). Close the battery compartment.

  • Page 18: Connect Your Sound Bar System

    3 Connect your Sound Bar system you can start connecting it to your TV or other devices and listen to the audio through your Sound Bar. Make sure you have muted the audio of your TV or device. For information, check the user manual of your TV or device.
  • Page 19 Connect your Sound Bar to HDMI input marked (ARC) on your TCL TV. Press the Settings button on your TCL TV remote. Navigate to System options. Set T-Link to On. (This feature may be called, Anynet+, SimpLink, BRAVIA Link, EasyLink or VIERA Link*.)

  • Page 20: Connect With The Optical Cable

    Connect with the optical cable Remove the protective caps from the optical cable when necessary. Connect one end of the optical cable to the optical input connector on your Sound Bar main unit and another end to the optical output connector of your TV or device. AC IN Note If there is no sound output from the Sound Bar main unit...
  • Page 21 Do not bend or kink the optical cable (SPDIF) as it is fragile and can easily get damaged and broken. To get the best possible audio experience using the optical cable: Press the Settings button on your TCL TV remote. Navigate to Audio options. Set TV speakers to...

  • Page 22: Connect With The 3.5Mm-To-3.5Mm Audio Cable

    Connect with the 3.5mm-to-3.5mm audio cable connect one end of th 3.5mm-to-3.5mm audio cable • (sold separately) to the AUX input connector on your Sound Bar main unit and another end to the headphone or audio output connector on your TV or device. This will disable the sound of your TV built-in speakers;...

  • Page 23: Connect Your Sound Bar To Power Supply

    Connect your Sound Bar to power supply Make sure that you have completed all other connections before connecting the Sound Bar to power supply. Make sure the power supply voltage complies with your country’s safety standards (see ‘Specifications’ on page Connect one end of another supplied AC power cord to the AC input connector on your subwoofer and another end to the power socket on the wall.

  • Page 24: Connect The Sound Bar With Your Bluetooth Device

    The blue LED flashes quickly. The Sound Bar is ready to pair. Power on your Bluetooth device and activate its Bluetooth function. Select TCL Alto 6+ on the pairing list of your Bluetooth device. The blue LED remains on solidly when pairing is successful.
  • Page 25 TCL Alto 6+ on If you cannot find the model name your Bluetooth device, press and hold on the remote control. You will see the blue LED flashes rapidly. Now the Sound Bar main unit is entering the pairing mode.

  • Page 26: Connect Your Wireless Subwoofer To The Sound Bar

    Connect your wireless subwoofer to the Sound Bar When the wireless subwoofer is connected, you can enjoy powerful deep bass sounds and a truly immersive audio experience. Auto pairing Make sure both the Sound Bar and wireless subwoofer are connected to the power supply and are turned on. The Sound Bar will pair with the subwoofer automatically.
  • Page 27 Note Do not press PAIR at the back of the wireless subwoofer during auto pairing. Manual pairing Make sure the Sound Bar and wireless subwoofer are properly connected to the power supply. Press and hold button on the Sound Bar main unit or the remote control, 4 LEDs flash.

  • Page 28: Use Your Sound Bar System

    4 Use your Sound Bar system Use your Sound Bar with the top panel or remote control Make sure the Sound Bar is properly connected to the power supply and sources. Press at the top panel of your Sound Bar main unit or remote control to switch to the correct source.
  • Page 29 Note After powering on your Sound Bar, if there is no operation performed on either the Sound Bar main unit or remote control within 10 seconds, all LED indicators again when the operation is resumed. control (see ‘Overview of the remote control’ on page...

  • Page 30: Sound Settings

    Sound settings Press to adjust the volume. • Press on the remote control to mute the sound. Press • again to unmute the sound. Press the EQ buttons (MOVIE/MUSIC/TV) on the remote • control to select the equalizer (EQ) effect when you are watching TV or movies or listening to music.

  • Page 31: Listen To Music From Your Bluetooth Device

    Listen to music from your Bluetooth device Make sure that your device supports A2DP and/or AVRCP. For information, check the specification of your device. Pair your Bluetooth device with the Sound Bar main unit (see ‘Connect the Sound Bar with your Bluetooth device’...

  • Page 32: Use The Usb Cable Or Device For Music Playback

    Use the USB cable or device for music playback Connect the USB device to the USB Type A connector on your Sound Bar main unit. Press on the Sound Bar main unit or remote control. until the cyan LED is on. To pause or resume music, press on the remote •...
  • Page 33 Operation LED indicators Listen to music. The cyan LED is on. Press to pause the The cyan LED keeps flashing music. This Sound Bar can support USB devices of up to 32GB memory and the supported file format is MP3.

  • Page 34: Specifications

    5 Specifications Sound Bar main unit Power adapter: AC~100-240V, 50/60Hz • Power consumption: 20W • Power consumption at standby mode: ≤ 0.5W • Impedance: 6 Ω • Frequency response: 150 Hz-20 kHz • Dimensions (WxHxD): 31.5"x2.4"x4.2" / 800x62x107mm • Weight: 4.0 lbs (1.8 kg) •...

  • Page 35: Notice

    Hereby, TCL Entertainment Solutions Limited declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. You can find the Declaration of Conformity on www.tcl.com. Disposal of your old product and battery Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
  • Page 36 This symbol means that the product contains a battery covered by European Directive 2013/56/EU which cannot be disposed of with normal household waste. Inform yourself about the local separate collection system for electrical and electronic products and batteries. Follow local rules and never dispose of the product and batteries with normal household waste.

  • Page 37: Trademarks

    Trademarks The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by TTE Corporation is under license. Other trademarks and trade names are those of their respective owners. Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

  • Page 38: Faq

    7 FAQ No power Make sure the AC power cord and AC input connector are connected properly. Make sure there is power supply. Make sure the Sound Bar has turned on. No sound Make sure the audio cable is connected to the Sound Bar and your device.
  • Page 39 I cannot find the Bluetooth name of this Sound Bar on my Bluetooth device. Make sure the Bluetooth function is activated on your Bluetooth device. Make sure the Sound Bar has paired with your Bluetooth device. The LED indicator of the subwoofer is off. Reset the subwoofer by disconnecting the power supply and reconnecting after 2 minutes.
  • Page 40 HELP contact us first with any questions TAKE CARE WHEN REMOVING THE SOUNDBAR 2020 © TCL Overseas Marketing Limited. All rights reserved. This product has been manufactured by and is sold under the responsibility of TCL Overseas Marketing Limited. TS6110_NA_EN_UM_V0.4...

This manual is also suitable for:

Ts6110
