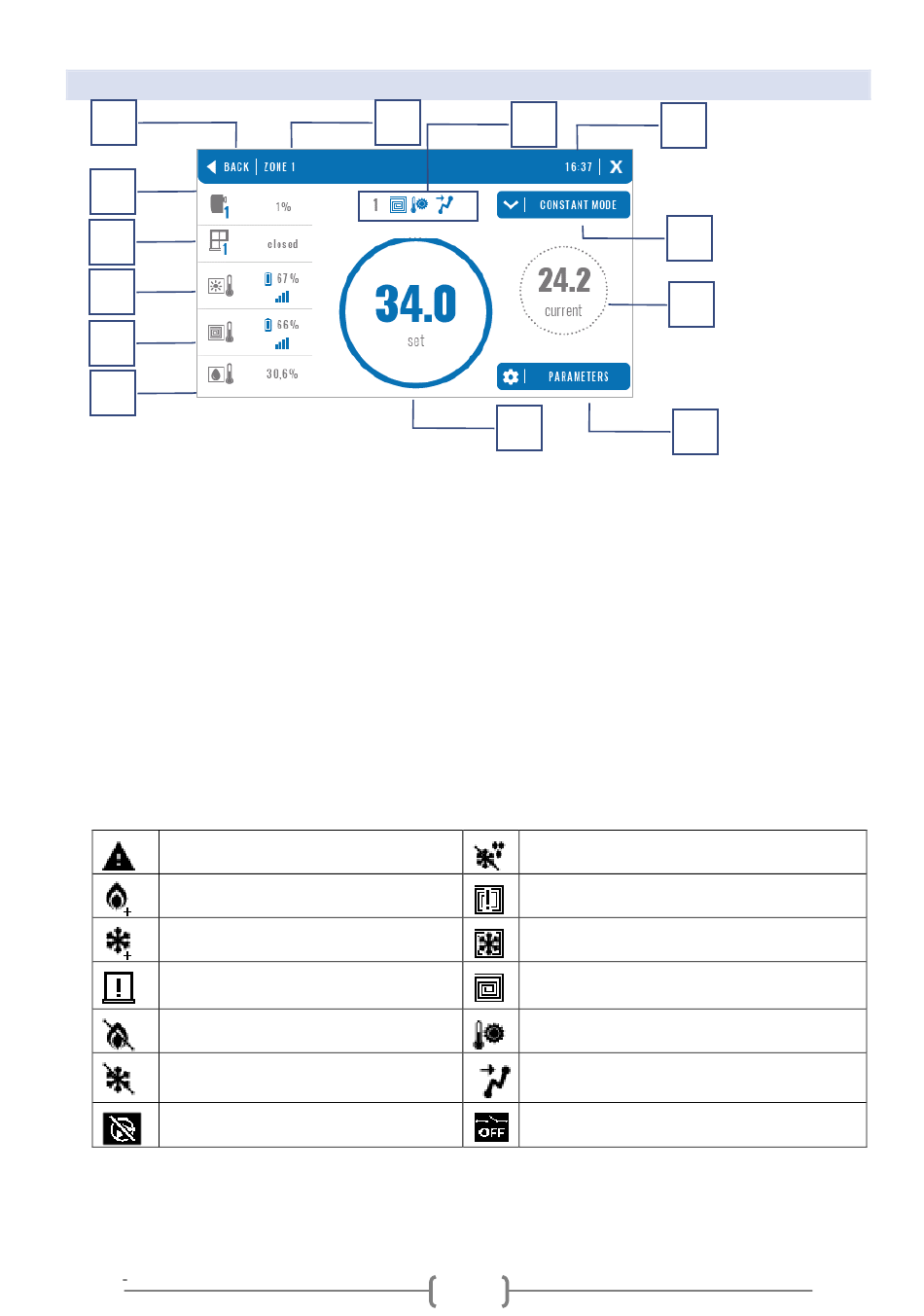

2. ZONE SCREEN
1
13
12
11
10
9
1. Exiting the Zone screen to the main screen
2. Name of the zone
3. Zone status (table below)
4. Current time
5. Active operation mode (can be changed from the screen by clicking this area)
6. Current zone temperature, after clicking the floor temperature (if a floor sensor is registered),
7. Entering the parameters menu of the displayed zone (possible change from the screen after clicking this area),
detailed description below
8. Zone pre-set temperature (possible change from the screen after clicking on this mode)
9. Information about the registered humidity sensor
10. Information about the registered floor sensor
11. Information about the registered room sensor
12. Information about the registered window sensors
13. Information on registered actuators
ZONE STATUS ICON TABLE
Zone alarm
Zone currently heated
Zone currently cooled
Open windows in the zone (no
heating/cooling)
Heating disabled in options
Cooling off in options
Pump is switched off
2
3
8
No cooling due to humidity
Floor overheated
Floor underheated
Floor sensor active
No heating due to weather control
Optimum Start Enabled
Voltage-free contact off
