Food Service Lever 80mm Recess Adaptor
- Jumper Valve
Installation and Maintenance Instructions
FSJ308LTC
FSJ308RTC
technical data
Working Pressure Range
Maximum Static Pressure
Maximum Working
Temperature
Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
Reference should also be made to the Australasian Health Facility Guidelines (AHFG), ABCB and Local Government
regulations when considering the choice of, and the installation of these products.
This product must be installed and commissioned by a qualified plumber.
For use with potable water only.
NOTE: Enware Australia advises:
1. Due to ongoing Research and Development, specifications may change without notice.
2. Component specifications may change on some export models.
I00613_09 Aug 2024
1300 369 273 | info@enware.com.au | enware.com.au
Min 50 kPa
Max 500 kPa
1200 kPa
95°C (Jumper Valve)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Watts ENWARE FSJ308LTC
Summary of Contents for Watts ENWARE FSJ308LTC

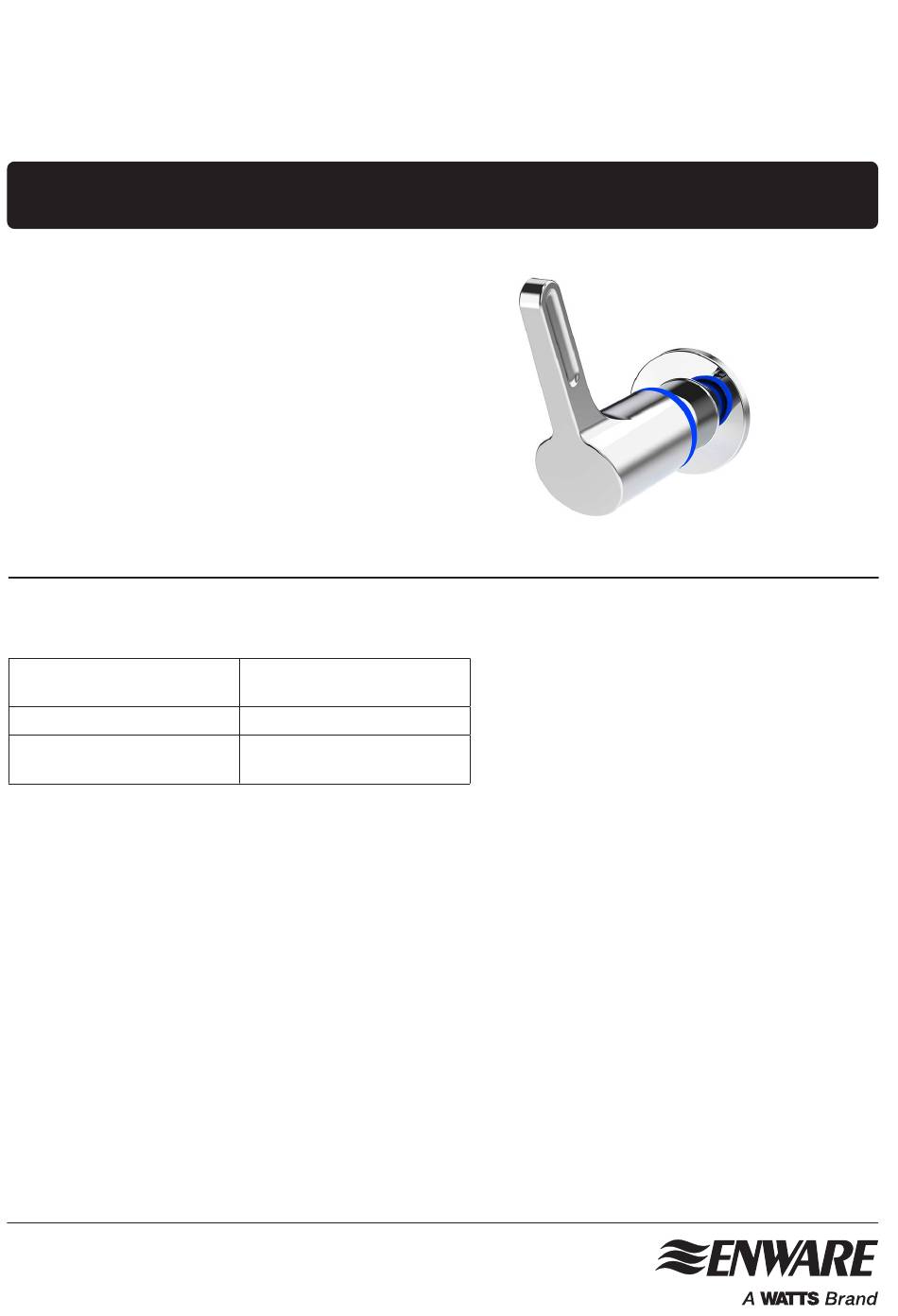

- Page 1 Food Service Lever 80mm Recess Adaptor - Jumper Valve Installation and Maintenance Instructions FSJ308LTC FSJ308RTC technical data Working Pressure Range Min 50 kPa Max 500 kPa Maximum Static Pressure 1200 kPa Maximum Working 95°C (Jumper Valve) Temperature Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500. Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
- Page 2 Handle plug Washer (Nylon) Grub screw M5 Tooth washer M5 Lever handle 80mm 10 Spline adaptor Colour indicator ring 11 SBA spindle (red/ yellow/ blue) 12 Fibre washer Flange 13 Jumper valve O-ring BS032 Screw M5x20 www.enware.com.au Page 2 © Enware Pty Ltd...
- Page 3 installation • All supply lines must be flushed thoroughly to remove debris WALL/TILE SURFACE prior to the installation of this product. Strainers (40 mesh) are recommended if debris is an ongoing problem. • A pressure reduction valve may be required to comply with the recommended maximum supply pressure and/or balanced pressure requirements.
- Page 4 4. Fit spline adaptor [10] onto spindle. Align the dimple of spline adaptor with the grub screw hole on handle. Fit tooth washer [9] and washer [8], and fix in place using screw [7]. SEE IMAGE 06 5. Fit colour indicator ring [4] onto lever handle [3]. To do this, place an indicator ring on flat surface with the rebated edge facing up.
- Page 5 maintenance CLEANING Enware products should be cleaned with a soft damp cloth using only mild liquid detergent or soap and water. Do not use cleaning agents containing a corrosive acid, scouring agent or solvent chemicals. Do not use cream cleaners, as they are abrasive. Use of unsuitable cleaning agents may damage the surface.
- Page 6 spare parts DESCRIPTION PART CODE Lever handle 150mm Parts: [1] [2] [3] [4-red,yellow,blue] [7] [8] [9] [10] FSJ378-80 Colour indicators, O-rings kit Parts: [4-red,yellow,blue] [6] WLJS398 SBA cold - RTC (Clockwise to close) Parts: [7] [8] [9] [11] [12] [13] WLJS382RTC SBA hot - LTC (Anti-clockwise to close) Parts: [7] [8] [9] [11] [12] [13] WLJS382LTC...
- Page 7 dimensions CLOSED 5/8" (BSP) 125 - 140 CLOSED CLOSED 5/8" (BSP) OPEN OPEN 125 - 140 Clockwise to Close Anti-Clockwise to Close All measurements are in millimetres. www.enware.com.au Page 7 © Enware Pty Ltd...
- Page 8 - WATTS AUSTRALIA EFFECTIVE FROM 20 November 2023 3. Our responsibilities This Warranty Statement applies to products supplied by Australian Valve (a) In the event that the Supplier is reasonably satisfied that there is a Group Pty Ltd (ACN 068 227 270) (AVG) or Enware Pty Ltd (ACN 662...
