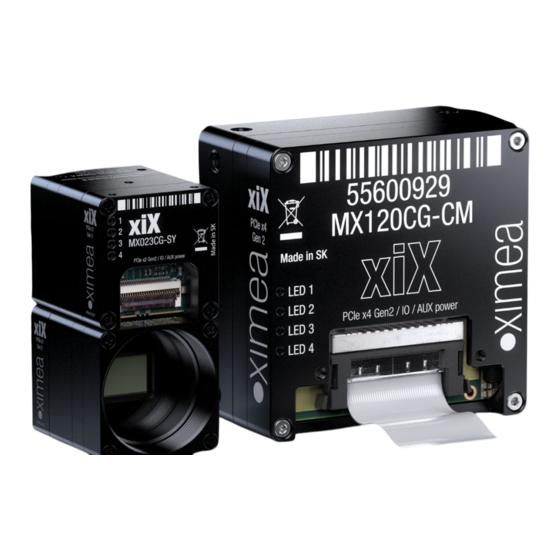

XIMEA xiX MX203MG-SY-X2G2-FL-HDR Manual

Pci express cameras for integration
Hide thumbs

Advertisement

Quick Links

Download this manual
xiX
[ksi-x: or sai-ex:]
•
PCI Express cameras for integration
Technical Manual
Version 1.4, September, 2019
