Summary of Contents for XIMEA xiQ-S7

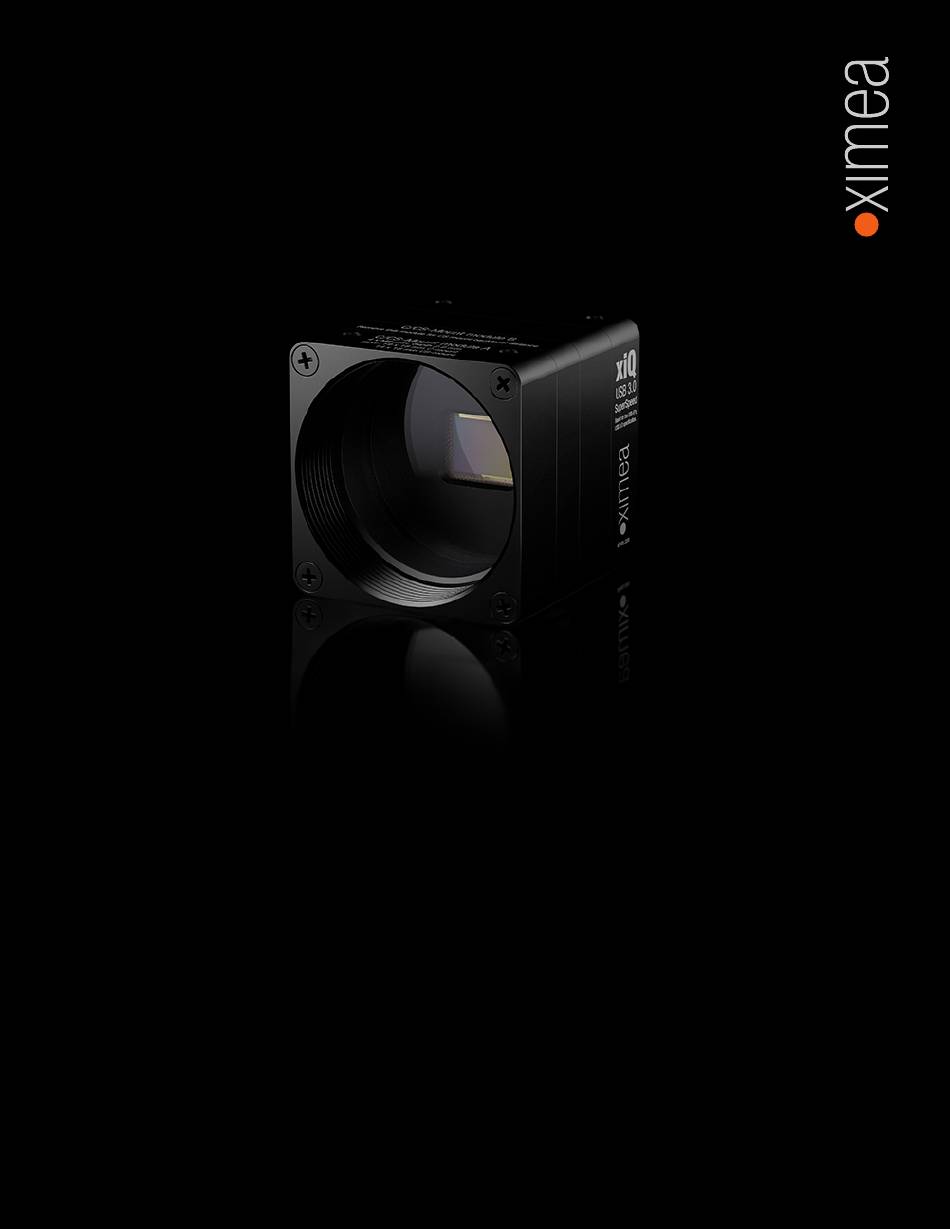

- Page 1 [ksi-kjuː] or [sai-kjuː] • USB3 Vision ultra-compact cameras Ximea cameras • Technical Manual • Version v240920 •...
-
Page 2: About This Manual
The purpose of this document is to provide a description of Ximea cameras and to describe the correct way to install related software, drivers and run it successfully. Please read this manual thoroughly before operating your new Ximea cameras for the first time. Please follow all instructions and observe the warnings. -
Page 3: Standard Conformity
Operation of this equipment in a residential area is likely to cause harmful interference, in which case the users will be required to correct the interference at their own expense. XIMEA Technical Manual, Version: v240920... -
Page 4: Camera Sub-Assemblies
This enables each XIMEA camera to function as a GenTL Producer, facilitating the capture of images through a standardized transport layer interface. -
Page 5: Helpful Links
Helpful links XIMEA Homepage http://www.ximea.com/ XIMEA Support https://www.ximea.com/support/wiki/allprod/Contact_Support Frequently Asked Questions http://www.ximea.com/support/wiki/allprod/Frequently_Asked_Questions Knowledge Base http://www.ximea.com/support/wiki/allprod/Knowledge_Base XIMEA Software Package https://www.ximea.com/support/wiki/apis/APIs#Software-packages Vision Libraries http://www.ximea.com/support/projects/vision-libraries/wiki XIMEA General Terms & Conditions http://www.ximea.com/en/corporate/generaltc XIMEA Technical Manual, Version: v240920... -
Page 6: Table Of Contents
Free-Run ......................66 XIMEA Technical Manual, Version: v240920... - Page 7 Standard Terms & Conditions of XIMEA GmbH................99 XIMEA Technical Manual, Version: v240920...
- Page 8 List of tables ........................109 XIMEA Technical Manual, Version: v240920...
-
Page 9: Xiq Camera Series
3 status LEDs Compatibility support for Windows, Linux and MacOS, ARM, various Image Processing Libraries Software interfaces GenICam / GenTL and highly optimized xiAPI SDK Economical excellent value and price, low TCO and fast ROI XIMEA Technical Manual, Version: v240920... -
Page 10: Camera Applications
0 to 50 C on housing, RH 80 % non-condensing, −25 to 60 C storage Operating systems Windows, Linux Ubuntu, MacOS Software support xiAPI SDK, adapters and drivers for various image processing packages Firmware updates field firmware updatable Maximal image data precision depends on sensor ADC precision XIMEA Technical Manual, Version: v240920... -
Page 11: Model Nomenclature
[-OPT] = Connector options sensor with taped sensor glass BRD: board level camera FL / FV: camera featuring flex cable connector (only specific models), please contact sales for more information NIO: models without IO connector XIMEA Technical Manual, Version: v240920... -
Page 12: Models And Sensors Overview
CMOSIS CMV4000 Color BayerGB 2048 × 2048 MQ042MG-CM-S7-FL CMOSIS CMV4000 Monochrome None 2048 × 2048 MQ042MG-CM-S7-NIO CMOSIS CMV4000 Monochrome None 2048 × 2048 Table 1: List of camera models and their respective sensor models and filters XIMEA Technical Manual, Version: v240920... -
Page 13: Accessories Overview
IO pigtail cable 5 m long shielded For more information please visit website:USB 3 Host Adapters These trigger cables are for the newer S7 camera variants Table 2: list of accessories available for xiC cameras XIMEA Technical Manual, Version: v240920... -
Page 14: Hardware Specification
Power input The xiQ-S7 cameras are powered via the USB 3.1 Micro-B connector or the flex line connector. The USB 3.1 cable that you use with the camera is responsible for the power supply and the data transfer to the PC. The input voltage is 5 V DC. Power consumption depends on... - Page 15 We recommend using XIMEA industrial USB 3.1 cables to achieve the maximum possible performance of the camera. XIMEA offers several passive USB 3.1 cables and a sync cables, please see CBL-U3-xM, CBL-U3-3M0-ANG and CBL-MQ-FL-xM. XIMEA Technical Manual, Version: v240920...
-
Page 16: General Specification
Table 6: Environment Housing temperature must not exceed 65 C. Note: The following parameters are not guaranteed if the cameras are operated outside the optimum range: Dark current Dynamic Range Linearity Acquisition Readout noise S/N ratio Durability XIMEA Technical Manual, Version: v240920... -
Page 17: Lens Mount
Lens mount adapter configuration: C-Mount (with C/CS Mount module B) CS-Mount (without C/CS Mount module B) The mentioned lens adapter is included in: all models in this manual (refer to the table Models and sensors overview) XIMEA Technical Manual, Version: v240920... -
Page 18: Mounting Points
Figure 7: xiC camera mounting points 2.4.1 Screws Figure 8: M2 mounting screws Item Value Material Steel Surface Black zinc Thread Driver PH 00 Avail. lengths 3 to 24 mm Table 7: M2 screw description XIMEA Technical Manual, Version: v240920... -
Page 19: Optical Path
Do not use compressed air to clean the camera as this could push dust particles into the camera or potentially cause damage (e.g.scratches). Cross-section corresponding to: MQ013CG-E2-S7 MQ013MG-E2-S7 MQ013RG-E2-S7 MQ013CG-E2-S7-FL MQ013CG-E2-S7-FV MQ013MG-E2-S7-FV MQ013RG-E2-S7-FL MQ013RG-E2-S7-FV MQ013MG-E2-S7-FL MQ013MG-E2-S7-NIO MQ013CG-E2-S7-NIO Figure 9: Cross section of MQ013xG-E2-S7 camera models XIMEA Technical Manual, Version: v240920... -
Page 20: Cross Section Of Mq013Xg-On-S7 Camera Models
Cross-section corresponding to: MQ013CG-ON-S7 MQ013MG-ON-S7 Figure 10: Cross section of MQ013xG-ON-S7 camera models Cross-section corresponding to: MQ022RG-CM-S7 MQ022CG-CM-S7 MQ022MG-CM-S7 MQ022CG-CM-S7-FL MQ022RG-CM-S7-FL MQ022MG-CM-S7-FL MQ042CG-CM-S7 MQ042RG-CM-S7 MQ042MG-CM-S7 MQ042CG-CM-S7-FL MQ042MG-CM-S7-FL Figure 11: Cross section of MQ022/042xG-CM-S7 camera models XIMEA Technical Manual, Version: v240920... -
Page 21: Filter Glass Bk7 Ar2X Transmission Curve
MQ013RG-E2-S7-FV MQ013MG-E2-S7-FL MQ013MG-E2-S7-NIO MQ013RG-E2-S7-NIO MQ013MG-ON-S7 MQ013RG-ON-S7 MQ022RG-CM-S7 MQ022MG-CM-S7 MQ022RG-CM-S7-FL MQ022MG-CM-S7-FL MQ042RG-CM-S7 MQ042MG-CM-S7 MQ042MG-CM-S7-FL Filter Coating Thickness Filter BK7 ARx2 1.1 mm Table 8: BK7 filter window parameter Figure 12: Filter glass BK7 AR2x Transmission Curve XIMEA Technical Manual, Version: v240920... -
Page 22: Filter Glass Icr650 Transmission Curve
The following filter window is implemented in: MQ013CG-E2-S7 MQ013CG-E2-S7-FV MQ013CG-E2-S7-NIO MQ013CG-ON-S7 MQ013CG-E2-S7-FL MQ022CG-CM-S7 MQ022CG-CM-S7-FL MQ042CG-CM-S7 Filter Coating Thickness IR Filter IR650 ARx2 1.1 mm Table 9: IR650 filter window parameter Figure 13: Filter glass ICR650 Transmission Curve XIMEA Technical Manual, Version: v240920... -
Page 23: Sensor And Camera Characteristics
2048 x 1088 [px] Active area size (H X V) 11.27 x 6 [mm] Sensor diagonal 12.8 [mm] Pixel size (H x V) 5.5 x 5.5 [µm] Table 12: Sensor parameters of the specific models XIMEA Technical Manual, Version: v240920... - Page 24 2048 x 2048 [px] Active area size (H X V) 11.27 x 11.27 [mm] Sensor diagonal 15.9 [mm] Pixel size (H x V) 5.5 x 5.5 [µm] Table 13: Sensor parameters of the specific models XIMEA Technical Manual, Version: v240920...
-
Page 25: Image Quality Parameters
DN ] 11.31 Dark current 1096.42 Dark current meas. temp. [ C ] 40.2 DSNU 34.66 PRNU [ % ] 1.39 Linearity error [ % ] 4.77 Table 15: Image quality parameters of the specific models XIMEA Technical Manual, Version: v240920... - Page 26 DN ] 9.11 Dark current 790.76 Dark current meas. temp. [ C ] 49.9 DSNU 5.09 PRNU [ % ] 0.95 Linearity error [ % ] 1.79 Table 17: Image quality parameters of the specific models XIMEA Technical Manual, Version: v240920...
- Page 27 DN ] 9.18 Dark current 778.76 Dark current meas. temp. [ C ] 49.6 DSNU 5.09 PRNU [ % ] 1.17 Linearity error [ % ] 2.35 Table 19: Image quality parameters of the specific models XIMEA Technical Manual, Version: v240920...
- Page 28 DN ] 8.96 Dark current 2058.65 Dark current meas. temp. [ C ] 49.4 DSNU 18.62 PRNU [ % ] 1.43 Linearity error [ % ] Table 21: Image quality parameters of the specific models XIMEA Technical Manual, Version: v240920...
- Page 29 DN ] 8.54 Dark current 1598.79 Dark current meas. temp. [ C ] 49.1 DSNU 20.88 PRNU [ % ] 1.37 Linearity error [ % ] 1.76 Table 23: Image quality parameters of the specific models XIMEA Technical Manual, Version: v240920...
- Page 30 DN ] 9.04 Dark current 1773.28 Dark current meas. temp. [ C ] 49.3 DSNU 22.43 PRNU [ % ] 1.38 Linearity error [ % ] 1.12 Table 25: Image quality parameters of the specific models XIMEA Technical Manual, Version: v240920...
-
Page 31: Sensor Read-Out Modes
Dec.2 x 2 640 x 512 789.9 Dec.2 x 2 640 x 512 538.5 Maximum frame rate was measured using the transport format at maximum bandwidth 380.0 MB/s Table 27: Sensor read-out modes of the specific models XIMEA Technical Manual, Version: v240920... - Page 32 1 x 1 2048 x 2048 71.5 1 x 1 2048 x 2048 45.2 Maximum frame rate was measured using the transport format at maximum bandwidth 380.0 MB/s Table 29: Sensor read-out modes of the specific models XIMEA Technical Manual, Version: v240920...
-
Page 33: Quantum Efficiency Curves
Quantum efficiency curves for: MQ013CG-E2-S7 MQ013MG-E2-S7 MQ013CG-E2-S7-FL MQ013CG-E2-S7-FV MQ013MG-E2-S7-FV MQ013MG-E2-S7-FL MQ013MG-E2-S7-NIO MQ013CG-E2-S7-NIO Figure 14: Graph quantum efficiency of E2V EV76C560 Quantum efficiency curves for: MQ013RG-E2-S7 MQ013RG-E2-S7-FL MQ013RG-E2-S7-FV MQ013RG-E2-S7-NIO Figure 15: Graph quantum efficiency of E2V EV76C661 XIMEA Technical Manual, Version: v240920... -
Page 34: Graph Quantum Efficiency Of Onsemi Python1300
Quantum efficiency curves for: MQ013CG-ON-S7 MQ013MG-ON-S7 Figure 16: Graph quantum efficiency of OnSemi PYTHON1300 Quantum efficiency curves for: MQ022RG-CM-S7 MQ022CG-CM-S7 MQ022MG-CM-S7 MQ022CG-CM-S7-FL MQ022RG-CM-S7-FL Figure 17: Graph quantum efficiency of CMOSIS CMV2000 XIMEA Technical Manual, Version: v240920... -
Page 35: Graph Quantum Efficiency Of Cmosis Cmv4000
Quantum efficiency curves for: MQ042CG-CM-S7 MQ042RG-CM-S7 MQ042MG-CM-S7 MQ042CG-CM-S7-FL MQ042MG-CM-S7-FL Figure 18: Graph quantum efficiency of CMOSIS CMV4000 XIMEA Technical Manual, Version: v240920... -
Page 36: Mechanical Characteristics
MQ022RG-CM-S7-FL Width [ W ] Height [ H ] Depth [ D ] Mass [ M ] 26.4 mm 26.4 mm 30.2 mm 31.8 g without adapters Table 34: Camera parameters of the specific models XIMEA Technical Manual, Version: v240920... - Page 37 MQ042MG-CM-S7-NIO Width [ W ] Height [ H ] Depth [ D ] Mass [ M ] 26.4 mm 26.4 mm 31.9 mm 30 g without adapters Table 37: Camera parameters of the specific models XIMEA Technical Manual, Version: v240920...
-
Page 38: Dimensional Drawings
2.7.2 Dimensional drawings Dimensional drawings of: MQ013CG-E2-S7 MQ013MG-E2-S7 Figure 19: Dimensional drawing of MQ013xG-E2-S7 XIMEA Technical Manual, Version: v240920... -
Page 39: Dimensional Drawing Of Mq013Xg-E2-Fv
Dimensional drawings of: MQ013CG-E2-S7-FV MQ013MG-E2-S7-FV Figure 20: Dimensional drawing of MQ013xG-E2-FV XIMEA Technical Manual, Version: v240920... -
Page 40: Dimensional Drawing Of Mq013Xg-E2-S7
Dimensional drawings of: MQ013MG-E2-S7-NIO MQ013CG-E2-S7-NIO Figure 21: Dimensional drawing of MQ013xG-E2-S7-NIO XIMEA Technical Manual, Version: v240920... -
Page 41: Dimensional Drawing Of Mq013Xg-On-S7
Dimensional drawings of: MQ013CG-ON-S7 MQ013MG-ON-S7 Figure 22: Dimensional drawing of MQ013xG-ON-S7 XIMEA Technical Manual, Version: v240920... -
Page 42: Dimensional Drawing Of Mq013Xg-E2-Fl
Dimensional drawings of: MQ013CG-E2-S7-FL MQ013RG-E2-S7-FL Figure 23: Dimensional drawing of MQ013xG-E2-FL XIMEA Technical Manual, Version: v240920... - Page 43 Dimensional drawings of: MQ022RG-CM-S7 MQ022CG-CM-S7 MQ022MG-CM-S7 MQ042CG-CM-S7 MQ042RG-CM-S7 Figure 24: Dimensional drawing of MQ022/042xG-CM-S7 XIMEA Technical Manual, Version: v240920...
-
Page 44: Dimensional Drawing Of Mq022Xg-Cm-Fl
Dimensional drawings of: MQ022CG-CM-S7-FL MQ022RG-CM-S7-FL MQ022MG-CM-S7-FL MQ042CG-CM-S7-FL MQ042MG-CM-S7-FL Figure 25: Dimensional drawing of MQ022xG-CM-FL XIMEA Technical Manual, Version: v240920... -
Page 45: Dimensional Drawing Of Mq022/042Xg-Cm-S7
Dimensional drawings of: MQ042MG-CM-S7-NIO Figure 26: Dimensional drawing of MQ022/042xG-CM-S7-NIO XIMEA Technical Manual, Version: v240920... -
Page 46: User Interface - Leds
Camera is powered User configurable (can be turned off) Table 38: LED output description during camera power up Figure 27: Position of LEDs on xiQ-S7 camera LED statuses during boot sequence of: all models in this manual (refer to the table... -
Page 47: Camera Interface
Standard USB 3.1 Gen1 Micro-B Connector with thumbscrews Screw thread M2, thread distance 18.0 mm Table 40: USB 3.1 micro-B mating connector description Figure 28: USB Micro-B connector location Figure 29: USB Micro-B connector pinning XIMEA Technical Manual, Version: v240920... - Page 48 USB 3.0 SuperSpeed transmitter signal pair SSTX+ USB 3.0 SuperSpeed transmitter signal pair GND_DRAIN USB 3.0 signal Ground SSRX- USB 3.0 SuperSpeed receiver signal pair SSRX+ USB 3.0 SuperSpeed receiver signal pair Table 41: USB 3.1 micro-B connector pin assignment XIMEA Technical Manual, Version: v240920...
-
Page 49: Flex Cable Interface
Item Value Connector Molex 502244-15300 (-FL), Molex 502231-1500 (-FV) Signals USB 3.1 Gen1, power, IO Mating Connectors CBL-MQ-FL-0M1, CBL-MQ-FL-0M25 Table 42: Flex cable interface mating connector description Figure 30: Flex connector location XIMEA Technical Manual, Version: v240920... -
Page 50: Digital Inputs / Outputs (Gpio) Interface
Figure 32: IO connector pinning Name GPI/GPO index API Type GPIO_GND None Common ground for Opto-Isolated Input and Output Optically isolated Digital Input (IN) Optically isolated Digital Output (OUT) Table 44: I/O connector pin assignment XIMEA Technical Manual, Version: v240920... -
Page 51: Flex / Io Connector Pinning
Optically isolated Digital Output (OUT) IN/OUT GND None Common pole (IO Ground) Optically isolated Digital Input (IN) Gnd. pins SGND None Shield of FPC cbl. connected to shield of host controller Table 46: I/O connector pin assignment XIMEA Technical Manual, Version: v240920... -
Page 52: Optically Isolated Digital Input (In)
MQ013CG-E2-S7 MQ013MG-E2-S7 MQ013RG-E2-S7 MQ013MG-E2-S7-FV MQ013CG-ON-S7 MQ013MG-ON-S7 MQ013RG-ON-S7 MQ013CG-E2-S7-FL MQ013CG-E2-S7-FV MQ013RG-E2-S7-FL MQ013RG-E2-S7-FV MQ013MG-E2-S7-FL MQ022RG-CM-S7 MQ022CG-CM-S7 MQ022MG-CM-S7 MQ022CG-CM-S7-FL MQ022RG-CM-S7-FL MQ022MG-CM-S7-FL MQ042CG-CM-S7 MQ042RG-CM-S7 MQ042MG-CM-S7 MQ042CG-CM-S7-FL MQ042MG-CM-S7-FL 2.10.1 Optically isolated Digital Input (IN) Figure 34: Digital input, interface schematic XIMEA Technical Manual, Version: v240920... -
Page 53: General Info For Optically Isolated Digital Input
Input delay - falling edge 10.7+-0.2 µs VINPUT=10 V,TAMBIENT=25 C External trigger mapping None Input functions Trigger Rising or falling edge are sup- ported for trigger Table 47: General info for optically isolated digital input XIMEA Technical Manual, Version: v240920... -
Page 54: Optically Isolated Digital Output (Out)
Sink current 25 mA Output delay - rising edge 51 µs VOUTPUT=10 V,TAMBIENT=25 C Output delay - falling edge 0.8 µs VOUTPUT=10 V,TAMBIENT=25 C Strobe output mapping None Table 48: General info for optically isolated digital output XIMEA Technical Manual, Version: v240920... -
Page 55: Accessories
Figure 36: USB type-C cable USB A 3.0 9 pin Molded Plug <BLK> MCD-USB-211 [OD = 7.3 mm] <BLK> 3 USB MicB 3.0 sl 10 pin Molded Plug with Screw Locking <BLK> Cable Label Figure 37: wiring USB3 cable XIMEA Technical Manual, Version: v240920... -
Page 56: Cbl-U3-3M0-Ang
USB A 3.0 9 pin Molded Plug <BLK> A12-7143 [OD = 5.9 mm] <BLK> UL20726 2STP#30 + 1UTP#28 + 2C#26 USB MicB 3.0 sl 90D A1(10 pin Molded Plug) <BLK> Cable Label Figure 39: wiring USB3 cable XIMEA Technical Manual, Version: v240920... -
Page 57: Pin Assignment
VBUS Power USB 2.0 signal pair OTG Identification Power Ground MicB_SSTX- USB 3.0 SuperSpeed transmitter signal pair MicB_SSTX+ GND_DRAIN USB 3.0 signal Ground MicB_SSRX- USB 3.0 SuperSpeed receiver signal pair MicB_SSRX+ Table 50: pin assignment XIMEA Technical Manual, Version: v240920... -
Page 58: Cbl-Mq-Fl-Xm
Minimal advised bending radius is 5 mm. Cable thickness 0.38 mm. This cable is NOT polarized and either end can be used for the camera or the host. Figure 42: CBL-USB3FLEX-xM XIMEA Technical Manual, Version: v240920... -
Page 59: Cbl-S-M5-3P-Pt-Xm
Figure 43: CBL-S-M5-3P-PT-xM Connect optically isolated input and output to the xiQ-S7 family of cameras. Also connect non-isolated IO to the xiMU cameras featuring binder connector. 3 pin IO cable for cameras featuring M5 connector, two variants of cable are available:... -
Page 60: Cbl-S-Pb3-Pt-0M30
2.11.6 CBL-S-PB3-PT-0M30 IO pigtail cable is for board-level variants of MQ cameras. Connects optically isolated input and output to xiQ-S7 family of cameras. For more information contact our XIMEA Support Team. Figure 45: CBL-S-PB3-PT-0M30 Signal MQ-S7 GPIO_GND Table 52: CBL-S-PB3-PT-0M30 pin assignment... -
Page 61: Bob-Mq-Fl
Trigger/sync digital Input (GPI) Current limited input – connected to pin1 on Flex connector Pull up 1 k to GPO1 – Connect power supply up to 25 V if needed Table 53: IO connector (WAGO 218-104), pin assignment XIMEA Technical Manual, Version: v240920... -
Page 62: Mq-Bracket-T
Brackets are delivered as kit with respective screws. There are two variants. Standard MQ-BRACKET-T-KIT with height of 5.5 mm and thick MQ-BRACKET-T-THICK-KIT for use with lenses with diameter > 37 mm37 Figure 50: MQ-BRACKET-T dimensional drawing Figure 51: MQ-BRACKET-T thick dimensional drawing XIMEA Technical Manual, Version: v240920... -
Page 63: Usb 3 Host Adapters
USB 3.1 host adapter chipset. Please have a look at the following link to our webpage: USB3 Hardware Compatibility XIMEA maintains a regularly updated overview of compatible USB 3.0 and USB 3.1 host adapters together with the available bandwidth USB 3 Host Adapters The maximum data transfer rate depends on different conditions (motherboard, chipset, driver version, operating system, etc.). -
Page 64: General Features
When decimation is chosen, only every n-th pixel is used to create the output image. For example, with a 2x1 vertical skipping, every odd number line is used and every even number line is skipped, resulting in an image with half its original vertical resolution. Skipping is a faster downsampling mode, but also introduces more aliasing effects. XIMEA Technical Manual, Version: v240920... -
Page 65: Image Data Output Formats
When using Transport Data Format, the Image Processing block from XiAPI Image Data Flow is skipped and therefore the Transport format is the most effective data format in terms of CPU and RAM usage. Table 54: Image data output formats XIMEA Technical Manual, Version: v240920... -
Page 66: Acquisition Modes
Unlike in the free-run, each image exposure can also be triggered with an input trigger signal. In this mode, the sensor waits in stage until the trigger signal arrives. Only then, the exposure of first frame is started, which is followed by the data readout. XIMEA cameras supports several triggered modes along with single image exposure after one trigger. -
Page 67: Triggered Mode With Overlap
Strobe (Sensor) to Digital Output (on some models is listed: Off->On change / On->Off change) Start of exposition to Exposure Active Digital Output expo Current Line Count (XI_PRM_ HEIGHT) Bandwidth Factor see table below Current Exposure Time set (XI_PRM_EXPOSURE) exps Conditions XI_PRM_DEBOUNCE_EN=0 (off) XIMEA Technical Manual, Version: v240920... - Page 68 (When exposure is smaller than readout time but the difference is less than t trig_min exps MQ022MG-CM Exposure time 500 µs Image 2048 px width 1088 px height with maximum bandwidth and 1 byte per pixel: 10 µs 37.625 5.375 1088 lines 5895 µs rig_min XIMEA Technical Manual, Version: v240920...
-
Page 69: Acquisition Mode - Triggered Without Overlap
Start of exposition to Exposure Active Digital Output expo Current Line Count (XI_PRM_ HEIGHT) Bandwidth Factor for maximum bandwidth this is 1 when the bandwidth will be lower BWF will rise Current Exposure Time set (XI_PRM_EXPOSURE) exps Conditions XI_PRM_DEBOUNCE_EN=0 (off) XIMEA Technical Manual, Version: v240920... - Page 70 Minimum trigger period can be calculated using the following formula: trig_min exps MQ013MG-E2 Exposure time 500 µs Image 500 px width 200 px height: 29 µs 500 µs 400 µs 16.6 µs 200lines 4.249 ms trig_min XIMEA Technical Manual, Version: v240920...
-
Page 71: Triggered Burst Of Frames - Frame Burst Start
Exposure time is measured and reported in image metadata. Please see: Exposure Defined by Trigger Pulse Length Figure 57: Exposure defined by trigger pulse length XIMEA Technical Manual, Version: v240920... -
Page 72: Exposure Time
The gain value influences the analog-to-digital conversion process of the image sensor pipeline and acts as a multiplier of the output signal. Using gain values greater than 0 will increase the pixel intensities but may also increase the overall noise level. For some camera models the gain can be set in discrete steps only. XIMEA Technical Manual, Version: v240920... -
Page 73: Api Features
This list is then used for the correction of acquired images during operation. The correction is inactive by default, but can be turned on by the user if a non-processed output is required. XIMEA Technical Manual, Version: v240920... -
Page 74: Hdr
To use this kind of HDR method the user has to define two pairs of parameters: (T1, SL1) and (T2, SL2). T1 and T2 define portions of the total exposure time and the length of the three timing phases SL1 and SL2 define portions of the sensor saturation, so called kneepoint1 and kneepoint2 XIMEA Technical Manual, Version: v240920... -
Page 75: Saturation Example With Hdr
Figure 59: Saturation example with HDR XIMEA Technical Manual, Version: v240920... -
Page 76: Hdr Approx Logarithmic Saturation Curve
As a result, darker pixels can be integrated during the complete integration time and the full sensor sensitivity can be exploited. Brighter pixels are limited at the knee points and lose a part of their integration time. Figure 60: HDR approx logarithmic saturation curve XIMEA Technical Manual, Version: v240920... -
Page 77: Operation
Hardware requirements The XIMEA USB3 cameras are compatible with USB 3.1, USB 3.0 and USB 2.0. Please note, that the highest performance can only be achieved by using high performance USB 3.1 or USB 3.0 ports. Using a USB 2.0 port will lead to a limited frame rate. -
Page 78: Ximea Software Packages
XIMEA API Software Package can be installed on: Microsoft Windows 10, 11. Contents The package contains: OS Drivers of all XIMEA camera types for OS Microsoft Windows, Windows Server 2008 R2 x86-64, Windows 10 32/64 bit APIs (xiAPI, xiAPI.NET, xiApiPython... - Page 79 Select the Software components you want to install. You can uncheck the components you don’t want to install, but it is recommended to leave them all checked Specify the install location - you can leave the default location or change it to your desired location XIMEA Technical Manual, Version: v240920...
- Page 80 Now the XIMEA API Software Package should start copying files, updating System Variables and installing drivers if necessary Installation is completed Finish XIMEA Technical Manual, Version: v240920...
-
Page 81: Ximea Linux Software Package
4.2.2 XIMEA Linux software package XIMEA Linux Software Package is tarred installer with files that can be run on Linux Ubuntu 14.04 and 16.04 (32 and 64 Bit) and newer releases. Contents The package contains: Driver for XIMEA USB2 and USB3 cameras... - Page 82 Start installation script ./install Note: If logged in user is not root, you will be asked for your password to get root access, because the installation runs with root account using sudo. XIMEA Technical Manual, Version: v240920...
-
Page 83: Ximea Macos Software Package
Installation Before installing XIMEA macOS Software Package it may be necessary to modify security settings on your computer. The new feature of OS X 10.8 called GateKeeper can prevent you from using our macOS Software Package due to the fact that the current version is unsigned. - Page 84 On the General Tab select the option Anywhere under Allow applications downloaded from: Download XIMEA macOS Software: rhttp://www.ximea.com/downloads/recent/XIMEA_OSX_SP.dmg Mount it by double-clicking this file in Finde Run the install script to install XiAPI on your macOS system A window with package contents will open XIMEA Technical Manual, Version: v240920...
-
Page 85: Start Ximea Camtool
Short description The CamTool is a cross-platform application showcasing the features of all XIMEA camera families. It runs on Windows, Linux, macOS systems offering a substantial imaging tool set, which can be further extended with custom modules using a plugin infrastructure. CamTool is based on Qt for the UI and xiAPI for the camera control. -
Page 86: Ximea Camtool
Image window Analytics tools Proccessing chain Camera control Functions To see live image from multiple XIMEA cameras connected Control the camera parameters Store of camera image and video Analyze the image properties Histogram and line profile Image averaging, image flip/mirror... -
Page 87: Ximea Control Panel
Suggests solution for diagnosed issues Allows setting of User IDs to XIMEA cameras One click to switch selected XIMEA cameras to USB3 Vision standard and back to XIMEA API One click update to the latest XIMEA API Software Package One click update of firmware in selected cameras... -
Page 88: Supported Vision Libraries
Supported vision libraries All XIMEA cameras are compatible with the most advanced vision and image processing libraries. For GUI based software packages, the cameras can be directly accessed without the need of programming. Code libraries are generally used in conjunction with one of our APIs, in order to add additional functionality (e.g. -
Page 89: Programming
On Windows: xiAPI is compiled into xiapi32.dll or xiapi64.dll On Linux: xiAPI is compiled into /usr/lib/libm3api.so Installation xiAPI is part of all current XIMEA software packages for Windows, Linux and MacOS. For information on the software packages, see XIMEA Software Packages. - Page 90 (e.g. 106 - Parameter not supported). Note: Since xiAPI is a unified programming interface for all of XIMEA‘s cameras, not all of the described parameters apply for every camera and sensor model.
-
Page 91: Gpio Schematic
XI_PRM_GPI_MODE, XI_GPI_TRIGGER) // set digital output 1 mode xiSetParamInt(xiH, XI_PRM_GPO_SELECTOR, 1); xiSetParamInt(xiH, XI_PRM_GPO_MODE, XI_GPO_EXPOSURE_ACTIVE); xiStartAcquisition(handle1); // Trigger signal should start image exposure within timeout #define TIMEOUT_IMAGE_WAITING_MS 10000 xiGetImage(handle, TIMEOUT_IMAGE_WAITING_MS, &image); // process image here… XIMEA Technical Manual, Version: v240920... - Page 92 To disable ABC, the application should set parameter XI_PRM_AUTO_BANDWIDTH_CALCULATION to XI_OFF before the first xiOpenDevice is used. This setting disabled ABC and the camera stream is not limited. xiAPI.NET XIMEA Application Programming Interface for Dot Net - Microsoft Visual C#. xiAPI.NET is designed as a wrapper around xiAPI and therefore shares most of its functionality.
-
Page 93: Appendix
XIMEA xiCOP software (please see section 4.4). It will immediately start searching for connected cameras. Your camera will appear in the XIMEA camera list on the upper left side of the xiCOP window if it is connected properly and your USB interface meets the minimum system requirements described in section 4.1. -
Page 94: Product Service Request (Psr)
Step 5 – Waiting for service conclusion Once we have received the camera, we will send you a notification. The XIMEA Service will then check the status of the camera that you have sent for a possible repair. Depending on warranty conditions, product status and agreement one of the following operations will be... -
Page 95: Step 6 - Waiting For Return Delivery
5.3.6 Step 6 – Waiting for return delivery After you have received the return shipment, please confirm it by changing the status of the to “Received by customer”. XIMEA Technical Manual, Version: v240920... -
Page 96: Safety Instructions And Precautions
High-energy laser light hitting the sensor directly Bright light sources hitting the sensor directly (burn-in) Camera is exposed to X-rays The warranty does not cover damaged cameras caused by X-ray applications or very high intensity light / laser light. XIMEA Technical Manual, Version: v240920... -
Page 97: Protection Of Optical Components
Always use clean boards. To protect the boards from dirt like dust or liquids always use the board level cameras in clean room environment or use a protective housing. XIMEA Technical Manual, Version: v240920... -
Page 98: Warranty
XIMEA warrants to the Original Purchaser that the Camera provided is guaranteed to be free from material and manufacturing defects for a period of two years. Should a unit fail during this period, XIMEA will, at its option, repair or replace the damaged unit. Repaired or replaced Products are covered for the remainder of the original Product warranty period. -
Page 99: Standard Terms & Conditions Of Ximea Gmbh
Standard Terms & Conditions of XIMEA GmbH Printed here for your information is the version from May 2021. Please check the most current version at XIMEA General Terms and Conditions General Conditions for the Supply of Products and Services of the Electrical and Electronics Industry (“Grüne Lieferbedingungen” – GL)* for commercial transactions between businesses recommended by ZVEI-Zentralverband Elektrotechnik- und Elektronikindustrie e. - Page 100 Purchaser based on statute is limited to cases where the Supplier is responsible for the delay. The above provisions do not imply a change in the burden of proof to the detriment of the Purchaser. XIMEA Technical Manual, Version: v240920...
- Page 101 The same consequences as upon acceptance arise if and when the Purchaser lets the two-week period expire or the Supplies are put to use after completion of agreed test phases, if any. Article VII: Receiving Supplies The Purchaser shall not refuse to receive Supplies due to minor defects. XIMEA Technical Manual, Version: v240920...
- Page 102 Supplier. The above provisions do not imply a change in the burden of proof to the detriment of the Purchaser. Any other or additional claims of the Purchaser exceeding the claims provided for in this Article VIII, based on a Defect, are excluded. XIMEA Technical Manual, Version: v240920...
- Page 103 1. Unless otherwise provided for in the present GL, the Purchaser has no claim for damages based on whatever legal reason, including infringement of duties arising in connection with the contract or tort. 2. This does not apply if liability is based on: XIMEA Technical Manual, Version: v240920...
- Page 104 The legal invalidity of one or more provisions of this Agreement in no way affects the validity of the remaining provisions. This shall not apply if it would be unreasonably onerous for one of the parties to be obligated to continue the contract. XIMEA Technical Manual, Version: v240920...
-
Page 105: List Of Trademarks
List of Trademarks XIMEA, xiC, xiQ, xiMU, xiB, xiB-64, xiX, xiX-XL, xiX-Xtreme, xSWITCH, xPLATFORM, xEC, xEC2, xiCool, xiRAY, xiCe, xiSpec, xiFLY, xiD, xiJ, xiLAB, xiAPI, xiCamTool, xiCOP and CURRERA are trademarks or registered trademarks of XIMEA GmbH in Germany, Slovakia, USA and other countries. - Page 106 Glossary Application Programming Interface CMOS Complementary Metal-Oxide-Semiconductor Electrostatic discharge 7, 47, FPGA Field Programmable Gate Array Frame Per Second Printed Circuit Board (same as PWB) Product Service Request 7, 94, Region Of Interest XIMEA Technical Manual, Version: v240920...
- Page 107 Triggered burst of frames – frame burst active ................71 XIMEA Technical Manual, Version: v240920...
- Page 108 GPIO schematic ......................91 XIMEA Technical Manual, Version: v240920...
-
Page 109: List Of Tables
Flex cable interface mating connector description ............... . . 49 XIMEA Technical Manual, Version: v240920... - Page 110 ....................94 XIMEA Technical Manual, Version: v240920...
- Page 111 XIMEA GmbH Am Mittelhafen 16 • 48155 Münster • Germany • www.ximea.com © Copyright, XIMEA GmbH, All rights reserved...
