XIMEA xiX-XL Manual

Hi-res pcie cameras with larger format sensor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

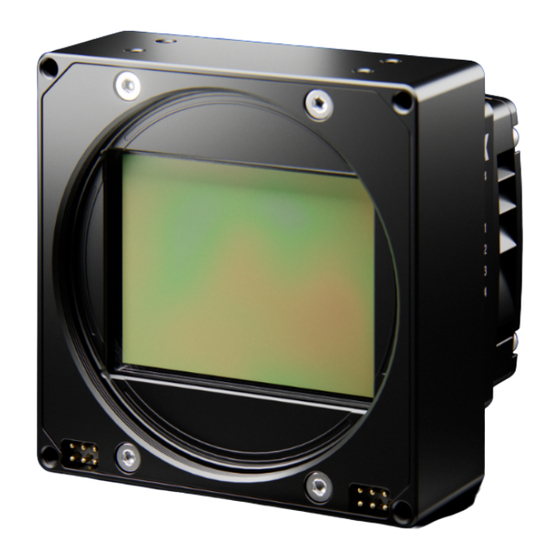

xiX-XL
[ksi-eksˈelː] or [sai-eksˈelː]
•
Hi-res PCIe cameras with larger format sensors
Ximea cameras
•
Technical Manual
•
Version v240108
•

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the xiX-XL and is the answer not in the manual?

Questions and answers

Related Manuals for XIMEA xiX-XL

Summary of Contents for XIMEA xiX-XL

  • Page 1 [ksi-eksˈelː] or [sai-eksˈelː] • Hi-res PCIe cameras with larger format sensors Ximea cameras • Technical Manual • Version v240108 •...

  • Page 2: Contact Ximea

    The purpose of this document is to provide a description of the Ximea cameras and to describe the correct way to install related software and drivers and run it successfully. Please read this manual thoroughly before operating your new Ximea cameras for the first time. Please follow all instructions and observe the warnings.

  • Page 3: Standard Conformity

    The xiX-XL cameras comply with the requirements of the RoHS (Restriction of Hazardous Substances) Directive 2015/863/EU. WEEE conformity The xiX-XL cameras comply with the requirements of the WEEE (waste electrical and electronic equipment) Directive 2012/19/EU. GenICam GenTL API GenICam standard transport layer interface, grabbing images.

  • Page 4: Helpful Links

    Helpful links XIMEA Homepage http://www.ximea.com/ XIMEA Registration http://www.ximea.com/en/products/register XIMEA Support https://www.ximea.com/support/wiki/allprod/Contact_Support Frequently Asked Questions http://www.ximea.com/support/wiki/allprod/Frequently_Asked_Questions Knowledge Base http://www.ximea.com/support/wiki/allprod/Knowledge_Base XIMEA Software Package https://www.ximea.com/support/wiki/apis/APIs#Software-packages Vision Libraries http://www.ximea.com/support/projects/vision-libraries/wiki XIMEA General Terms & Conditions http://www.ximea.com/en/corporate/generaltc XIMEA Technical Manual, Version: v240108...

  • Page 5: Table Of Contents

    Downsampling modes ................... 63 XIMEA Technical Manual, Version: v240108...
  • Page 6 Environment / protection against water ................90 XIMEA Technical Manual, Version: v240108...
  • Page 7 List of tables ........................103 XIMEA Technical Manual, Version: v240108...

  • Page 8: Xix-Xl Camera Series

    Impressive speed - 61 Mpx at 17 fps, 101 Mpx at 8 fps, 151 Mpx at 6 fps, and more with binning The new xiX-XL cameras as part of the xiX-camera series are based on sensors with backside-illuminated technology from Sony and deliver resolutions starting from 61 Mpx and going up to 151 Mpx.

  • Page 9: Advantages

    GPU-direct (Linux only) ideal for setup using GPU for image processing Camera applications • 360 panorama (360° spherical, cyclorama imaging), photogrammetry, videogrammetry • 3D mapping, GIS (Geographical Information Systems) • aerial or city/street mapping (UAV / UAS - drones) • astronomy XIMEA Technical Manual, Version: v240108...

  • Page 10: Common Features

    C on housing, RH 80 % non-condensing, −25 to 60 C storage Operating systems Windows, Linux Ubuntu, MacOS Software support xiAPI SDK, adapters and drivers for various image processing packages Firmware updates xiAPI SDK, field firmware updatable XIMEA Technical Manual, Version: v240108...

  • Page 11: Model Nomenclature

    & white model Sensor technology Rolling shutter Global shutter Vendor of the sensor Sony X4G3: Number of PCIe lanes used, 4 for these cameras PCIe generation, currently at Gen 3 for these cameras FireFly cable connection XIMEA Technical Manual, Version: v240108...

  • Page 12: Models And Sensors Overview

    12/14/16 75.8/80.4/81.4 dB 54.78 mm 8.74/6/2.7 MX1018CR-SY-X4G3-FF Color MX1510MR-SY-X4G3-FF 14 176 × 10 640 3.76 µm 12/14/16 75.8/80.4/81.1 dB 66.68 mm 6.2/4.6/2 MX1510CR-SY-X4G3-FF Color transport frame rate at full resolution Table 1: xiX-XL models overview XIMEA Technical Manual, Version: v240108...

  • Page 13: Accessories Overview

    CBL-ECUE-X4G3-1M0 Cable Micro Assembly, Low-Profile FireFly, 100 cm CBL-ECUE-X4G3-2M0 Cable Micro Assembly, Low-Profile FireFly, 200 cm HA-1/2P-X4G3-MTP/FF-X8G3 Ximea PCIe Dual FireFly x4 Gen 3 Host Adapter Card ADPT-1/2/4P-X4G3-FF-X4/8G3-MTP PCIe Adapter FireFly to MTP ADPT-MX-X4G3-FF-X4G3-MTP MTP Adapter for MX-X4G3-FF camera CB-X8G3-FAN-COOLER-KIT...

  • Page 14: Hardware Specification

    Housing temperature must not exceed 65 Note: The following parameters are not guaranteed if the cameras are operated outside the optimum range: • Dark current • Dynamic Range • Linearity • Acquisition • Readout noise • S/N ratio • Durability XIMEA Technical Manual, Version: v240108...

  • Page 15: Lens Mount

    M72 Lens Adapter for 80 × 80 mm front camera element.The adapter is mounted to the camera using 4 M4x10 screws. Please see ME-LA-80MM-M72-L-KIT for more information. Figure 3: camera with the optional M72-Mount adapter XIMEA Technical Manual, Version: v240108...

  • Page 16: Mounting Points

    All mounting screws are customized M4 screws Figure 5: M4 mounting screws Material Stainless steel Surface Polished Thread M4 Full thread Driver IMBUS 3.0 Avail. lengths 6 to 40 mm Table 4: M4 screw description XIMEA Technical Manual, Version: v240108...

  • Page 17: Optical Path

    Optical path No filter glass is added by Ximea. All windows are applied by the sensor vendor. Do not use compressed air to clean the camera as this could damage (e.g. scratch) the filter glass. Distance from the flange to sensor is designed so that the optical distance depends on camera model (see image below).

  • Page 18: Optical Path - Cross Section Of Mx1510-Ff

    Figure 8: Optical path - cross section of MX1510-FF XIMEA Technical Manual, Version: v240108...

  • Page 19: Sensor And Camera Characteristics

    Monochrome None MX1018CR-SY-X4G3-FF Sony IMX461 Color BayerRG MX1018MR-SY-X4G3-FF Sony IMX461 Monochrome None MX1510CR-SY-X4G3-FF Sony IMX411 Color BayerRG MX1510MR-SY-X4G3-FF Sony IMX411 Monochrome None Table 5: list of camera models and their respective sensor models and filters XIMEA Technical Manual, Version: v240108...

  • Page 20: Sensor And Camera Parameters Of Particular Models

    System gain 1/K /DN ] 0.13 0.78 99.94 Dark noise ◦ Dark current @ 40 /s ] Abs. sensitivity thresh. 56.5 DSNU PRNU [ % ] Linearity error [ % ] Table 7: image quality parameters XIMEA Technical Manual, Version: v240108...
  • Page 21 System gain 1/K /DN ] 7.95 0.78 97.14 Dark noise ◦ Dark current @ 40 /s ] Abs. sensitivity thresh. 51.5 DSNU PRNU [ % ] Linearity error [ % ] Table 9: image quality parameters XIMEA Technical Manual, Version: v240108...
  • Page 22 System gain 1/K /DN ] 7.84 0.78 98.28 Dark noise 52.5 ◦ Dark current @ 40 /s ] Abs. sensitivity thresh. DSNU PRNU [ % ] Linearity error [ % ] Table 11: image quality parameters XIMEA Technical Manual, Version: v240108...

  • Page 23: Sensor Read-Out Modes

    7072 x 5320 3500.0 True Rolling 1 x 1 14176 x 10640 3500.0 True Rolling 1 x 1 14176 x 10640 3500.0 True Rolling 1 x 1 14176 x 10640 3500.0 Table 14: sensor modes XIMEA Technical Manual, Version: v240108...

  • Page 24: Quantum Efficiency Curves

    2.6.4 Quantum efficiency curves Quantum efficiency curves for models: MX610CR-SY-X4G3-FF and MX610MR-SY-X4G3-FF Figure 9: quantum efficiency curves of MX610CR-SY-X4G3-FF Quantum efficiency curves for models: MX1018CR-SY-X4G3-FF and MX1018MR-SY-X4G3-FF Figure 10: quantum efficiency curves of MX1018CR-SY-X4G3-FF XIMEA Technical Manual, Version: v240108...
  • Page 25 Quantum efficiency curves for models: MX1510CR-SY-X4G3-FF and MX1510MR-SY-X4G3-FF Figure 11: quantum efficiency curves of MX1510CR-SY-X4G3-FF XIMEA Technical Manual, Version: v240108...

  • Page 26: Mechanical Characteristics

    Dimensions and mass for models: MX1510CR-SY-X4G3-FF and MX1510MR-SY-X4G3-FF Width [ W ] Height [ H ] Depth [ D ] Mass [ M ] 80 mm 80 mm 45.1 mm 455 g without adapters Table 17: camera parameters XIMEA Technical Manual, Version: v240108...

  • Page 27: Dimensional Drawings

    2.7.2 Dimensional drawings Dimensional drawings for models: MX610CR-SY-X4G3-FF Figure 12: MX610xR-SY-X4G3-FF dimensional drawings XIMEA Technical Manual, Version: v240108...
  • Page 28 Figure 13: MX610xR-SY-X4G3-FF with detached sensor sub-assembly XIMEA Technical Manual, Version: v240108...
  • Page 29 Dimensional drawings for models: MX610MR-SY-X4G3-FF Figure 14: MX610xR-SY-X4G3-FF dimensional drawings XIMEA Technical Manual, Version: v240108...
  • Page 30 Figure 15: MX610xR-SY-X4G3-FF with detached sensor sub-assembly XIMEA Technical Manual, Version: v240108...
  • Page 31 Dimensional drawings for models: MX1018CR-SY-X4G3-FF Figure 16: MX1018xR-SY-X4G3-FF dimensional drawings XIMEA Technical Manual, Version: v240108...
  • Page 32 Figure 17: MX1018xR-SY-X4G3-FF with detached sensor sub-assembly XIMEA Technical Manual, Version: v240108...
  • Page 33 Dimensional drawings for models: MX1018MR-SY-X4G3-FF Figure 18: MX1018xR-SY-X4G3-FF dimensional drawings XIMEA Technical Manual, Version: v240108...
  • Page 34 Figure 19: MX1018xR-SY-X4G3-FF with detached sensor sub-assembly XIMEA Technical Manual, Version: v240108...
  • Page 35 Dimensional drawings for models: MX1510CR-SY-X4G3-FF Figure 20: MX1510xR-SY-X4G3-FF dimensional drawings XIMEA Technical Manual, Version: v240108...
  • Page 36 Figure 21: MX1510xR-SY-X4G3-FF with detached sensor sub-assembly XIMEA Technical Manual, Version: v240108...
  • Page 37 Dimensional drawings for models: MX1510MR-SY-X4G3-FF Figure 22: MX1510xR-SY-X4G3-FF dimensional drawings XIMEA Technical Manual, Version: v240108...
  • Page 38 Figure 23: MX1510xR-SY-X4G3-FF with detached sensor sub-assembly XIMEA Technical Manual, Version: v240108...

  • Page 39: User Interface - Leds

    PCIe connected (X2 or X1) Gen3 flash flash flash To identify, if the recovery firmware is loaded, please start xiCOP. See XIMEA control panel Table 19: LED output description during camera power up XIMEA Technical Manual, Version: v240108...

  • Page 40: Camera Interface

    Samtec (UEC5-019-1-H-D-RA-1-A + UCC8-010-1-H-S-1-A) Signals PCIe 4 Gen3; Power input; Optoisolated IO Mating Connectors Samtec ECUE, PCUO Figure 25: xiX-X4G3-FF connector location This section is usable for these cameras: MX1510CR-SY-X4G3-FF, MX1018CR-SY-X4G3-FF, MX610CR-SY-X4G3-FF, MX610MR-SY- X4G3-FF, MX1018MR-SY-X4G3-FF and MX1510MR-SY-X4G3-FF. XIMEA Technical Manual, Version: v240108...

  • Page 41: Digital Inputs / Outputs (Gpio) Interface

    Name GPI/GPO index API Type VCC_TX None Power output None Ground None None None None PCIe_RST0_N_IN None PCIe reset None None None None None None OUT1 Optically isolated Digital Output (OUT) VCC_RX None Power output XIMEA Technical Manual, Version: v240108...
  • Page 42 PCIe RX differential pair 3 PCIe_PERP_3 None PCIe RX differential pair 3 None Signal and power ground PCIe_PERN_0 None PCIe RX differential pair 0 PCIe_PERP_0 None PCIe RX differential pair 0 None Signal and power ground XIMEA Technical Manual, Version: v240108...

  • Page 43: Xix-X4G3-Ff Io Connector Location

    6 pin Pico Blade Non isolated IO Molex 0510210600 Figure 27: xiX-X4G3-FF IO connector location Figure 28: xiX-X4G3-FF IO connector pinning AUX power input pin assignment Name Signal Power ground PWR_IN Power input PWR_IN Power input Power ground XIMEA Technical Manual, Version: v240108...

  • Page 44: Non Isolated Digital Lines - Digital Input/Output (Inout)

    Common pole for non-isolated IO (same as power GND) INOUT2 Non-isolated digital lines - Digital Input-Output (INOUT) INOUT3 Non-isolated digital lines - Digital Input-Output (INOUT) None Common pole for non-isolated IO (same as power GND) INOUT4 Non-isolated digital lines - Digital Input-Output (INOUT) XIMEA Technical Manual, Version: v240108...

  • Page 45: Optically Isolated Digital Inputss

    Trigger - rising or falling edge are supported for trigger Table 20: optically isolated digital input, general info Digital input – Internal schematic The internal scheme of Digital Input signal flow inside the camera is below. Figure 29: digital input, interface schematic XIMEA Technical Manual, Version: v240108...

  • Page 46: Digital Input, Interface Wiring

    Digital input – Wiring Figure 30: digital input, interface wiring XIMEA Technical Manual, Version: v240108...

  • Page 47: Optically Isolated Digital Outputs

    Following scheme is the internal scheme of the Digital Output signal flow inside the camera. Figure 31: digital output, interface schematic Digital output – Wiring Digital output has an open collector switching transistor with common IO Ground. In most cases a power source for external device must be provided. XIMEA Technical Manual, Version: v240108...

  • Page 48: Connecting Digital Output To A Npn-Compatible Plc Device Input (Biased)

    Not energized Figure 32: connecting digital output to a NPN-compatible PLC device input (biased) Note: If using this configuration, take into account that Common Ground connection may be biased by power supply for Digital Input! XIMEA Technical Manual, Version: v240108...

  • Page 49: Connecting Digital Output To A Npn-Compatible Plc Device Input - More Bidirectional Inputs

    Figure 33: connecting digital output to a NPN-compatible PLC device input - more bidirectional inputs Note: In this case a bidirectional opto-isolated input must be used. Figure 34: connecting digital output to a NPN-compatible PLC device input - single input XIMEA Technical Manual, Version: v240108...

  • Page 50: Connecting Digital Output To A Pnp-Compatible Device

    Must be higher than required input amplitude, V input is required input amplitude, Iinput is input driving current (corresponding to input amplitude). Remember to use the appropriate resistor power rating: ) × I P (R) > (V output input XIMEA Technical Manual, Version: v240108...

  • Page 51: Led Driving

    2.2 V Green 1.9 V 2.5 V Emerald Green 2.1 V 2.7 V Blue 2.5 V 3.7 V White 2.8 V 3.8 V Infra-Red 1.3 V 1.8 V Opto coupler Table 22: digital output, LED driving XIMEA Technical Manual, Version: v240108...

  • Page 52: Inductive Load (Relay) Driving (Inverted Logic)

    Keep in mind that this connection has an inverted logic. Current will flow through the load at the start of the camera. Figure 37: inductive load (Relay) driving (inverted logic) For positive logic you can use a second bipolar transistor. Figure 38: inductive load (Relay) driving (non-inverted logic) XIMEA Technical Manual, Version: v240108...

  • Page 53: Non-Isolated Digital Lines

    Non isolated Digital lines can be used as inputs or outputs compatible with TTL logic. These are high impedance pins so when used as output high impedance slave input has to be used. Figure 39: non isolated input/output, interface schematic XIMEA Technical Manual, Version: v240108...

  • Page 54: Accessories

    MX X4G3 cameras can be connected to host via cable with FireFly connector. The EMI/EMC performance should be evaluated by customer. For connecting to different host via vast range of adapters. Please see website Cameras Adapters XIMEA Technical Manual, Version: v240108...

  • Page 55: Cbl-Hqcd-Xm

    2.11.4 CBL-HQCD-xM Figure 43: HQCD cable (e.g. MX1510MR-SY-X4G3-FF, MX245MR-SY-X4G3-FF) All xiX-XL cameras in the manual have front and rear sub-assembly detached option. Please check the Accessories overview for supported lengths of the HQCD cables. 2.11.5 CB-X8G3-FAN-COOLER-KIT The camera needs to have proper cooling to ensure optimal performance. A fan cooling element can be included with the camera. This fan module is designed to provide air cooling for the camera and can be mounted on the backside of the camera.

  • Page 56: Cb-X8G3-Wat-Cooler-Kit

    SSC6 - M5 quick coupler with airtight washer for 6mm tubes (water rated) 6061 aluminum housing with optimized ater flow and cooling abilities airtight sealing (tested at 10 bars) M 2.5 x 18 screws for mounting cooler Figure 45: CB-X8G3-WAT-COOLER-KIT drawing XIMEA Technical Manual, Version: v240108...

  • Page 57: Mech-60Mm-Bracket-T

    Figure 46: MECH-60MM-BRACKET-T Figure 47: MECH-60MM-BRACKET-T drawing Width [ W ] Height [ H ] Depth [ D ] Mass [ M ] 54 mm 20 mm 40 mm 20 g Table 27: parameters of MECH-60MM-BRACKET-T XIMEA Technical Manual, Version: v240108...

  • Page 58: Mech-60Mm-Ef-Adapter

    Adapter is mounted using 4 front mount holes. Screws are included in MECH-60MM-EF-ADAPTER-KIT which can be purchased from XIMEA. Optionally camera can be assembled in production when the operation has been ordered along with camera. Note: To be used with standart Canon Mount Lenses. Use 4x M4x6 or standard M4 screws for attaching camera. Nominal flange focal distance from the front of adapter to active area ins sensor is 44.00 mm + 0 - 0.2 mm.

  • Page 59: Me-La-80Mm-M72-L-Kit

    ME-LA-80MM-M72-L-KIT Figure 50: ME-LA-80MM-M72-L-KIT M72 Lens Adapter for 80 × 80 mm front camera element. The adapter is mounted to the camera using 4 M4x10 screws. Figure 51: ME-LA-80MM-M72-L optical path Figure 52: ME-LA-80MM-M72-L drawing XIMEA Technical Manual, Version: v240108...

  • Page 60: Adpt-Mx-X4G3-Ff-X4G3-Mtp

    2.11.10 ADPT-MX-X4G3-FF-X4G3-MTP Back part attachment to connect XIMEA Firefly cameras to MTP cable. Converts 1x PCIe Gen3 x4 camera. The camera adapter also offers power and IO connectors for synchronization and triggering. Figure 53: ADPT-MX-X4G3-FF-X4G3-MTP dimensional drawing XIMEA Technical Manual, Version: v240108...

  • Page 61: Adpt-Mx-X4G3-Ff-X4G3-Mtp Io Connector

    External grounds for power and non-isolated I/O INOUT1 Non-isolated I/O INOUT3 Non-isolated I/O INOUT2 Non-isolated I/O IN GND Ground for Opto-Isolated Inputs (IN1, IN2) OUT GND Ground for Opto-Isolated Out (OUT1, OUT2) INOUT4 Non-isolated I/O Table 29: ADPT-MX-X4G3-FF-X4G3-MTP IO pin assigment XIMEA Technical Manual, Version: v240108...

  • Page 62: Mx610Xr-Sy-X4G3-Ff With Mtp Adapter And Fan Coolling

    ADPT-MX-MTP-FAN-COOLER Figure 55: MX610xR-SY-X4G3-FF with MTP adapter and fan coolling ADPT-MX-MTP-WAT-COOLER Figure 56: MX610xR-SY-X4G3-FF with MTP adapter and water coolling XIMEA Technical Manual, Version: v240108...

  • Page 63: Adpt-Mx-X4G3-Ff-X4G3-Sff

    2.11.11 ADPT-MX-X4G3-FF-X4G3-SFF Back part attachment to connect XIMEA Firefly cameras to SFF-8644 cable. Converts 1x PCIe Gen3 x4 camera. Figure 57: ADPT-MX-X4G3-FF-X4G3-SFF dimensional drawing XIMEA Technical Manual, Version: v240108...

  • Page 64: Adpt-Mx-X4G3-Ff-X4G3-Sff Io Connector

    External grounds for power and non-isolated I/O INOUT1 Non-isolated I/O INOUT3 Non-isolated I/O INOUT2 Non-isolated I/O IN GND Ground for Opto-Isolated Inputs (IN1, IN2) OUT GND Ground for Opto-Isolated Out (OUT1, OUT2) INOUT4 Non-isolated I/O Table 30: ADPT-MX-X4G3-FF-X4G3-SFF IO pin assigment XIMEA Technical Manual, Version: v240108...

  • Page 65: Mx610Xr-Sy-X4G3-Ff With Sff Adapter And Fan Coolling

    ADPT-MX-SFF-FAN-COOLER Figure 59: MX610xR-SY-X4G3-FF with SFF adapter and fan coolling ADPT-MX-SFF-WAT-COOLER Figure 60: MX610xR-SY-X4G3-FF with SFF adapter and water coolling XIMEA Technical Manual, Version: v240108...

  • Page 66: Firefly Mtp Adapters

    2.11.12 FireFly MTP adapters Adapter to connect XIMEA FireFly cameras to MTP cable. The camera/s should be connected to these adapters over a FireFly ECUE copper cable (e.g. 10 cm - 3 m). The adapter has an integrated PCUI module, which allows connection to PC over optical MTP cable (e.g. 10 m). Adapters contain also connectors for power and GPI/GPO from the camera.

  • Page 67: Adpt-1P-X8G3-Ff-X8G3-Mtp And Adpt-2P-X2G3-Ff-X4G3-Mtp Dimensional Drawings

    ADPT-1P-X8G3-FF-X8G3-MTP / ADPT-2P-X2G3-FF-X4G3-MTP Figure 62: ADPT-1P-X8G3-FF-X8G3-MTP and ADPT-2P-X2G3-FF-X4G3-MTP dimensional drawings ADPT-4P-X2G3-FF-X8G3-MTP Figure 63: ADPT-4P-X2G3-FF-X8G3-MTP dimensional drawings XIMEA Technical Manual, Version: v240108...

  • Page 68: Pcie Host Adapters

    Supports PCIe Gen3 x4 lines and requires PCIe Gen.3 x8 slot on the computer side. Bandwidth of 32 Gbps. Cable lengths of up to 100 m. HA-1P-X4G3-MTP-X8G3 / HA-2P-X4G3-MTP-X8G3 PCIe MTP Gen3 x4 Host Adapter - single or dual port for MTP fiber optic cables. Figure 64: dimensions of host adapter HA-1P-X4G3-MTP-X8G3 XIMEA Technical Manual, Version: v240108...

  • Page 69: Dimensions Of Host Adapter Ha-2P-X4G3-Mtp-X8G3

    Figure 65: dimensions of host adapter HA-2P-X4G3-MTP-X8G3 HA-2P-X4G3-FF-X8G3 PCIe FireFly Host Adapter Dual - dual ports for Firefly cables. Figure 66: dimensions of host adapter HA-2P-X4G3-FF-X8G3 XIMEA Technical Manual, Version: v240108...

  • Page 70: General Features

    When decimation is chosen, only every n-th pixel is used to create the output image. For example, with a 2x1 vertical skipping, every odd number line is used and every even number line is skipped, resulting in an image with half its original vertical resolution. Skipping is a faster downsampling mode, but also introduces more aliasing effects. XIMEA Technical Manual, Version: v240108...

  • Page 71: Image Data Output Formats

    When using Transport Data Format, the Image Processing block from XiAPI Image Data Flow is skipped and therefore the Transport format is the most effective data format in terms of CPU and RAM usage. Table 31: image formats - MX1510CR-SY-X4G3-FF XIMEA Technical Manual, Version: v240108...

  • Page 72: Acquisition Modes

    Unlike in the free-run, each image exposure can also be triggered with an input trigger signal. In this mode, the sensor waits in stage until the trigger signal arrives. Only then, the exposure of first frame is started, which is followed by the data readout. XIMEA cameras supports several triggered modes along with single image exposure after one trigger.

  • Page 73: Triggered Burst Of Frames - Frame Burst Start

    Exposure time is measured and reported in image metadata. Please see: Exposure Defined by Trigger Pulse Length Figure 70: exposure defined by trigger pulse length XIMEA Technical Manual, Version: v240108...

  • Page 74: Exposure Time

    3.4.4 Programmable gain - south Second of two channels of programmable gain control (PGC) function - Gain setting of Gr, Gb pixels (South column analog gain). This is available only on some cameras. XIMEA Technical Manual, Version: v240108...

  • Page 75: Sensor Shutter Modes

    In contrast to rolling shutter mode the flash strobe does not need to be delayed. Figure 72: global reset release mode - image horizontally moved object Figure 73: global reset release mode with flash - schematic XIMEA Technical Manual, Version: v240108...

  • Page 76: Rolling Shutter Mode

    1/fps. The strobe must also end before the first lines are closed again for exposure, which sets a lower limit for the exposure time, as can be seen in the figure above. Figure 77: rolling shutter mode with flash - schematic XIMEA Technical Manual, Version: v240108...

  • Page 77: How To Freeze The Motion

    Pixel distance (PD) W/PX -> 0.0057m/2592pixels = 2.2um. Pixel distance recalculated FOVPD = FOV/PX = 0.2m/2592 = 77.2um During exposure the object should not move more than 77.2um Flash Time (FT) should be less than FOVPD/CS = 77.2um/0.1m/s = 0.772ms XIMEA Technical Manual, Version: v240108...

  • Page 78: Api Features

    This list is then used for the correction of acquired images during operation. The correction is inactive by default, but can be turned on by the user if a non-processed output is required. XIMEA Technical Manual, Version: v240108...

  • Page 79: Operation

    • MacOS 10.8 or newer All XIMEA cameras are compatible with the most advanced Vision and Image Processing Libraries. See chapter XIMEA Software Packages for more information about the options to access cameras, as well as a list of currently supported libraries and frameworks supported in Windows.

  • Page 80: Ximea Software Packages

    XIMEA API Software Package can be installed on: Microsoft Windows 10, 11. Contents The package contains: • OS Drivers of all XIMEA camera types for OS Microsoft Windows, Windows Server 2008 R2 x86-64, Windows 10 32/64 bit • APIs (xiAPI, xiAPI.NET, xiApiPython •...
  • Page 81 Select the Software components you want to install. You can uncheck the components you don’t want to install, but it is recommended to leave them all checked • Specify the install location - you can leave the default location or change it to your desired location XIMEA Technical Manual, Version: v240108...
  • Page 82 • Now the XIMEA API Software Package should start copying files, updating System Variables and installing drivers if necessary • Installation is completed • Finish XIMEA Technical Manual, Version: v240108...

  • Page 83: Ximea Linux Software Package

    4.2.2 XIMEA Linux software package XIMEA Linux Software Package is tarred installer with files that can be run on Linux Ubuntu 14.04 and 16.04 (32 and 64 Bit) and newer releases. Contents The package contains: • Driver for XIMEA USB2 and USB3 cameras •...
  • Page 84 • Start installation script ./install Note: If logged in user is not root, you will be asked for your password to get root access, because the installation runs with root account using sudo. XIMEA Technical Manual, Version: v240108...

  • Page 85: Ximea Macos Software Package

    Installation Before installing XIMEA macOS Software Package it may be necessary to modify security settings on your computer. The new feature of OS X 10.8 called GateKeeper can prevent you from using our macOS Software Package due to the fact that the current version is unsigned.
  • Page 86 • Download XIMEA macOS Software: rhttp://www.ximea.com/downloads/recent/XIMEA_OSX_SP.dmg • Mount it by double-clicking this file in Finde • Run the install script to install XiAPI on your macOS system • A window with package contents will open XIMEA Technical Manual, Version: v240108...
  • Page 87 Short description The CamTool is a cross-platform application showcasing the features of all XIMEA camera families. It runs on Windows, Linux, macOS systems offering a substantial imaging tool set, which can be further extended with custom modules using a plugin infrastructure. CamTool is based on Qt for the UI and xiAPI for the camera control.

  • Page 88: Ximea Camtool

    Description Control panel Image window Analytics tools Proccessing chain Camera control Functions • To see live image from multiple XIMEA cameras connected • Control the camera parameters • Store of camera image and video • Analyze the image properties •...

  • Page 89: Ximea Control Panel

    Suggests solution for diagnosed issues • Allows setting of User IDs to XIMEA cameras • One click to switch selected XIMEA cameras to USB3 Vision standard and back to XIMEA API • One click update to the latest XIMEA API Software Package •...

  • Page 90: Supported Vision Libraries

    Supported vision libraries All XIMEA cameras are compatible with the most advanced vision and image processing libraries. For GUI based software packages, the cameras can be directly accessed without the need of programming. Code libraries are generally used in conjunction with one of our APIs, in order to add additional functionality (e.g.

  • Page 91: Programming

    On Windows: xiAPI is compiled into xiapi32.dll or xiapi64.dll • On Linux: xiAPI is compiled into /usr/lib/libm3api.so Installation xiAPI is part of all current XIMEA software packages for Windows, Linux and MacOS. For information on the software packages, see XIMEA Software Packages.
  • Page 92 (e.g. 106 - Parameter not supported). Note: Since xiAPI is a unified programming interface for all of XIMEA‘s cameras, not all of the described parameters apply for every camera and sensor model.

  • Page 93: Gpio Schematic

    XI_PRM_GPI_MODE, XI_GPI_TRIGGER) // set digital output 1 mode xiSetParamInt(xiH, XI_PRM_GPO_SELECTOR, 1); xiSetParamInt(xiH, XI_PRM_GPO_MODE, XI_GPO_EXPOSURE_ACTIVE); xiStartAcquisition(handle1); // Trigger signal should start image exposure within timeout #define TIMEOUT_IMAGE_WAITING_MS 10000 xiGetImage(handle, TIMEOUT_IMAGE_WAITING_MS, &image); // process image here… XIMEA Technical Manual, Version: v240108...
  • Page 94 To disable ABC, the application should set parameter XI_PRM_AUTO_BANDWIDTH_CALCULATION to XI_OFF before the first xiOpenDevice is used. This setting disabled ABC and the camera stream is not limited. xiAPI.NET XIMEA Application Programming Interface for Dot Net - Microsoft Visual C#. xiAPI.NET is designed as a wrapper around xiAPI and therefore shares most of its functionality.

  • Page 95: Appendix

    XIMEA xiCOP software (please see section 4.4). It will immediately start searching for connected cameras. Your camera will appear in the XIMEA camera list on the upper left side of the xiCOP window if it is connected properly and your USB interface meets the minimum system requirements described in section 4.1.

  • Page 96: Product Service Request (Psr)

    Step 5 – Waiting for service conclusion Once we have received the camera, we will send you a notification. The XIMEA Service will then check the status of the camera that you have sent for a possible repair. Depending on warranty conditions, product status and agreement one of the following operations will be...

  • Page 97: Safety Instructions And Precautions

    High-energy laser light hitting the sensor directly • Bright light sources hitting the sensor directly (burn-in) • Camera is exposed to X-rays The warranty does not cover damaged cameras caused by X-ray applications or very high intensity light / laser light. XIMEA Technical Manual, Version: v240108...

  • Page 98: Protection Of Optical Components

    • Always use clean boards. • To protect the boards from dirt like dust or liquids always use the board level cameras in clean room environment or use a protective housing. XIMEA Technical Manual, Version: v240108...

  • Page 99: Warranty

    XIMEA warrants to the Original Purchaser that the Camera provided is guaranteed to be free from material and manufacturing defects for a period of two years. Should a unit fail during this period, XIMEA will, at its option, repair or replace the damaged unit. Repaired or replaced Products are covered for the remainder of the original Product warranty period.

  • Page 100: Standard Terms & Conditions Of Ximea Gmbh

    Standard Terms & Conditions of XIMEA GmbH Printed here for your information is the version from May 2021. Please check the most current version at XIMEA General Terms and Conditions General Conditions for the Supply of Products and Services of the Electrical and Electronics Industry (“Grüne Lieferbedingungen” – GL)* for commercial transactions between businesses recommended by ZVEI-Zentralverband Elektrotechnik- und Elektronikindustrie e.
  • Page 101 Purchaser based on statute is limited to cases where the Supplier is responsible for the delay. The above provisions do not imply a change in the burden of proof to the detriment of the Purchaser. XIMEA Technical Manual, Version: v240108...
  • Page 102 The same consequences as upon acceptance arise if and when the Purchaser lets the two-week period expire or the Supplies are put to use after completion of agreed test phases, if any. Article VII: Receiving Supplies The Purchaser shall not refuse to receive Supplies due to minor defects. XIMEA Technical Manual, Version: v240108...
  • Page 103 Supplier. The above provisions do not imply a change in the burden of proof to the detriment of the Purchaser. Any other or additional claims of the Purchaser exceeding the claims provided for in this Article VIII, based on a Defect, are excluded. XIMEA Technical Manual, Version: v240108...
  • Page 104 1. Unless otherwise provided for in the present GL, the Purchaser has no claim for damages based on whatever legal reason, including infringement of duties arising in connection with the contract or tort. 2. This does not apply if liability is based on: XIMEA Technical Manual, Version: v240108...
  • Page 105 The legal invalidity of one or more provisions of this Agreement in no way affects the validity of the remaining provisions. This shall not apply if it would be unreasonably onerous for one of the parties to be obligated to continue the contract. XIMEA Technical Manual, Version: v240108...

  • Page 106: List Of Trademarks

    List of Trademarks XIMEA, xiC, xiQ, xiMU, xiB, xiB-64, xiX, xiX-XL, xiX-Xtreme, xSWITCH, xPLATFORM, xEC, xEC2, xiCool, xiRAY, xiCe, xiSpec, xiFLY, xiD, xiJ, xiLAB, xiAPI, xiCamTool, xiCOP and CURRERA are trademarks or registered trademarks of XIMEA GmbH in Germany, Slovakia, USA and other countries.

  • Page 107: Glossary

    FPGA Field Programmable Gate Array Frame Per Second Printed Circuit Board (same as PWB) Product Service Request v, Region Of Interest Software Development Kit To Be Determined – some parameters require further characterization ii, 3, XIMEA Technical Manual, Version: v240108...

  • Page 108: List Of Figures

    MX610xR-SY-X4G3-FF with MTP adapter and water coolling ............. . 55 XIMEA Technical Manual, Version: v240108...
  • Page 109 GPIO schematic ......................86 XIMEA Technical Manual, Version: v240108...
  • Page 110 ....................89 XIMEA Technical Manual, Version: v240108...
  • Page 111 XIMEA GmbH Am Mittelhafen 16 • 48155 Münster • Germany • www.ximea.com © Copyright, XIMEA GmbH, All rights reserved...
