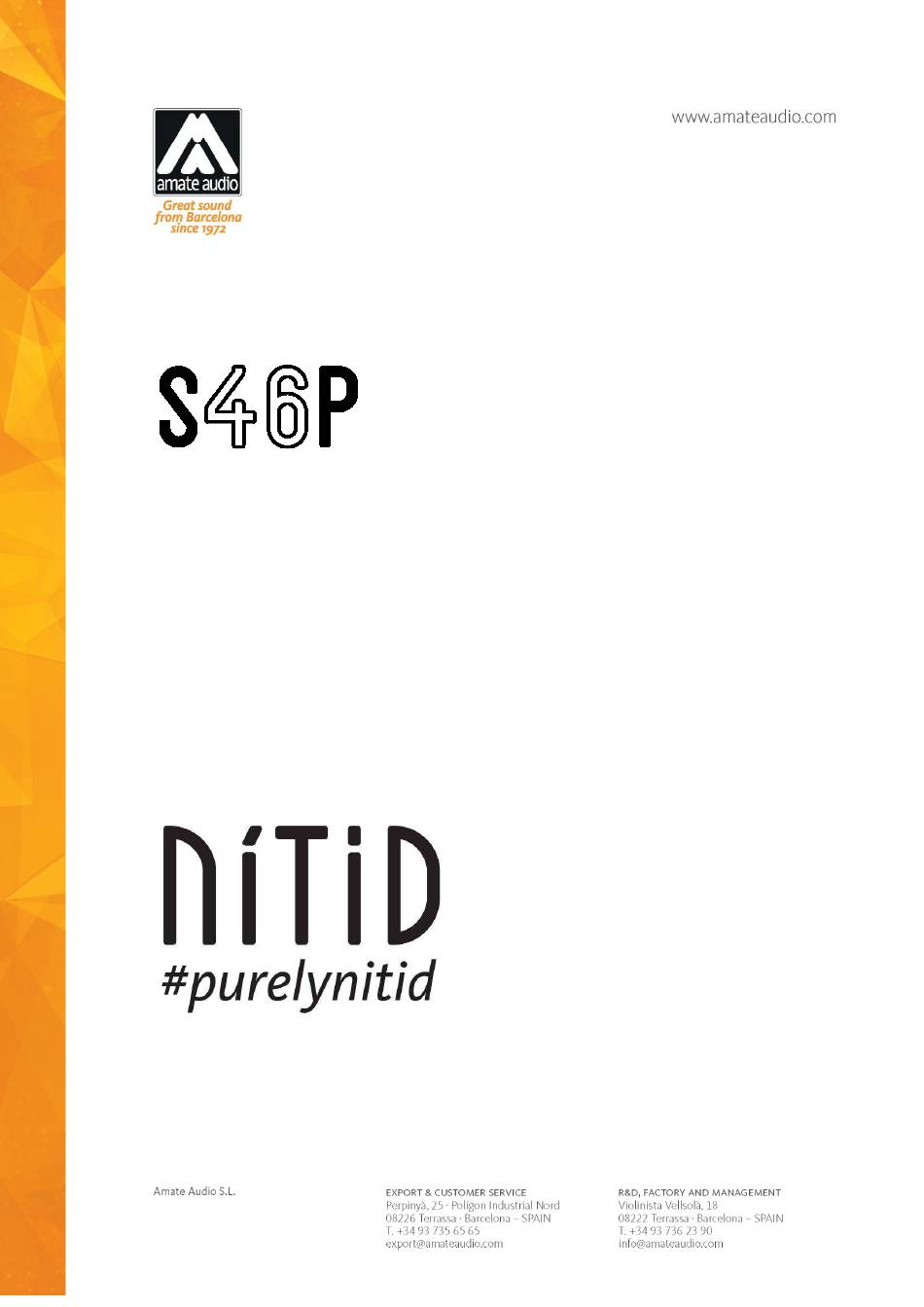

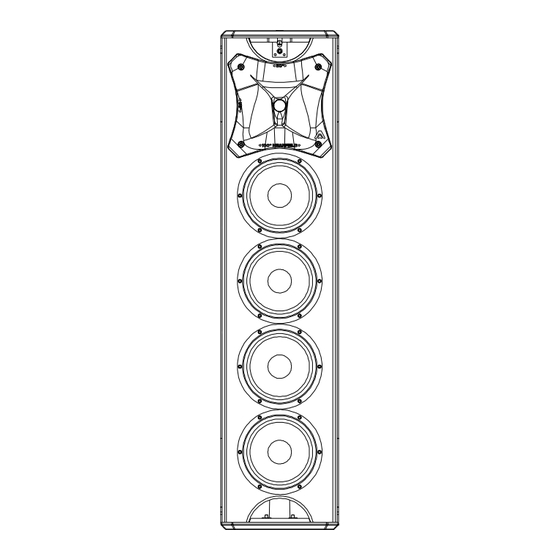

- Page 1 User’s manual September 2024...
- Page 2 NITID S46P Sep 2024 Safety Instructions 1. All safety instructions must be read before using this device. 2. Keep and follow these instructions 3. Heed all warnings 4. The exclamation mark in the triangle indicates internal components which if replaced can affect safety.
- Page 3 Sep 2024 1. INTRODUCTION 1.1. General Amate Audio would like to thank you for your confidence in our NÍTID Series. We suggest you to carefully read the following instructions in order to obtain the best results in performance. 1.2. Features and presentation S46P •...
- Page 4 NITID S46P Sep 2024 2.2.2. Full-Range parallel stereo configuration Connect the amplifier's output to the Speakon’s input of the first cabinet, always respecting the polarity positive +1, negative -1. Then, make a bridge from the first cabinet to the second one.
- Page 5 NITID S46P Sep 2024 Fig. 5. Bi-amplified with subwoofer configuration (option 1) Fig. 6. Bi-amplified with subwoofer configuration (option 2) Amate Audio...
- Page 6 Do not fly systems from unsafe structures. All flying accessories that are not supplied by Amate Audio are the user's responsibility. Use at your own risk. Remember that no risks should be taken with regards to public safety.
- Page 7 NITID S46P Sep 2024 Fig. 9. Use with subwoofer or tripod 3.3. Asymmetrical and rotatable horn The S46P incorporates an asymmetrical dispersion horn, which will optimise coverage. To rotate the horn, unscrew the frontal grille, and then, unscrew the four fixing screws of the horn.
- Page 8 NITID S46P Sep 2024 50º 50º LONG THROW Nearfield 100º 100º SHORT THROW Fig. 10. Vertical position 3.3.2. Horizontal-Positioned Cabinets (Flown and aiming to the audience) We need wide coverage (100º) for the closest listeners and narrow coverage for the distant audience.
- Page 9 NITID S46P Sep 2024 3.4. Rotatable logo All grille’s logo can be rotated. 3.5. Flying Only experienced people should fly speaker cabinets. Extreme care should be taken to assure the load bearing capabilities of the structures where the cabinets will be placed.
- Page 10 NITID S46P Sep 2024 3.5.3. Vertical flying with SP-46N The SP-46N is an optional accessory for mounting on wall (vertical orientation) one unit of S46P. Refer to “SP-46N instructions manual” for more information. Fig. 18. SP-46N bracket for S46P 3.5.4. Flying with ACRM8 The S46P provides several M8 flying points.
- Page 11 NITID S46P Sep 2024 S46P Horizontal flying 3&7 or 4&8 or 1&9 or 2&10 (front rigging points) 5&6 (back tilt point) Vertical Flying 1&2 or 3&4 (front rigging points) 5 or 6 (back tilt point) Fig. 19. S46P rigging points 3.5.5.
- Page 12 NITID S46P Sep 2024 4. TECHNICAL FEATURES S46P Impedance 8 Ω Nominal Power R.m.s 400 W Program 800 W Connectors 1 x Speakon NL4MP input 1 x Speakon NL4MP link Audio Performance Frequency response 50 Hz – 19k Hz (-10 dB usable bandwidth)
- Page 13 T. +34 93 735 65 65 – F. +34 93 735 60 48 – info@amateaudio.com R&D and FACTORY: Violinista Vellsolà, 18 · 08222 Terrassa T. +34 93 736 23 90 – F. +34 93 786 47 00 Barcelona – SPAIN www.amateaudio.com © Copyright 2024 by Amate Audio S.L.
