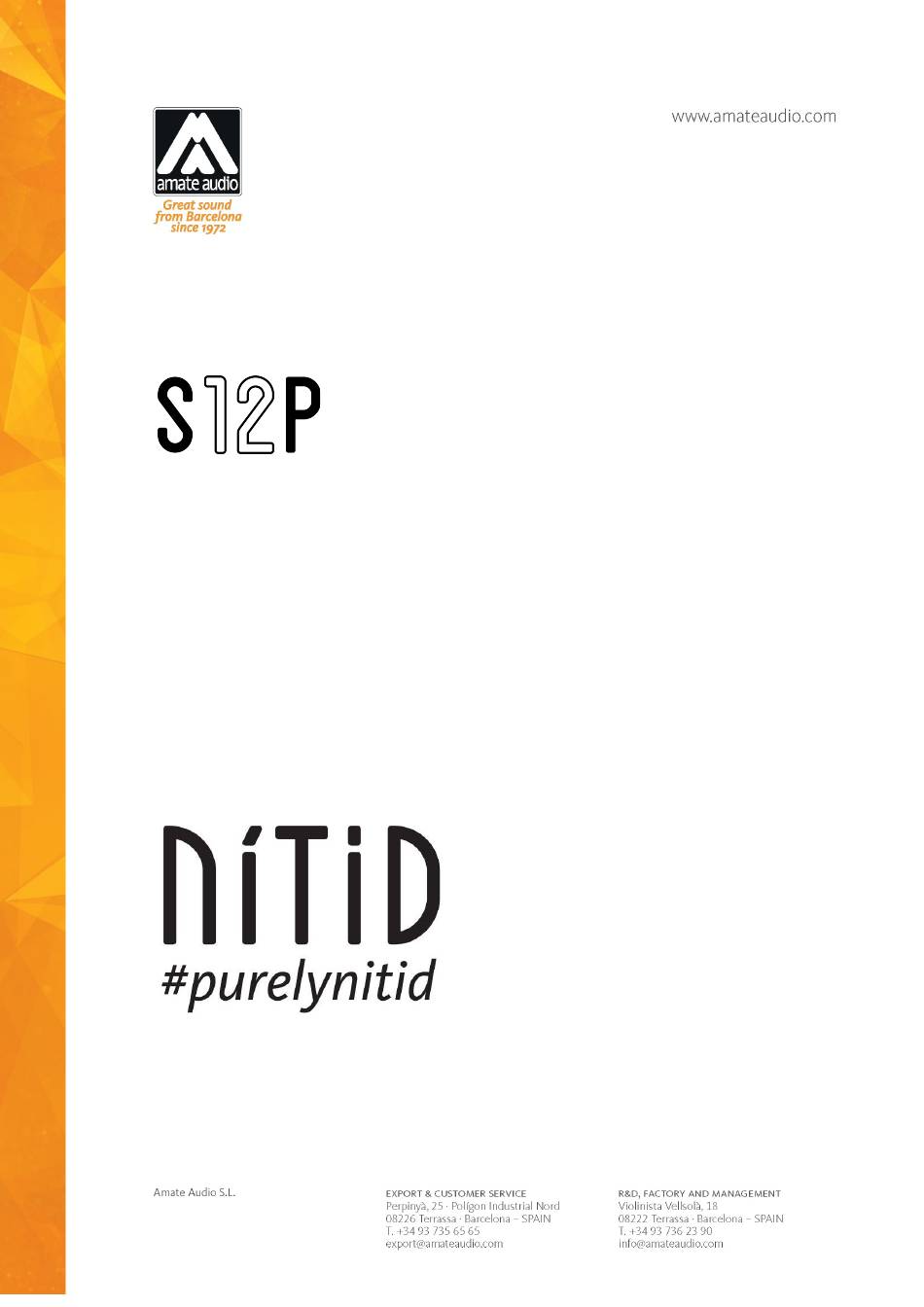

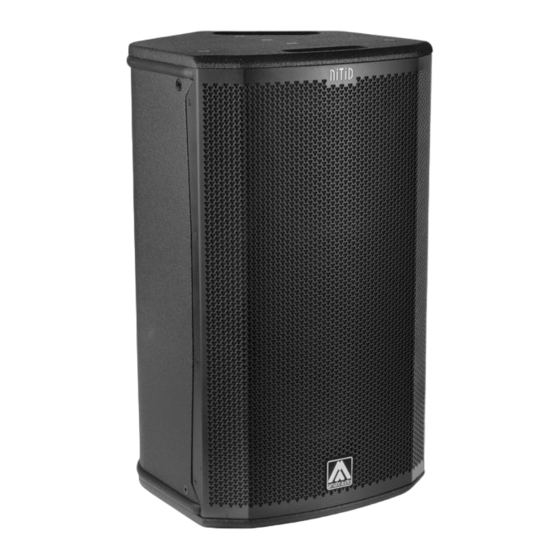

  • Page 1 User’s manual April 2023...
  • Page 2 NITID S12P Apr 2023 Safety Instructions 1. All safety instructions must be read before using this device. 2. Keep and follow these instructions 3. Heed all warnings 4. The exclamation mark in the triangle indicates internal components which if replaced can affect safety.
  • Page 3 Apr 2023 1. INTRODUCTION 1.1. General Amate Audio would like to thank you for your confidence in our NÍTID Series. We suggest you to carefully read the following instructions in order to obtain the best results in performance. 1.2. Features and presentation S12P ...
  • Page 4 NITID S12P Apr 2023 2.2.2. Full-Range parallel stereo configuration Connect the amplifier's output to the Speakon’s input of the first cabinet, always respecting the polarity positive +1, negative -1. Then, make a bridge from the first cabinet to the second one.
  • Page 5 NITID S12P Apr 2023 2.2.4. Bi-Amplified configuration with subwoofer A wire with the maximum available section (4mm minimum) should link the low frequencies output channel of the amplifier to one of the subwoofers. Two subwoofers can be also connected by bridge one to another, as long as the polarity is strictly respected.

  • Page 6: Mounting And Placement

    NITID S12P Apr 2023 3. MOUNTING AND PLACEMENT Flying an S12P system is easy, fast and secure. To perform any operations related to flying the system, read the present document, and act on the warnings and advice given. Only experienced installers with adequate knowledge of the system and local safety regulations should fly speaker cabinets.
  • Page 7 Apr 2023 Fig. 9. Use with subwoofer or tripod 3.3. Asymmetrical and rotatable horn The S12P incorporates an asymmetrical dispersion horn, which will optimise coverage. To rotate the horn, unscrew the frontal grille, and then, unscrew the four fixing screws of the horn. Rotate it 180 degrees taking care of the wires. Screw the horn again and finally place the frontal grille in its right position.
  • Page 8 NITID S12P Apr 2023 50º 50º LONG THROW 100º Nearfield SHORT THROW 100º Fig. 10. Vertical position 3.3.2. Horizontal-Positioned Cabinets (Flown and aiming to the audience) We need wide coverage (100º) for the closest listeners and narrow coverage for the distant audience.
  • Page 9 NITID S12P Apr 2023 3.3.3. Stage monitor use Case 1 We need wider coverage (100º) when musicians are closer to the cabinet than when they move away from it (50º). 100º SHORT THROW Nearfield 100º 50º LONG THROW 50º Fig. 13. Stage monitor use (case 1) Case 2 We need wider coverage (100º) when performers move away from the cabinet (long...
  • Page 10 NITID S12P Apr 2023 3.5. Stage monitor use The wedge shape of S12P allows for use as onstage monitor without the need of incorporating any other accessory. Remember to use the MONITOR preset on your external processor. Fig. 15. Use as on-stage monitor 3.6.
  • Page 11 NITID S12P Apr 2023 3.6.3. Flying with ACRM8 The S12P provides several M8 flying points. Their correct use will permit the flying in vertical position or horizontal position. S12P Horizontal flying 3&6 or 4&7 or 1&8 or 2&9 (front rigging points)

  • Page 12: Technical Features

    NITID S12P Apr 2023 4. TECHNICAL FEATURES S12P Impedance Nominal 8 Ω Power R.m.s 400 W Program 800 W Connectors 1 x Speakon NL4MP input 1 x Speakon NL4MP link Audio Performance Frequency response 53 Hz – 19k Hz (-10 dB usable bandwidth)
  • Page 13 T. +34 93 735 65 65 – F. +34 93 735 60 48 – info@amateaudio.com R&D and FACTORY: Violinista Vellsolà, 18 · 08222 Terrassa T. +34 93 736 23 90 – F. +34 93 786 47 00 Barcelona – SPAIN www.amateaudio.com © Copyright 2023 by Amate Audio S.L.
