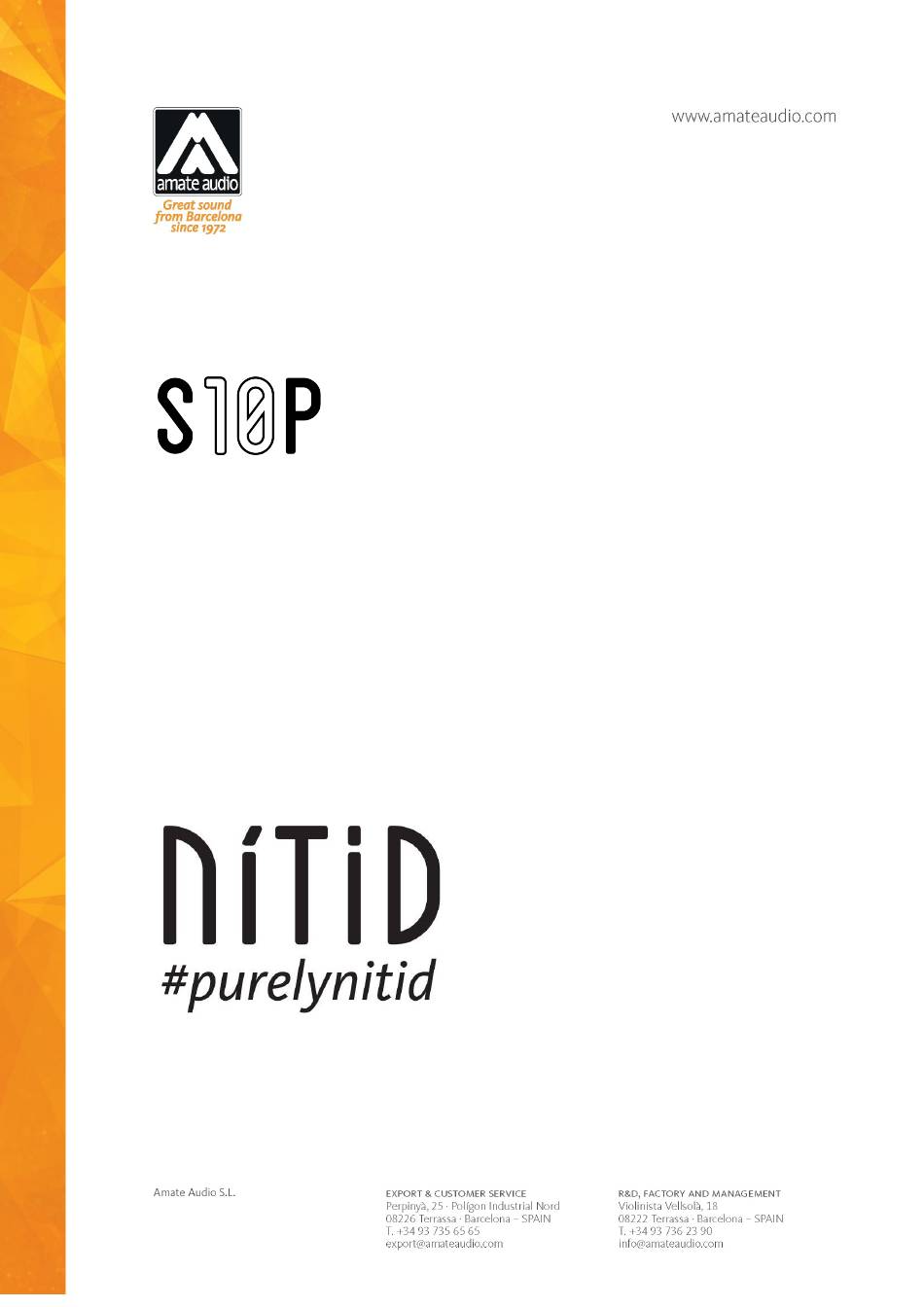

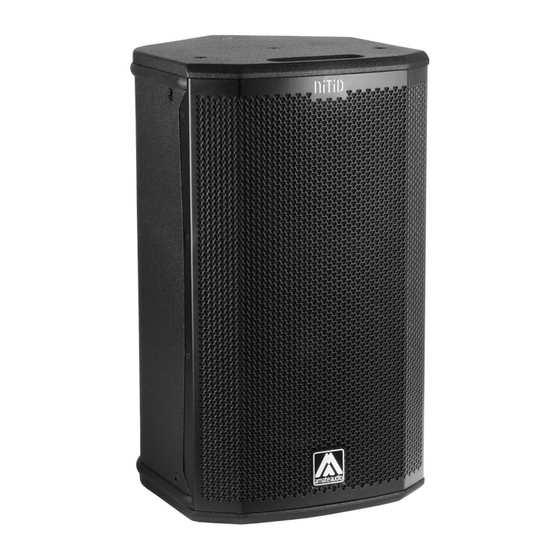

  • Page 1 User’s manual April 2023...
  • Page 2 NITID S10P Apr 2023 Safety Instructions 1. All safety instructions must be read before using this device. 2. Keep and follow these instructions 3. Heed all warnings 4. The exclamation mark in the triangle indicates internal components which if replaced can affect safety.
  • Page 3 Apr 2023 1. INTRODUCTION 1.1. General Amate Audio would like to thank you for your confidence in our NÍTID Series. We suggest you to carefully read the following instructions in order to obtain the best results in performance. 1.2. Features and presentation S10P ...
  • Page 4 NITID S10P Apr 2023 2.2.2. Full-Range parallel stereo configuration Connect the amplifier's output to the Speakon’s input of the first cabinet, always respecting the polarity positive +1, negative -1. Then, make a bridge from the first cabinet to the second one.
  • Page 5 NITID S10P Apr 2023 2.2.4. Bi-Amplified configuration with subwoofer A wire with the maximum available section (4mm minimum) should link the low frequencies output channel of the amplifier to one of the subwoofers. Two subwoofers can be also connected by bridge one to another, as long as the polarity is strictly respected.

  • Page 6: Mounting And Placement

    Do not fly systems from unsafe structures. All flying accessories that are not supplied by Amate Audio are the user's responsibility. Use at your own risk. Remember that no risks should be taken with regards to public safety.
  • Page 7 NITID S10P Apr 2023 Fig. 9. Use with subwoofer or tripod 3.3. Asymmetrical and rotatable horn The S10P incorporates an asymmetrical dispersion horn, which will optimise coverage. To rotate the horn, unscrew the frontal grille, and then, unscrew the four fixing screws of the horn.
  • Page 8 NITID S10P Apr 2023 50º 50º LONG THROW 100º SHORT THROW Nearfield 100º Fig. 10. Vertical position 3.3.2. Horizontal-Positioned Cabinets (Flown and aiming to the audience) We need wide coverage (100º) for the closest listeners and narrow coverage for the distant audience.
  • Page 9 NITID S10P Apr 2023 3.3.3. Stage monitor use Case 1 We need wider coverage (100º) when musicians are closer to the cabinet than when they move away from it (50º). Nearfield 100º 100º SHORT THROW 50º LONG THROW 50º Fig. 13. Stage monitor use (case 1) Case 2 We need wider coverage (100º) when performers move away from the cabinet (long...
  • Page 10 NITID S10P Apr 2023 3.5. Stage monitor use The wedge shape of S10P allows for use as onstage monitor without need incorporating any other accessory. Remember to use the MONITOR preset on your external processor. Fig. 15. Use as on-stage monitor 3.6.
  • Page 11 NITID S10P Apr 2023 3.6.3. Flying with ACRM8 The S10P provides several M8 flying points. Their correct use will permit the flying in vertical position or horizontal position. S10P Horizontal flying 3&6 or 4&7 or 1&8 or 2&9 (front rigging points)

  • Page 12: Technical Features

    NITID S10P Apr 2023 4. TECHNICAL FEATURES S10P Impedance Nominal 8 Ω Power R.m.s 250 W Program 500 W Connectors 1 x Speakon NL4MP input 1 x Speakon NL4MP link Audio Performance Frequency response 55 Hz – 19k Hz (-10 dB usable bandwidth)
  • Page 13 T. +34 93 735 65 65 – F. +34 93 735 60 48 – info@amateaudio.com R&D and FACTORY: Violinista Vellsolà, 18 · 08222 Terrassa T. +34 93 736 23 90 – F. +34 93 786 47 00 Barcelona – SPAIN www.amateaudio.com © Copyright 2023 by Amate Audio S.L.
