Summary of Contents for Amate Audio NITID S26P/8

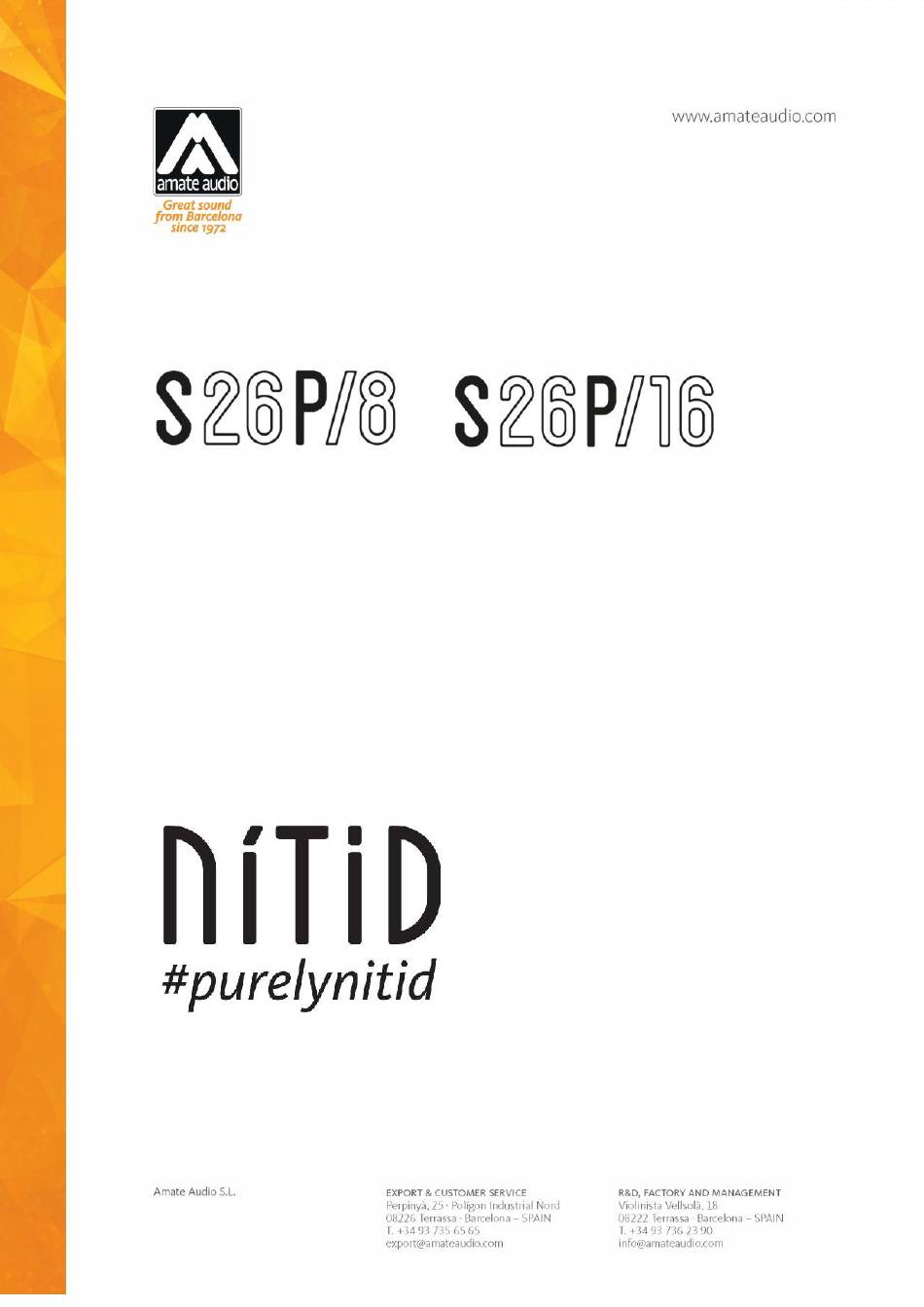

- Page 1 User’s manual December 2021...
- Page 2 13. The equipment shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the device. 14. For hanging and installation, use manufacturer recommended accessories only. Amate Audio...
- Page 3 Dec 2021 1. INTRODUCTION 1.1. General Amate Audio would like to thank you for your confidence in our NITID Series. We suggest you to carefully read the following instructions in order to obtain the best results in performance. 1.2. Features and presentation S26P ...
- Page 4 It is also correct, if the installation requires so, to make the connection in the opposite way, that is, from the amplifier to the top cabinet and then to the subwoofer. Fig. 4. Passive configuration with subwoofer Amate Audio...
- Page 5 In order to allow a bridge connection between cabinets, each one of them has been provided with two Speakon connectors that allow the Input / Output function indistinctly. Terminal Pins +1/-1 must be always used, disregarding the +2/-2 which are not internally connected. Amate Audio...
-
Page 6: Mounting And Placement
Hanging hardware (as chains, eyebolts, lock pins...) should be regularly inspected and replaced if in doubt. DO NOT SUSPEND THE CABINETS FROM THE HANDLES Amate Audio... - Page 7 Fig. 10. SP-6N bracket for S26P 3.4.3. Vertical flying with SP-WHR The SP-WHR is an optional accessory for mounting on wall (vertical orientation) one unit of S26P. Refer to “SP-WHR instructions manual” for more information. Fig. 11. SP-WHR bracket for S26P Amate Audio...
- Page 8 Fig. 12. S26P flying with ACR-M8 3.4.5. Horizontal flying with UB-L The UB-L is an optional accessory for mounting on wall (horizontal orientation) one unit of S26P. Refer to “UB-L instructions manual” for more information. Fig. 13. U-BL bracket for S26P Amate Audio...
-
Page 9: Technical Features
572 mm Width 230 mm Depth 250 mm Weight (net) 9.1 Kg Material Multilayer birch plywood Finish Hi-resistance black matt Polyurea coating. 1.5 mm steel front grille with black acoustic mesh Note: Specifications subjected to change without prior notice. Amate Audio... - Page 10 T. +34 93 735 65 65 – F. +34 93 735 60 48 – info@amateaudio.com R&D and FACTORY: Violinista Vellsolà, 18 · 08222 Terrassa T. +34 93 736 23 90 – F. +34 93 786 47 00 Barcelona – SPAIN www.amateaudio.com © Copyright 2021 by Amate Audio S.L.
