Summary of Contents for Amate Audio NITID S6P/8

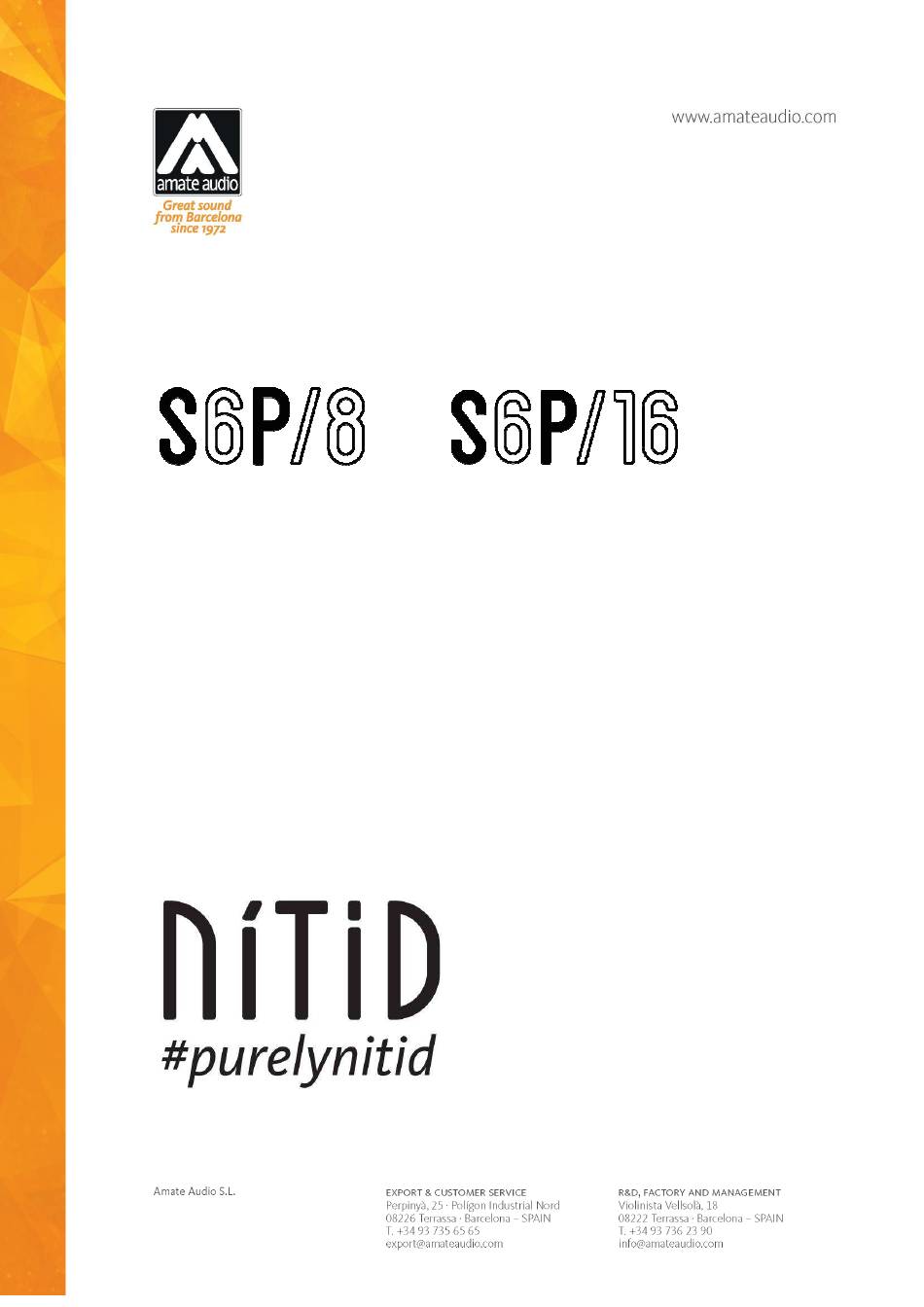

- Page 1 User’s manual April 2023...
- Page 2 13. The equipment shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the device. 14. For hanging and installation, use manufacturer recommended accessories only. Amate Audio...
- Page 3 Apr 2023 1. INTRODUCTION 1.1. General Amate Audio would like to thank you for your confidence in our NITID Series. We suggest you to carefully read the following instructions in order to obtain the best results in performance. 1.2. Features and presentation •...
- Page 4 It is also correct, if the installation requires so, to make the connection in the opposite way, that is, from the amplifier to the top cabinet and then to the subwoofer. Fig. 4. Passive configuration with subwoofer Amate Audio...
- Page 5 In order to allow a bridge connection between cabinets, each one of them has been provided with two Speakon connectors that allow the Input / Output function indistinctly. Terminal Pins +1/-1 must be always used, disregarding the +2/-2 which are not internally connected. Amate Audio...
-
Page 6: Mounting And Placement
Only experienced people should fly speaker cabinets. Extreme care should be taken to assure the load bearing capabilities of the structures where the cabinets will be placed. Hanging hardware (as chains, eyebolts, lock pins...) should be regularly inspected and replaced if in doubt. Amate Audio... - Page 7 Fig. 10. SP-6N bracket for S6P 3.4.3. Vertical flying with SP-WHR The SP-WHR is an optional accessory for mounting on wall (vertical orientation) one unit of S6P. Refer to “SP-WHR instructions manual” for more information. Fig. 11. SP-WHR bracket for S6P Amate Audio...
-
Page 8: Technical Features
370 mm Width 220 mm Depth 226 mm Weight (net) 5.4 Kg Material Multilayer birch plywood Finish Hi-resistance black matt Polyurea coating. 1.5 mm steel front grille with black acoustic mesh Note: Specifications subjected to change without prior notice. Amate Audio... - Page 9 T. +34 93 735 65 65 – F. +34 93 735 60 48 – info@amateaudio.com R&D and FACTORY: Violinista Vellsolà, 18 · 08222 Terrassa T. +34 93 736 23 90 – F. +34 93 786 47 00 Barcelona – SPAIN www.amateaudio.com © Copyright 2023 by Amate Audio S.L.
