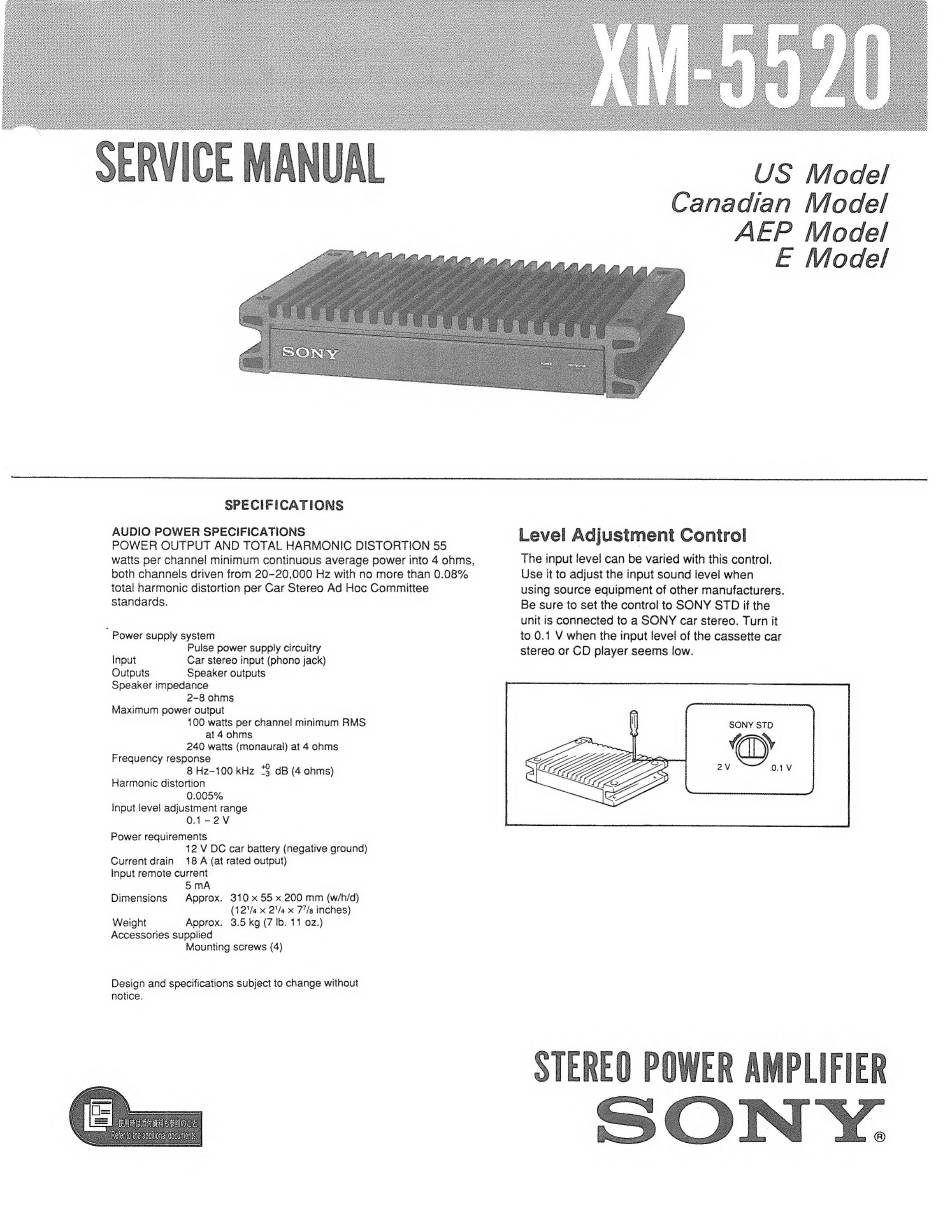

Sony XM-5520 Service Manual

SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION 55
watts per channel minimum continuous average power into 4 ohms,
both channels driven from 20-20,000 Hz with no more than 0.08%
total harmonic distortion per Car Stereo Ad Hoc Committee
standards.
" Power supply system
Pulse power supply circuitry
Input Car stereo input (phono jack)
Outputs Speaker outputs
Speaker impedance
2-8 ohms
Maximum power output
100 watts per channel minimum RMS
at 4 ohms
240 watts (monaural) at 4 ohms
Frequency response
8 Hz-100 kHz *3 dB (4 ohms)
Harmonic distortion
0.005%
Input level adjustment range
01-2V
Power requirements
12 V DC car battery (negative ground)
Current drain 18 A (at rated output)
Input remote current
5mA
Dimensions Approx. 310 x 55 x 200 mm (w/h/d)
(12'/6 x 2'/4 x 77/s inches)
Weight Approx. 3.5 kg (7 Ib. 11 02.)
Accessories supplied
Mounting screws (4)
Design and specifications subject to change without
notice.
US Model
Canadian Model
AEP Model
E Model
Level Adjustment Control
The input level can be varied with this control.
Use it to adjust the input sound level when
using source equipment of other manufacturers.
Be sure to set the control to SONY STD if the
unit is connected to a SONY car stereo. Turn it
to 0.1 V when the input level of the cassette car
stereo or CD player seems low.
SONY STD
"ANY
2Vv
STE
