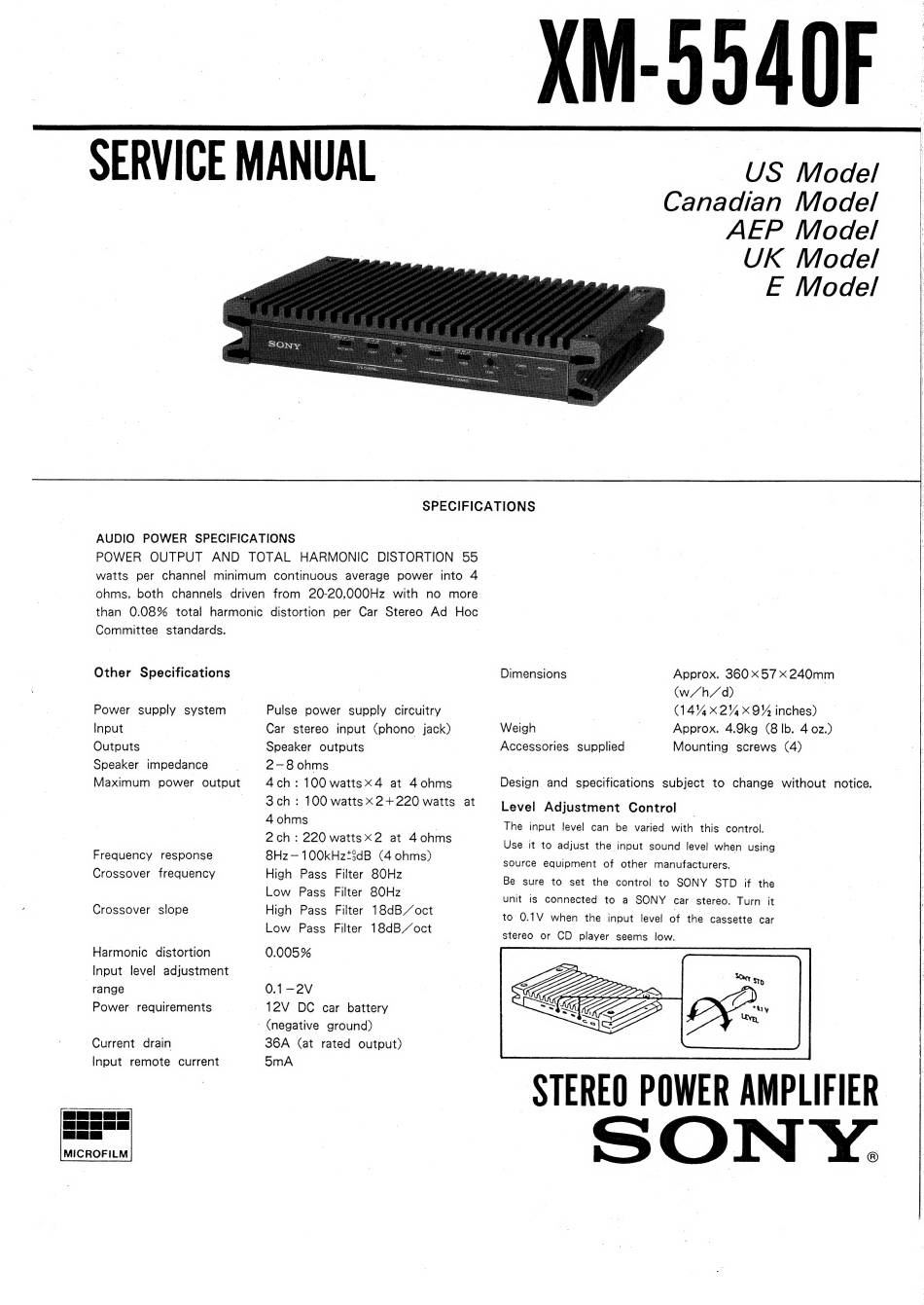

Sony XM-5540F Service Manual

SERVICE MANUAL
XM-5540F
US Model
Canadian Model
AEP Model
UK Model
E Model
SPECIFICATIONS
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION 55
watts per channel minimum continuous average power into 4
ohms, both channels driven from 20-20,000Hz with no more
than 0.08% total harmonic distortion per Car Stereo Ad Hoc
Committee standards.
Other Specifications
Power supply system
Input
Outputs
Speaker impedance
Maximum power output
Frequency response
Crossover frequency
Crossover slope
Harmonic distortion
Input level adjustment
"range
Power requirements
Current drain
Input remote current
Pulse power supply circuitry
Car stereo input (phono jack)
Speaker outputs
2-8 ohms
4ch: 100 wattsx4 at 4ohms
3ch: 100 wattsx2+220 watts at
4 ohms
2ch: 220 wattsx2 at 4 ohms
8Hz—100kHz*3dB (4 ohms)
High Pass Filter 80Hz
Low Pass Filter 80Hz
High Pass Filter 18dB/oct
Low Pass Filter 18dB/oct
0.005%
0.1-2V
12V DC car battery
' (negative ground)
36A (at rated output)
5mA
Approx. 360 x57 x 240mm Dimensions
(w/h/d)
(14% x2%x9% inches)
Weigh Approx. 4.9kg (8 lb. 4 02z.)
Accessories supplied Mounting screws (4)
Design and specifications subject to change without notice.
Level Adjustment Control _
The input level can be varied with this control.
Use it to adjust the input sound level when using
source equipment of other manufacturers.
to 0.1V when the input level of the cassette car
stereo or CD player seems low.
STEREO POWER AMPLIFIER
MICROFILM
SONY
